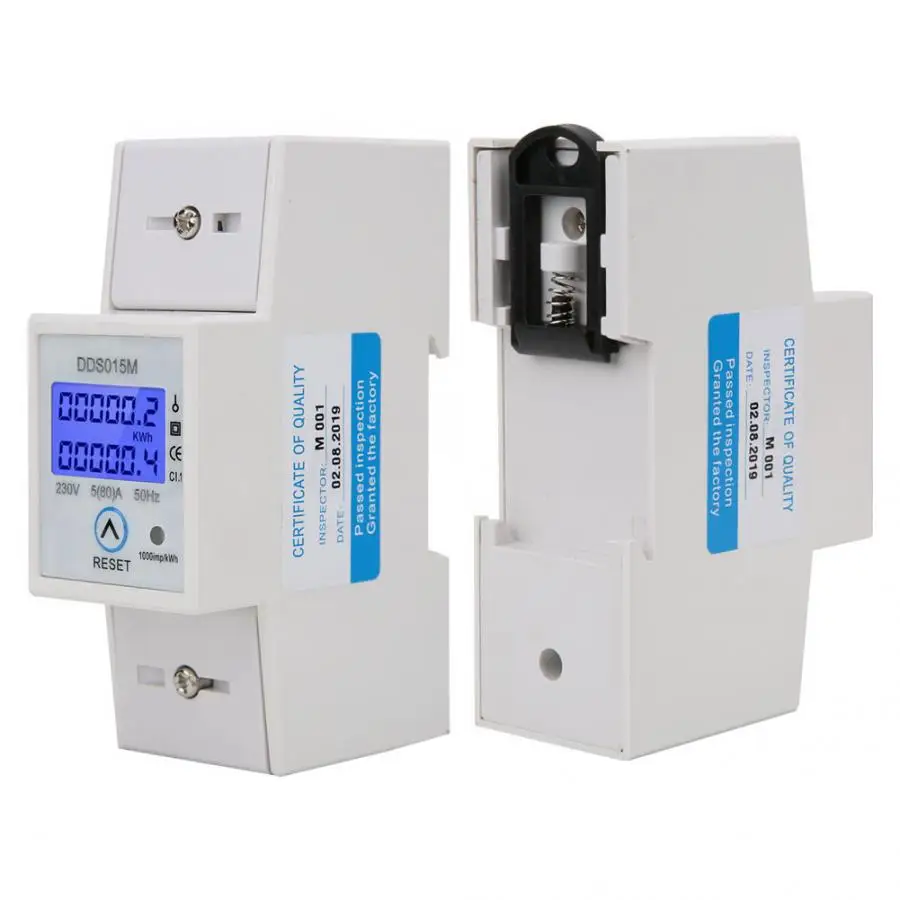

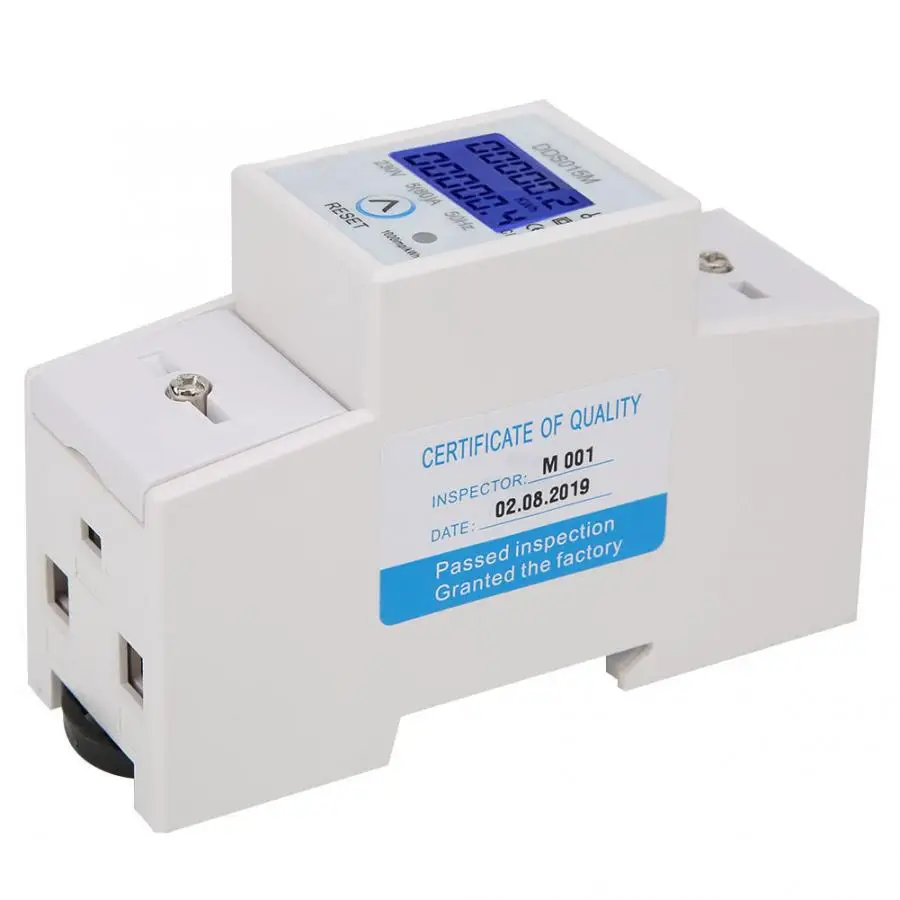

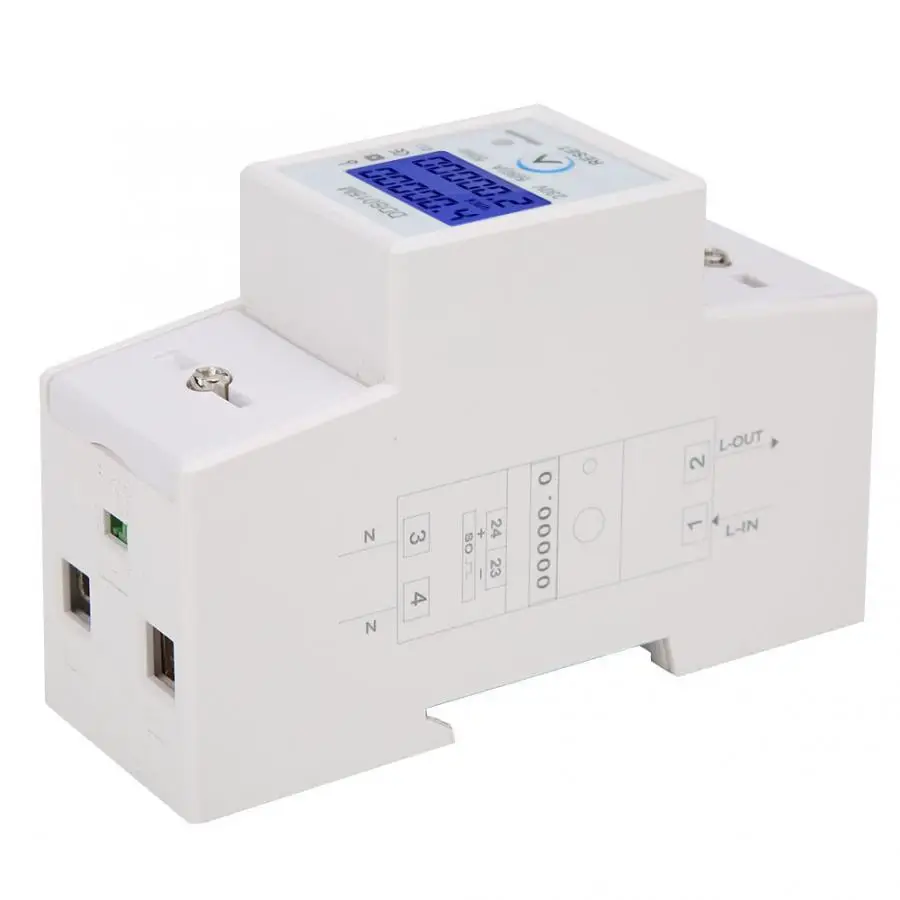

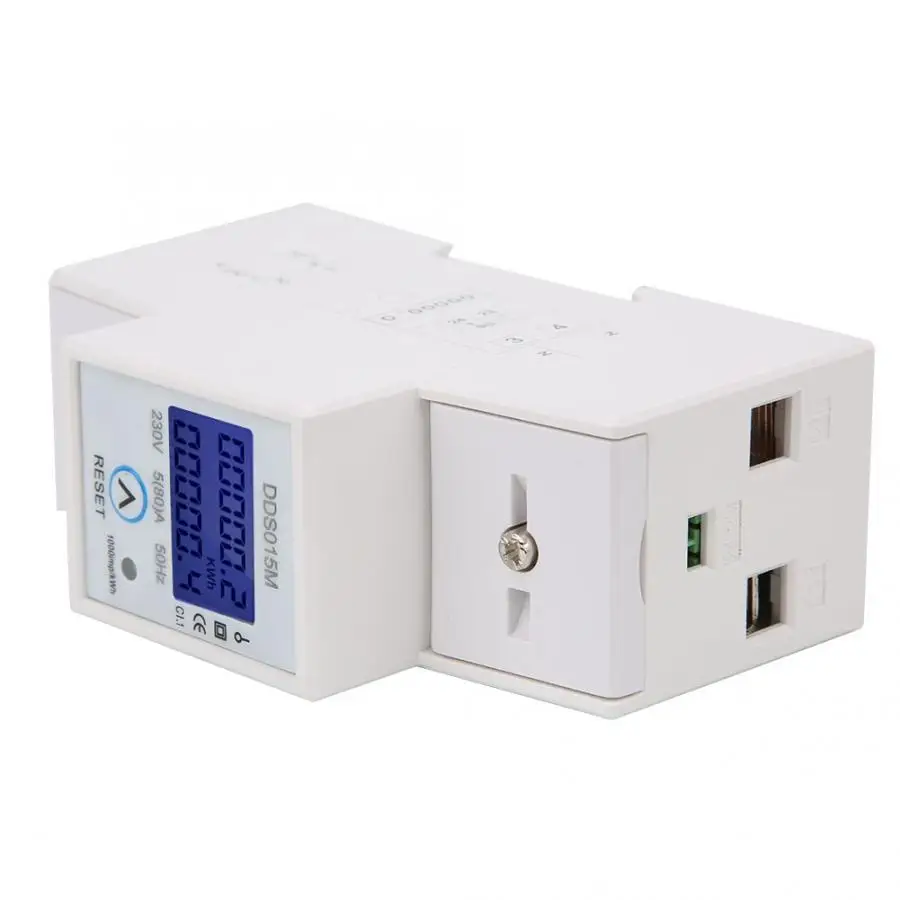

DDS015M Watt Hour Meter Digital Display Single Phase Electric Power Meter Can be Reset 230V Electric Meter

Product Overview

Description

DDS015M Watt Hour Meter Digital Display Single Phase Electric Power Meter Can-be-Reset 230V Electric Meter

Feature:

1. The meter can be reset(only for temporary power counting).

2. Wide application,can be used in many situations.

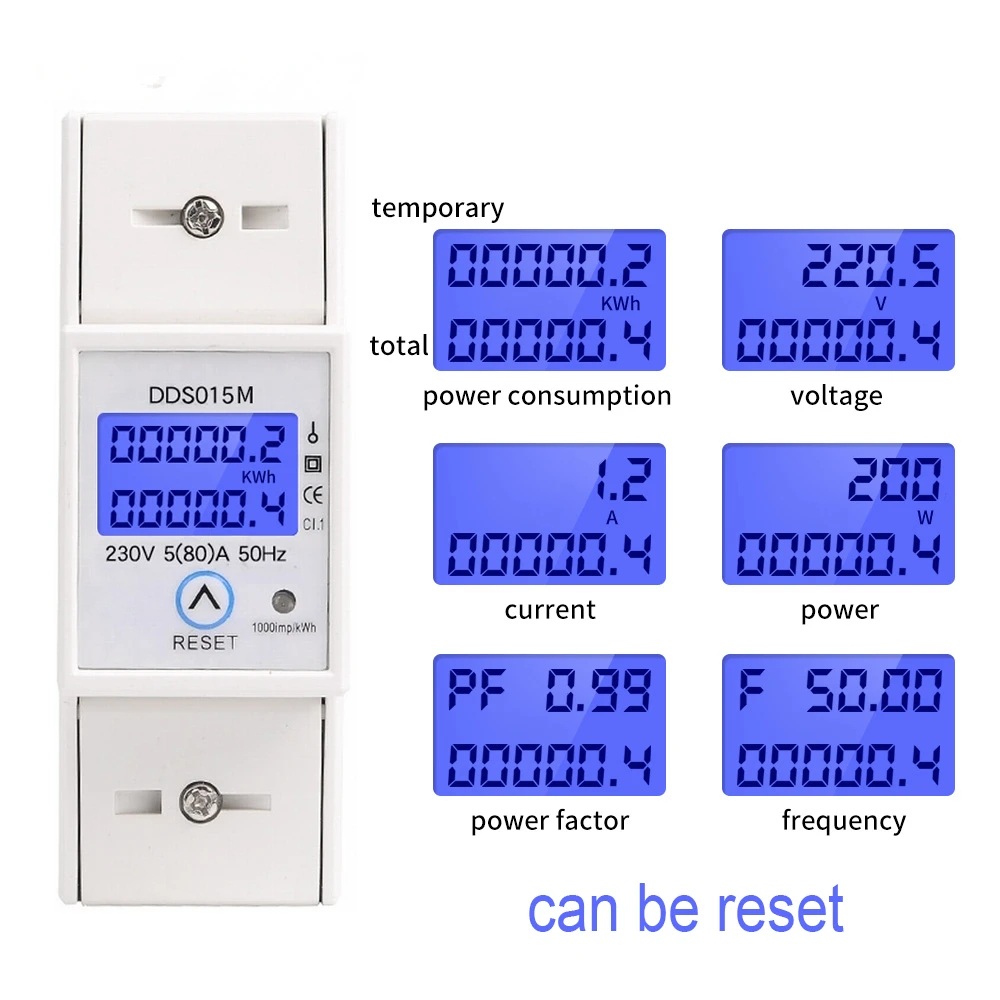

3. Multi-function,the meter can carousel display Kwh / voltage / current / power / power factor / frequency.

4. Two-line display: temporary power consumption and total power consumption (temporary power consumption can be reset, total power consumption cannot be reset).

5. 35mm DIN-rail mounting is convenient and easy.



Specification:



Item Type:Watt Hour Meter
Rated Current:5A
Maximum Current:80A
Display Type:LCD

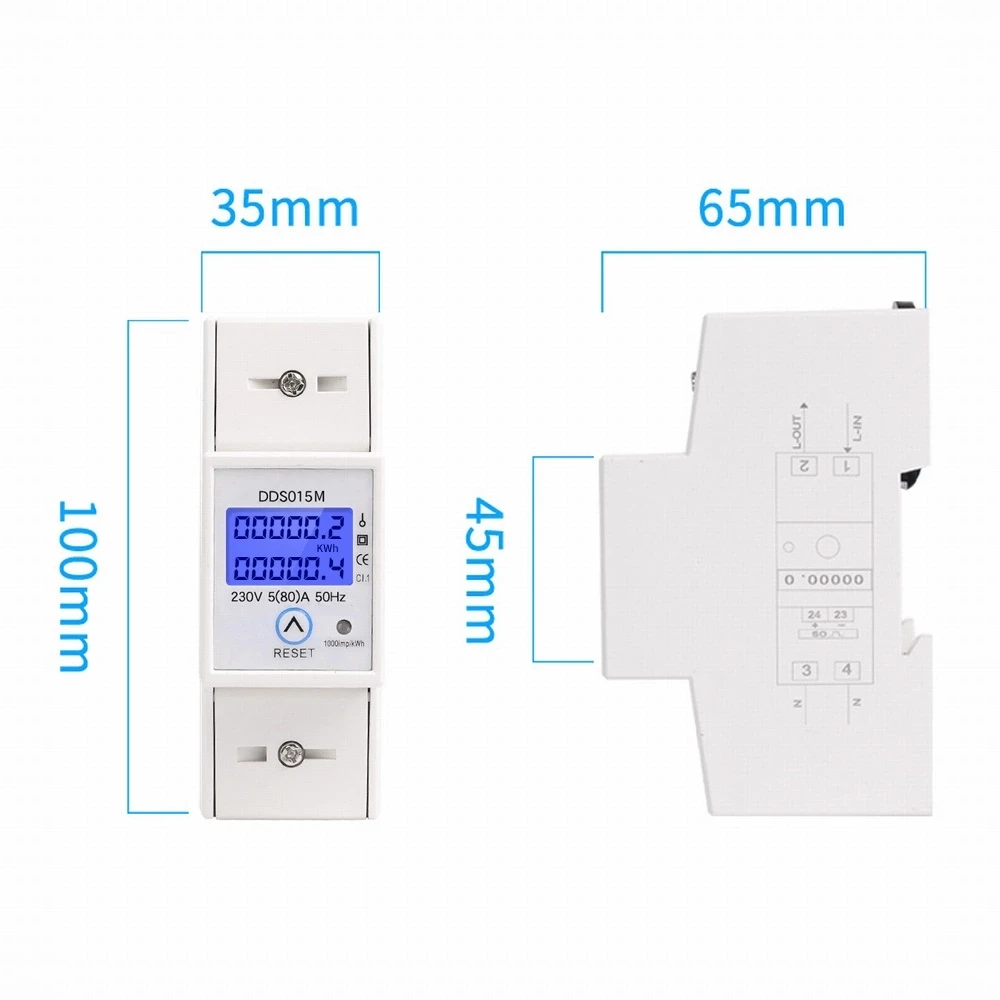

35mm DIN-Rail Mount.
Model:DDS015M
Accuracy Level:1
Measuring Range:0.0-99999.0kwh
Power Source:AC
Output Voltage:230VAC
Rated Voltage:230VAC
Phase:Single Phase
Pulse Frequency:1000imp/kwh



Package List:

1 x Users Manual
