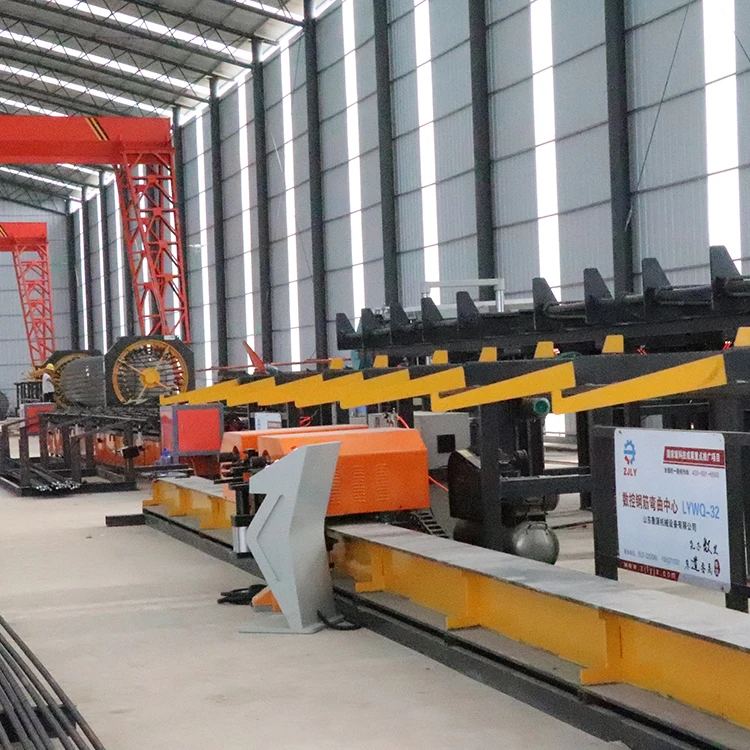

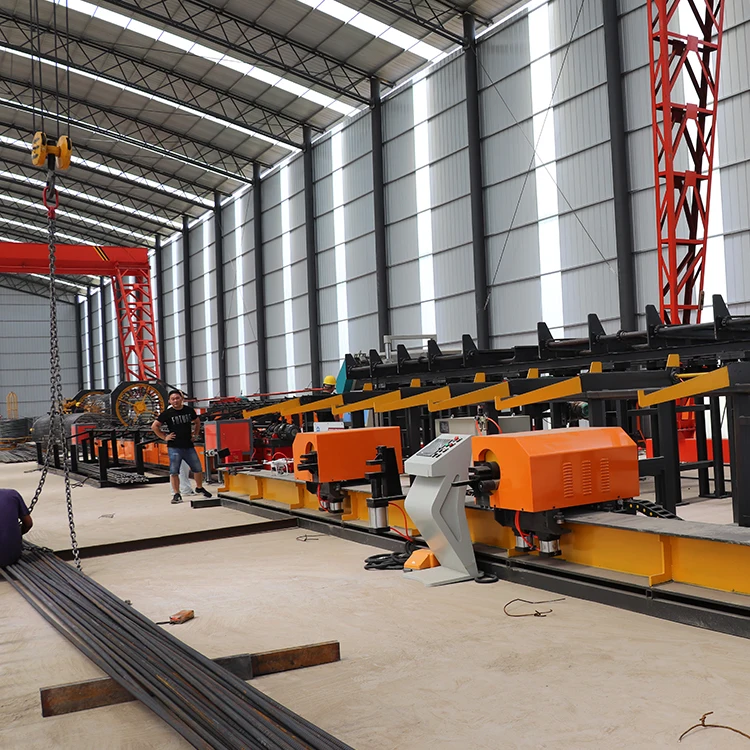

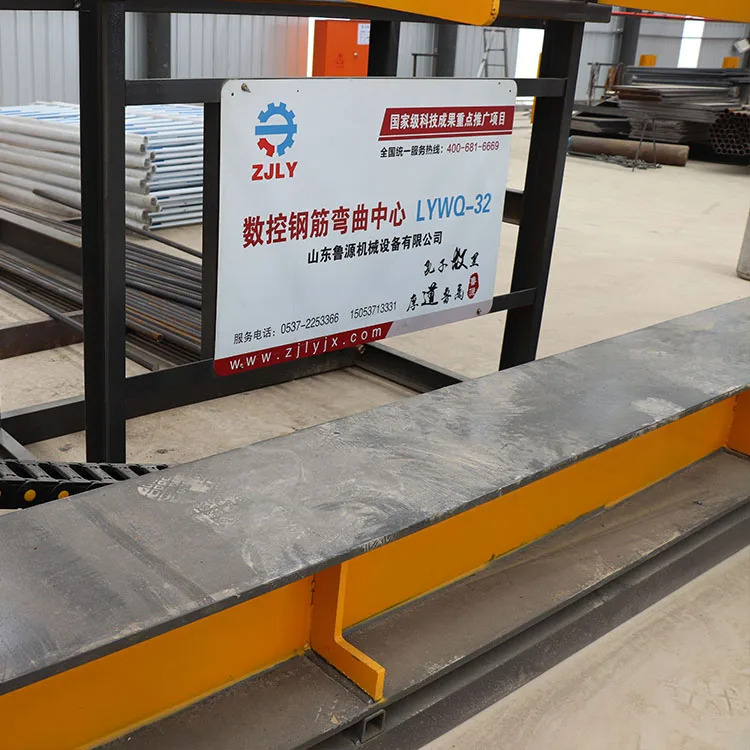

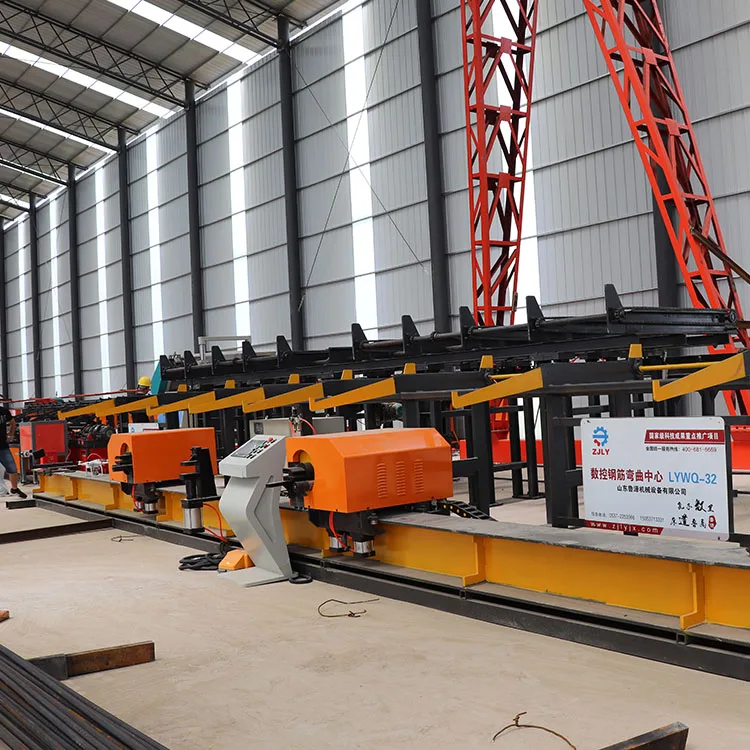

Automatic two-way two head vertical CNC wire bender machine Features: 1. Brake lock mechanism adopts 8 pneumatic brakes to ensure the forming accuracy.

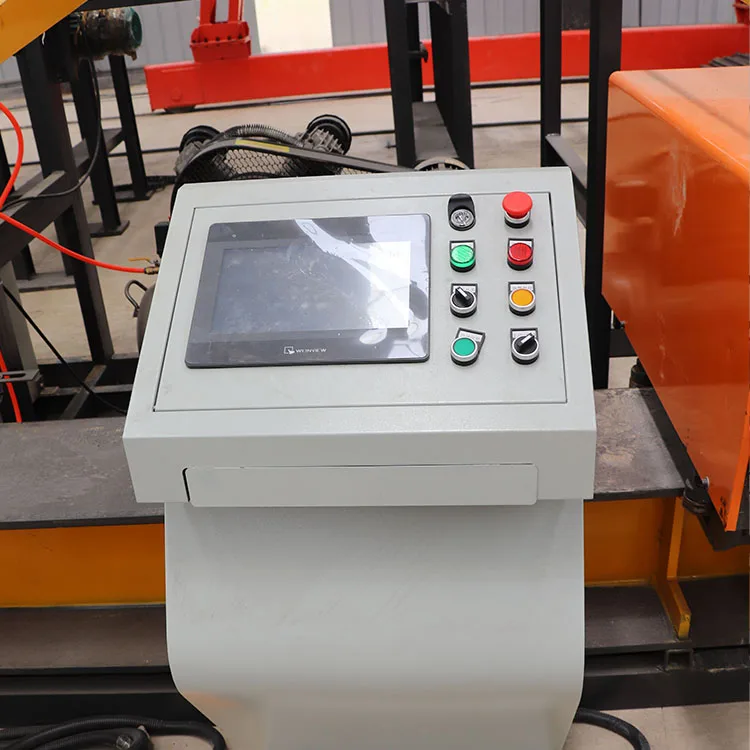

2. The control system adopts high-performance imported PLC and hd touch screen, which is convenient to operate and responsive.
3. The bending mold and the bending axle sleeve are made of special steel and heat-treated with high wear resistance and long service life. 4. The walking track adopts high-precision rack and gear transmission with low noise.

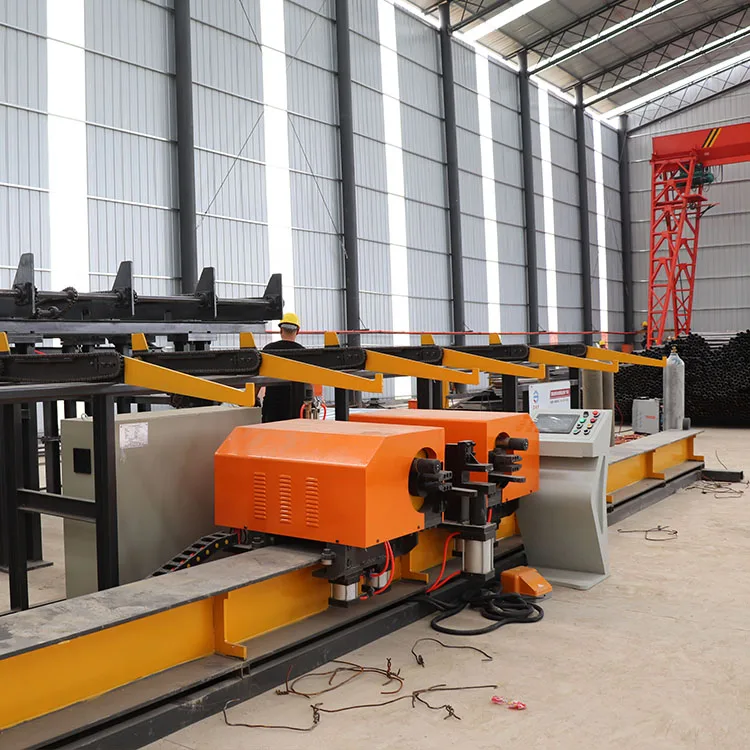

5. Double independent nose, more efficient work, free fixed ruler, details of patent modification.
6. Rolling feeding platform, can carry a large number of raw materials, convenient loading and unloading.

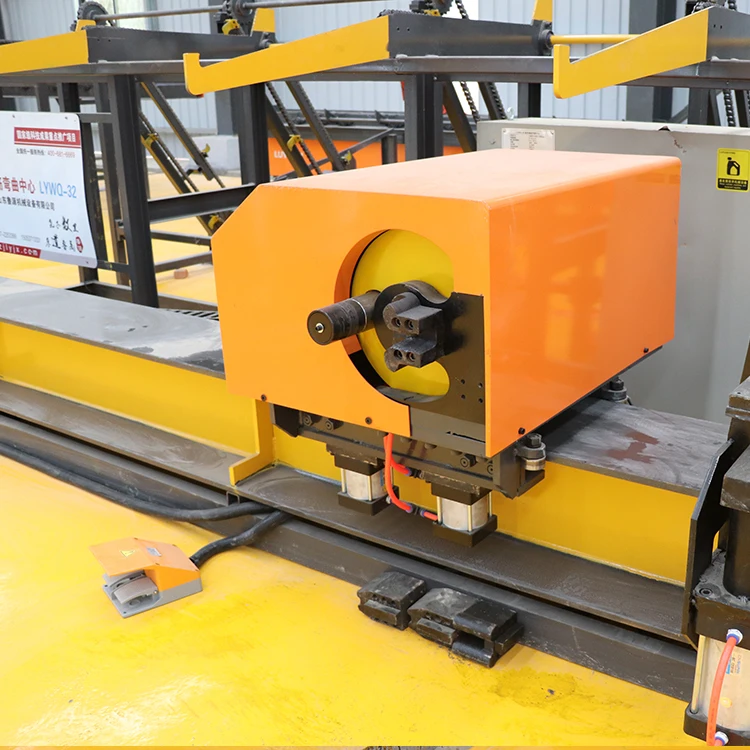

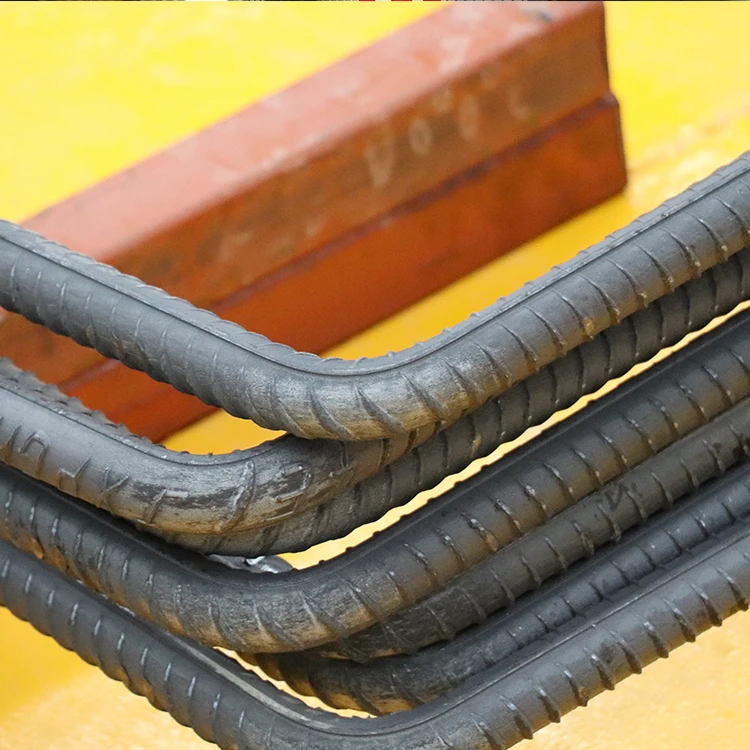

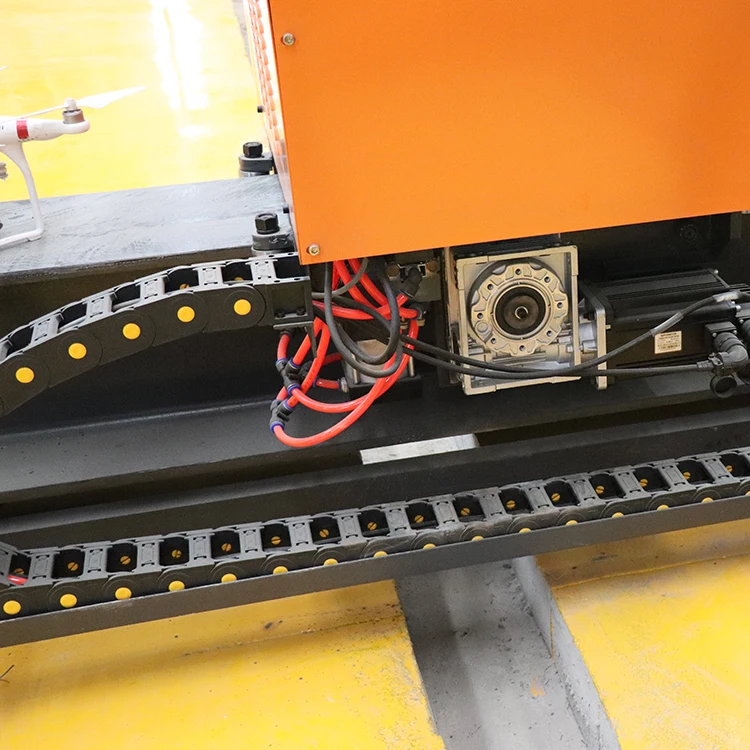

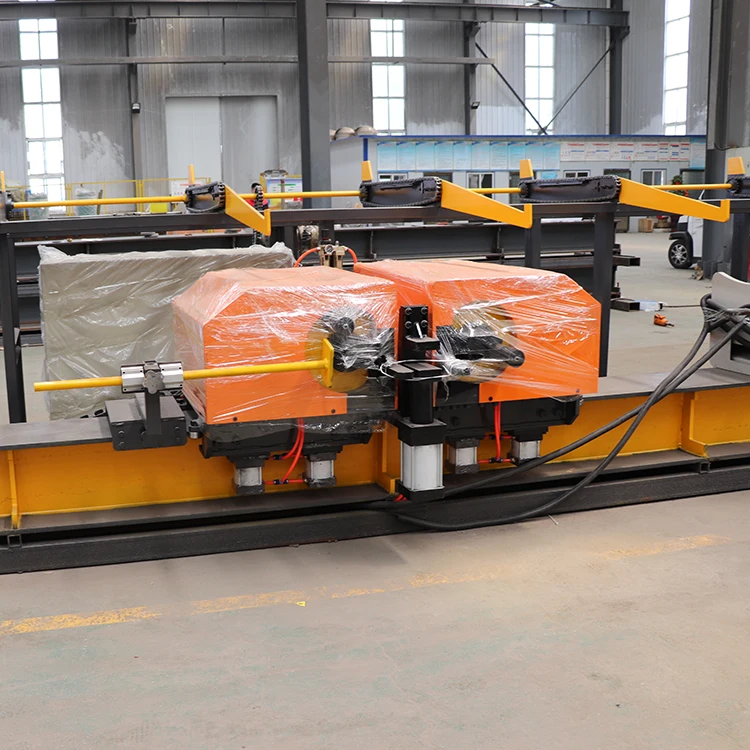

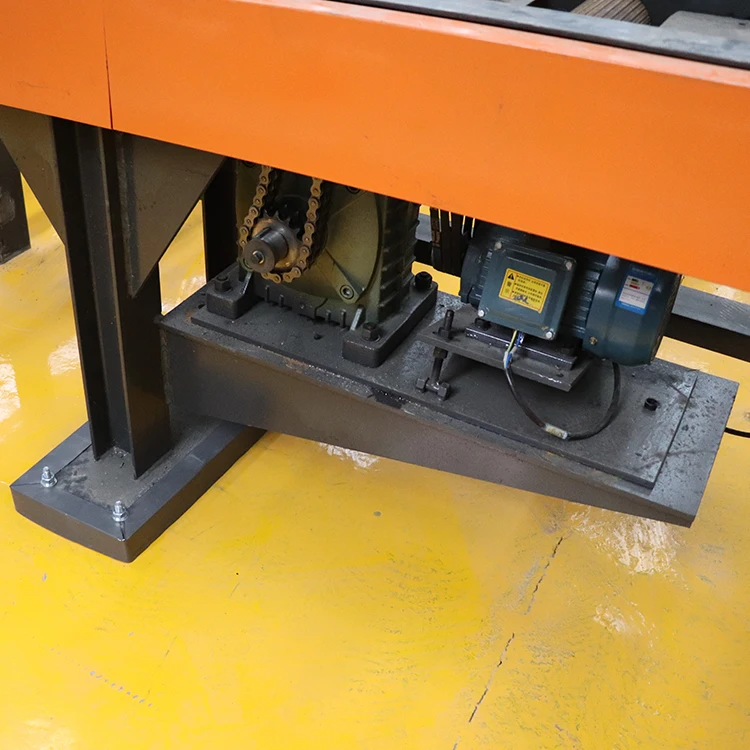

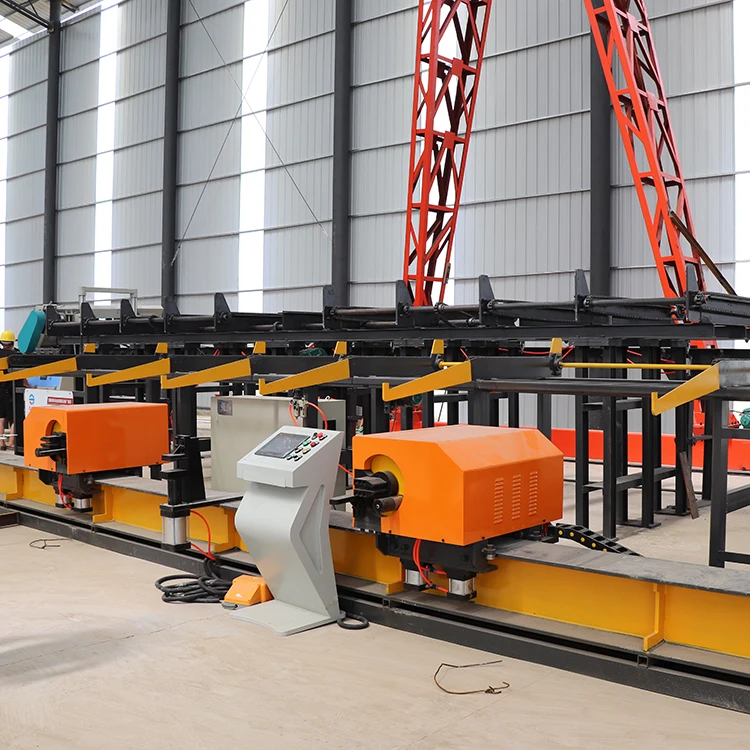

Detailed Images
Specification
Overall size
12000*2180*1560(mm)
Bending speed
0~8r.p.m
Moving speed
0.4~1m/s
Voltage
380v 50hz
Total power
12.6kw
Actual power consumption
4kw/h
Max. bending angle
upward bending0~180°
Min. curved edge size
Φ 10mm 560mm
downward bending0~120°
Φ 32mm 620mm
Min. length of curved edge
60mm
Max. curved edge size
11m
Min. bending length
700mm
Bidirectional bending
Φ10~28mm
Unidirectional bending
Φ10~32mm
Bending rebar diameter(mm)
10
12
14
16
18
20
22
25
28/32
No. of rebars
7
6
5
4
3
3
2
2
1

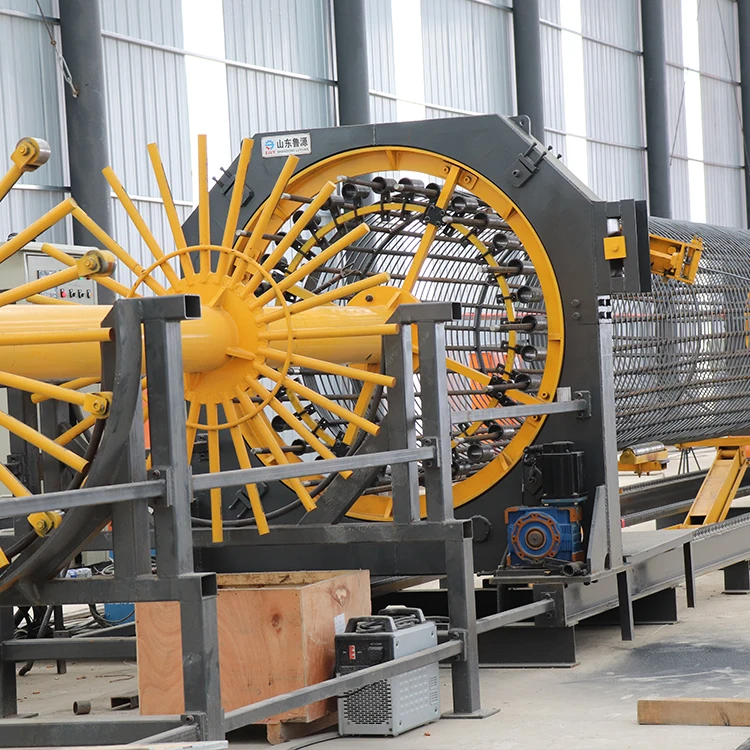

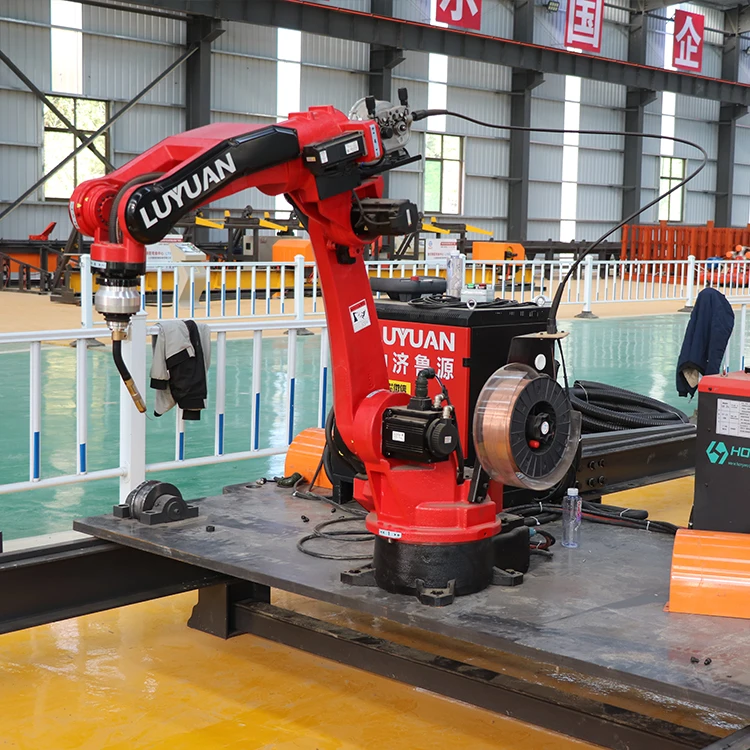

Related Products
Our Service
1, warranty period 1 year from B/L date. 2, within warranty period you could get spare parts for free. 3, You could get free training in our factory. 4, 24 hours technical support by Email, calling or door-to-door service.

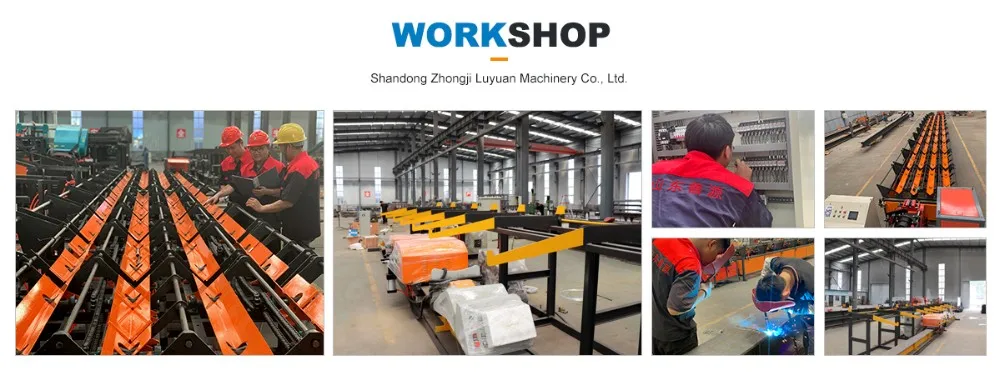

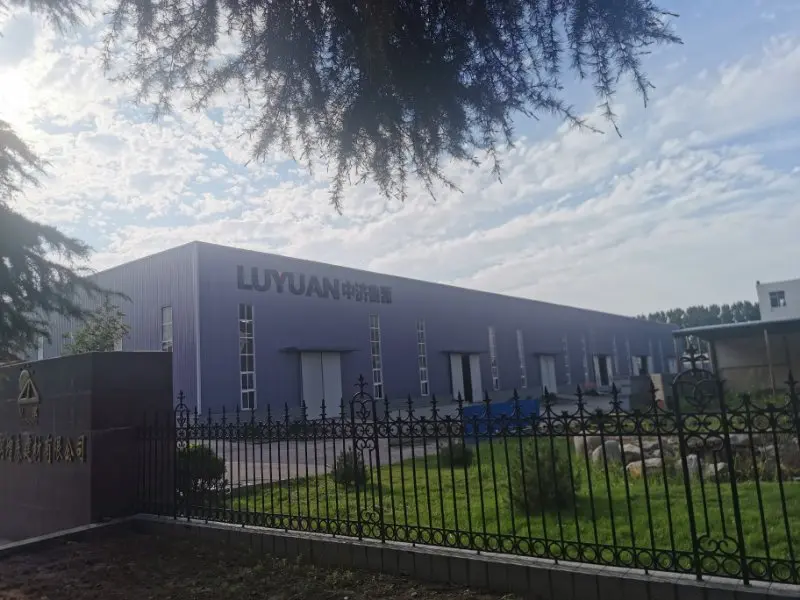

Our Company
We are manufacturer of pile cage welding machine , CNC automatic steel bar bending machine,bending machine ,cutting machine, steel bar straightening machine etc.we also can supply setting up a new factory full line service . We have already exported various kinds of concrete pile ,pole and pipe concern making machines to overseas countries and regions such as Indonesia, Parkistan,Vietnam, Myanmar ,Korea,Malaysia ,South african,Mideast Southeastern Asia, etc..
Customer Photos
FAQ
Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below: Q:Where is your factory located? How can I visit there? A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
