Product Overview

Description

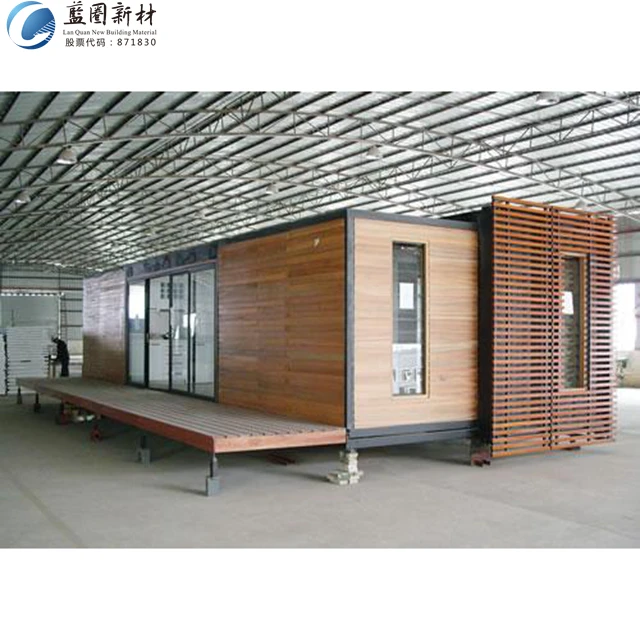

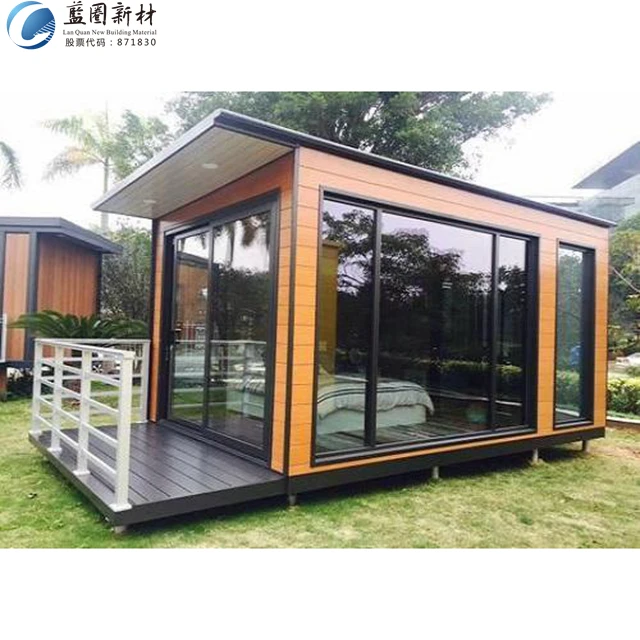

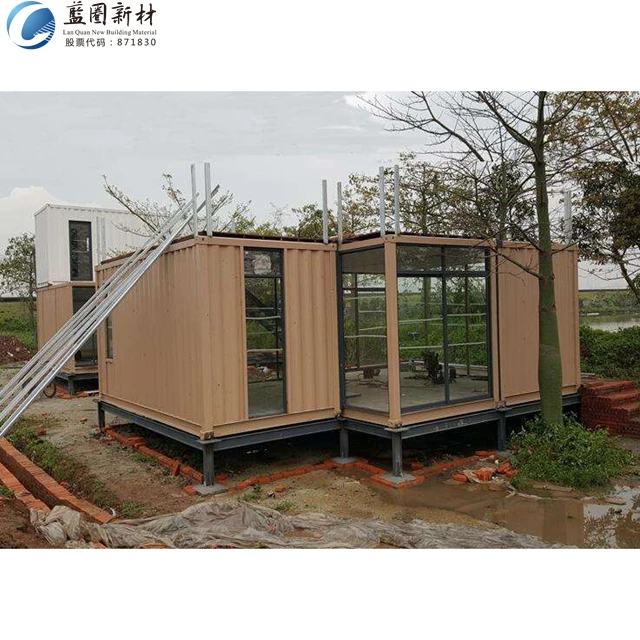

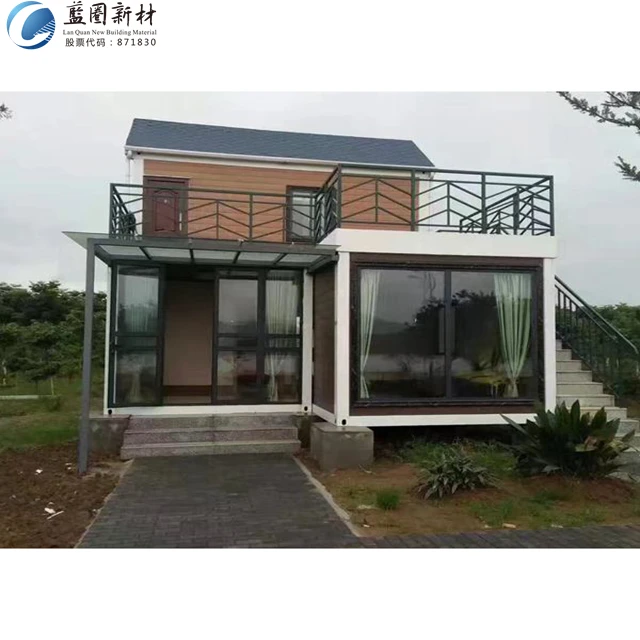

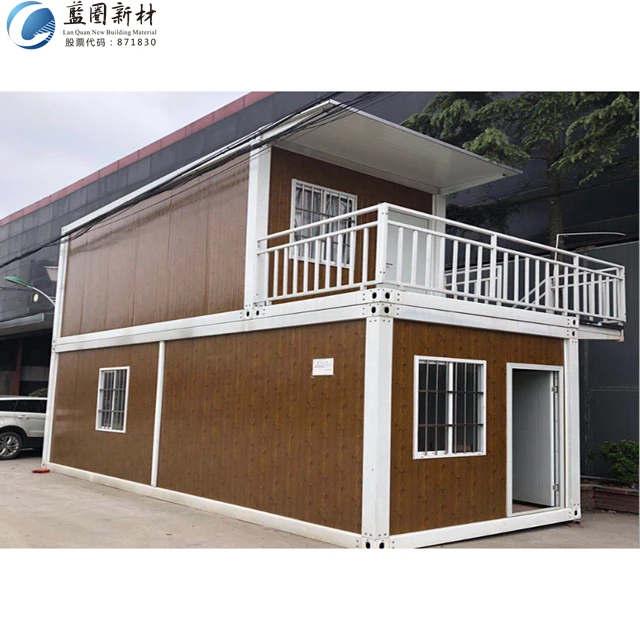

Low cost container house with two bedroom prefab house container wood houses office building independent villa

LANFANG Flat pack house is a prefabricated modular unit that offers customers flexibility and multiple design configurations to optimize their temporary modular space. It could expand horizontally and vertically which makes it especiallhttps://jslqboard.en.alibaba.com/productgrouplist-803080673/Prefabricated_Modular_house.html?spm=a2700.shop_index.88.28y attractive in confined locations. The walls are created by choosing from fourteen interchangeable panels that afford the utmost versatility in building design configuration.

Each 4 units could be packed and shipped as 20’GP, and could be shipped in a 40’HQ, each 6 units which will reduce the shipping cost much.







1. product description

No.	Product description
1	Product name	Packed flat container house
2	Product specifications	External dimensions L6055*W 2438*H2896



2. technical indicator requirements

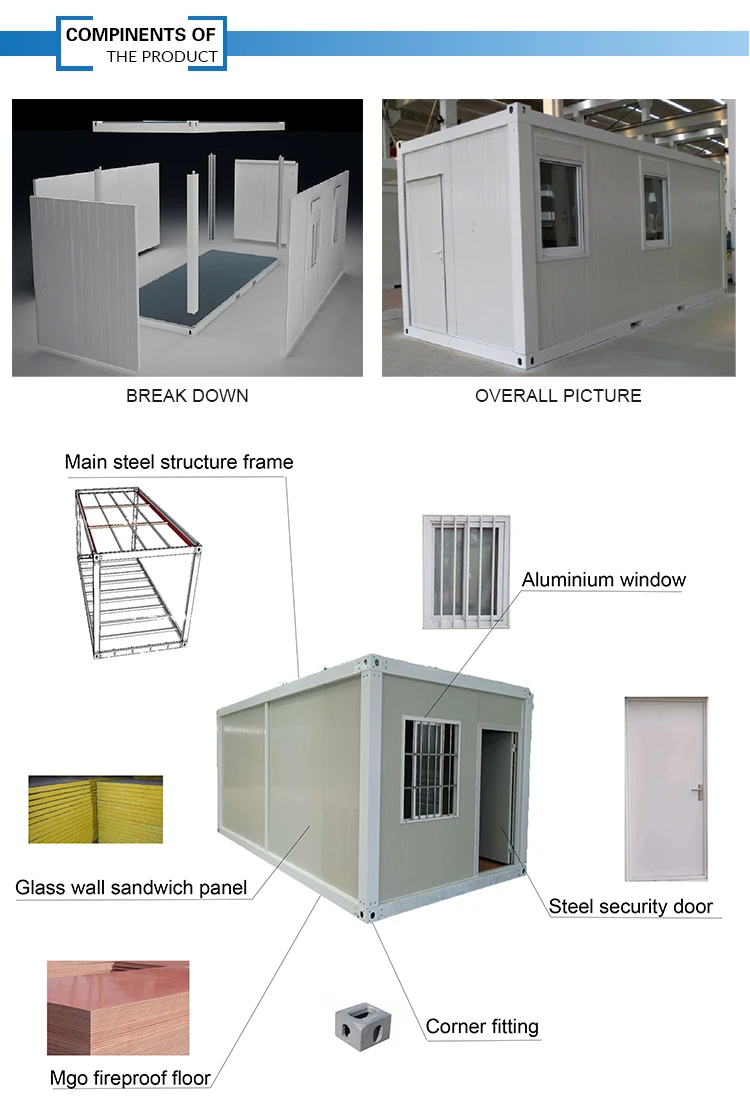

Serial number	Project	Reference indicators	Technical requirements
1	Wall	Wallboard	mm thick rock wool colored steel plate, base material front 0.3 mm, reverse 0.3 mm; bulk density 60
2	Structure	Corner	Welding corner, Q235B material, zinc plating 12μm
3		Top frame side beam, end beam	Galvanized steel roller beam, Q235B material, plate thickness t 2.5m m,160 mm high
4		Top beam	C steel, zinc layer 20~25μm, thick t1.5mm
5		Bottom frame side beam, end beam	Galvanized steel roller beam, Q235B material, plate thickness t 2.5mm 160 mm high
6		Bottom beam	C steel, zinc layer 30~35μm, thick t 2.0mm
7		Angle column	Q235B material, galvanized sheet, plate thickness t2.5mm, zinc layer 20~25μm, bolted to top and bottom frames
8		Angle column end plate	8.0 mm thick hot-rolled end plate, Q235B material
9		Floor structure plate	Sanding plate (Magnesium oxide board),18 mm thick
10		Structure connection	M12×40 high strength bolts
11		Outer roof	Colored veneer bite 0.45 mm,360° bite
12		Inner roof	0.3 mm pressure plate ceiling
13		Top frame insulation	50 mm insulation thickness
14	Decoration	Windows	A double-layer toughened glass; Size W1100*H1120×2;
15		Door	General steel doors, B840mmxH2035mm
16		Door locks and hardware	Double door lock
17		Ground handling	Grey PVC floor leather, t1.2mm
18		LCL ceiling	Color coated steel sheet with 9016 gray and white
19		Interior corner line	Color coated steel sheet bending decorative corner 9016 gray
20	Electrical	External power supply	Industrial plug and socket 1, placed inside top frame end
21		Pipeline laying	Concealed strong and weak electrical pipelines
22		Wiring	Line 4 m2; lighting line 1.5 m2; socket line 2.5 m2
23		Switch	switch 1,  circuit breaker
24		Socket socket	five-hole socket 4 1 high 3 low
25		Lamps	LED light. 220V-50HZ-T5-2*22W
26	Weight	-	≥1.6 t/m
27	Paint		Spray ,150μm thick

The door is steel door, and the windows can be PVC windows or aluminium windows.
The welded container is strong and safe.
It is moved and transported as a unit.
The welded container house is also converted from old or new shipping container.
It is widely used as office, meeting room, dormitory, shop, booth, toilet, shower room, storage and etc.

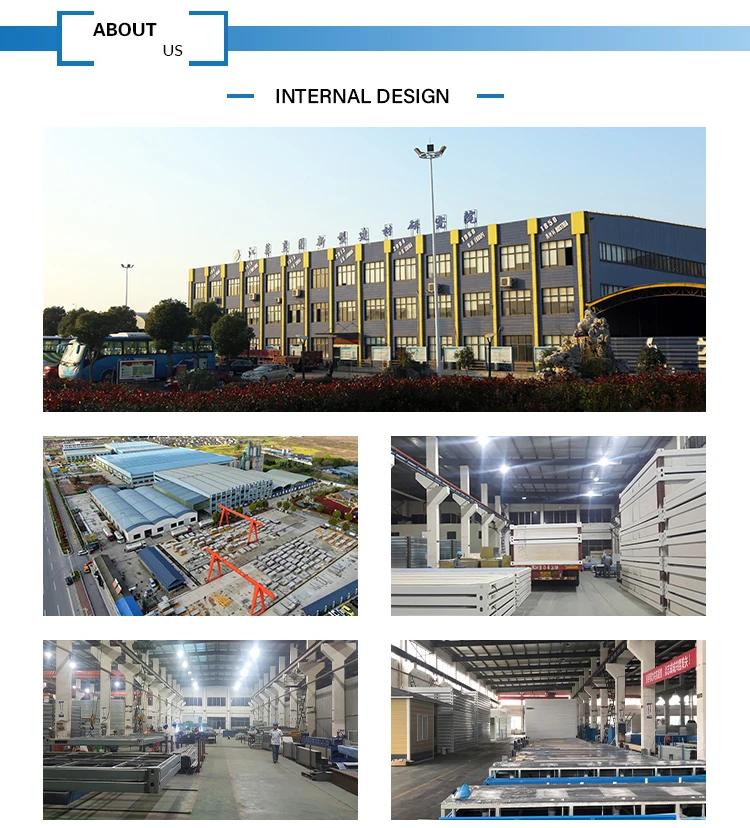

      Jiangsu Lanquan New Material Inc., Ltd. was established in 2012, is a collection of Trade and Industry in one integrated high-tech enterprises with a registered capital of 30.8 million yuan. It was successfully listed on the new third board on August 15, 2017 (stock code: 871830).

The company is mainly engaged in the R&D, production and management of new magnesia materials and low-rise prefabricated houses, green mortar and PC prefabricated components.

Certified by Intertek WH&ETL, CE and KIWA.  We passed ISO9001, ISO14001, OHSAS18001 system certification; The company has 5 authorized invention patents, 5 patent for utility models and 3 registered trademarks.

Adhering to the mission of " For human health breathing and contribution the green building materials", the company pursues the characteristic culture of "party building culture + national defense culture + enterprise culture", Systematic, standardized, and standardized management will be implemented to increase development momentum for urban construction.

Q: Are you a factory or trading company?

A:We are a factory who have more than 10 years experience on container houses' production. And you are welcomed to visit us for inspection. The quality control flow will show you our professional. Also you will enjoy the best quality and competitive price.

Q: What's the payment way?

A:T/T ,LC and so on.

Q: What's your supply capacity?

A:Annual Production: kinds of flat pack container house 10000sets,assemble container house 320000square meters, 25000 TEU contanier.

Q:How to install ?

A:We will provide installation instruction and video for you, technicians will be sent to help you if it is necessary. However, the visa fee,air tickets, accommodation,wages will be provided by buyers.

Q: How long is your delivery time?

A:Generally it is within 7-20 days ,definitely according to quantity and color.

Q: How do you guarantee the quality of the products?

A: Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us. We could deal with you by Trade Assurance via Alibaba.

Q: How can I get the quotation of the project ?

A:If you have drawing ,we can offer you our quotation according to your drawing
