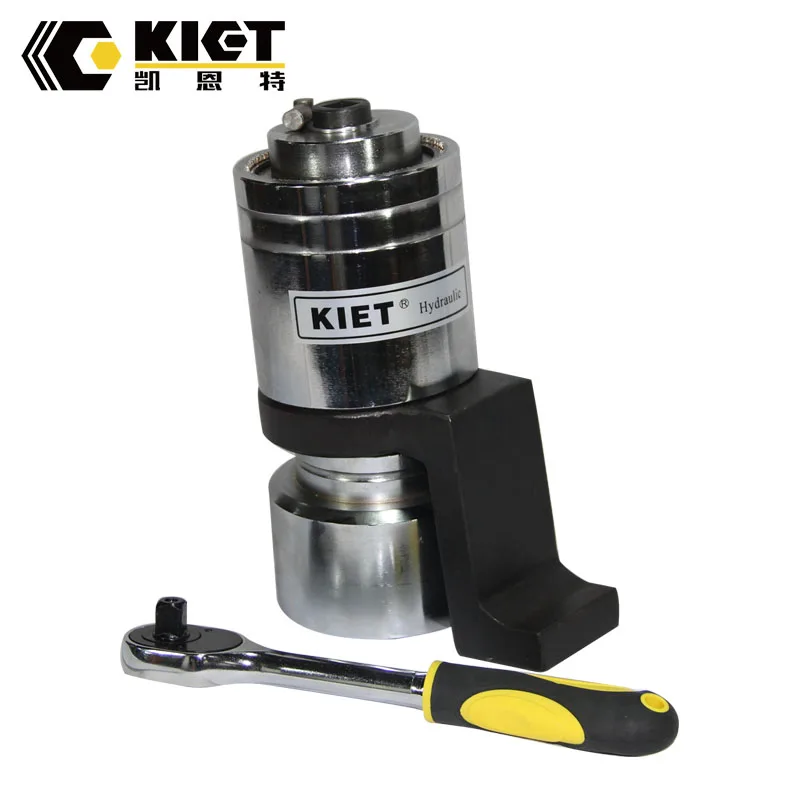

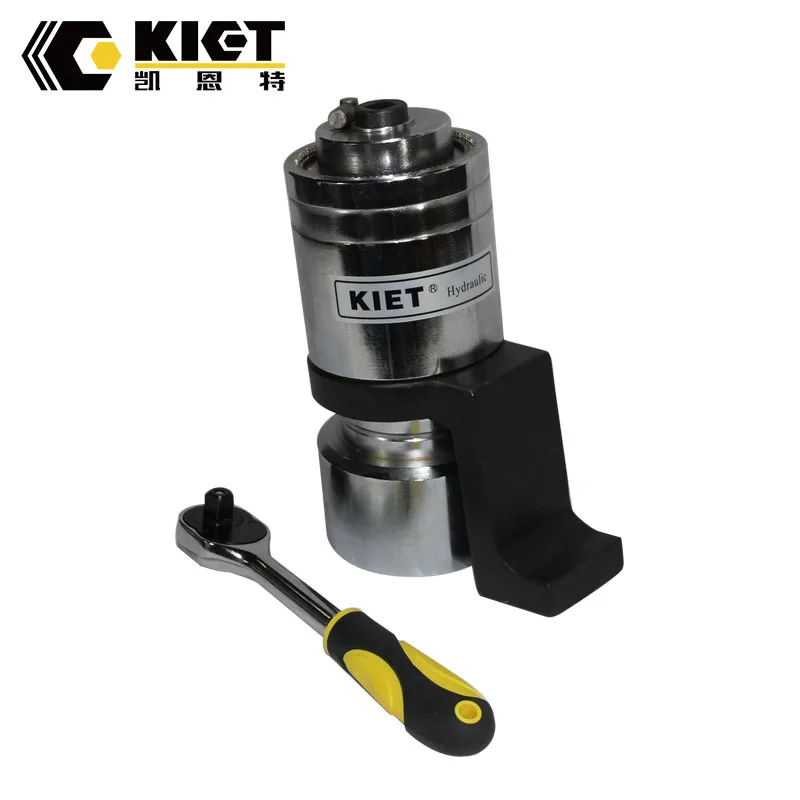

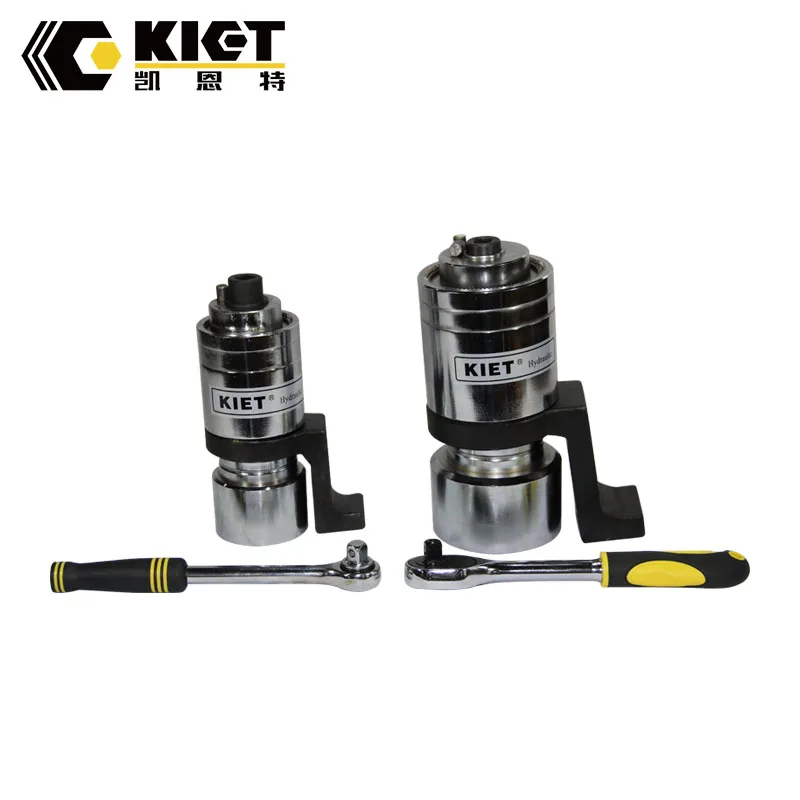

1500 Nm Manual Torque Multiplier
- Category: >>>
- Supplier: Jiangsu Canete Machinery Manufacturing Co. Ltd.
Share on (1600059306377):
Product Overview
Description
1500 Nm Manual Torque Multiplier
Product Description
Features:
1.Sturdy and long service life; Drive ratio accuracy: +5%.
2.Normal operation without power supply and small space, makes sure the safety use at the same time.

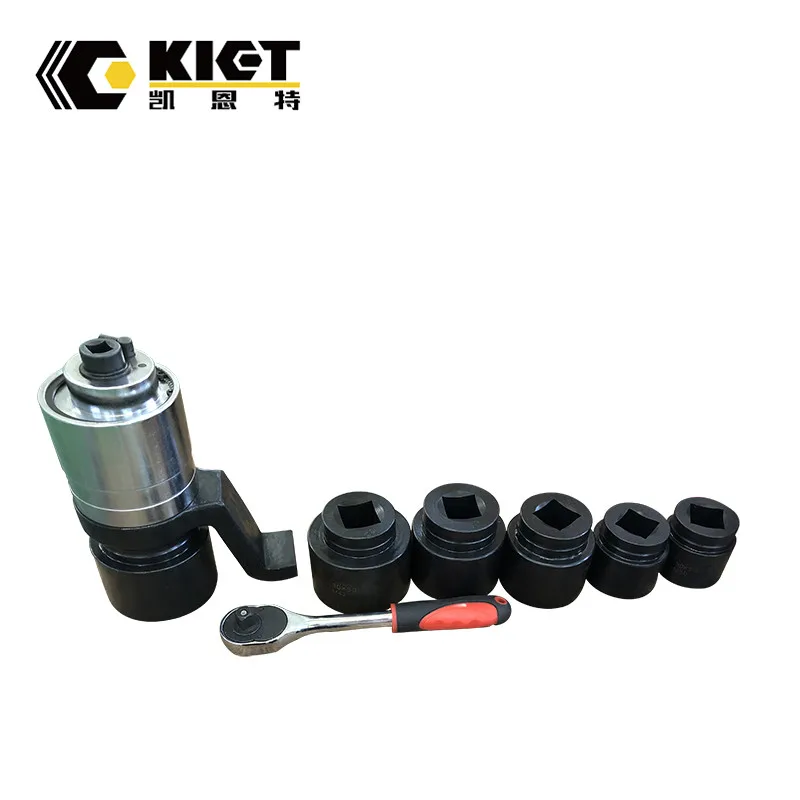

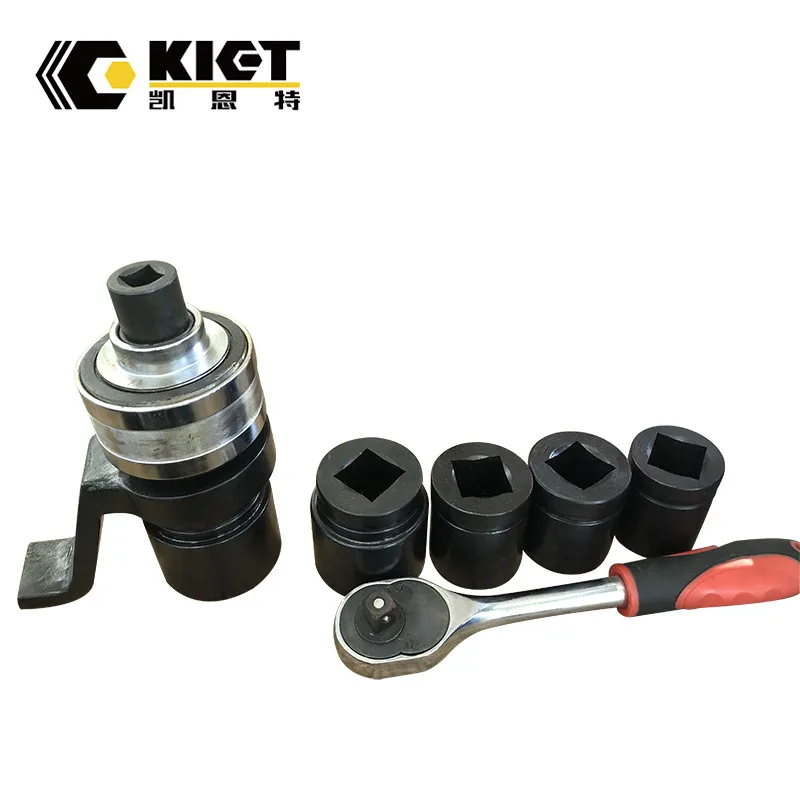

3.Each set of torque multiplier is equipped with the corresponding specifications sockets
4.Each set of torque multiplier is equipped with aluminum packing box, easy to carry on- site.
Product Parameter
| Model | Max torque (Nm) | Drive Ratio | Imput Square (mm) | Output Square (mm) | Bolt Size (mm) | Nut to Edge (mm) | Dimension (mm) | Weight (kg) |
| KET-FDB-15 | 1500 | 4.8 | 12.7 | 25 | M20-30 | S30-46 | 80×80× 119 | 2.6 |
| KET-FDB-20 | 2000 | 14 | 12.7 | 25 | M22-36 | S32-55 | 74×74× 147 | 3.9 |
| KET-FDB-35 | 3500 | 17 | 12.7 | 30 | M30-45 | S46-70 | 95×95× 162 | 5.5 |
| KET-FDB-55 | 5500 | 19 | 12.7 | 35 | M36-52 | S55-80 | 105×105× 190 | 7.5 |
| KET-FDB-75 | 7500 | 22 | 12.7 | 40 | M42-60 | S65-90 | 115×115× 210 | 10 |
| KET-FDB-100 | 10000 | 61 | 12.7 | 50 | M52-68 | S80-105 | 134×134× 244 | 17 |
| KET-FDB-150 | 15000 | 74.8 | 12.7 | 55 | M60-76 | S90-115 | 146×146× 305 | 25 |
| KET-FDB-200 | 20000 | 96.8 | 12.7 | 60 | M72-80 | S105-135 | 146×146× 325 | 31 |
Experience:

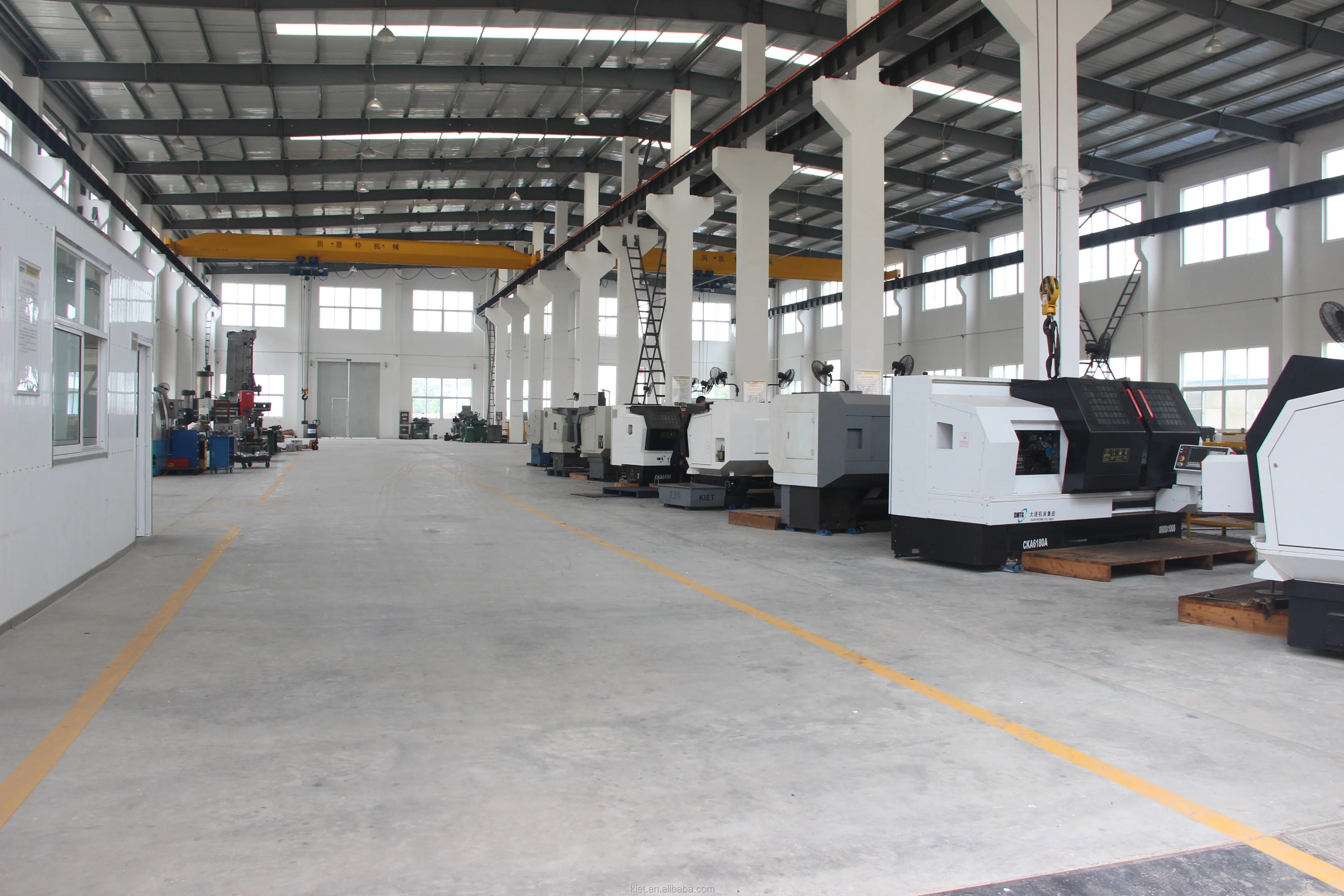

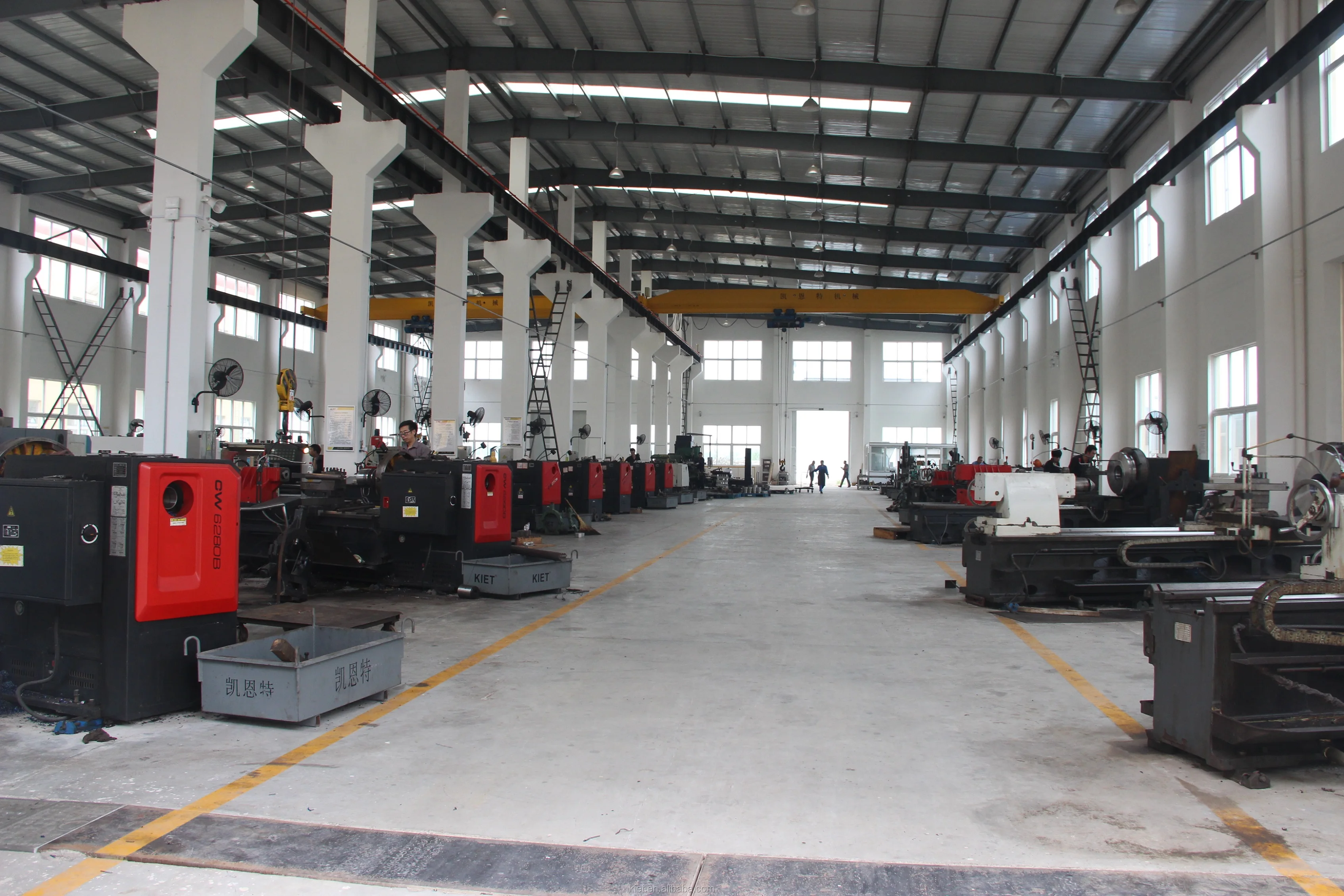

Jiangsu Canete Machinery Manufacturing Co., Ltd. , having our own factory about 47000m² , has main customers as below:
1. China's three gorges hydropower station is the largest hydropower station in China and the largest hydropower station in the world.
2. The oyu tolgoi gold and copper mine in Mongolia, the largest in the world.
3. Sembcorp Maine, the largest shipyard in Singapore.
4. Synchronous hoisting and lifting hydraulic cylinders are used for assembly of the largest shield tunneling machine in Australia.
Most of the hydraulic products parts come from our own factory, which ensures the quality control of all parts, and the timeliness of the delivery ( All our delivery time is controlled within 20-30 days). Each part will be tested in our test room before delivery.

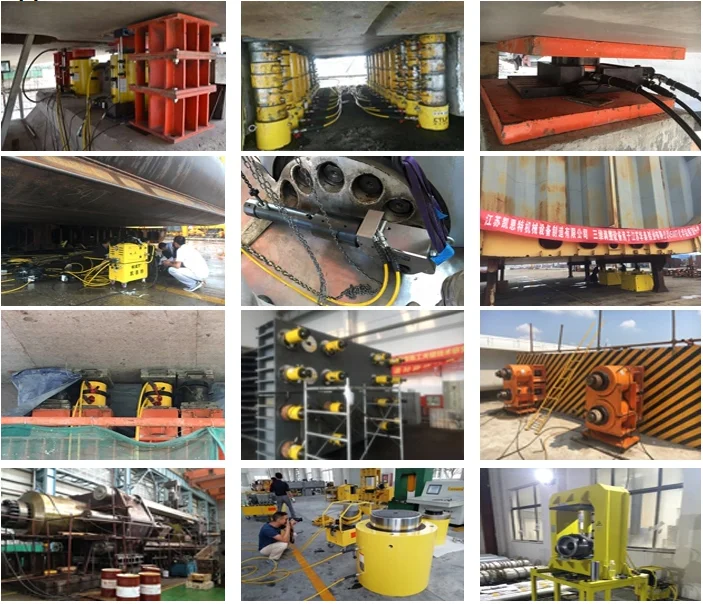

Application:
Package and Shipping
Package:
Shipping:
Related Products
Company Information
Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
• Hydraulic nut and couplings. (M50-Tr1000)

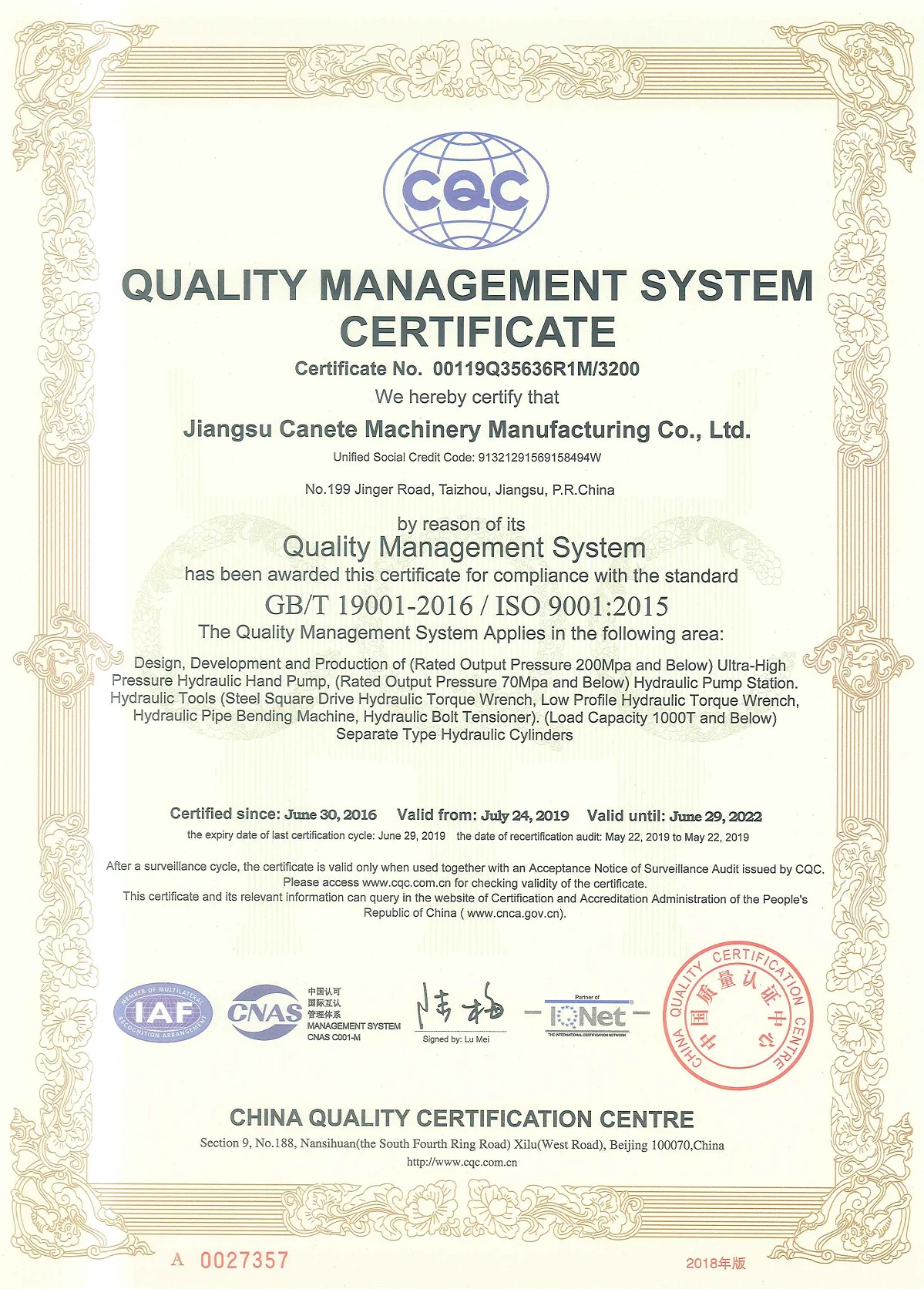

Certifications
Our Services
KIET provides one year guarantee for all the hydraulic products. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded within 24 hours.
FAQ
Q1: How to contact sales?
A1: Please call: +86-18005263911 for pre-sales or click the contact find our
website and email address.
Q2: How can I buy KIET products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product if I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack and deliver in 3-7 days. If you select international parcel
service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45
days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation. If our price suits you, we will prepare proforma invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition. If we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is
customized, not our standard products, it will take 20-45 days to produce.
