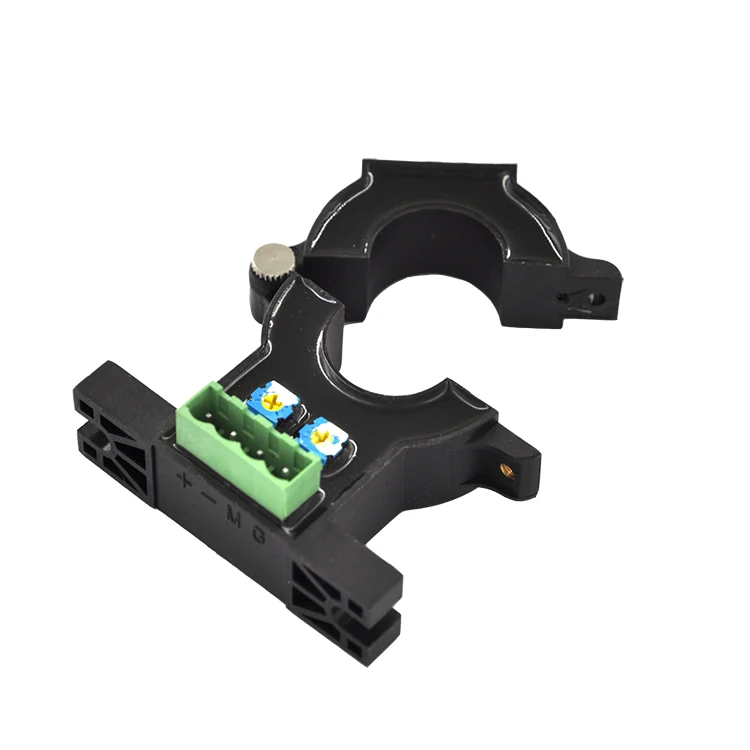

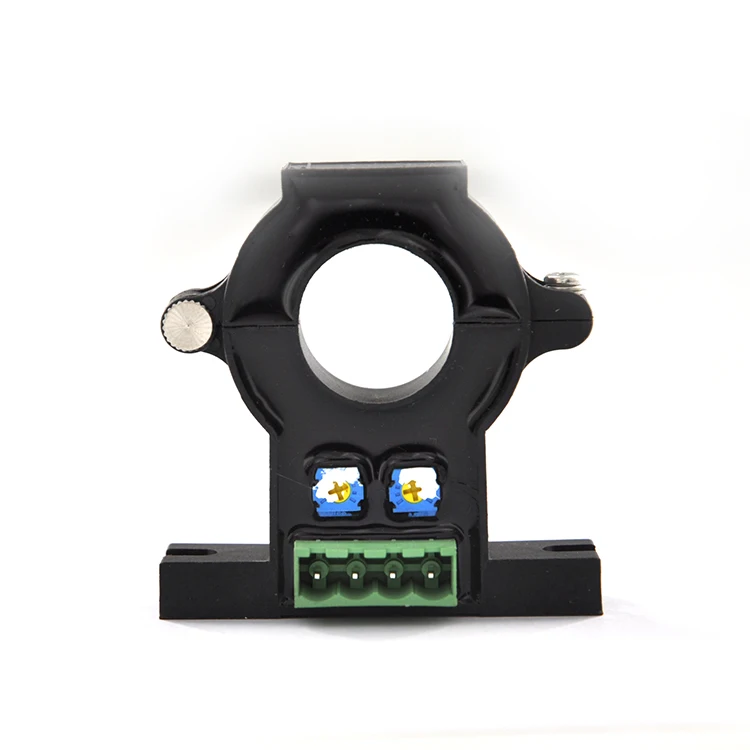

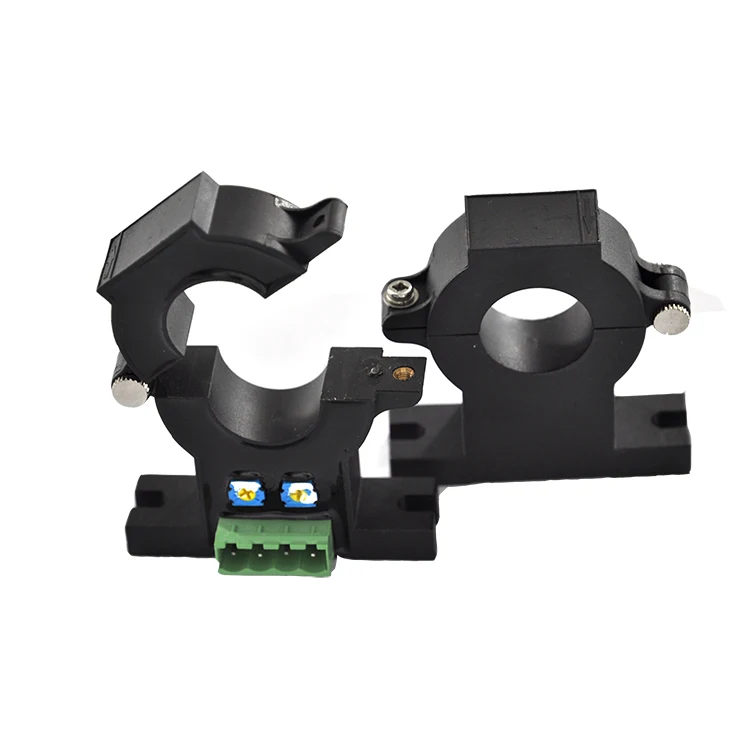

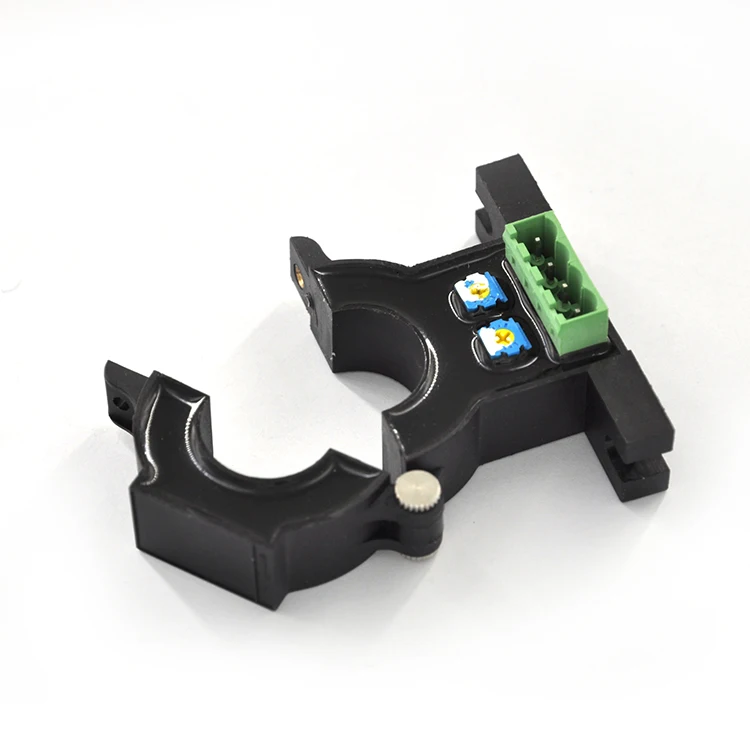

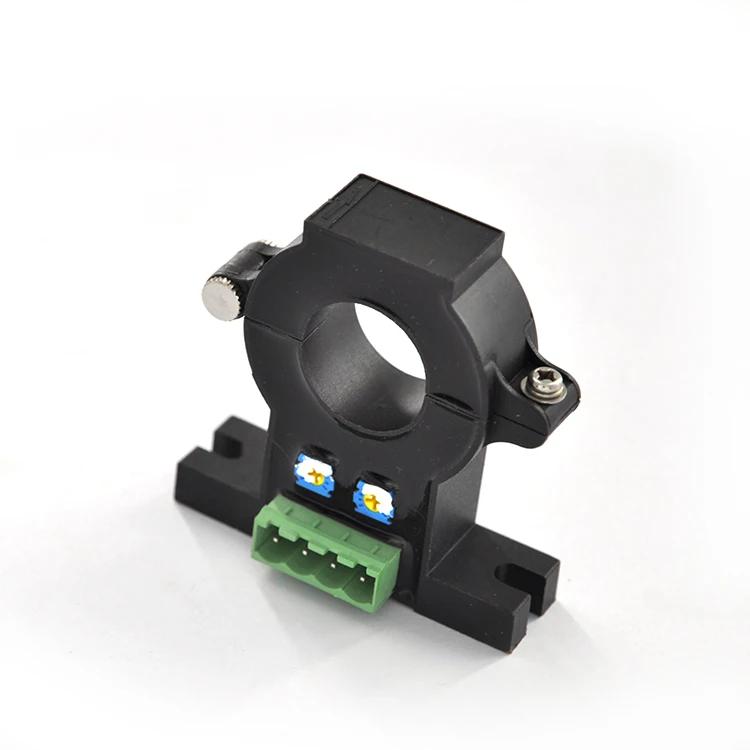

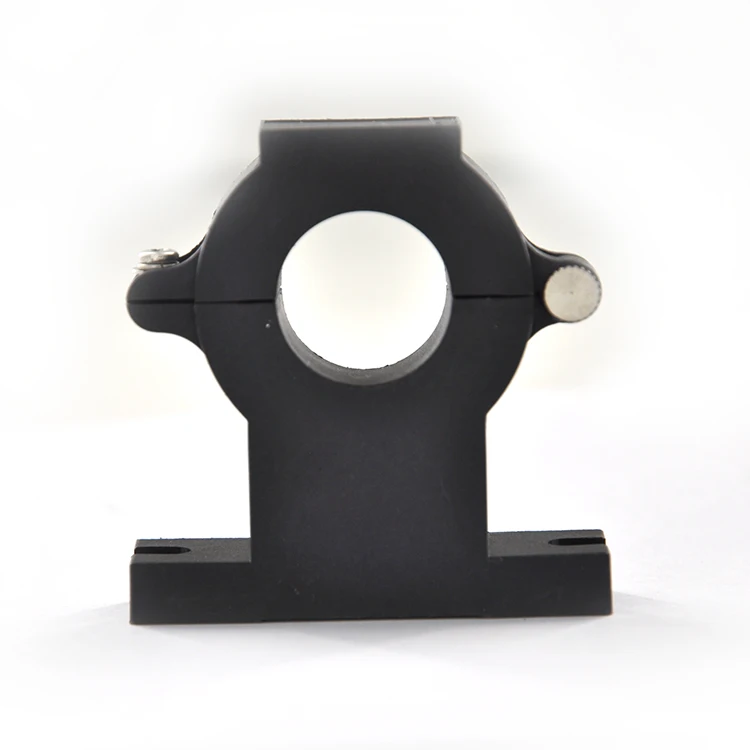

200a/2.5v single supply 12v dc hall effect split core current sensor
- Category: >>>
- Supplier: Shenzhen Deheng Technology Co. Ltd
Share on (1600059619273):
Product Overview
Description
Product Description
200a/2.5v single supply 12v dc hall effect split core current sensor
Features:
Open loop structure (convenient to use on existing line)
Compact and light
Easy to install
Flame retardant (UL94- V0).
Environmental protection( EU RoHS)
Advantages:
High precision and good linearity.
Low offset and gain drift.
Low insert loss, Good overload capacity.
Wide band frequency, quick response.
Application:
Communication base station equipment
New energy equipment
Welding machine power supply
Communication power
Switching power,
Medical equipment
Instrumentation,
Rail transit
Industrial measurement
Power control
Specification:
Parameter | HOVS-02K11 | HOVS-02K12 | HOVS-02K13 | HOVS-02K14 | HOVS-02K15 | Unit |
Input current | 50 | 100 | 200 | 300 | 400 | A |
Measuring range | ±50 | ±100 | ±200 | ±300 | ±400 | A |
Output voltage | 2.5±2 (T=25℃) | V | ||||
Loaded resistance | ≥10 | kΩ | ||||
Supply voltage | +12(±5%) | VDC | ||||
Current consumption | ≤15 | mA | ||||
Zero offset voltage | <±20 ( T=25℃) | mV | ||||
Offset voltage temperature drift | <±20 ( T=25℃) | mV | ||||
Output voltage temperature drift | ≤±1mV/℃(IP=0 T=-10~+70℃) | mV | ||||
Linearity | ≤1 .0 ( T=25℃) | % | ||||
Accuracy | ≤1 .0 ( T=25℃ VC=±15V) | % | ||||
Response | <5 | µS | ||||
Insulation hipot | 3.0 | kV/Min | ||||
-3db band width | DC…10 | kHz | ||||
Working temperature range | -25~+80 | ℃ | ||||
Storage temperature range | -40~+85 | ℃ | ||||
Instructions for use:
1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.

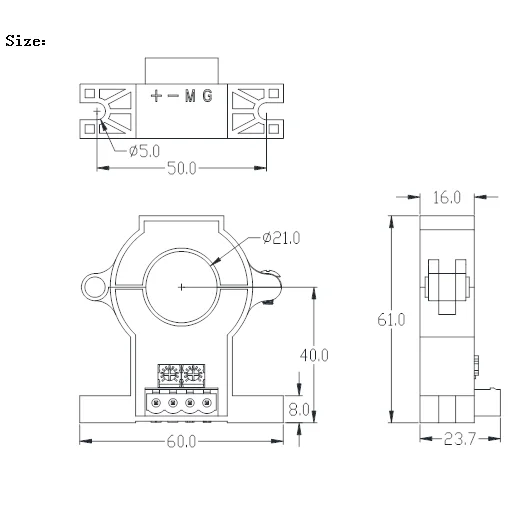

2. Connect the wire according to the function pin definition of the calibration in the structure diagram.
