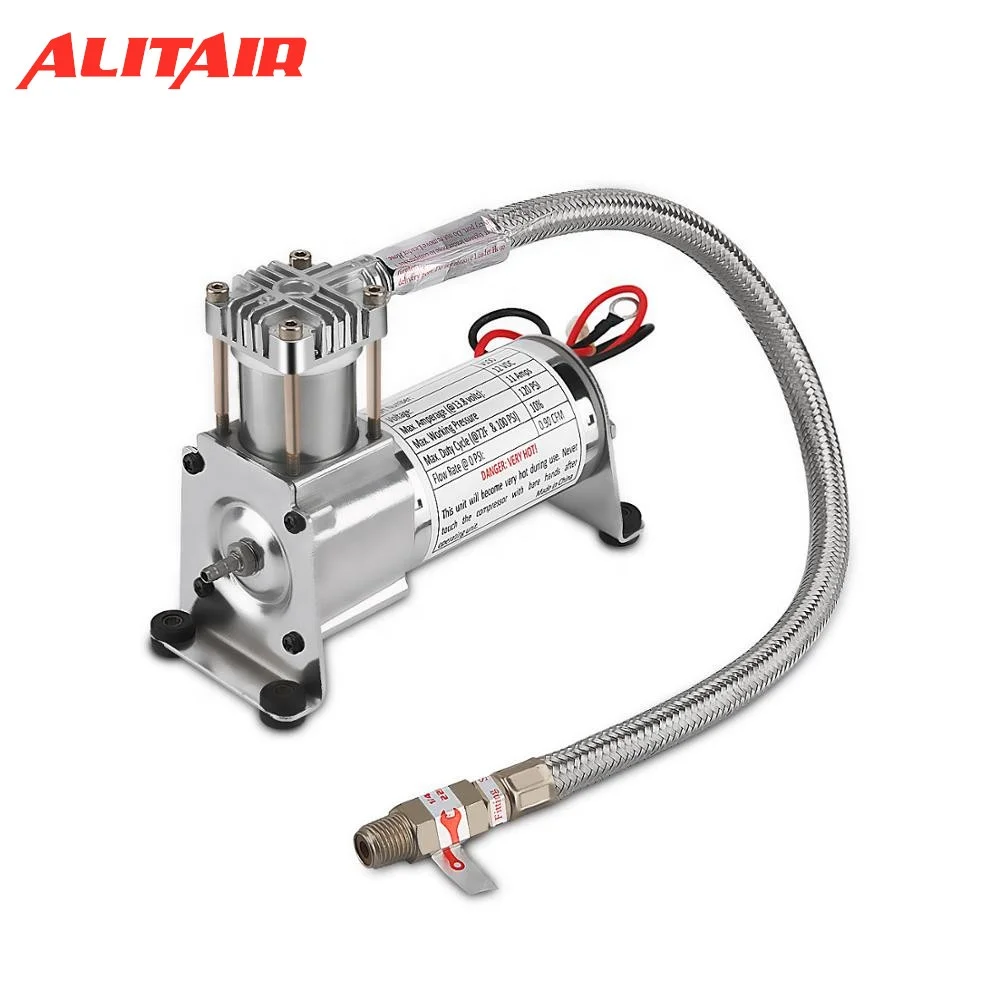

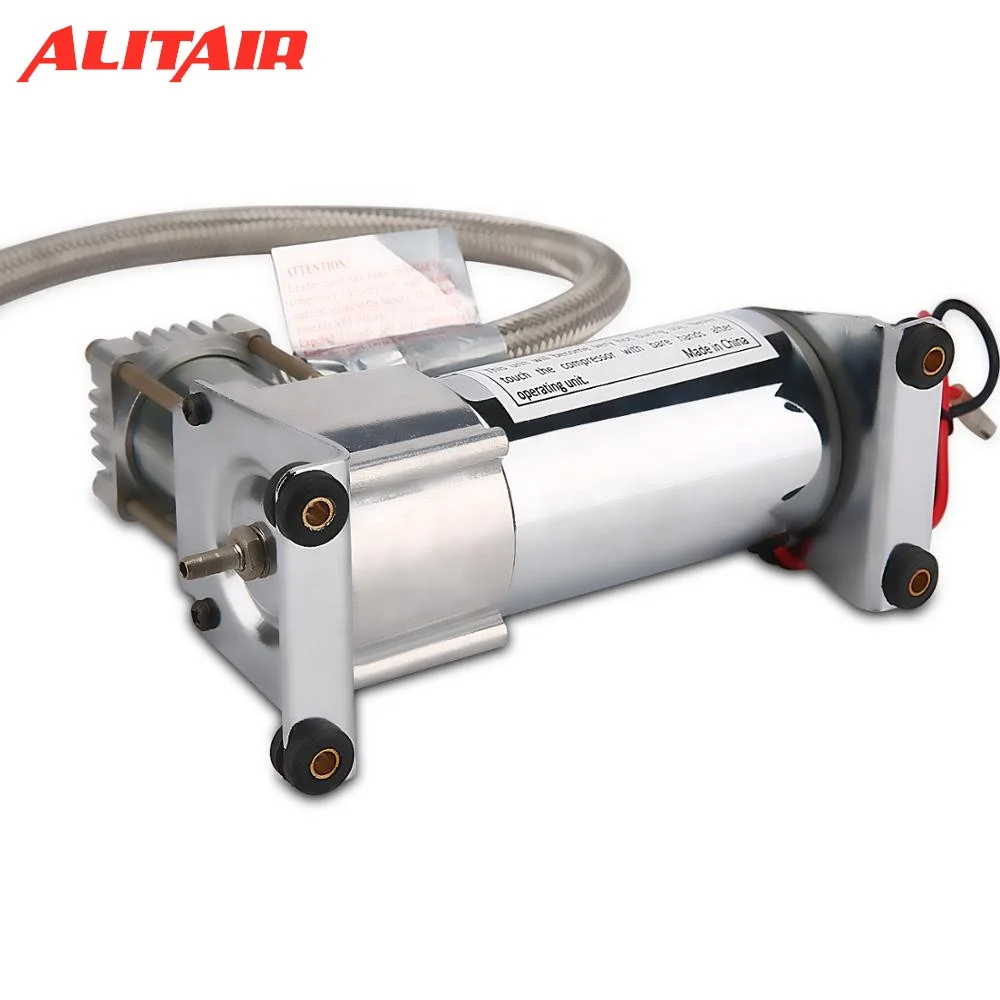

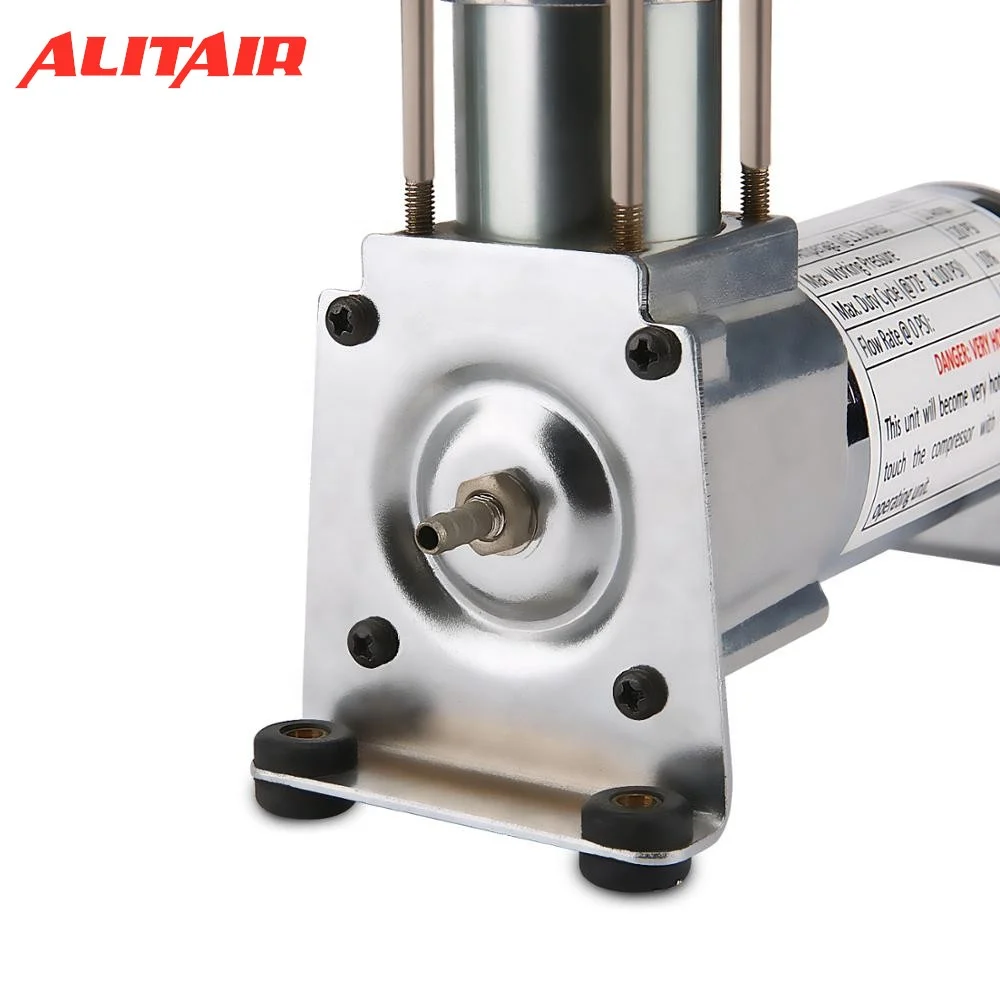

92C LOWRIDER Air Compressor Use For Air Horns Springs Lockers
- Category: >>>
- Supplier: Ningbo Alita Pneumatic Co. Ltd.
Share on (1600059628580):
Product Overview
Description
Product Description
Specification

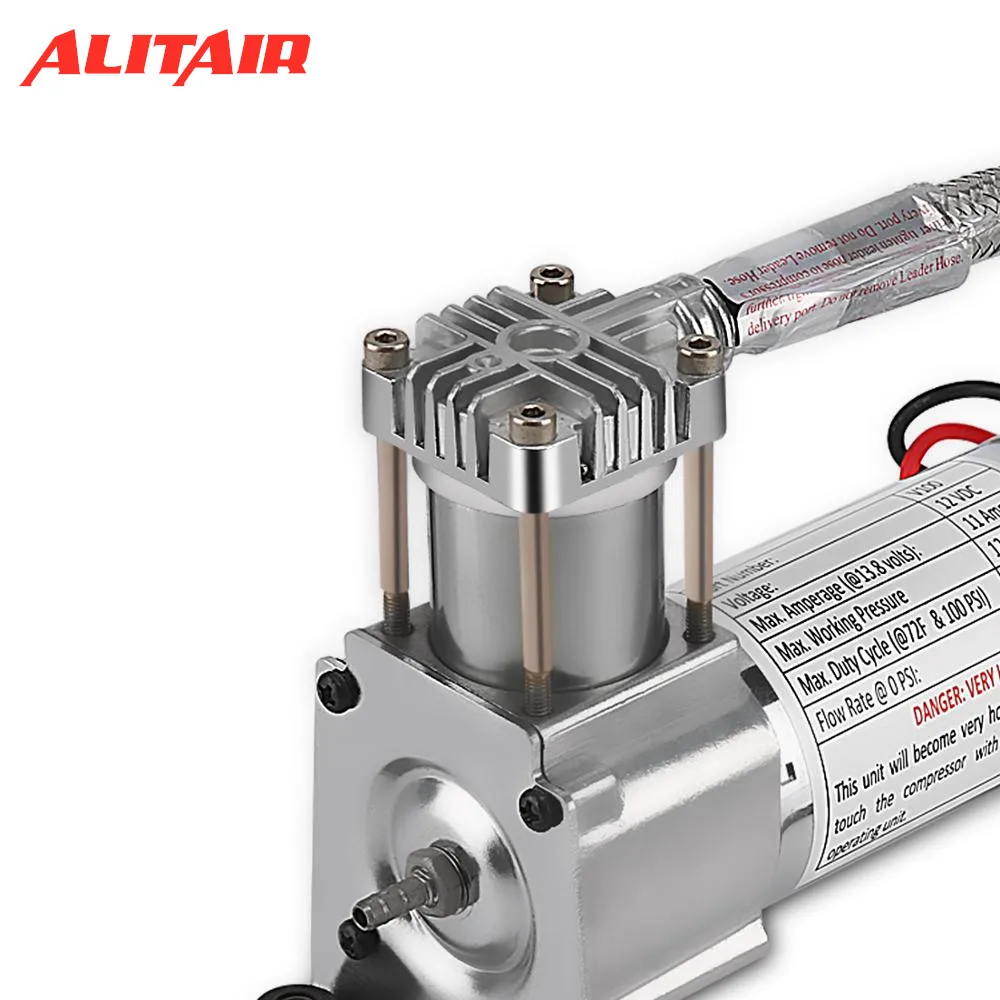

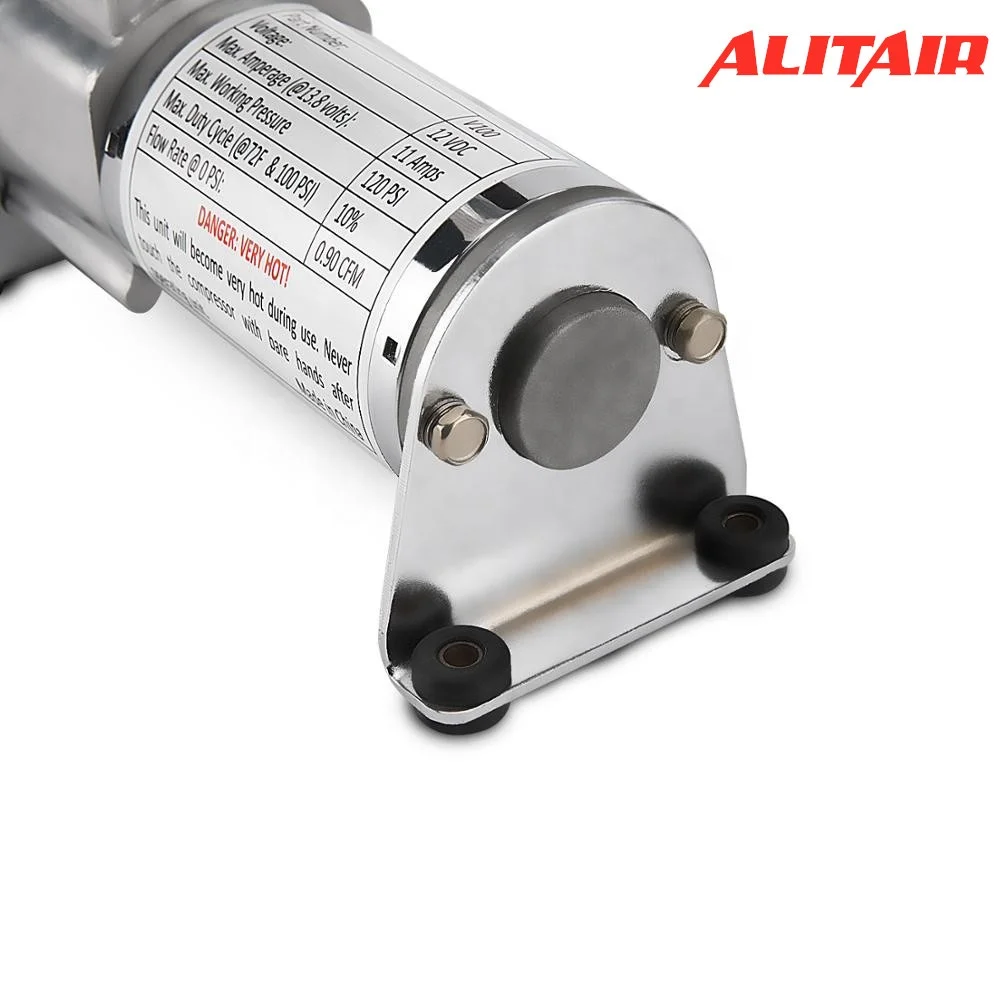

90 Series 92C 12V Compressor ALITAIR 90 Series compressors offer a light duty solution for smaller air requirements and are meant to fill no larger than a 1.0 gallon air tank. Multiple duty cycle, mounting, compressor finish and intake options are available depending on model. ALITAIR “C” model compressors are intended to fill air tanks. They are not equipped with an ON/OFF switch or pressure sensitive shutoff device of any kind. The use of a pressure switch and relay are recommended and required. All “C” model ALITAIR compressors (except certain 90 & 100 series units) are equipped with a stainless steel braided leader hose and a check valve to keep the compressor from restarting under pressure which can create an amp draw spike and can cause motor damage. Most ALITAIR compressors are equipped with a thermal overload protector that will shut down the unit when overheated. When cool, the compressor will automatically restart as normal. Specifications: – Permanent Magnetic Motor – Max. Working Pressure: 120 PSI – Max. Air Tank Size: 1.0 Gallon (Sold Separately) – Ingress Protection Rating: IP54 – Net Weight: 2.45 lbs. Features: – Check Valve – Vibration Isolators – Mounting Hardware – Direct Mount Air Filter Assembly – Installation Instructions Recommended Components (Sold Separately): – 0.5 Gallon Tank (P/N 91005) – 12V Relay (P/N 93940) – Pressure Switches (P/N 90100, 90101) – Sealed Pressure Switch (P/N 90223) Fill Rates: – 0.5 GALLON TANK 0 to 105 PSI - 1 min. 08 sec. (± 05 sec.) 85 to 105 PSI - 16 sec. (± 03 sec.) 0 to 120 PSI - 1 min. 23 sec. (± 05 sec.) 90 to 120 PSI - 27 sec. (± 03 sec.) – 1.0 GALLON TANK 0 to 105 PSI - 2 min. 20 sec. (± 10 sec.) 85 to 105 PSI - 35 sec. (± 05 sec.) 0 to 120 PSI - 3 min. 04 sec. (± 10 sec.) 90 to 120 PSI - 54 sec. (± 05 sec.) | ||
Brand | ALITAIR AIR COMPRESSOR | |
Voltage | 12VDC | |
CFM | 1.03 CFM | |
Duty Cycle | 9% @ 100 PSI | |
Max. Amp Draw | 10 Amps | |
Dimensions | 7.6″L x 2.0″W x 4.6″H | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
