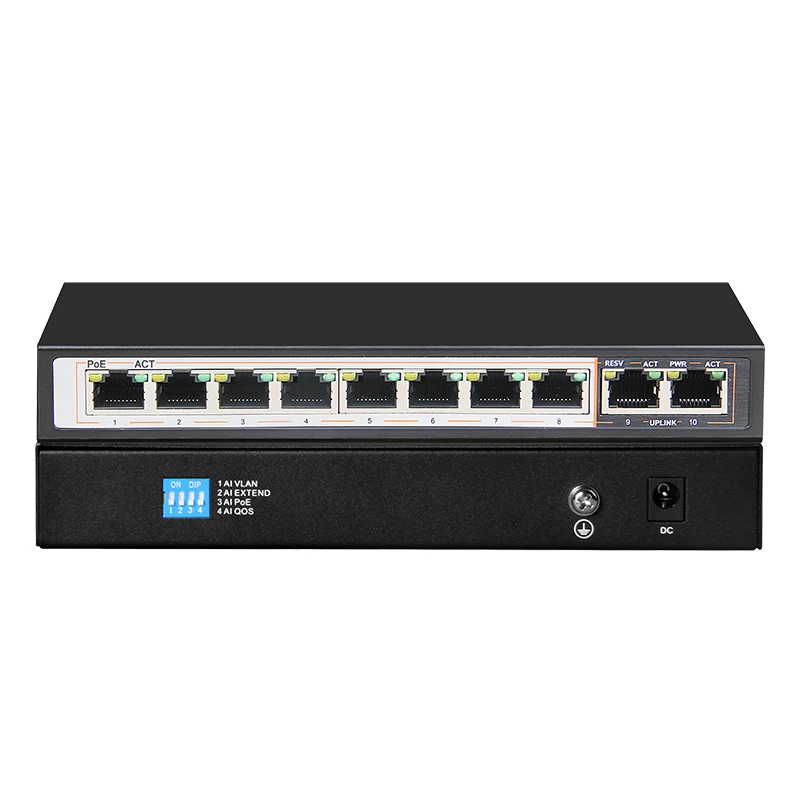

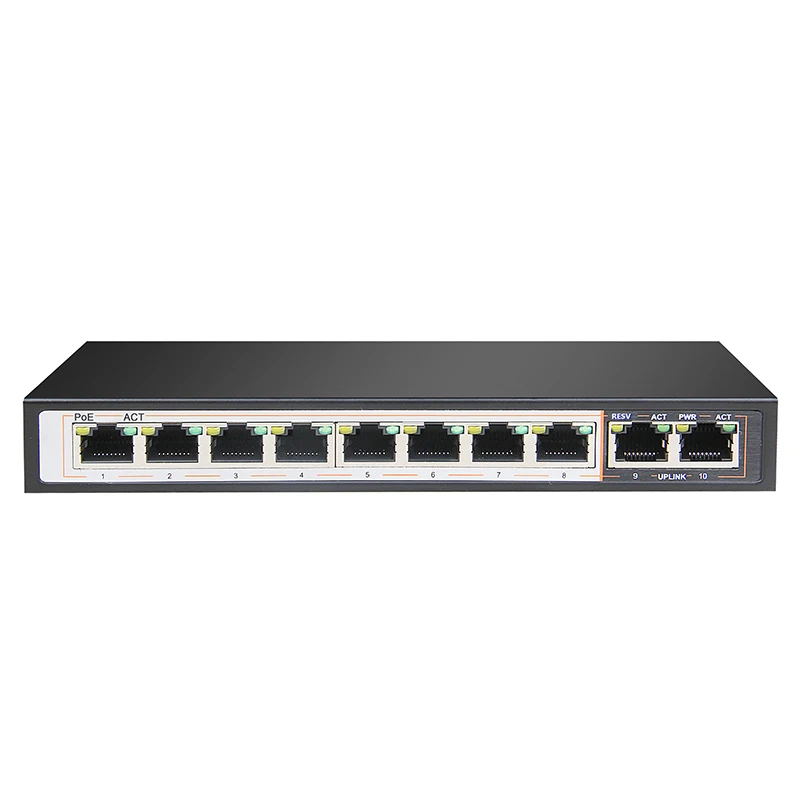

2K MAC address table 8 ports gigabit switch Model AI1010G
Model AI1010G, the 8 port gigabit PoE switch with 48V/2A external power, provides an easier installation way for your PoE devices (IP cameras,VoIP,wireless AP,etc.).And it can detect your PoE devices according to PoE standard.So the users do not need to worry about the PoE switch will damage their PoE devices.The max transmission distance is 100 meters with Cat5 cables.Ideally,shorter cable would reduce the power degradation over the cables; with high quality cables also can reduce power loss.Plug & play design make the installation quite easy,users do not need any configuration,which make this PoE switch a very good choice for IP cameras,wireless AP,VoIP users.
8 10/100/1000Mbps Auto-Negotiation PoE ports with 1 gigabit uplink port
Complies with IEEE802.3af standards
Each port support auto-negotiation 10/100/1000Mbps
Bandwidth 18Gbps
Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device
LED indicators for monitoring power, link,activity and speed
48V /2A external power
Power pin :12(+) 36(-)
Technical Specification | ||||||
IEEE802.3, 802.3u, 802.3af, 802.3x | ||||||
CSMA/CD, TCP/IP | ||||||
Basic Function | Wire-speed Performance | |||||
MAC Address Auto-Learning and Auto-aging | ||||||
IEEE802.3x flow control for Full-Duplex Mode and back-pressure for Half-Duplex Mode | ||||||
Bandwidth | 18 Gbps | |||||
Input :100-240V AC/50-60HZ | ||||||
48V/2A Power adapter | ||||||
Power pin: 12(+) 36(-) | ||||||
Transfer Method | Store-and-Forward | |||||
Interface | 8 port 10/100/1000Mbps PoE port, 1 gigabit uplink port | |||||
10Base-T: UTP category 3, 4, 5 cable (max 100m) EIA/TIA-568 100Ù STP (max 100m) | ||||||
100Base-Tx: UTP category 5, 5e cable (max 100m) EIA/TIA-568 100Ù STP (max 100m) | ||||||
1000Base-T: UTP category 5, 5e cable (maximum 100m) | ||||||
LED Indicators | Power, Link/Act ( 10/100/1000Mbps) | |||||
Certificate | FCC, CE, RoHS | |||||
Operating Temperature: 0°C~40°C , Storage Temperature: -10°C~70°C | ||||||
Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing | ||||||
Product Size | 225*121*35 mm | |||||
Guarantee Period | 1 year | |||||
Package Content | 8 port PoE switch, Data-sheet, Power cord | |||||

Shenzhen Fengrunda Technology Co., Ltd(Hored) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.
Headquarter in Shenzhen, offices in home markets like Beijing, Shanghai, Guangzhou, Hangzhou, Nanjing, Chengdu, Jinan, Zhengzhou, international markets like Germany, Britain, Canada, Russia, the United States, Italy, France, Spain, Poland, Singapore, Hongkong, India, Vietnam, Australia ect., more than 20 million sets of our devices are applied in over 120 countries until the end of 2014.
We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.








With years of export experience along with excellent quality, advanced services and competitive prices, HORED has won numerous customers' trust and support.

A.What's the after-sale service?
a.One year warrnty or negotiable
B.Why choose Fengrunda (HORED)?
a.Prompt delivery and remarkable services
b.Competitive selling prices
c.Rich experience of OEM&ODM co-operation , accept orders according to coustomers demands
d.We have R&D team, our product has been approved by IOS9001, CE, FCC and ROHS etc.
C.How about Minimum Order?
a.To satisfy customer's requirements, we accept sample oder, even one piece
