MINI ROTARY TABLE VERTICAL INJECTION MOLDING MACHINE PRICE WITH 3 STATIONS PRICE
- Category: >>>
- Supplier: Fomtec Plastic Machinery (guangzhou) Co. Ltd.
Share on (1600059844993):
Product Overview
Description
Product Description

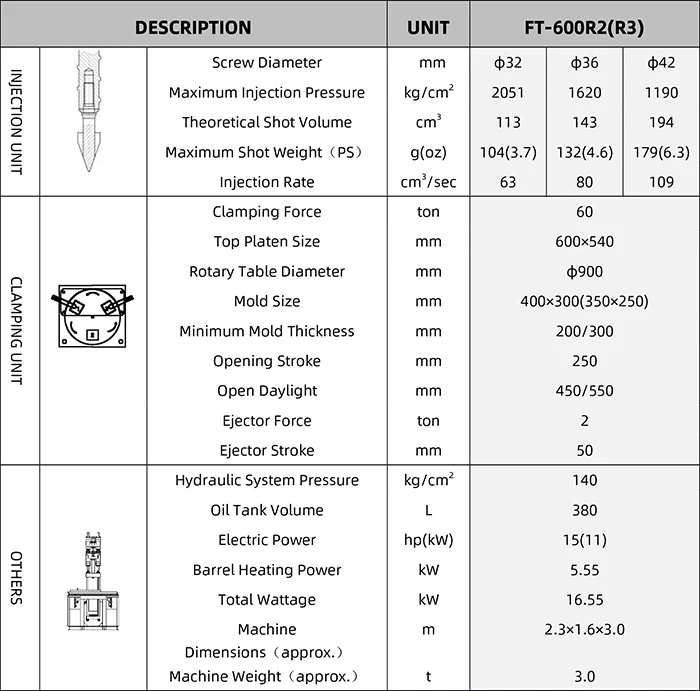

Specification
item | value |
Plastic Processed | PP, PC, ABS, PVC, PPR, PA, ABS/PP, PE/PP |
Condition | New |
Style | VERTICAL |
Ejector Stroke(mm) | 50mm |
Ejector Force(kN) | 20kN |
Theoretical Shot Volume(cm³) | 194cm³ |
Injection Rate (g/s) | 109g/s |
Machine Type | Hydraulic |
Injection Weight (g) | 179g |
Screw diameter (mm) | 42mm |
Weight (KG) | 3000kg |
Place of Origin | China |
Open Stroke(mm) | 0mm |
Brand Name | FOMTEC |
Power (kW) | 16.55kW |
Warranty | 1 Year |
Key Selling Points | Easy to Operate |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Printing Shops, Construction works , Energy & Mining, Other |
Showroom Location | Turkey, Viet Nam, Peru, Indonesia, India, Mexico, Spain, Thailand, Argentina, Algeria, Bangladesh, South Africa, Japan, Malaysia |
Marketing Type | New Product 2021 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw |
BRAND | FOMTEC |
Plastic Type | Thermoplastic |
Automatic | YES |
Clamping Force (kN) | 600 |
After-sales Service Provided | Video technical support |
After Warranty Service | Online support |
Motor | Servo Energy Saving |
System Option

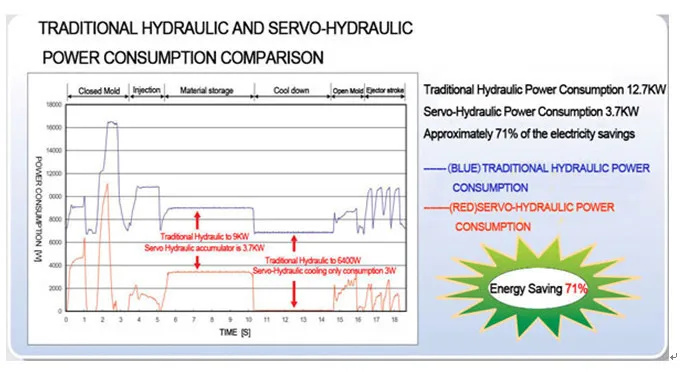

What’s Hydraulic Servo System？
vertial injection machien price
Why Should You Choose The Hydraulic Servo System？
❶
Servo energy saving system exhausts lowest electric power during hold pressure section.
SMALL VERTICAL INJECTION MOLDING MACHINE
❷
Servo system needs lowest electric power during cooling section.
ALL VERTICAL INJECTION MOLDING MACHINE
★☆★☆★ Energy Saving
★☆★☆★ Fast Response & Hight Efficiency
★☆★☆★ Precision
★☆★☆★ Low Electrical And Mechanical Time Constant
★☆★☆★ Low Linear And High Initiating Voltage
Ancillary Equipment
Packing & Delivery
Standard Export Wooden Case
Certifications
Contact Us
There is no harm to send us an inquiry and get one more quotation. Because you can feel free to purchase from anyone else if our price or service is not good.
For more information, please contact:
Company Profile
Fomtec Plastic Machinery (Guangzhou) Co., Ltd. is a leading enterprise in Vertical Injection Molding Machine industry. We have devoted ourselves into this field since 1986. After over 30 years' development, we have now possessed modern production bases both in Suzhou and Guangzhou, covering a total area of over 100,000 square meters. We have not only the internationally advanced facilities like CNC machine tools, but also the most professional team for research and management.
We warmly welcome guests both at home and abroad to negotiate business for a prosperous future.
We warmly welcome guests both at home and abroad to negotiate business for a prosperous future.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 1987,sell to Southeast Asia(45.00%),South Asia(20.00%),Domestic Market(10.00%),Mid East(9.00%),Southern Europe(8.00%),Africa(6.00%).There are total about 120-350 staff in our company.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Injection Molding Machine，Mold, Spare parts.
4. Why should you buy from us not from other suppliers?
FOMTEC PLASTIC MACHINERY is a leading enterprise in VERTICAL injection molding machine industry. Since 1987 to now, we had two modernization factory both in Suzhou and Guangzhou total coverage over 100,000 square meters.
5. What services can we provide?
Accepted Delivery Terms: EXW,FOB,C&F
Accepted Payment Currency:RMB,USD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese.
We are based in Guangdong, China, start from 1987,sell to Southeast Asia(45.00%),South Asia(20.00%),Domestic Market(10.00%),Mid East(9.00%),Southern Europe(8.00%),Africa(6.00%).There are total about 120-350 staff in our company.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Injection Molding Machine，Mold, Spare parts.
4. Why should you buy from us not from other suppliers?
FOMTEC PLASTIC MACHINERY is a leading enterprise in VERTICAL injection molding machine industry. Since 1987 to now, we had two modernization factory both in Suzhou and Guangzhou total coverage over 100,000 square meters.
5. What services can we provide?
Accepted Delivery Terms: EXW,FOB,C&F
Accepted Payment Currency:RMB,USD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese.
