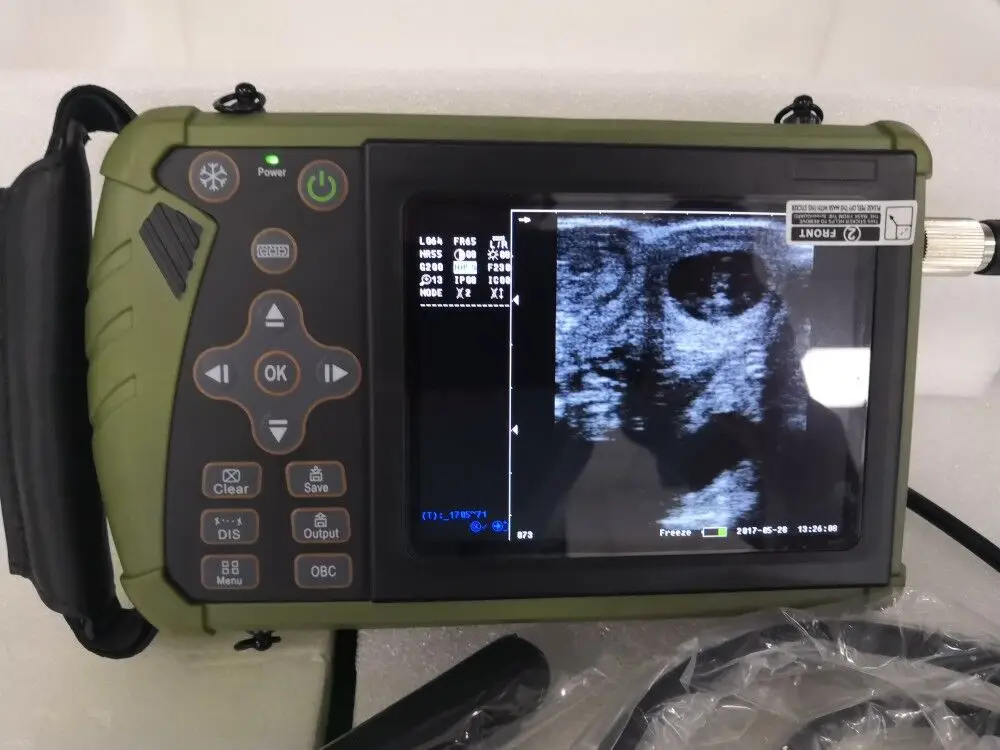

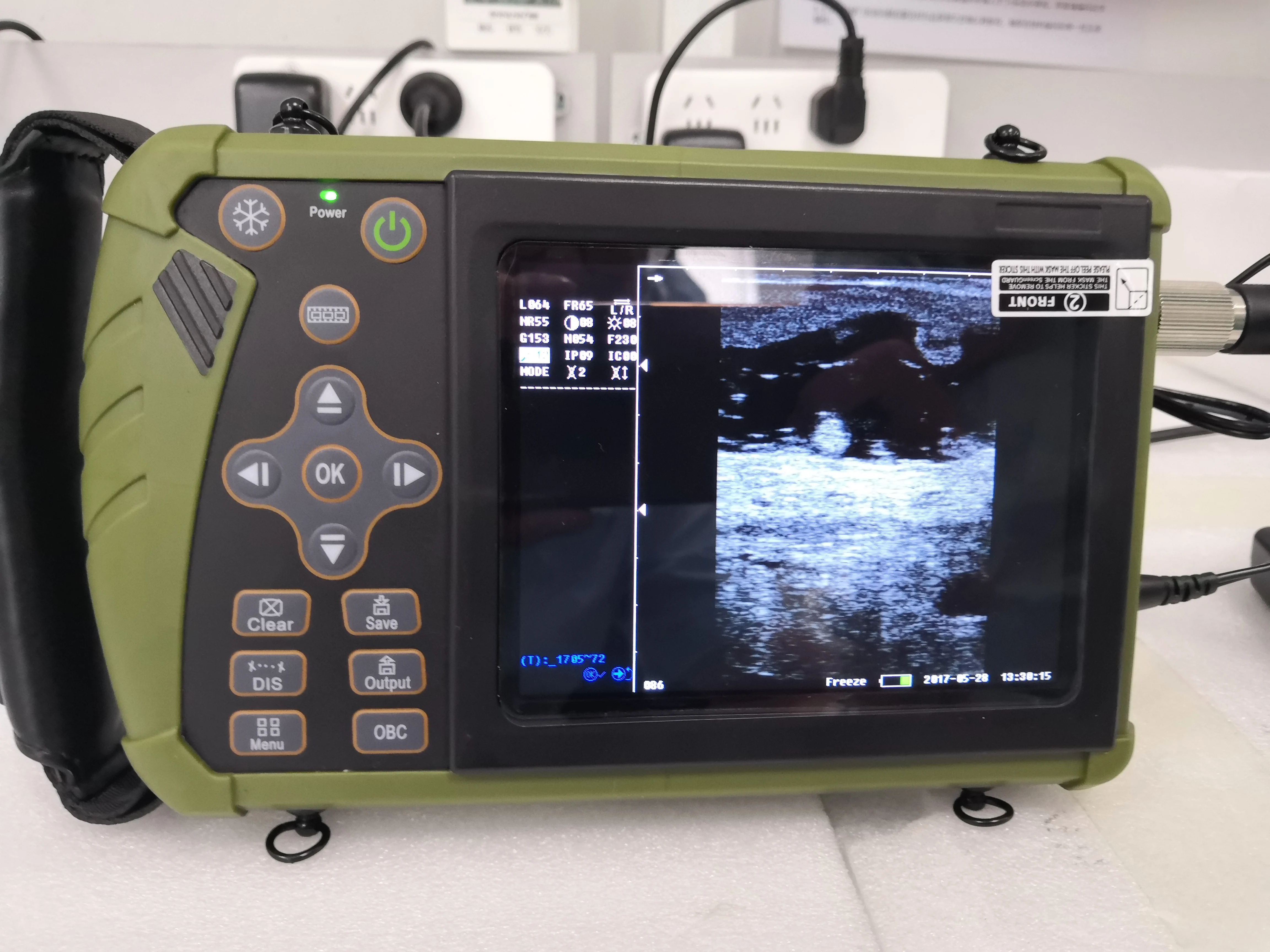

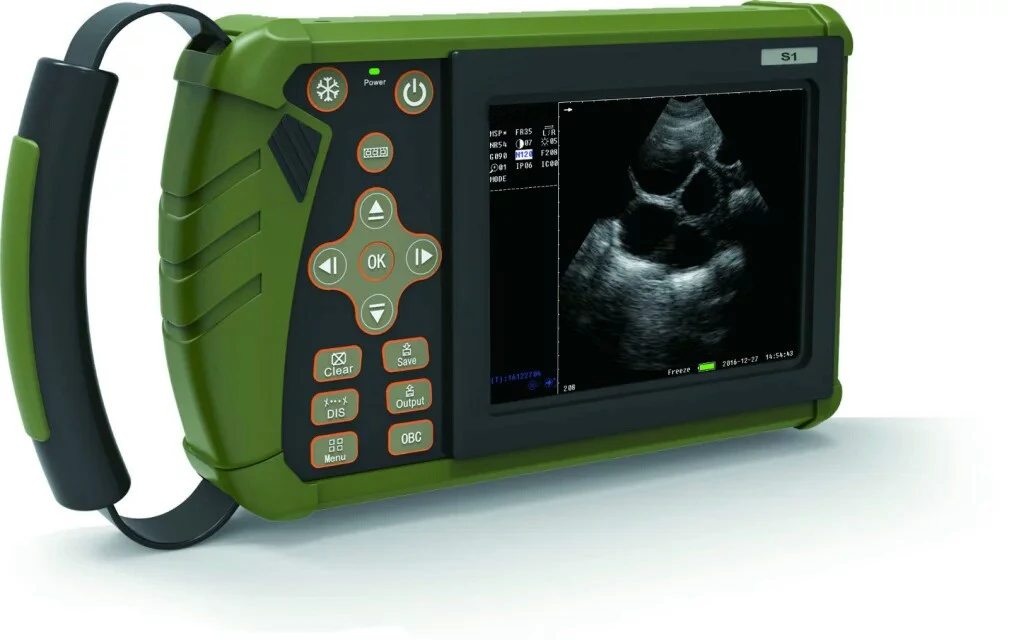

Veterinary Palm Ultrasound Scanner For cow/horse/Animals

Product Overview

Description

Veterinary Palm Ultrasound Scanner For Animal





1. Product Show:

This plam ultrasound system gathers the latest digital system architecture to provide high-quality two-dimensional images. Compared with traditional desktop and portable b/w products, it has more compact body and convenient features which will make it play a greater role in the field of veterinary. It is suitable for pigs, dogs, cats, sheep, cattle, horses and other animals.



Technical Parameters

Focus: three sections electronic focus, support point by point focus

Gain adjustment: main gain, near and far field adjustment can reach 255

15 levels contrast and brightness adjustment

Frame correlation: 15 adjustable

Probe: 3.5 MHz electronic convex array probe

Scan mode: convex array

Scanning depth: 57-230mm, 15 levels adjustable

Cine loop: 255 frames

Built-in battery: Rechargeable lithium-ion battery, imported 18650 standard batteries scan sustain for more than 4 working hours

Display mode: B, B + B

Gray: 256 levels

Pseudo color: 8 kinds

Image magnification: 15 levels magnification

Screen size: 5.6-inch high-definition LED screen

Measurements: distance, perimeter, area, volume, gestational age

Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion

Gain regulation: Near field, far field, main gain dynamic adjustable continuously

Interfaces: Mini USB interface, TF card interface

Machine size: 240X120X45mm

Power consumption: 25W

Weight: 800g



Standard configuration:

machine (including a lithium-ion battery)

3.5MHZ electronic convex array probe

User's Manual

Adapter



Optional:

7.5MHz high-frequency linear array probe,

6.5MHz rectal probe

7.5MHz back fat probe

5.0MHz micro convex probe

Car adapter

External charger

Horseshoe converter





2. FAQ

Q:Where is your factory located? How can I visit there?
A:Our company is located in Beijing City, China,really glad to invite you to come to our office to have a face to face meeting before we build order.

Q: How long is warranty for items?
A: 2 year and if damaged during the warranty period we can provide accessories.

Q: Could you print LOGO for items?
A: Sure, I can help you print or sticker LOGO as your request.

Q:Do you have CE approved?
A: Yes Most products of us have CE and ISO certifications.

Q:Do your products have quality assurance?
A:Yes ,we have more than 6 years experience in making dental unit and our products exporting more than 30 countries.
