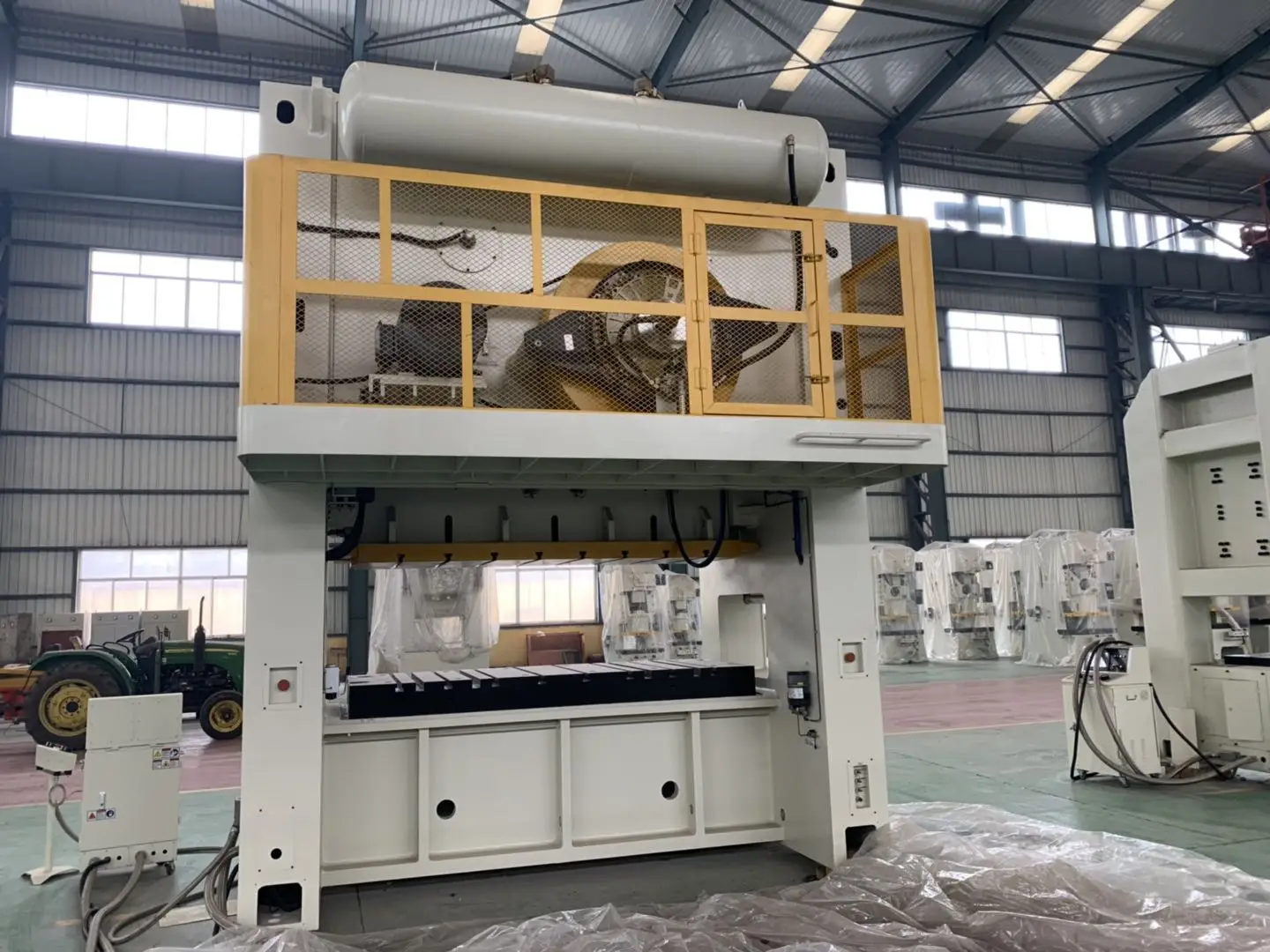

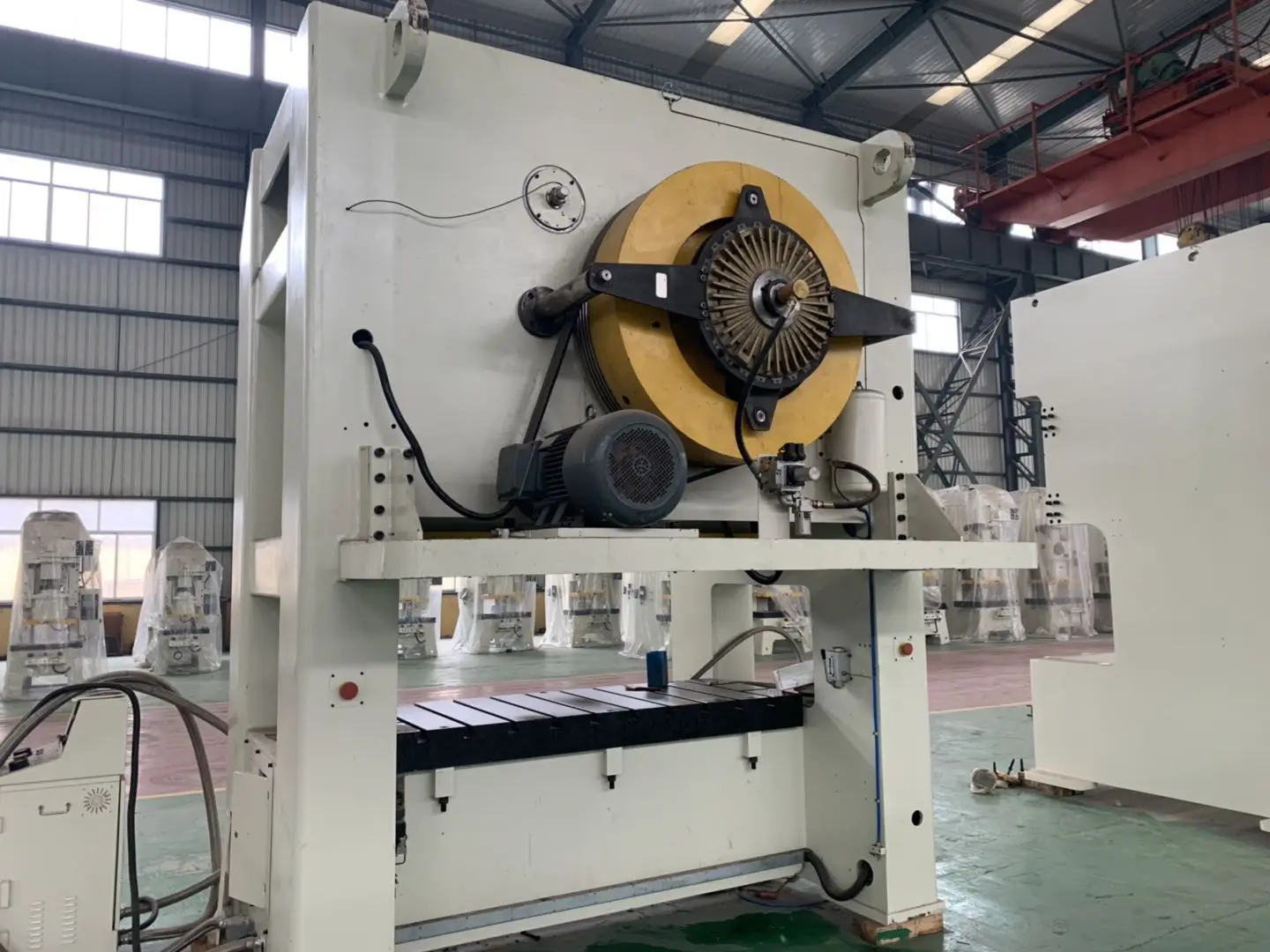

160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press
160ton h frame Double Crank Eccentric Press

160ton h frame Double Crank Eccentric Press

Share on (1600059887828):


Price:RUB 6,120,816.00

Quantity:


Product Overview

Description


                            H Frame High Precision Two Point Punching Machine

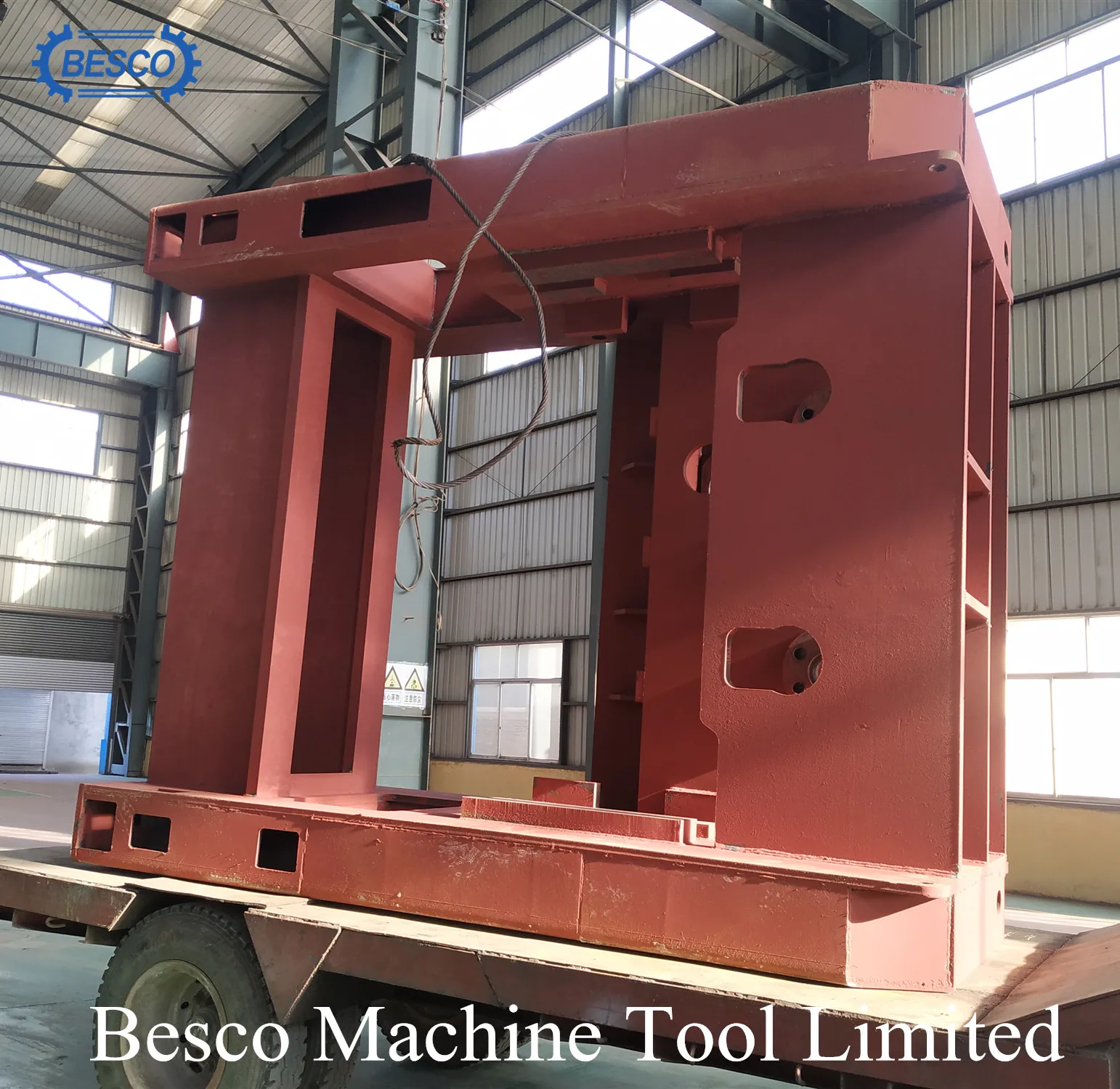

1.The machine body is welded of quality steel sheet and reliability of precision of the machine ;
2.In order to gurantee the machine running in stable and smooth , adopt the design of symmetrical two side boards with balancer ;
3.The precision of mold adjusting up to 0.1mm , safety, reliable and convenient ;
4.Crank, gear, connectbar are oxidized hardening and milled, having super comprehensive mechanical performancce and durable function.
Main Parameter
NAME
UNIT
BLM-110
BLM-160
BLM-200
BLM-300
BLM-400
BLM-500
BLM-630
Capacity
Ton
110
160
200
300
400
500
630
Stroke
mm
180
180
250
280
300
300
300
Stroke Frequency
s.p.m
50
40
35
30
30
20
15
Die Height
mm
400
450
500
550
550
600
600
Slide Adjustment
mm
100
100
120
120
120
150
200
Slide area
mm
1400*550
1600*650
1850*750
2400*900
2620*1100
3200*1200
3740*1300
Bolster area
mm
1550*750
1800*760
2200*940
2500*1000
2700*1100
3400*1200
4000*1400
Slide Opening
mm
600*350
700*450
900*600
900*600
900*600
1000*700
1000*700
Main Motor
Kw·p
11*4
15*4
18.5*4
30*4
37*4
55*4
75*4
Precision
GB/JIS I Grade
size(L*W*H)
mm
2188*2280*3180
2309*2590*3682
2523*3000*3915
2899*3600*4729
3225*3800*5150
3655*4500*5150
3955*5100*5971
