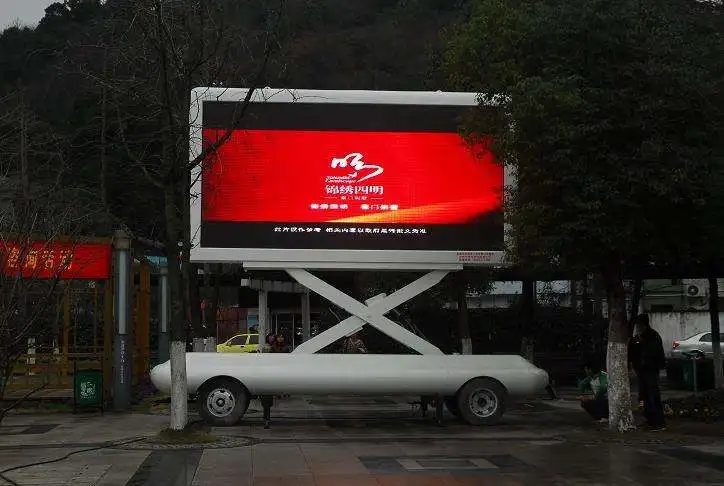

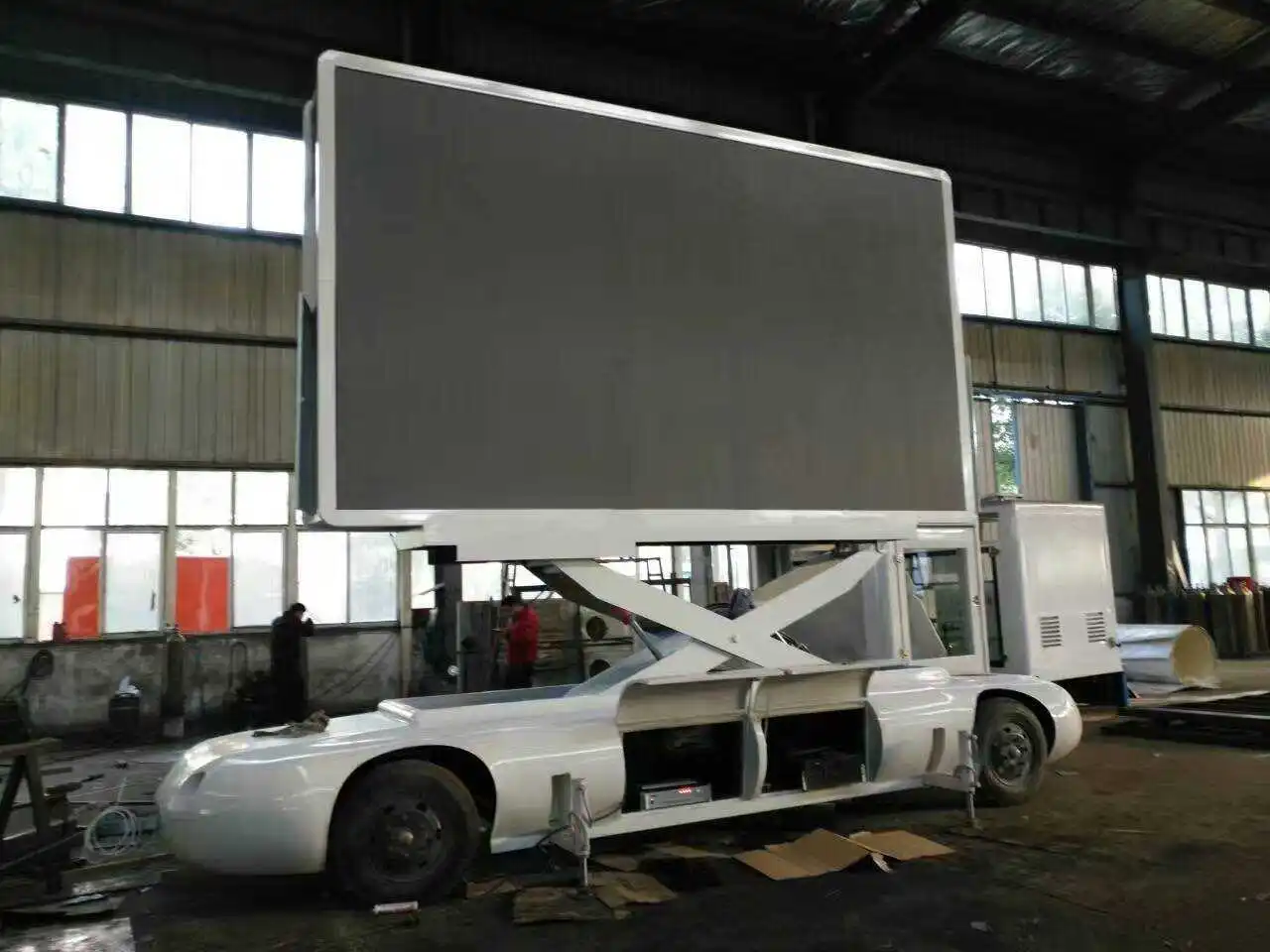

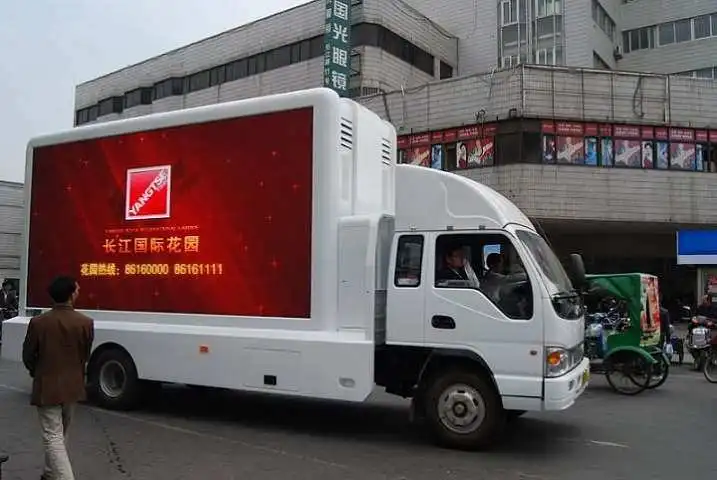

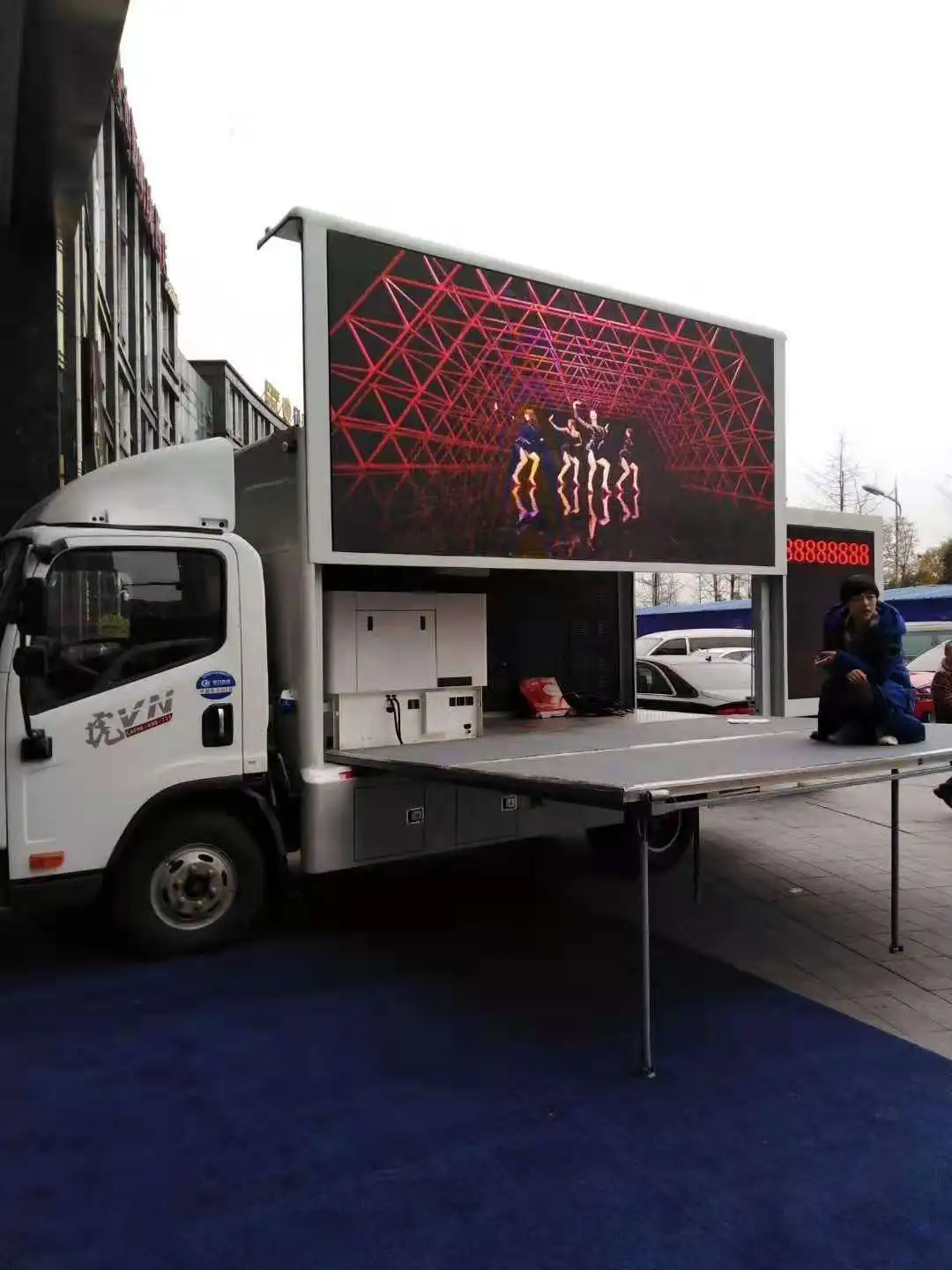

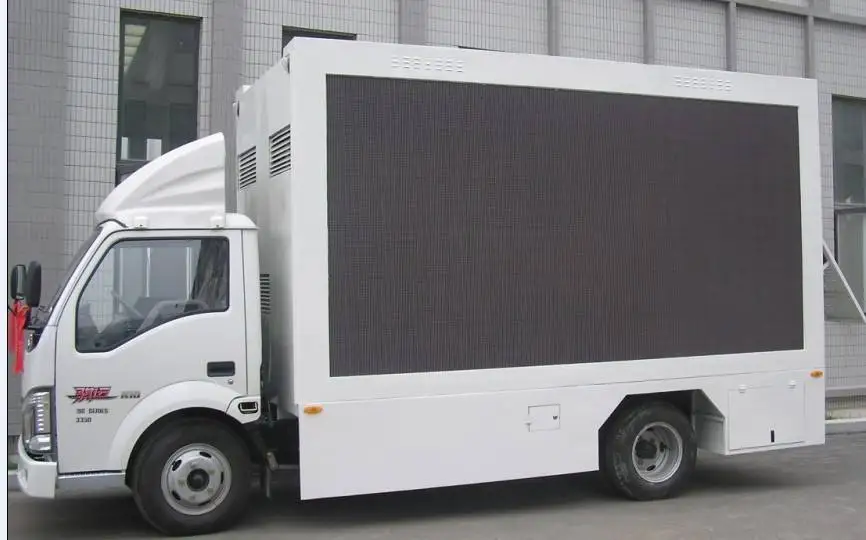

P6 outdoor full color mobile led screen trailer trailer led display
- Category: >>>
- Supplier: Quanzhou Jiacai Electronics Co. Ltd.
Share on (1600060015475):
Product Overview
Description
Products Description
Item | Technical parameter | ||
Panel | Dimension | (W)192mm*192mm(H) | |
Pixel pitch | 6mm | ||
Pixel Density | 27777dots/ M2 | ||
Pixel configuration | 1R1G1B | ||
LED specification | SMD3535 | ||
Pixel resolution | (W)32 dots*32dots(H) | ||
Average power | 10W | ||
Panel weight | 0.37KG | ||
Cabinet&Bracket | Cabinet size | 960mm*960mm | |
Quantity of panel | 27.126PCS/M2 | ||
Best viewing angle | H:>170 V:>120 | ||
Best viewing distance | 6-100M | ||
Working temperature | -25 -- +55 | ||
Panel power supply | 5V40A | ||
Screen power supply | AC220V—AC250V | ||
Max power | 600W/M2 | ||
Average power | 300W-500W/M2 | ||
Technical parameter | Driving device | 16206 Constant current drive | |
Drive type | 1/8 Scanning | ||
Refresh frequency | 1920HZ/S | ||
Display color | 4096*4096*4096 | ||
Brightness | 6000-7000cd/ M2 | ||
Life span | 100000Hours | ||
Communication distance | 100M | ||
More Products
Why Choose Us
Company Profile
Certifications
Production Process
Product packaging
FAQ
1.Can I have a sample order for led screen?
Yes, we welcome sample order to test and check quality for both led module and led screen.
2.How long will it take to delivery the goods?
For led module our delivery date is 1-5days,for led screen order less than 100 square meter we can
delviery within 15 working days.
3.What kind of warranty do you offer?
We offer two years warranty for our products.
4.How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with
your complains and feedback.We also offer 24-hour online service to help you solving problems.
