Product Overview
Description

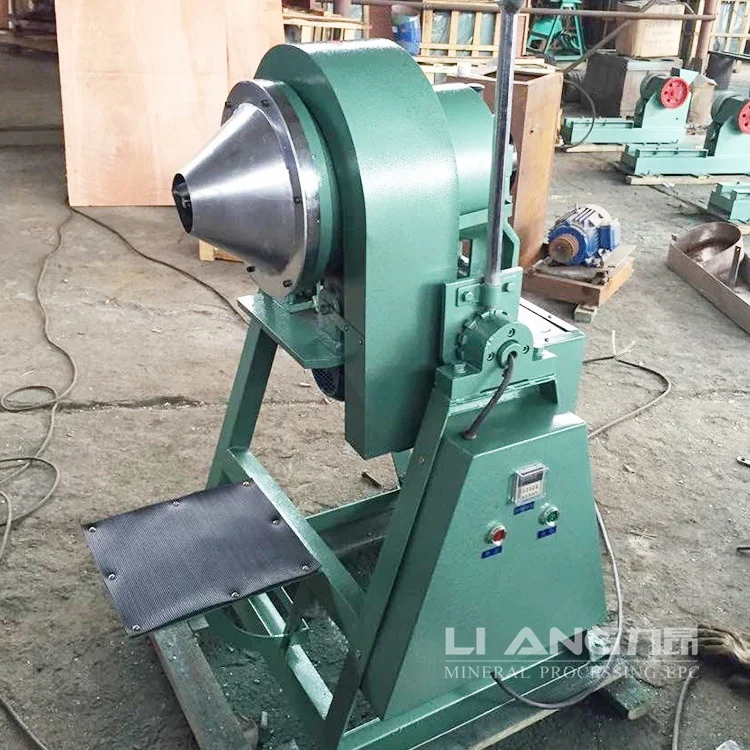

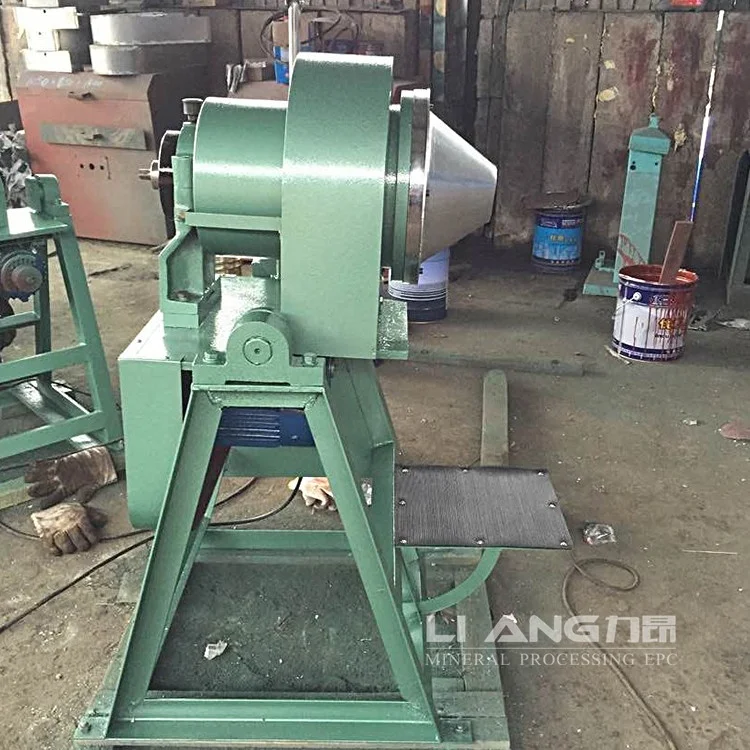

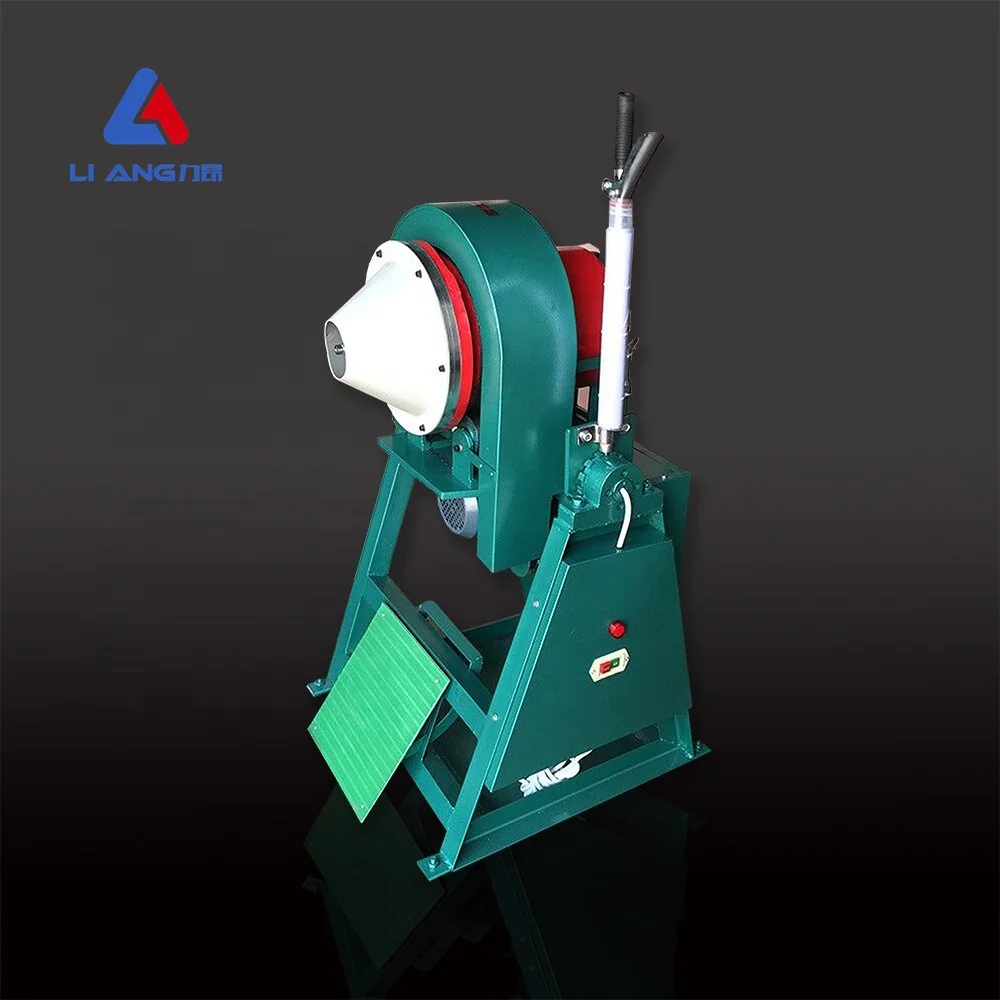

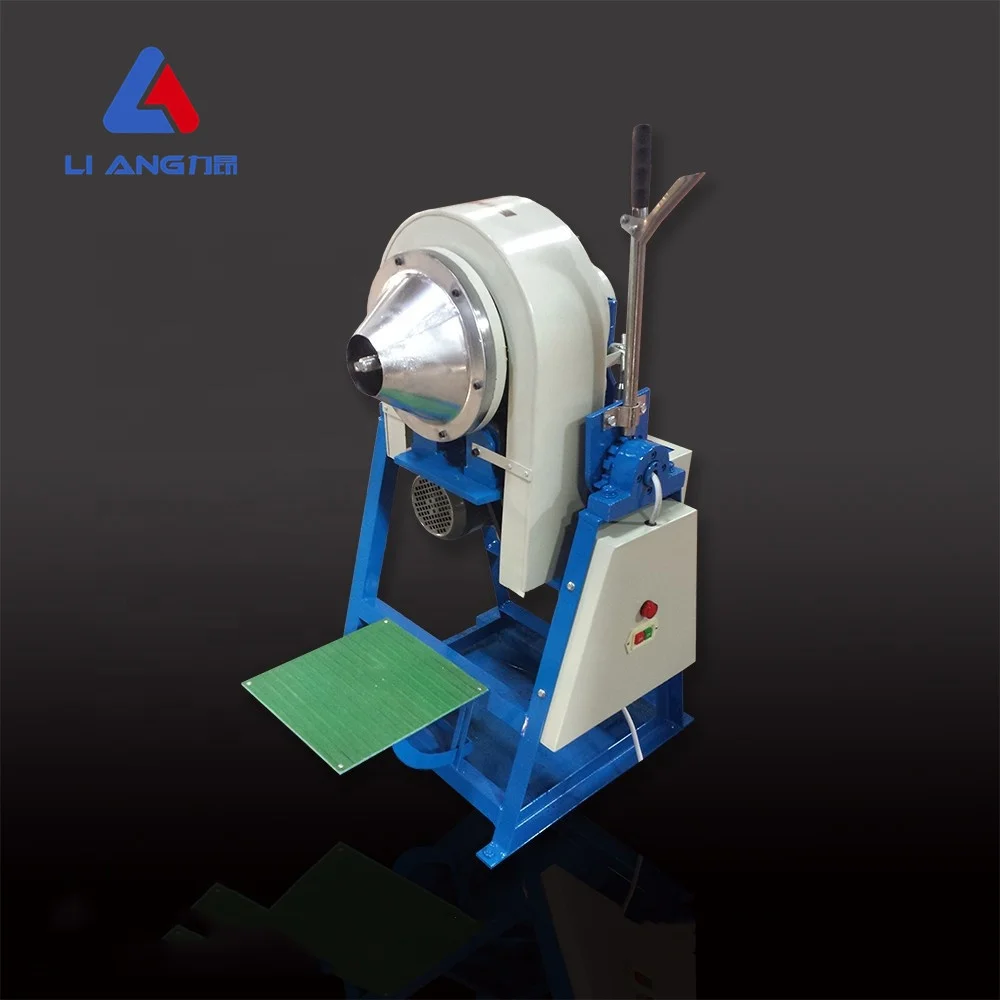

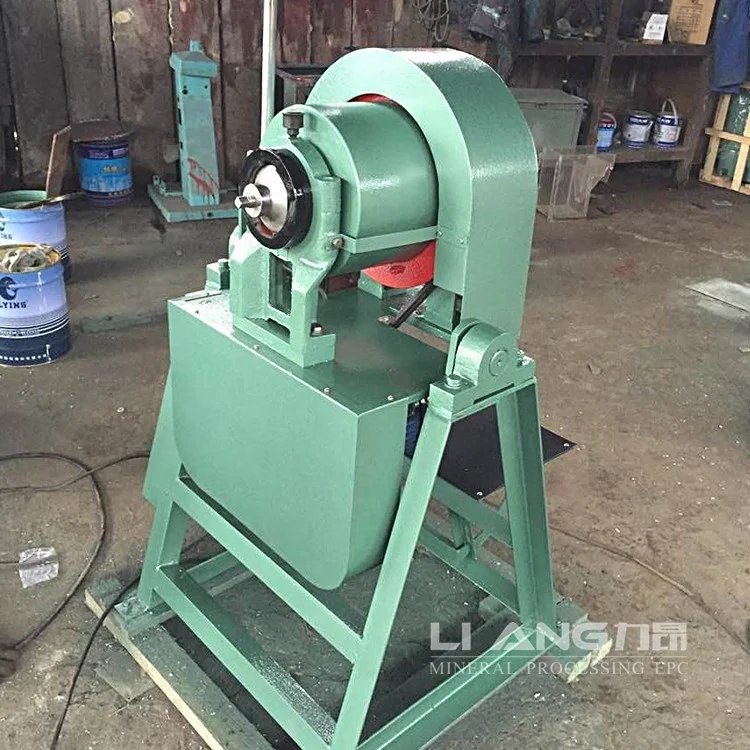

Laboratory Levigation Analysis Rod Mill for Wet or Dry Ore Fine Grinding
XMB series rod ball mill is an efficient laboratory grinding equipment for wet grinding of ore or other materials.It also can be dry grinding. Steel balls can be used as grinding medium instead of steel rods. In rod grinding operation, particle sizes of final product are relatively uniform and ore overgrinding can be eliminated.
Generally speaking, lab rod mill is commonly used as a grinder for mineral feasibility study and for heavy concentrate reduction. It is also the supporting equipment for flotation machines and other equipment. It is Favored by related department due to its compact size, convenient operation, precise efficiency. It is a supported ideal laboratory grinding equipment.
The product is produced by the only enterprise designnated by the former ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

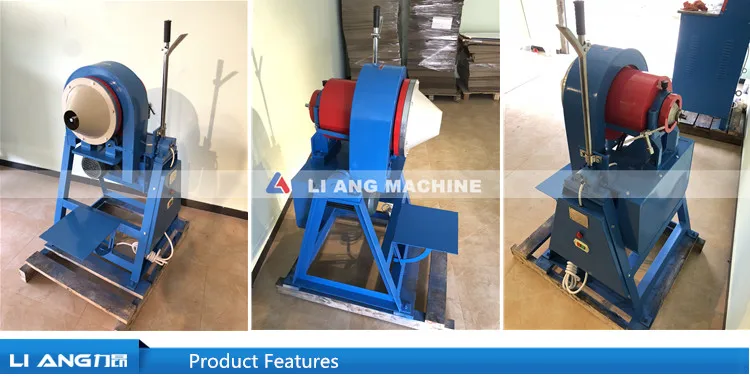

1.Exquisite design, small and compact structure;
2.High efficiency,easy operation,low noisy.
3.Large capacity, high Quality.
4. Replaced the bar with stainless steel balls so the machine can be used as lab ball mill.
5. Uniform granularity when bar grinding.
2.High efficiency,easy operation,low noisy.
3.Large capacity, high Quality.
4. Replaced the bar with stainless steel balls so the machine can be used as lab ball mill.
5. Uniform granularity when bar grinding.
6.Overgrinding can effectively be prevented;
7. Fine grinding for wet or dry materials.
8.Menu display on LCD screen.
9. Optional set for grinding time.
10.Simple electric control device for the input or out-put materials.
7. Fine grinding for wet or dry materials.
8.Menu display on LCD screen.
9. Optional set for grinding time.
10.Simple electric control device for the input or out-put materials.

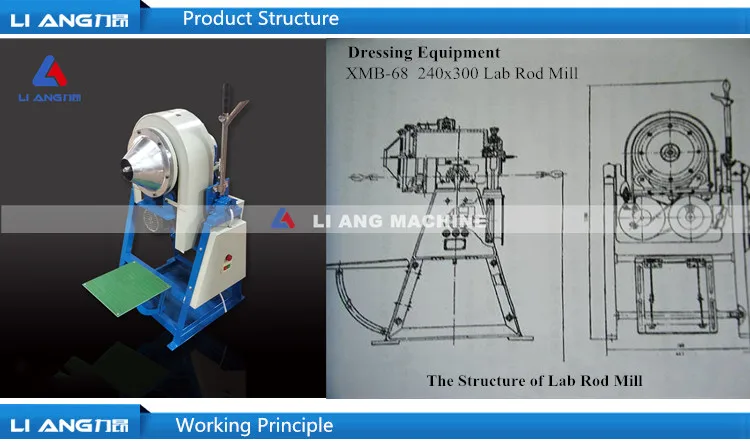

Working Principle of the Lab Rod Mill
The nodular graphite iron drum is connected with the big belt wheel by screw bolt. The one end of drum is open, and the other end hollow trunnion. Both ends are withstood by a pair of support and base bearing. The base bearing seat and support frame are mounted on support frame which can rotate in 180°.
The support plate are mounted on the frame with two bearing seat. The slewing ring can rotate 22.5°, 67.35°and 90° left and right from horizontal through control handle and alignment plate, so that ore loading, discharging, rod taking out, and rustproof fluid filling can be accomplished.
The right end of the drum is with ore feeding stopper, the left end with ore discharging cap, when the rod mill is working, tighten the screw bolt in a clockwise direction with a special wrench until the rubber gasket in the discharge cap tighten the screw bolt three or four turns, the cap withdraw outside 6~10mm, and without taking the cap away, the ore can be discharged. The discharge end is coupled with slurry collecting cover, so that the slurry splash phenomenon can be avoided completely.
The support plate are mounted on the frame with two bearing seat. The slewing ring can rotate 22.5°, 67.35°and 90° left and right from horizontal through control handle and alignment plate, so that ore loading, discharging, rod taking out, and rustproof fluid filling can be accomplished.
The right end of the drum is with ore feeding stopper, the left end with ore discharging cap, when the rod mill is working, tighten the screw bolt in a clockwise direction with a special wrench until the rubber gasket in the discharge cap tighten the screw bolt three or four turns, the cap withdraw outside 6~10mm, and without taking the cap away, the ore can be discharged. The discharge end is coupled with slurry collecting cover, so that the slurry splash phenomenon can be avoided completely.
Model | XMB160*200 | XMB240*200 | XMB240*300 | ||
Shell Diamter*Length&Width(mm) | 160*200 | 240*200 | 240*300 | ||
Volum(L) | 4.02 | 7.5 | 13.57 | ||
Grinding Capacity(G) | 300-800 | 500-1000 | 1000-5000 | ||
Feeding Size(MM) | -2 | -2 | -3 | ||
Output Size(MM) | -0.074 | -0.074 | -0.074 | ||
Shell Rotate Speed(R/Min) | 120 | 110 | 96 | ||
Motor | Power (KW) | 0.25 | 0.55 | 0.55 | |
Rotate Speed(R/Min) | 1400 | 1390 | 1390 | ||
Overall Size(MM) | 1052*530*1160 | 1052*615*1160 | 1052*615*1160 | ||
Weight(KG) | 90 | 155 | 160 | ||
Product Application of the Lab Rod Mill
1.Laboratory Rod Mill is the key equipment for mineral ores grinding after the crush process in the lab, it can work with flotation cells, magnetic separators, shaking table and other equipments to make ore dressing test.
2. Lab rod mill is widely applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, new building materials,cement,silicate, chemical, light, coal, water conservancy, electric power,glass ceramics, agricultural and geological industries.
2. Lab rod mill is widely applied in labs for processing and fine grinding of artificial placer materials and ores in metallurgical, new building materials,cement,silicate, chemical, light, coal, water conservancy, electric power,glass ceramics, agricultural and geological industries.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Ganzhou Li Ang Machinery Co.,Ltd. is specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!
Pre-Sales Service：
1.We can help you select equipment model and design resonable and complete production line flow according to clients’s requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients’ requests.
4.We can supply the technical parameters of the equipment.
After-Sales Service：
1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.
3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.
5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.
Q1: For providing you the suitable quotation we need to know the following information:
1.What is the raw material to handle ? Minerals eg: gold,coltan,diamond,tin, etc
2. What is the capacity per hour you required? 5tph,50tph,100 tph
3. What is the maximum input size of the raw material? 130mm,200mm,50mm
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.
Q3. What warranty do you give for your machine?
A:---We can supply spare parts .
---The quality assurance date we give is one year for the main parts after commissioning.
---We provide lifelong maintainence and technical support.
Q4.What is your Payment Terms?
A: We usually use the following payment terms.
Q5：What’s your means of transportation?
A:We have these means of transportation as below.
Q6. What is your delivery time?
A:Please find the answers as below.
Product | Lead time | |
shaking table | <=10days | |
laboratory mining equipment | <=10days | |
large mining equipment | 30-40 days. | |
customized machine | 30-40 days. | |
Tip: Exact delivery shall be confirmed when placing the order. | ||
