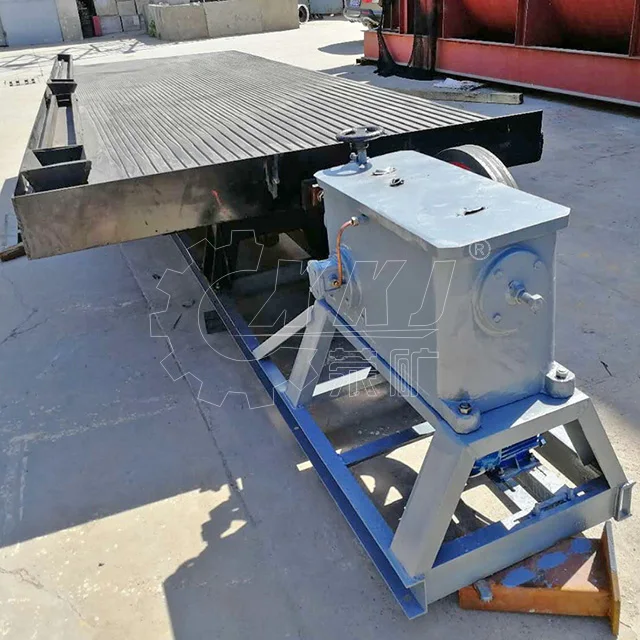

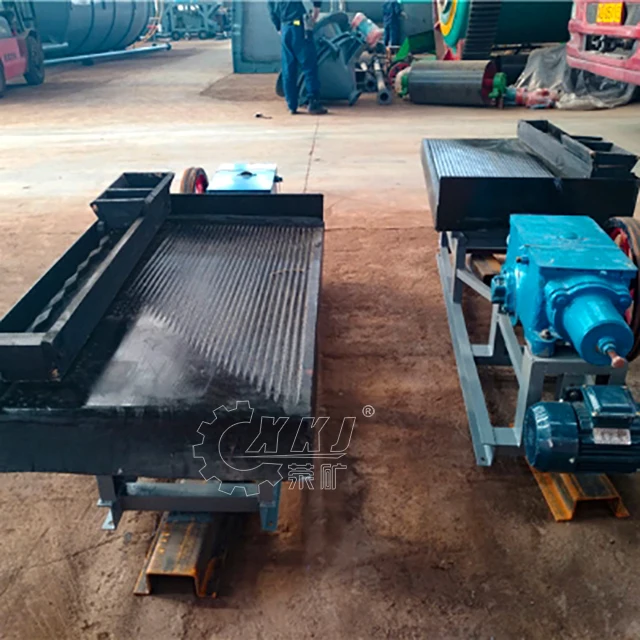

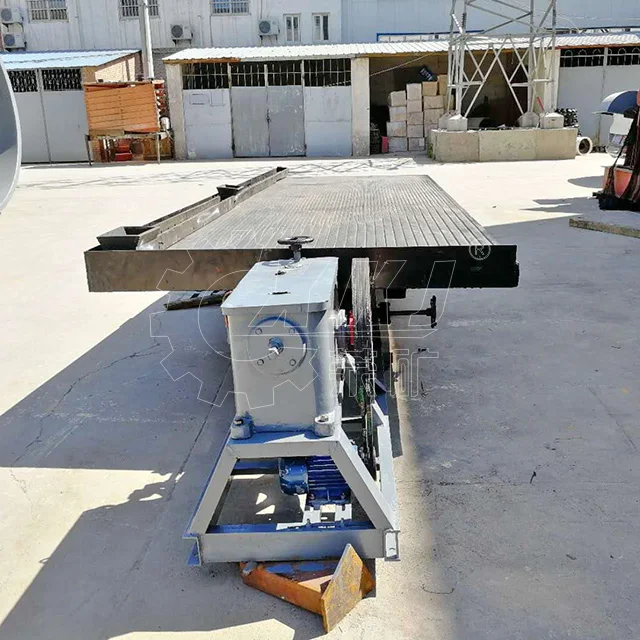

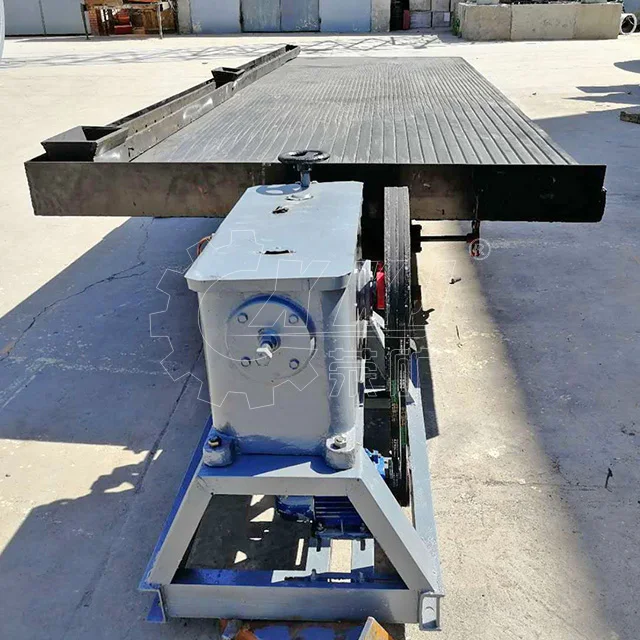

Shaking table introduction




Shaking table is the main gravity concentrator. It is applicable for the separation of fine-grained, micro-grained rare metal, ferrous and non-ferrous metals, precious metal, coal and other minerals. It can carry out the ore concentration operation independently, also it can work in conjunction with jig, screw separator, centrifugal separator and other equipment.







Shaking table parameters





































































Table Size(mm) Length×Feed width×Concentrate width1100×500×430
Selective are(m²)0.51
Feed size(mm)coarse sand0.1-0.2
fine sand0.05-0.1
slurry0.03-0.05
Water consumption(t/h)0.1~0.5
Stroke(mm)9~17
Jig frequency(q/m)280~460
Cross fall(°)0°~10°
MotorModelY80L-4
Power(kw)0.55
Revolving speed(r/min)1400
V-belt(mm)A-1245
Overall Dimension(Length*Width*Height)mm1530×500×800
Weight(kg)150

Packaging & Shipping









Shaking table principle




Shaking table working





The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.





(1) Feed ore port                               (9)Horizontal support


(2) Stroke adjusting device                 (10)Horizontal adjustment wheel


(3) Ore feeding trough                       (11)Table support


(4) Feed water port                           (12) Knife-type support


(5) Water feeding through                  (13)Stand


(6) Table surface                              (14)Shaking table head


(7) Concentrate side                          (15) Motor support


(8) Tailings side                                 (16)Swing Adjusting device
