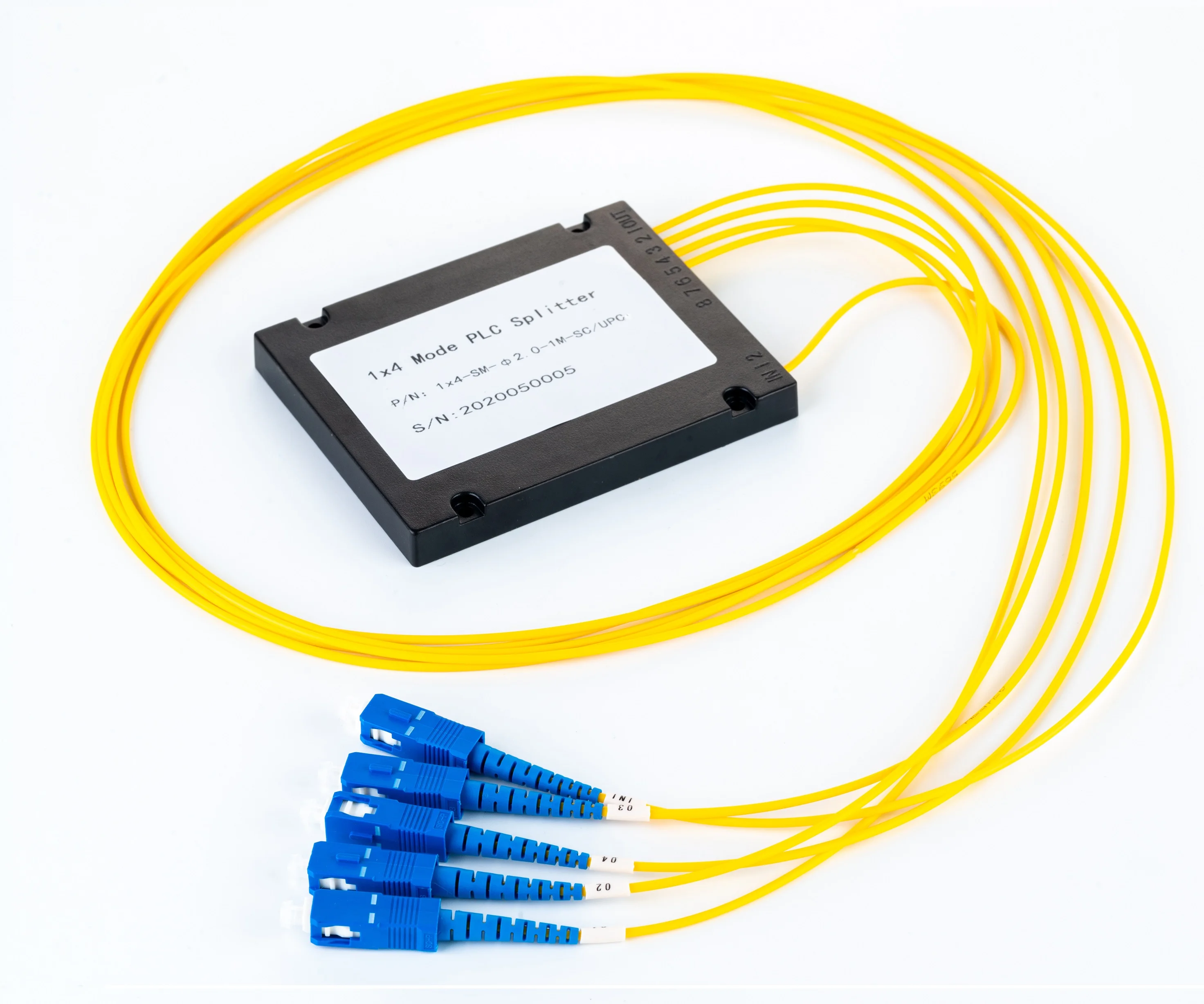

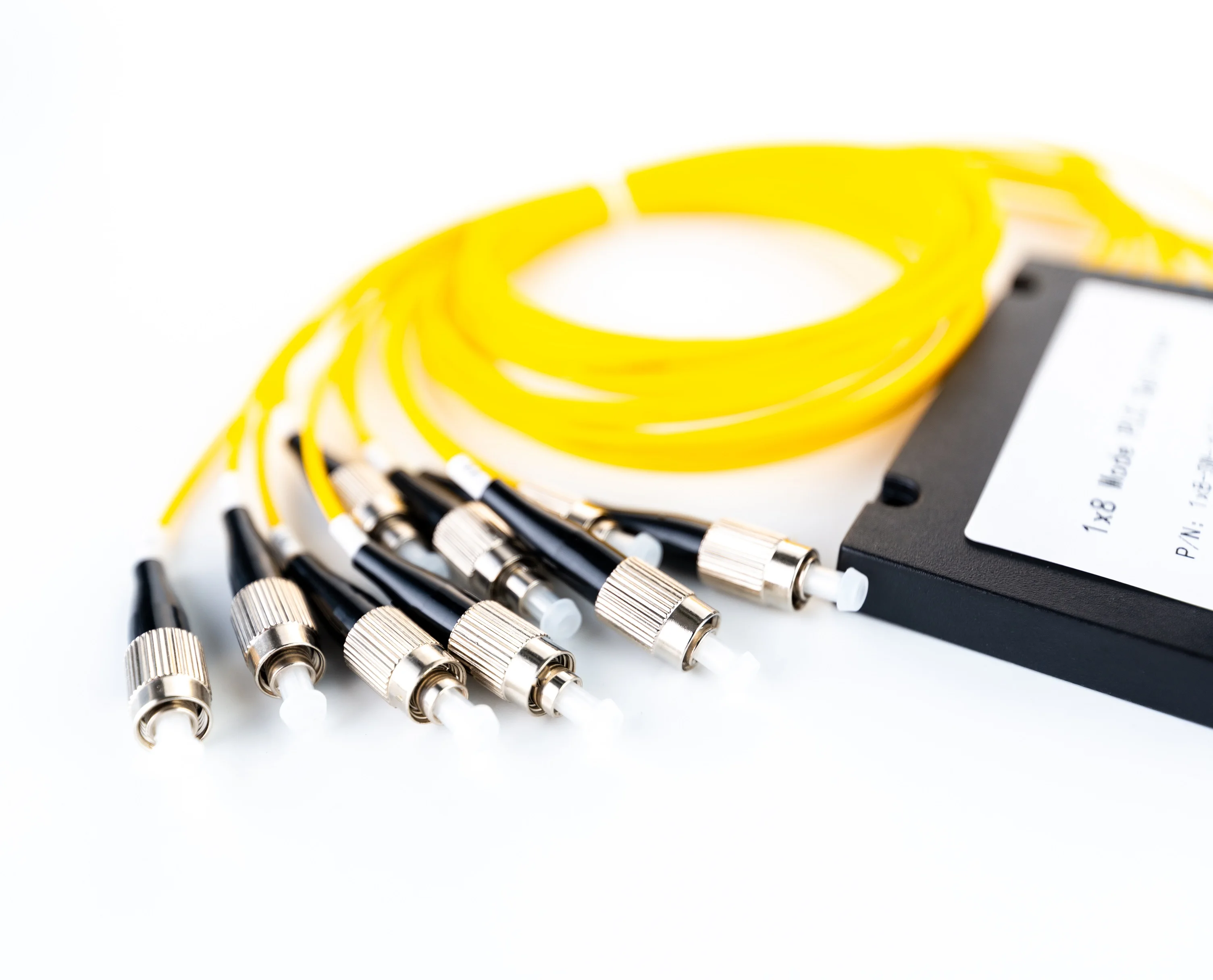

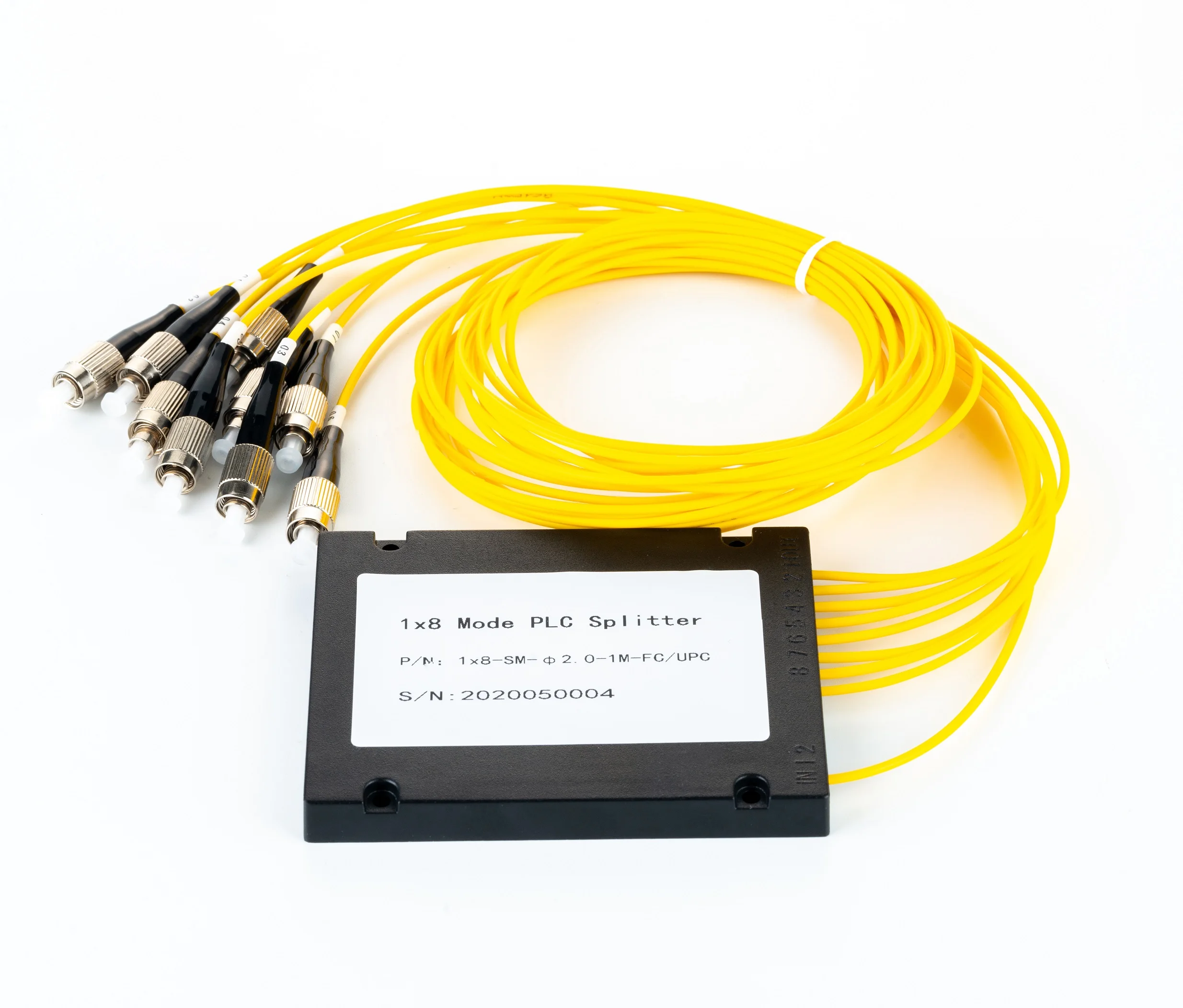

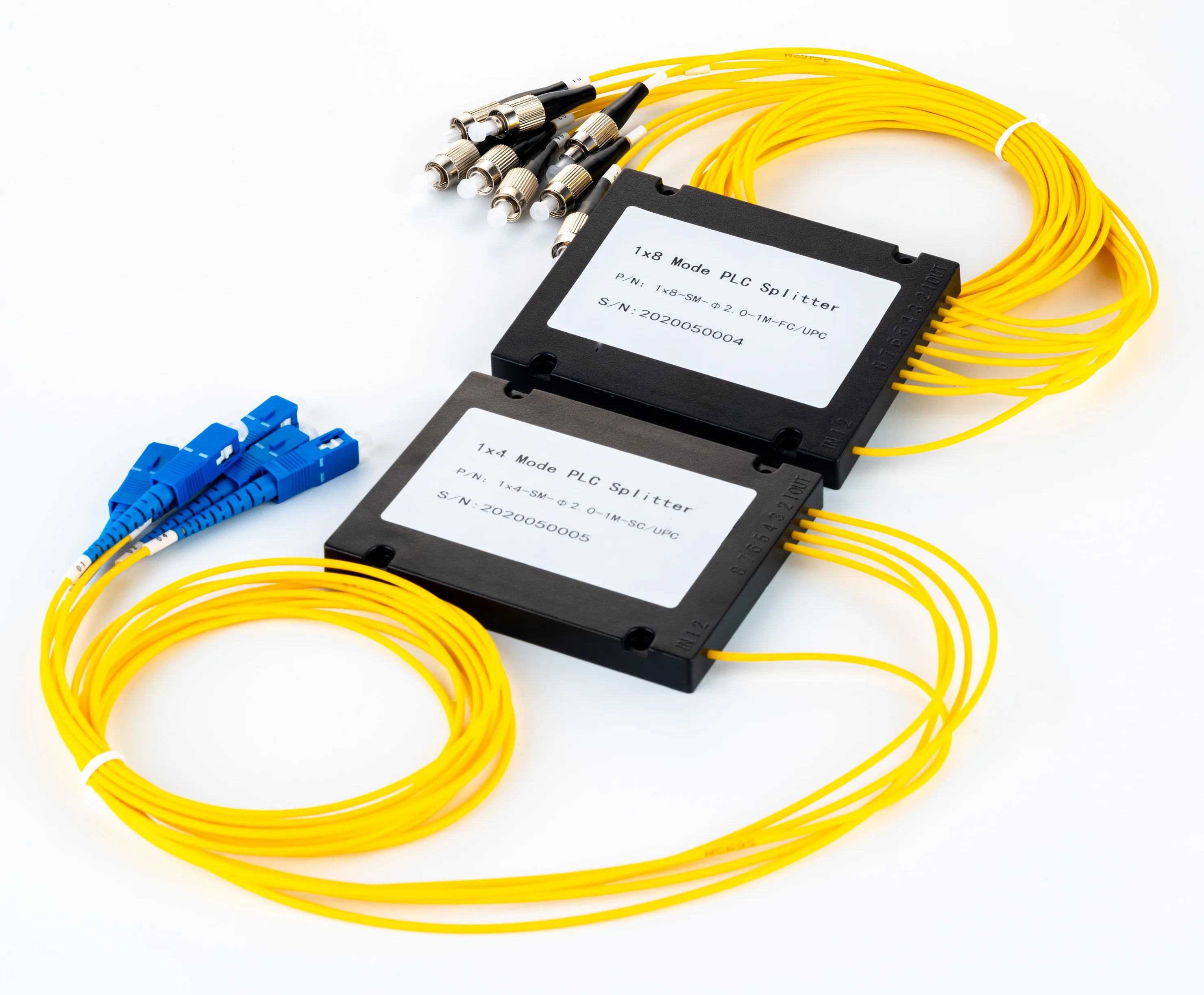

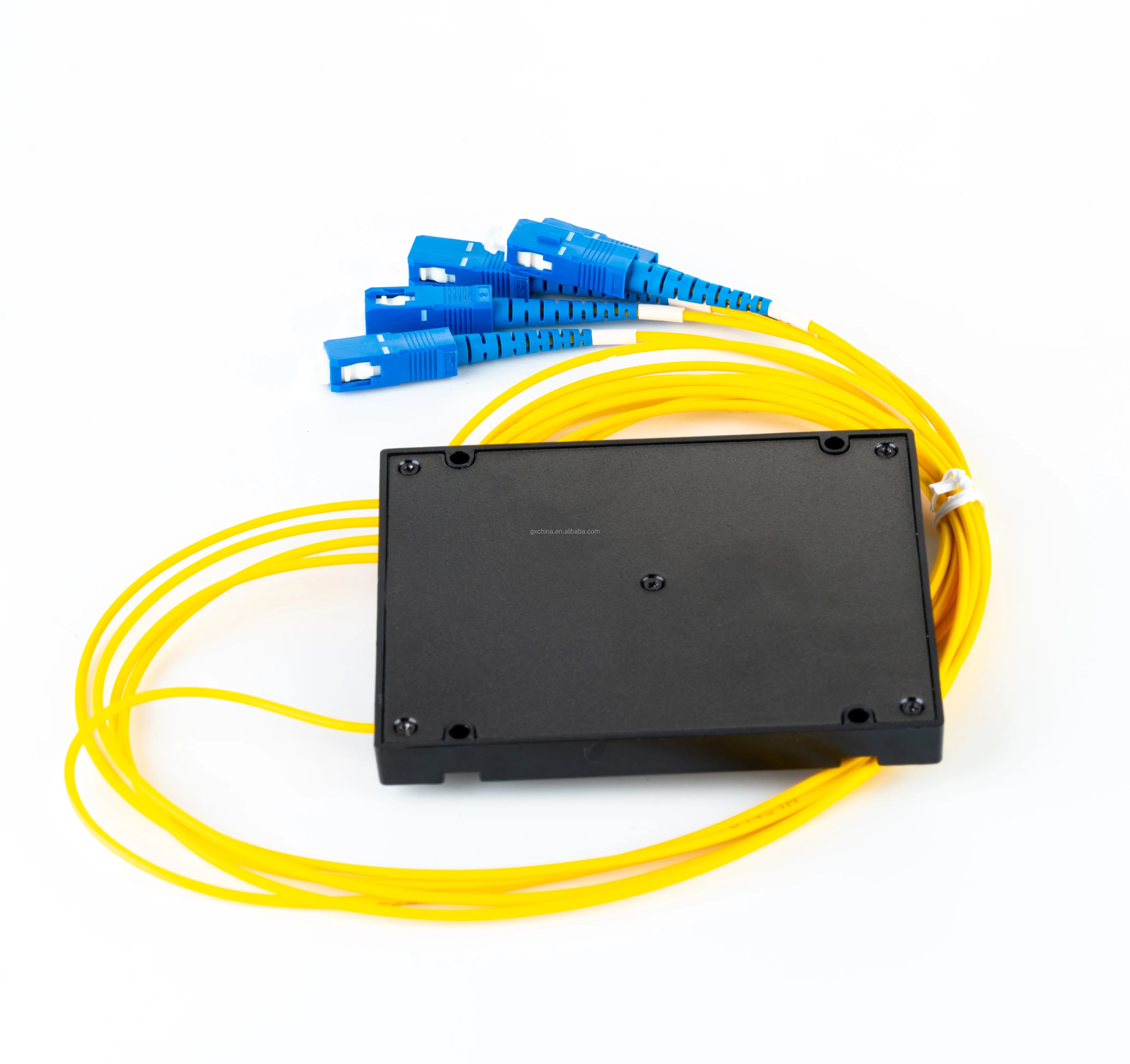

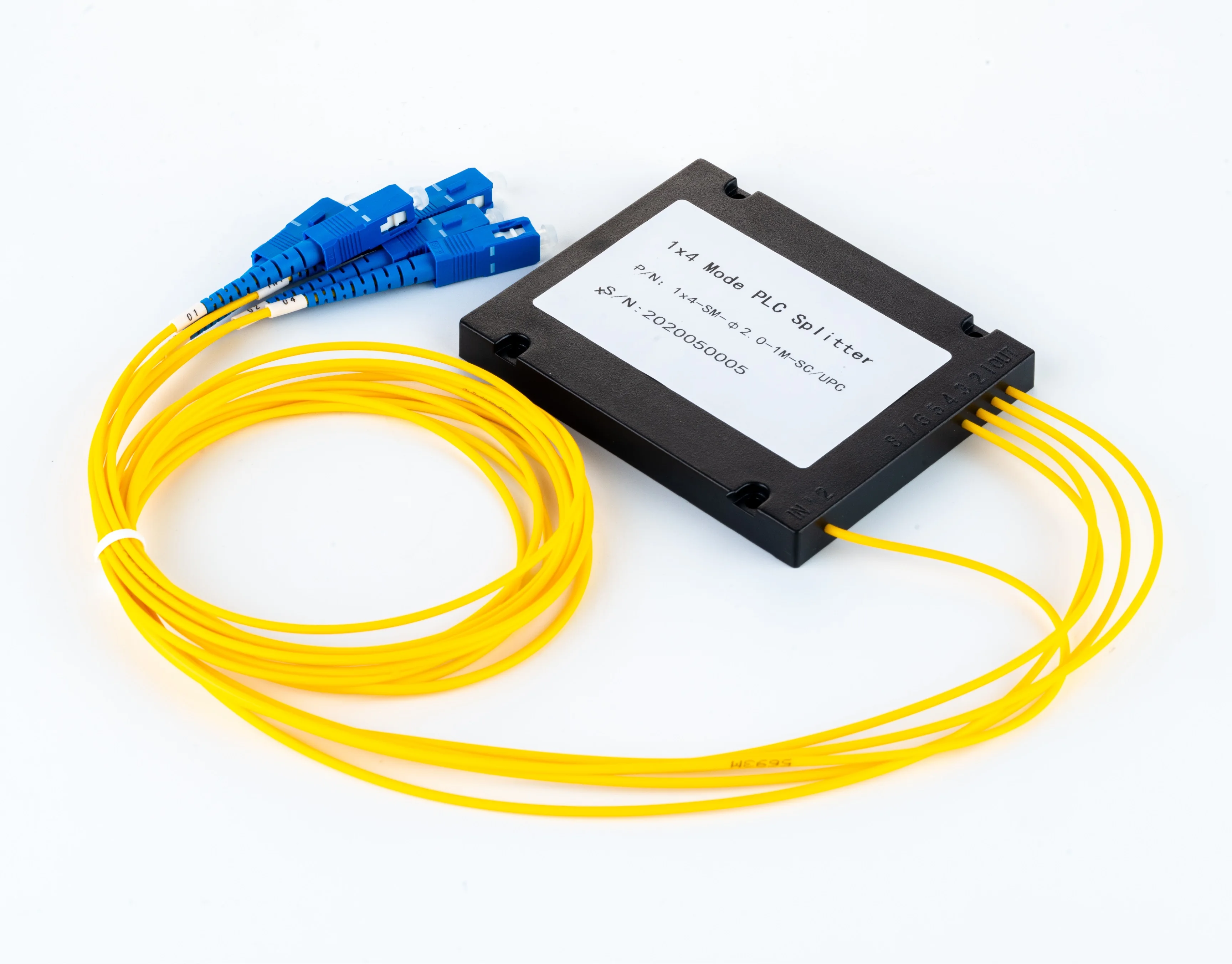

FTTH 1x2 1x4 1x6 1x8 1x16 1x32 1x64 ABS Box PLC Splitter
- Category: >>>
- Supplier: Optical Trust (Xuzhou) Electronic Technology Co. Ltd.
Share on (1600060434775):
Product Overview
Description
Application
Planar Lightware circuit(PLC) splitter is a type of optical power management device that is fabiricated using silica optical technology.It features small size ,high reliability,wide operating wavelength range and good channel-channel uniformity,and is widely used in PON networks to realize optical signal power splitting.
Specification
Performance Specification: 1xN PLC Splitter | ||||||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | ||||||
Operating Wavelength(nm) | 1260~1650 | |||||||||||
Fiber Type | G657A1 or Customer Specify | |||||||||||
Insertion Loss(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | ||||||
Loss Uniformity(dB) | ≤0.4 | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ||||||
PDL(dB) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.25 | ≤0.3 | ||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Wavelength Dependent Loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ||||||
Fiber Lenght(m) | 1m or Specify | |||||||||||
Temperature Stability(-5℃~70℃)(dB) | ≤0.5 | |||||||||||
Operating Temperature(℃) | -5~70 | |||||||||||
Maximum Power Handing(mW) | 500 | |||||||||||
Performance Specification: 2xN PLC Splitter | ||||||||||||
Type | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | ||||||
Operating Wavelength(nm) | 1260~1650 | |||||||||||
Fiber Type | G657A1 or Customer Specify | |||||||||||
Insertion Loss(P/S Grade) | 3.9/4.2 | 7.3/7.6 | 10.5/11.0 | 14.4/14.6 | 17.4/17.9 | 21.0/21.5 | ||||||
Loss Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.2 | ||||||
PDL(dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||
Return Loss(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ||||||
Wavelength Dependent Loss(dB) | ≤0.3 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||||||
Fiber Lenght(m) | 1m or Specify | |||||||||||
Temperature Stability(-5℃~70℃)(dB) | ≤0.5 | |||||||||||
Operating Temperature(℃) | -5~70 | |||||||||||
Maximum Power Handing(mW) | 500 | |||||||||||
Products Description

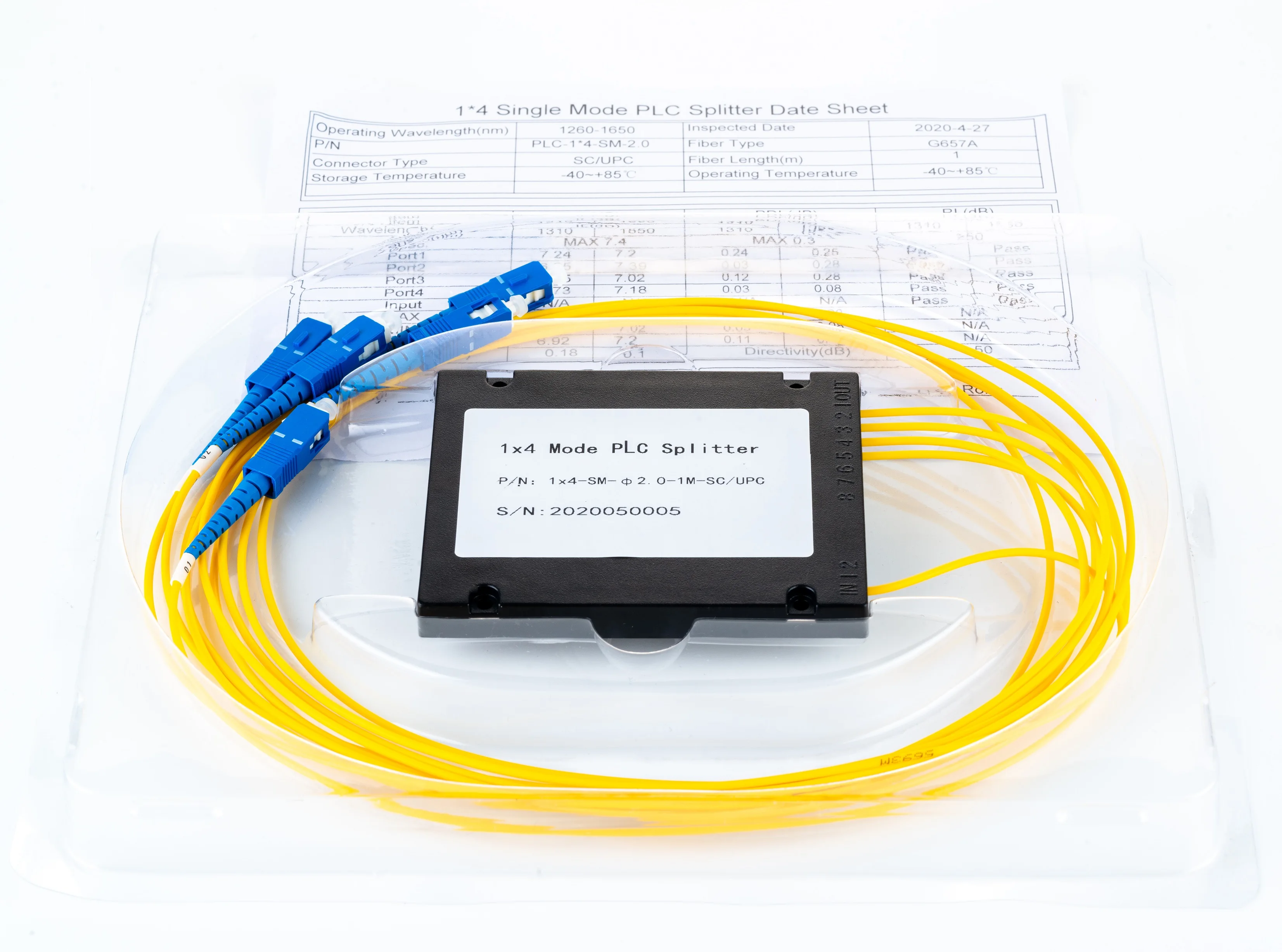

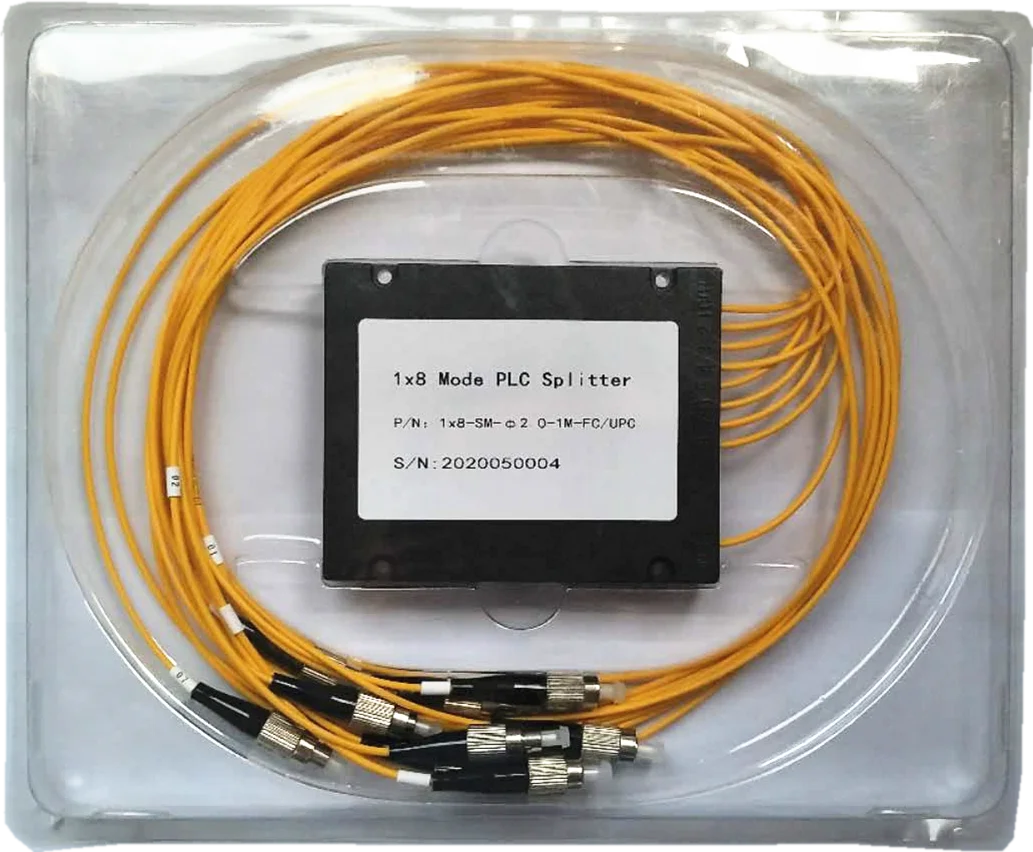

Product packaging
Company Profile
About us
Optical Trust (Xuzhou) Electronic Technology Co., Ltd is located at No.18 and 20,XINWEI semiconductor industrial park, Xuzhou city, Jiangsu province, china. The company is an innovative manufacturer engaging in the telecom optical component. We adopts the latest cutting-edge product line and advanced inspection instruments. The products have been used widely in various application of telecommunication field.
Company certification
Shipment
FAQ
