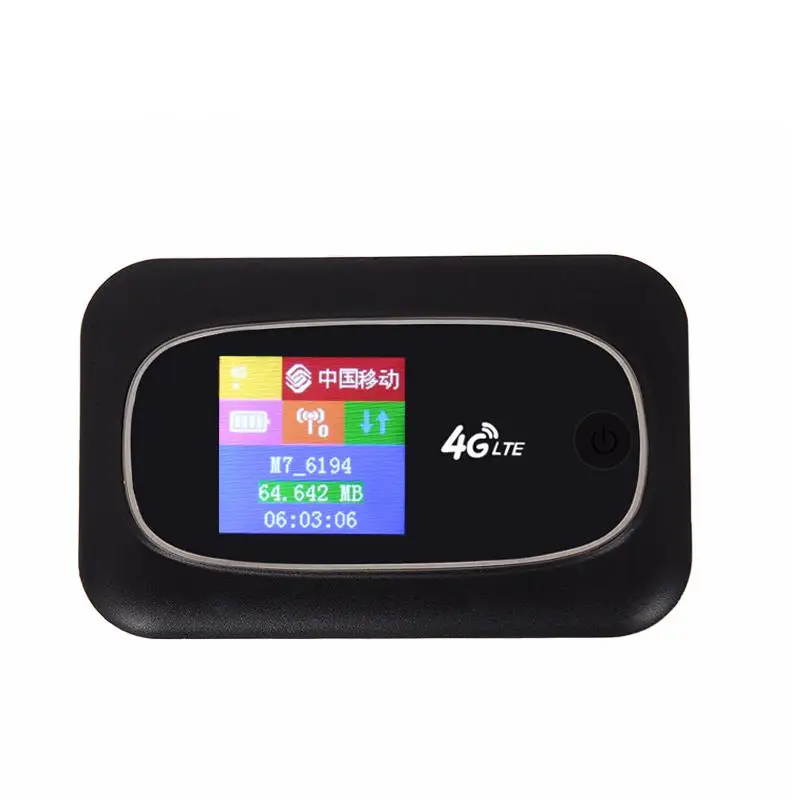

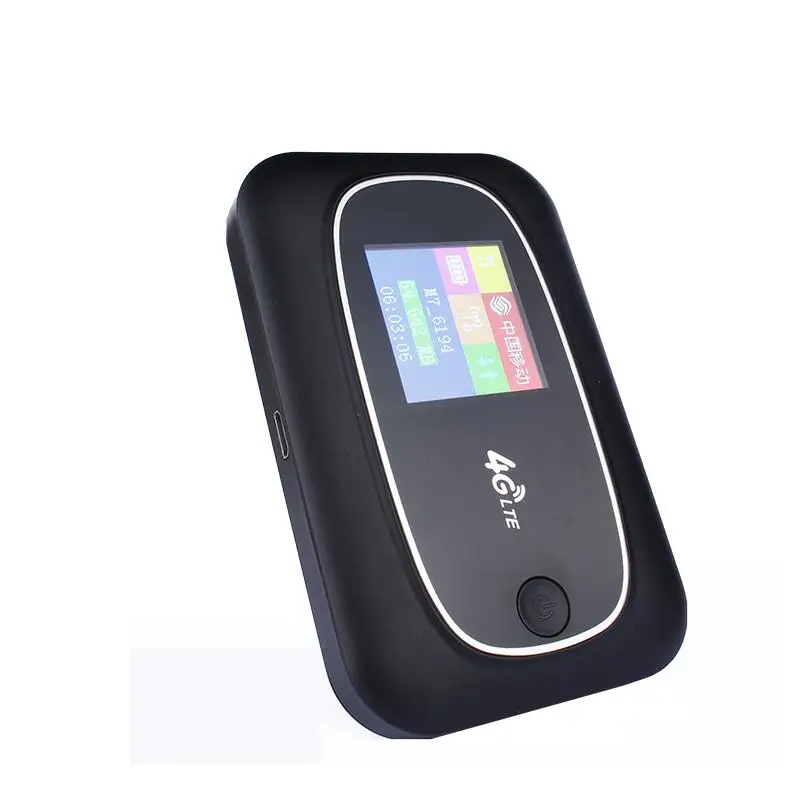

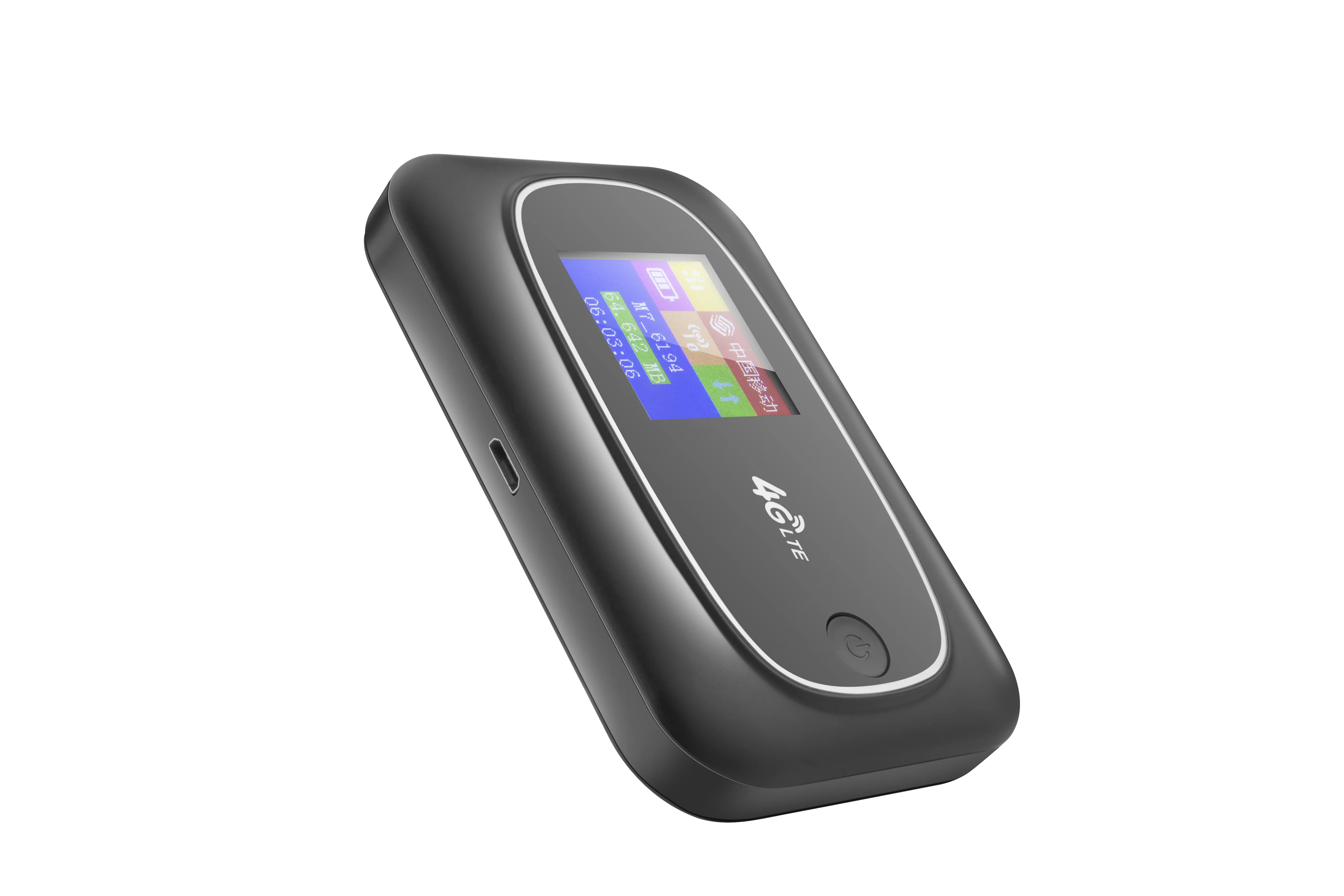

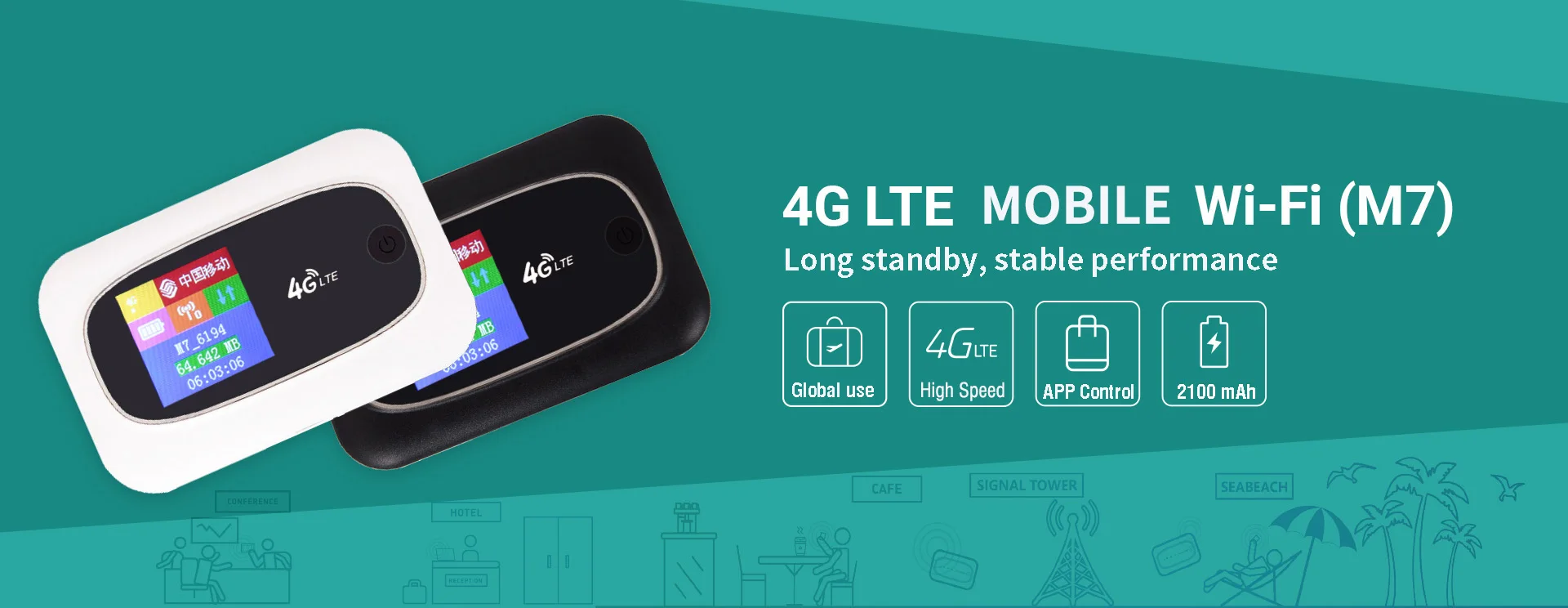

Qualcomm MDM9207 4G Wireless Access Point LTE Mobile WI-FI With 2000mAh Battery Cat5 150Mbps Support 10 Users

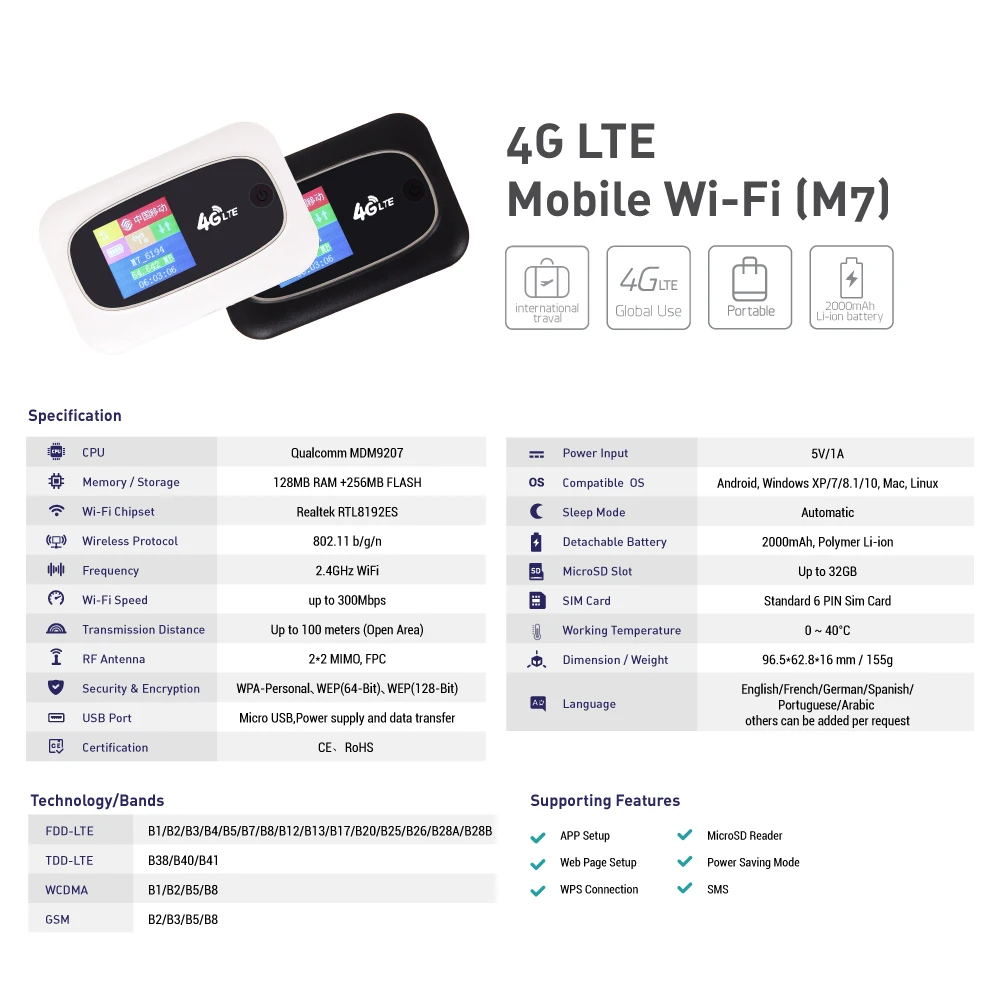

Basic Product Information
Item
Description
Model No.
M6/ M7
4G Wireless Access Point and USB dongle

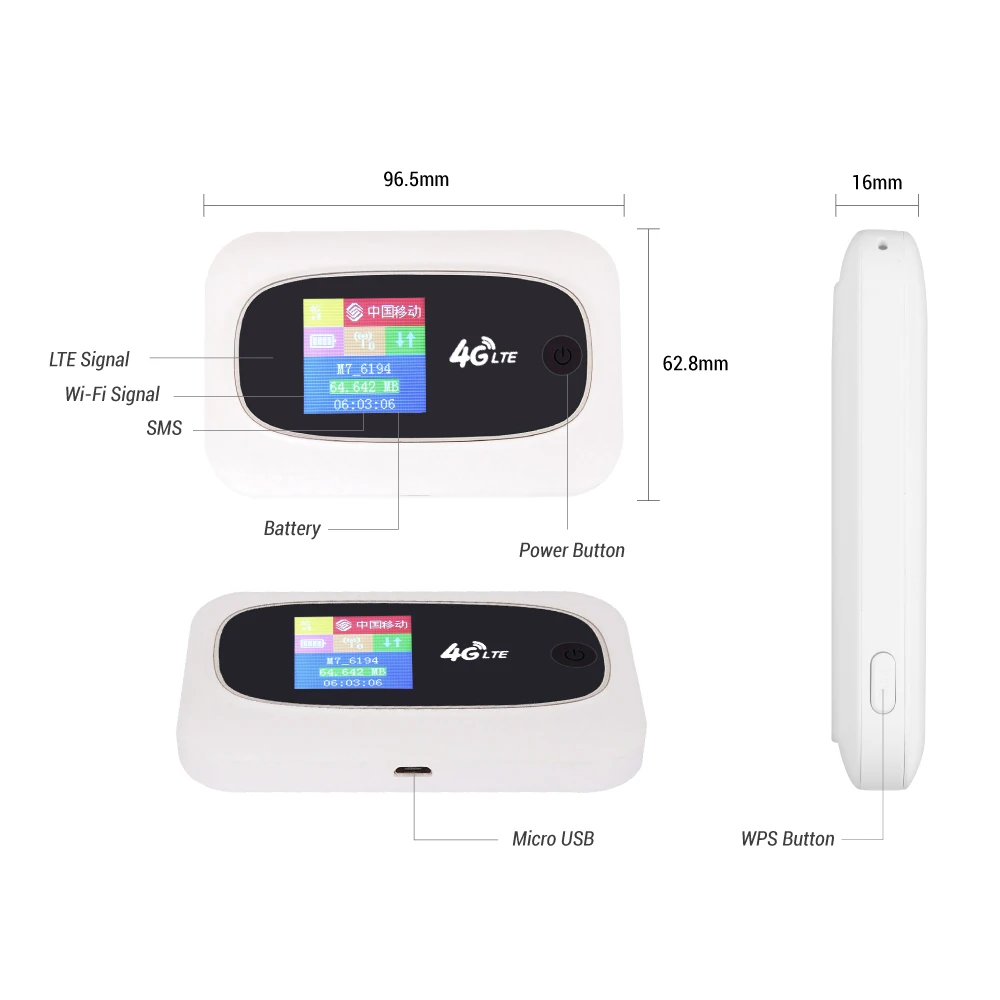

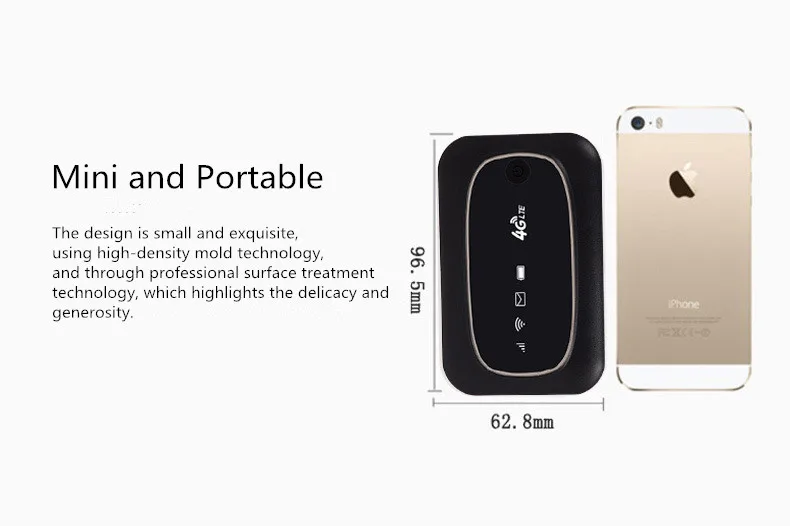

Size
96.5mm*62.8mm*16mm
120*86*54(outer packing)
Weight
155g
HW Description
Item
Remarks
Hardware platform
FLASH + RAM
2Gbit Flash+1Gbit DDR2
Chipset
Qualcomm MDM9207

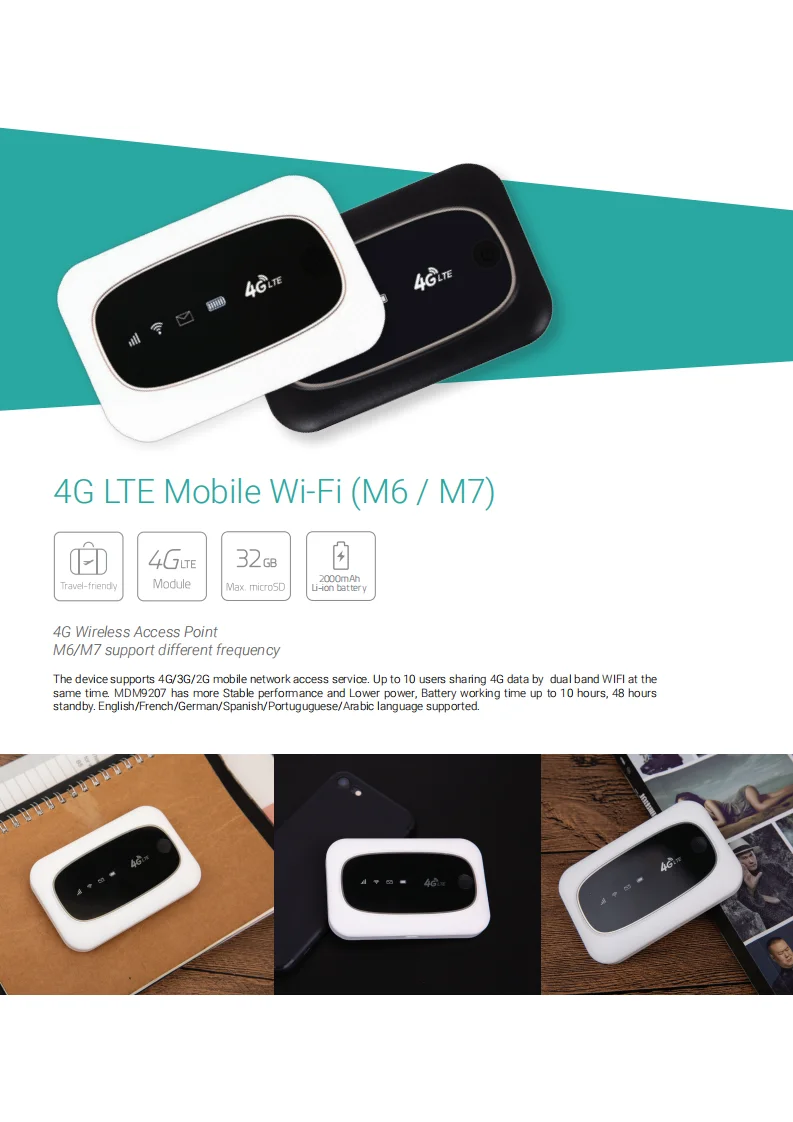

Introduction
The chip support 4G/3G/2G mobile network access service. Up to 10 users sharing 4G data by dual channel WIFI at the same time.MDM9207 has more Stable performance and Lower power ,Battery working time up to 10 hours,48 hours standby. English/French/German/Spanish/Portuguguese/Arabic language supported, R&D team and factory owned give you full technical support and OEM service
Frequency
FDD-LTE
B1/B3/B5/B7/B8/B20
TDD-LTE
B38/B39/B40/B41
WCDMA
B1(2100Mhz)/B5(850Mhz)/B8(900Mhz)
GSM
850/900/1800/1900Mhz
Peak Rate
FDD-LTE
Cat 4, DL 150 Mbps ,UL50Mbps
TDD-LTE
Cat 4, DL 130 Mbps ,UL35Mbps
UMTS/WCDMA
DL 42Mbps, UL 5.76Mbps
EDGE/GPRS
DL 473.6Kbps, UL 171.2Kbps
Antenna
main/pole antenna
FPC
WiFi Information
Item
Remarks
Standard
IEEE 802.11n
support 300Mbps with dual channel
IEEE 802.11g
support
IEEE 802.11b
support
IEEE 802.11b/g/n
support
IEEE 802.11b/g
support
Wifi Chipset
WIFI 802.11b/g/n
realtek RTL8192ES
Frequency
Europe, China
2.4G
U.S.A
2.4G
Japan
2.4G
RF antenna
2*2 MIMO
FPC
Wifi Feature
transmission distance
Default coverage radius 100 m (open environment)
1~11 Channel (North America / Canada)
support
1~13 Channel (Europe / Australia)
support
1~14 Channel (Japan)
support
SSID broadcast
support
Security and encryption
WPA-Personal,WEP(64-Bit),WEP(128-Bit)
System definition
Item
Remarks
Key indicators
Operating temperature (Celsius)
-10~55℃
Storage temperature (Celsius)
-20~70℃
Supported language
English/French/German/Spanish/Portuguguese/Arabic others can be added per request
Browser
Google Chrome, Mozilla Firefox,Microsofte IE ,360 IE/ucweb
Driver
Drive installation
Free drive
Compatible operating system
Android,windows xp/7/8.1/10,Mac,Linux
Traffic statistics
Downstream traffic statistics
support
Upstream traffic statistics
support
Sleep
Sleep mode
Automatic
Settings
WIFI Parameter
support
Login Password
support
Apn add/Edit/Delete
support
Connect Mode
support
Pin Code
support
Network Mode
support
DHCP Server
support
Mac Filter
support
SMS
WEB UI
Received SMS support
Send SMS support
Phonebook
WEB UI
Phone book is supported
Interface Information
Item
Remarks
LED
Network indicator
LED is blue when connected to the internet or flashes when internet disconnected. LED is red when there’s no network,service,or SIM card.
Wi-Fi indicator
LED is blue when Wi-Fi is active.
SMS indicator
LED is blue when you got a new message or flashes when inbox is full.
Battery indicator
LED is red when battery is low. Light blue LED and slow flashing during working. Light blue LED and quick flashing during charging. Light blue LED when full charged.
Key
Power Key
Press and hold for 3 seconds to turn the device on/off.
Short press to put the LED in either active or sleep mode.
Press and hold for 10 seconds to reboot device.
WPS Key
Press and hold WPS button for 3 seconds until Wi-Fi LED blinks.
Short press to put the LED in either active or sleep mode.
Reset
Press both “Power” and “WPS” key at the same time for 3 seconds.reset device to factory mode
SIM/USIM Card Slot
Yes
Standard 6 PIN Sim Card Interface
TF Card
Yes
up to 32G
External interface
USB
USB2.0 that is used to provide internal power supply; input 5V 1A
