This water chiller is an auto-control unit which is designed for chilling/heating water tanks while keeping the temperature steady.
Other Application
This chiller can also be widely used to cool and heat small pools, fish tanks and etc. It keeps a constant temperature and creates a stable environment for fish to grow.
Main control board with digital display, allows adjusting the chiller's operating mode and setting temperatures. Easy to operate, reliable control and stable performance.
Evaporator
Chiller's evaporator is made with industrial pure titanium coil which has strong resistance to corrosion specially designed for marine water. Stainless steel 304 coil is also available for food use and high weather condition.
Rotary Compressor
Famous brand compressors are adapted. Longer economic life with high efficiency & reliability, low noise and vibration.
MODEL
HXJR-25
HXJR-35
HXJR-50
POWER
AC 220V/50HZ (110V/50HZ, 220V/60HZ can be customized)
RATED COOLING/HEATING CAPACITY
2500W/2750W
3500W/3670W
5000W/5250W
RATED COOLING/HEATING POWER
925W/982W
1300W/1310W
1850W/1875W
RATED COOLING/HEATING CURRENT
4.3A/4.4A
5.9A/6.0A
8.4A/8.5A
COOLING INPUT POWER
1300W
1820W
2590W
COOLING INPUT CURRENT
6.0A
8.2A
12A
SETTING TEMPERATURE RANGE
0~40℃ (factory default 25℃)
WORKING ENVIRONMENT
-10~50℃
INLET/OUTLET SIZE
1 inch outer thread
NOISE LEVEL
≤52dB(A)
≤52dB(A)
≤58dB(A)
REFRIGERANT/CHARGE AMOUNT
R22/580g
R22/800g
R22/1300g
WATER VOLUME APPLICABLE
700~1200L
1000~1500L
1500~2000L
DIMENSION
695×396×545mm
NET WEIGHT
32KG
36KG
43KG
Installation Instructions
222
Circulation pumps are needed to help circulate water in and out from water tank/fish tank to water chiller.
Detailed Images

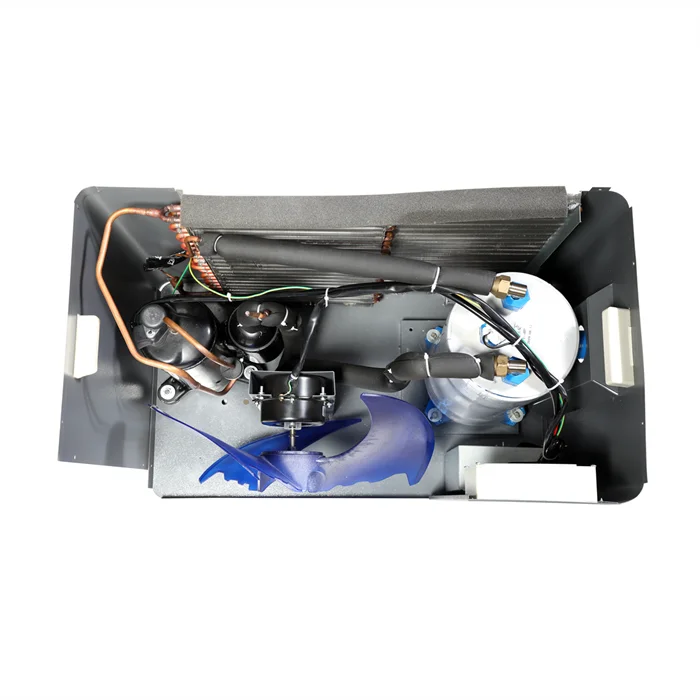

High Quality Heat Exchanger
Industrial level PVC casing with Titanium/Stainless Steel inner coil designed for rapid water chilling. Diamater and coil length can be customized based on your ambient condition.
Branded Compressor
All products adopt famous branded compressors with high efficiency and longer stability.
Our Company
Guangdong Yake New Energy Technology Co., Ltd was established in 2008 with former name Foshan Baohua Refrigeration Co.,Ltd. The company has its own sheet metal production line, evaporators & condensers production line, stainless steel procesing line, test room as well as four assembly lines. A design and development team with more than ten experienced engineers and technicians together with almost a hundred staff here to offer you the MOST PROFESSIONAL SOLUTIONS with the MOST EFFICIENT REFRIGERATION PRODUCTS. We would be your supporting manufacuturer and OEM cooperative partner.

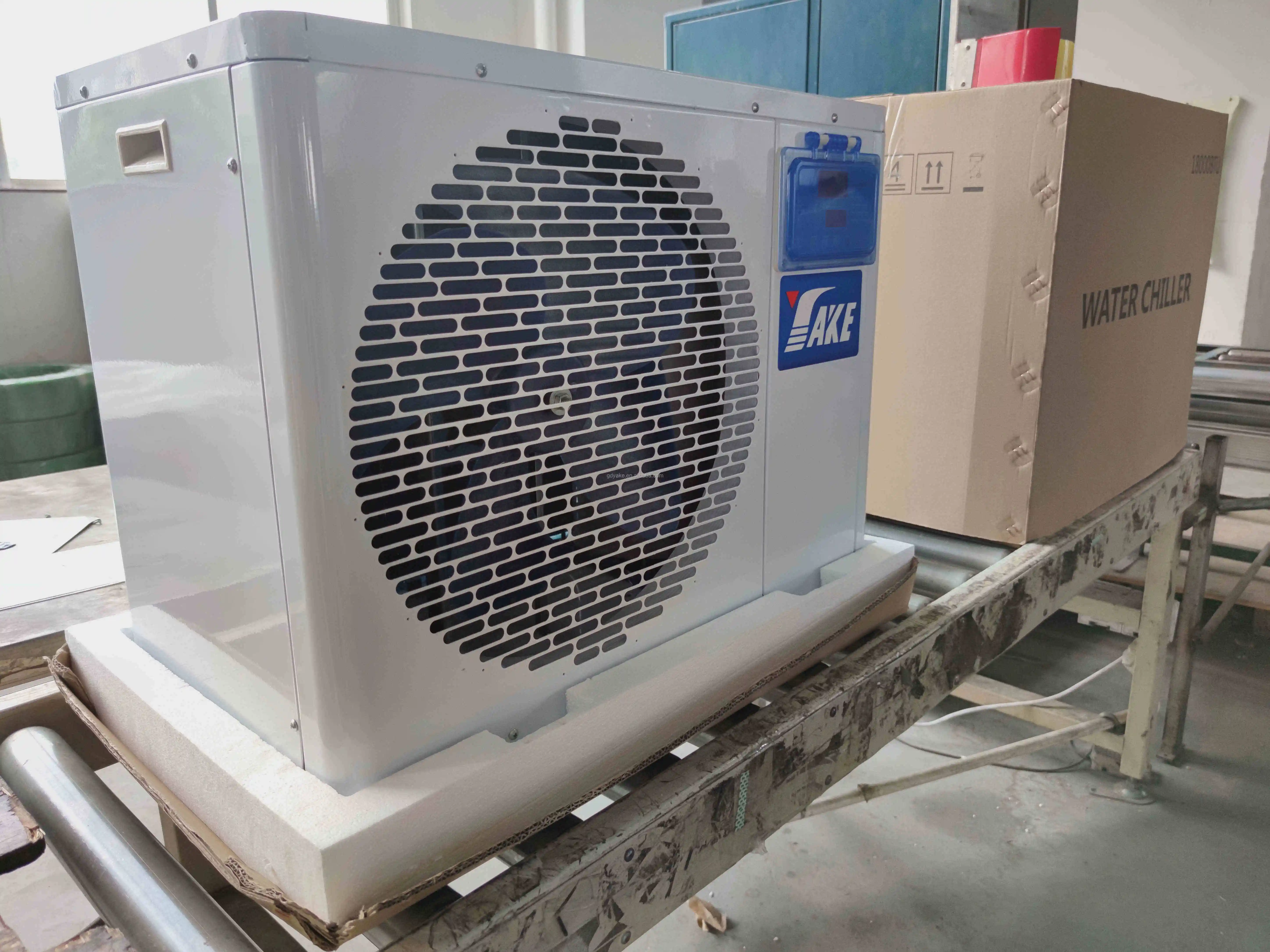

Packing & Delivery
Used high quality carton boxes with foam that are suitable for international container shipping.
For better protection,wooden cases are also available at extra charges.
FAQ:
Q: Are we dealing with a manufacture? A: Yes, we are a manufacture, not an agent. Feel free to visit us anytime!
Q: Can you put our brands? A: Yes, we can do OEM.
Q: What's the MOQ? A: 50 sets each model. Price may differ if quantity is less than this.
Q: What's the delivery time? A: 7~30 days after the confirmation of all the artworks.
Q: Can we order samples? A: Yes, however sample fees may be applied.
Q: What are your terms for pricing? A: EXW/FOB/CFR/CIF depending on your preference.
