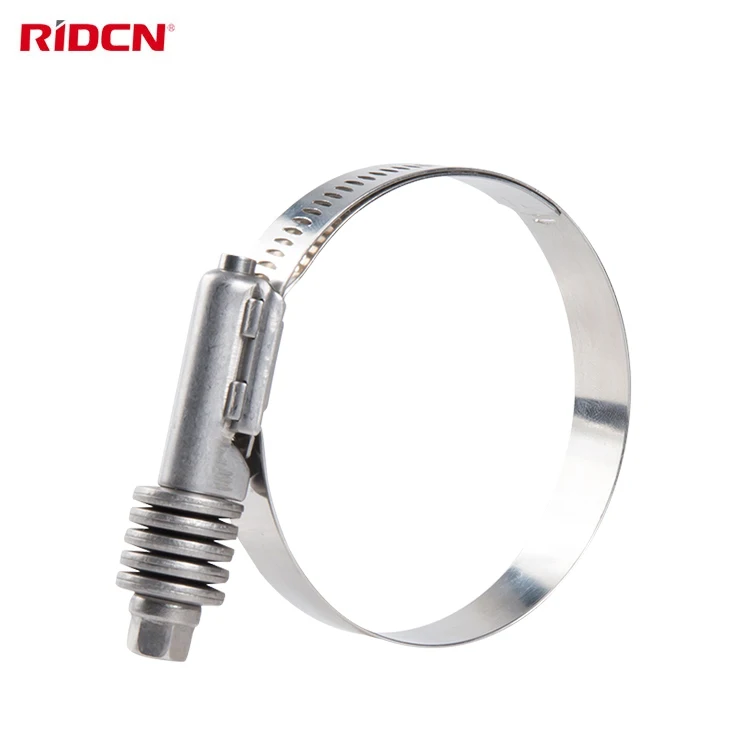

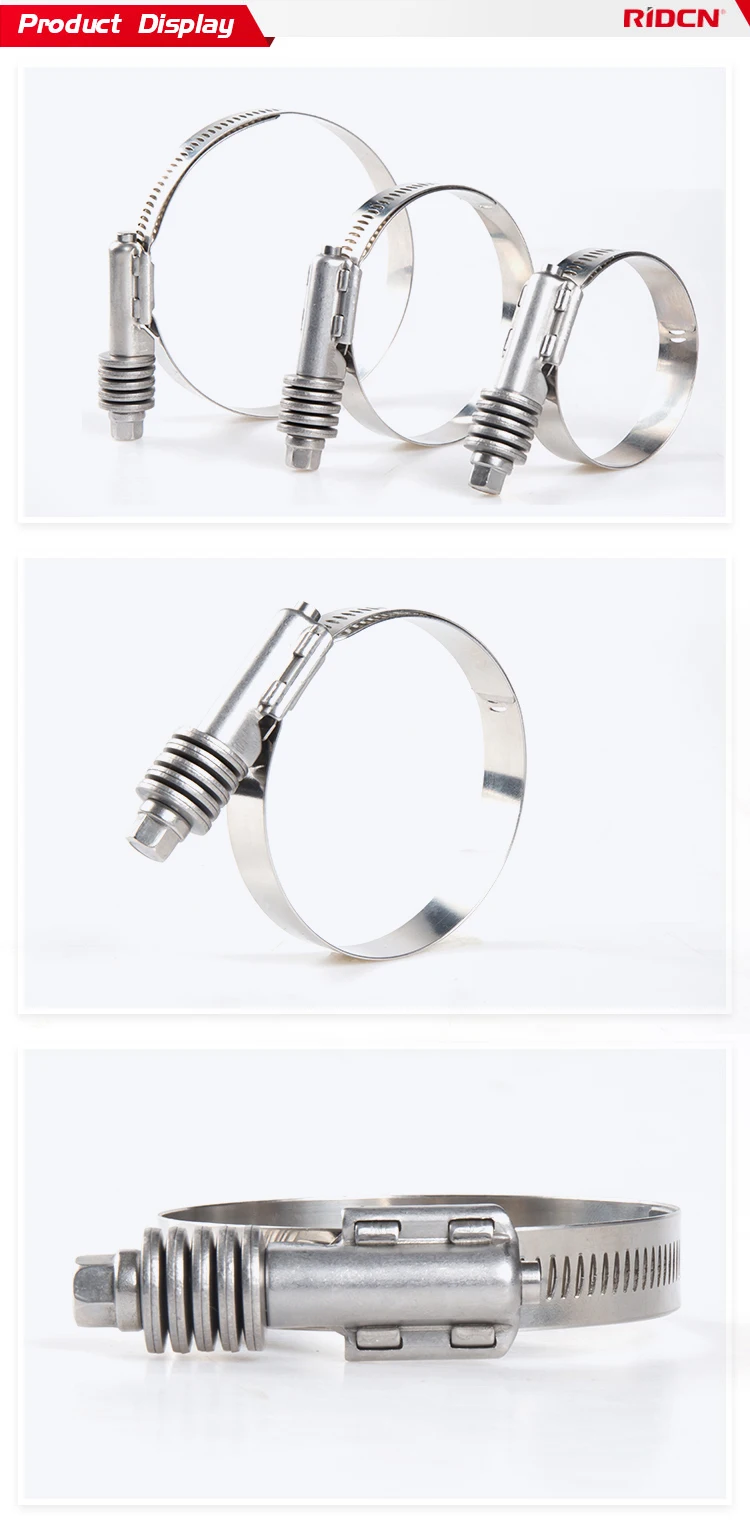

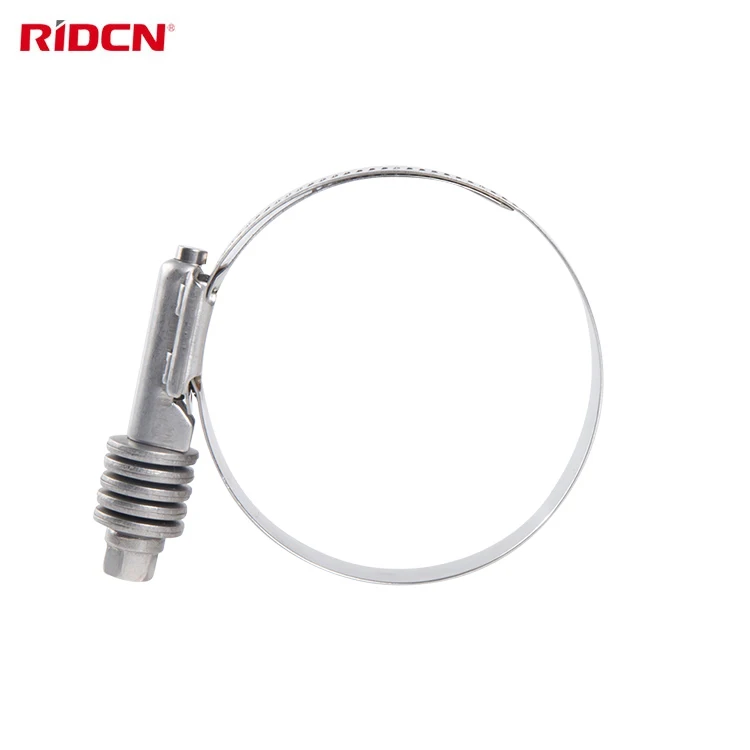

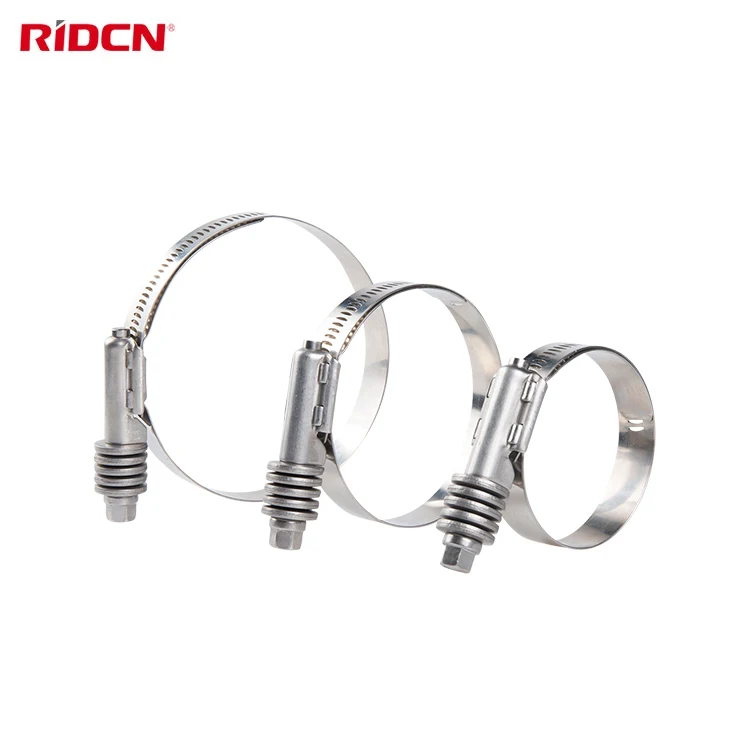

Stainless Steel Constant Torque Worm Gear Clamp

Product Overview

Description





• Material: band and housing are 304 stainless steel


• Band Width: 15.8 mm


• Band Thickness: 0.8 mm


• Screw: slotted hex head screw ( 304 stainless steel and 410stainless steel are optional)


• Heavy duty worm drive clamps are the strongest worm drive clamps. They are of excellent corrosion resistance, and the smooth surface prevents the hose being damaged. They are designed for all fastening systems that require a perfect seal of medium and heavy pressure. The clamps are widely used in a variety of automotive, commercial vehicle and industrial applications.

Size	Bandwidth	Thickness	Suggested Install Torque
(mm)	(mm)	(mm)	(N.m)
25-40	15.8	0.8	11
32-54	15.8	0.8	11
45-67	15.8	0.8	11
57-79	15.8	0.8	11
70-92	15.8	0.8	11
83-105	15.8	0.8	11
95-117	15.8	0.8	11
108-130	15.8	0.8	11
121-143	15.8	0.8	11
146-168	15.8	0.8	11
159-181	15.8	0.8	11
172-194	15.8	0.8	11
184-206	15.8	0.8	11
197-219	15.8	0.8	11
210-232	15.8	0.8	11
