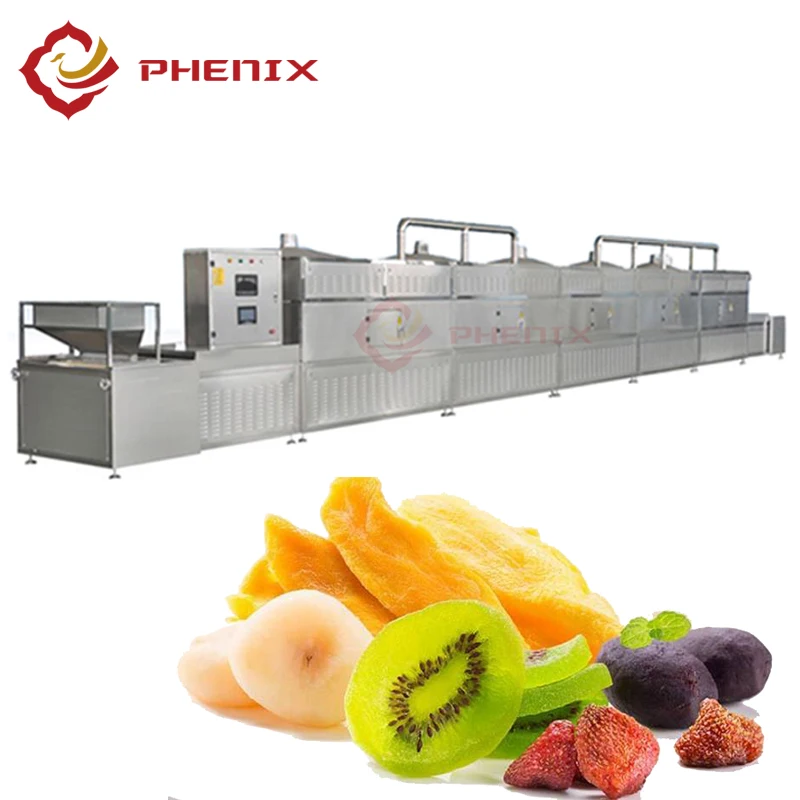

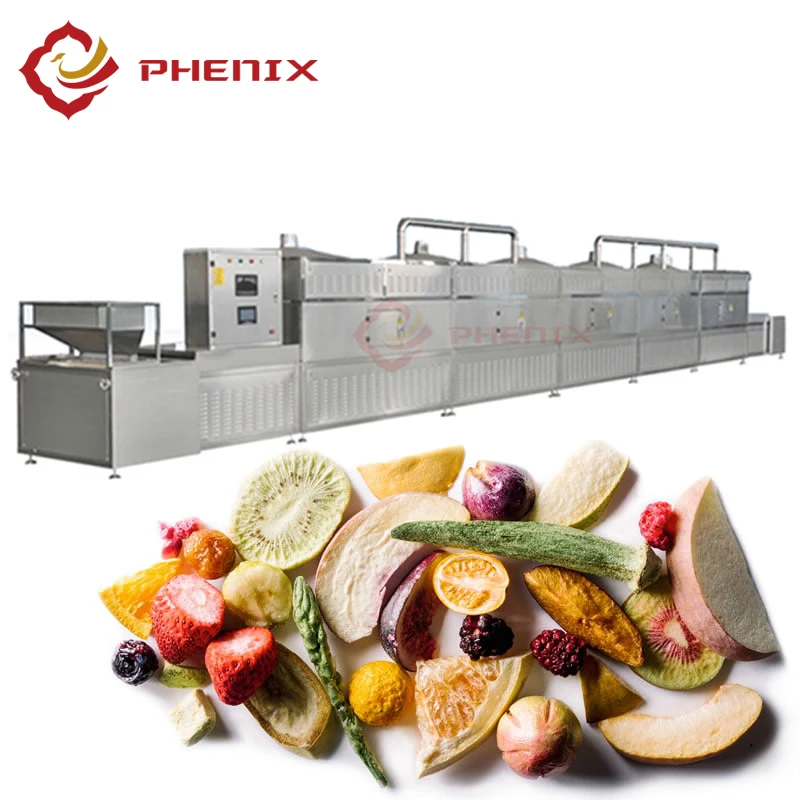

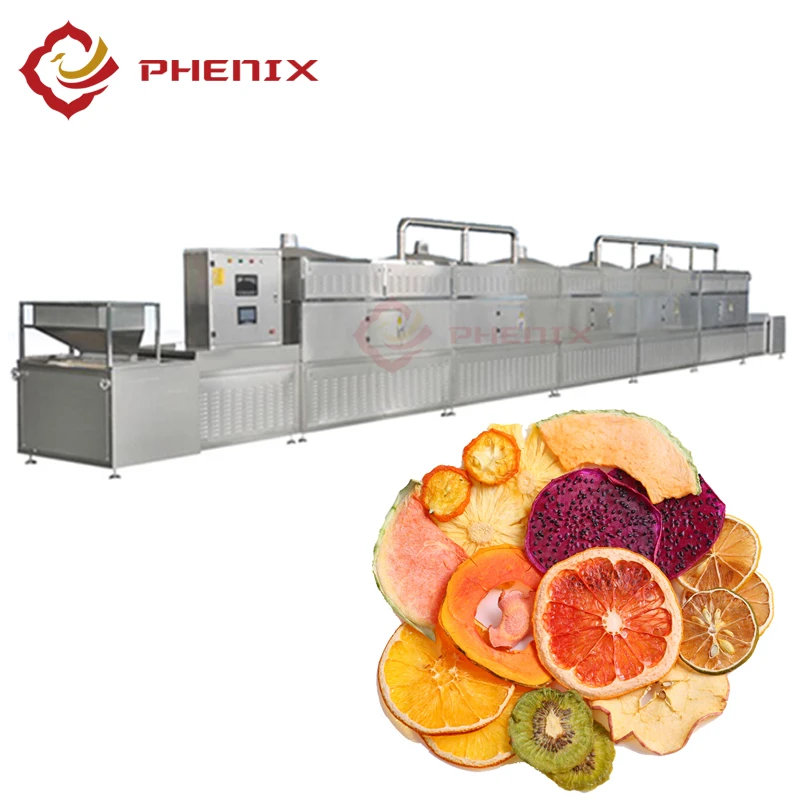

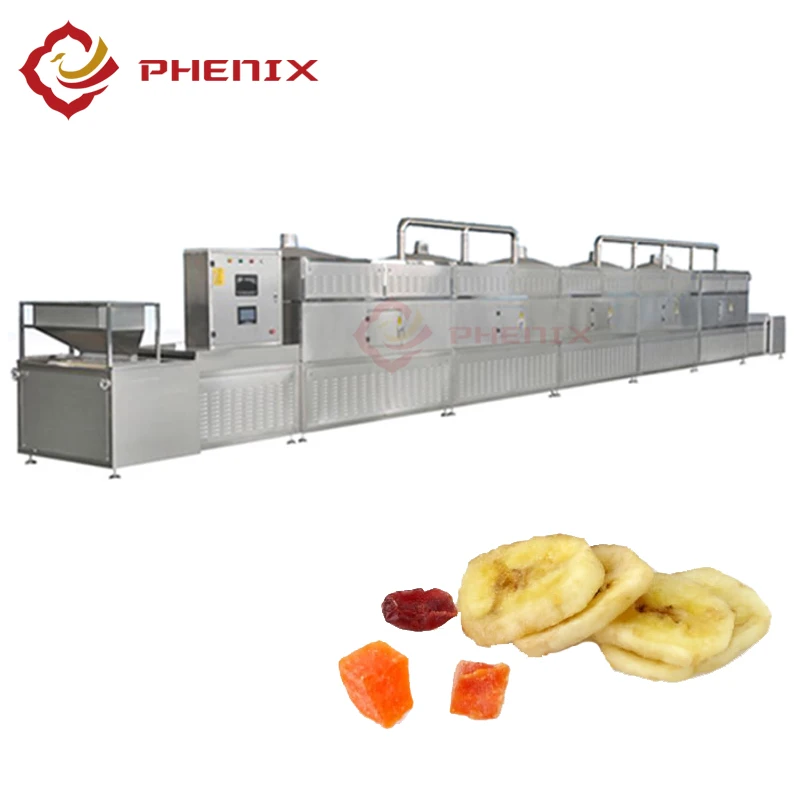

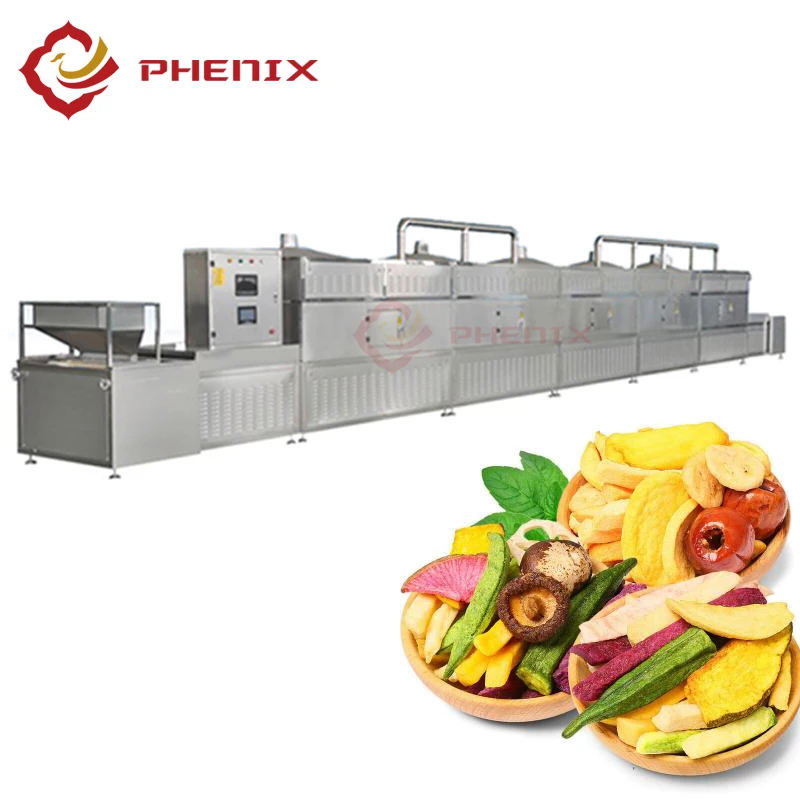

High energy Industrial food fruit continuous tunnel microwave dehydrator sterilizer dryer drying machine

Product Overview

Description

High energy Industrial food fruit continuous tunnel microwave dehydrator sterilizer dryer drying machine

1. Description:

Microwave Fruits Drying Machine is a new type of high-efficiency drying and sterilization equipment, using microwave equipment to dry materials, can be a multi-purpose machine, can be dried, can sterilization, also can fixation Microwave drying sterilization & fixation equipment uses the water of the material itself to form ateam environment. With the high-frequency microwave vibrationeffect, the fixation effect is good, and the color of the material is bright. At the same time, a part of water is lost in the fixing processto save the drying cost. The nutrient content of the material driedby the equipment will not be changed and destroyed at all.

Industrial microwave dryer is used for drying and sterilizing various kinds of food---snack food, agricultural products, fish slice, slice dried meat, bean products, instant noodles, fast food, dried fruit, tea, herbs, karaoke powder, fruit and vegetable in the form of powder, granules, slice, etc.



2.Working principle of Microwave beans drying equipment:
Microwaves are electromagnetic waves at a frequency of 300 MHz to 300 GHZ. The material in the heating medium in the molecules of water is a polar molecule. It in the rapidly changing under high frequency magnetic field, its polarityorientation will be with the change of external electric field changes, resulting in molecular motion and friction between the effect, this field of the microwave field can transformed into thermal energy within the medium, the temperature of the material increased, heating and puffing a series of physical and chemical processes, so as to achieve the purpose of microwave heating and drying.



Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries.



Machine materials: All the food making machine are made by stainless steel, this line is with reasonable design and with high automation.



3.Technical parameters:

Item	PX-20KW	PX-30KW	PX-40KW	PX-60KW	PX-100KW	PX-200KW
Power	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz
Microwave output frequency	2450 ± 50MHZ	2450 ± 50MHZ	2450 ± 50MHZ	2450 ± 50MHZ	2450 ± 50MHZ	2450 ± 50MHZ
Related input apparent power	≤ 26KVA	≤ 38KVA	≤ 50KVA	≤ 72KVA	≤ 130KVA	≤ 230KVA
Microwave output power	≥ 20KW	≥ 30KW	≥ 40KW	≥ 60KW	≥ 100KW	≥ 200KW
Microwave power adjust range	0-20kw	0-30kw	0-40kw	0-60kw	0-100kw	0-200kw
Temperature range	0-200℃	0-200℃	0-200℃	0-200℃	0-200℃	0-200℃
Relative humidity	≤80%	≤80%	≤80%	≤80%	≤80%	≤80%
Inlet and outlet height	80mm	80mm	80mm	80mm	80mm	80mm
Transport belt width	500mm	750mm	750mm	1200mm	1200mm	1200mm
Outline size(m)(LXWXH)	8.5x0.82x1.75	8.5x1.5x1.75	10.5x1.5x1.75	10.5x1.8x1.75	16.2x1.8x1.75	16.2x1.8x1.75
Transmission speed	0-8m/min	0-8m/min	0-8m/min	0-8m/min	0-8m/min	0-8m/min



Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering

2. What’s your Guarantee?

We provide 1 year complete Guarantee and life-time maintenance service

3. How about the installation?

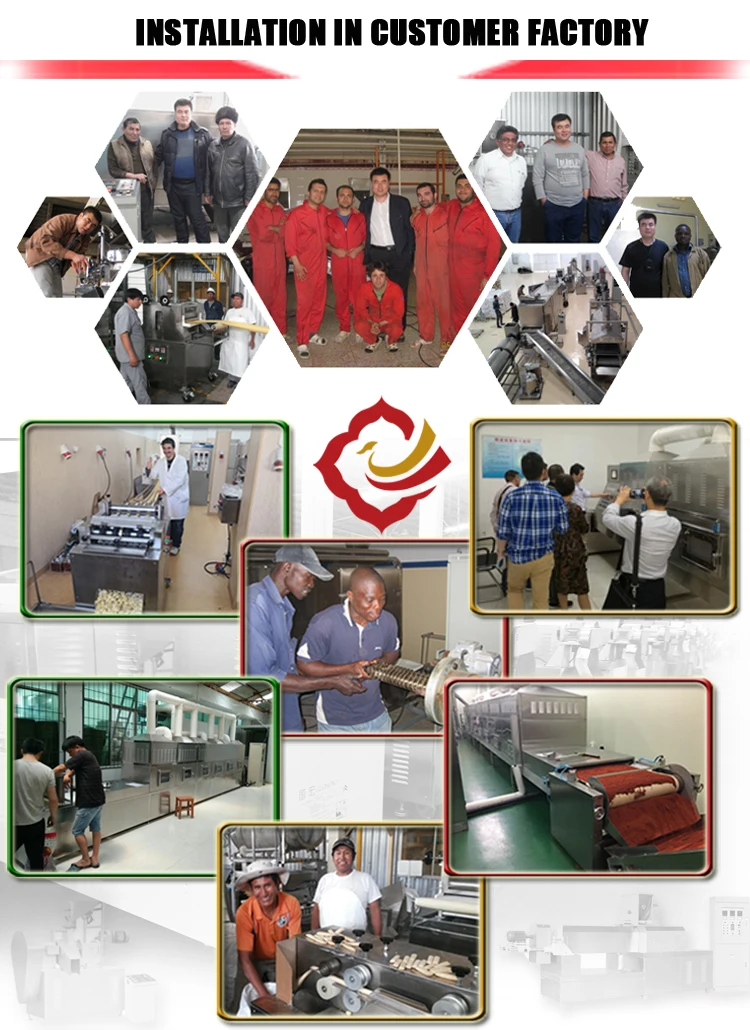

We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.



 If you have any needs or enquiries, please feel free to contact me! Thanks.
