Good Capability EDT39 high frequency power transformer for TV set
- Category: >>>
- Supplier: Nantong Tianyi Electronics Co. Ltd.
Share on (1600061024987):
Product Overview
Description
Customized EDT ransformer
We can design and produce the transformers according to your requirements.
All the raw materials are UL certified.

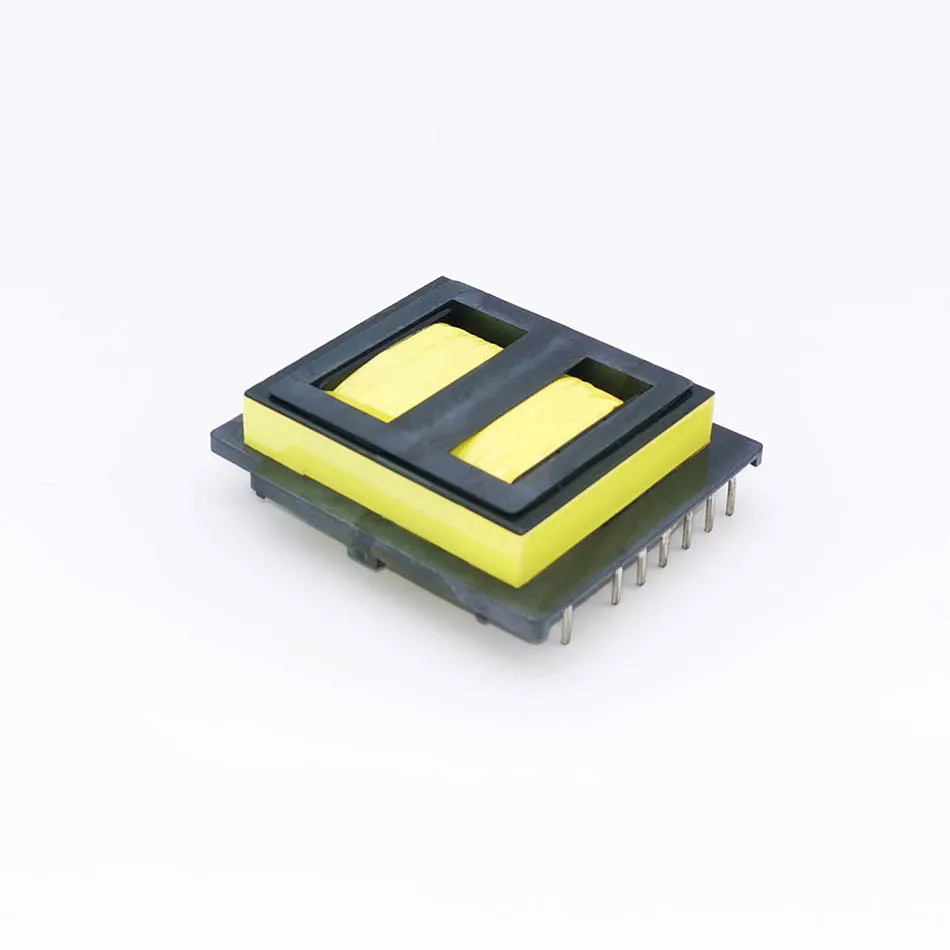

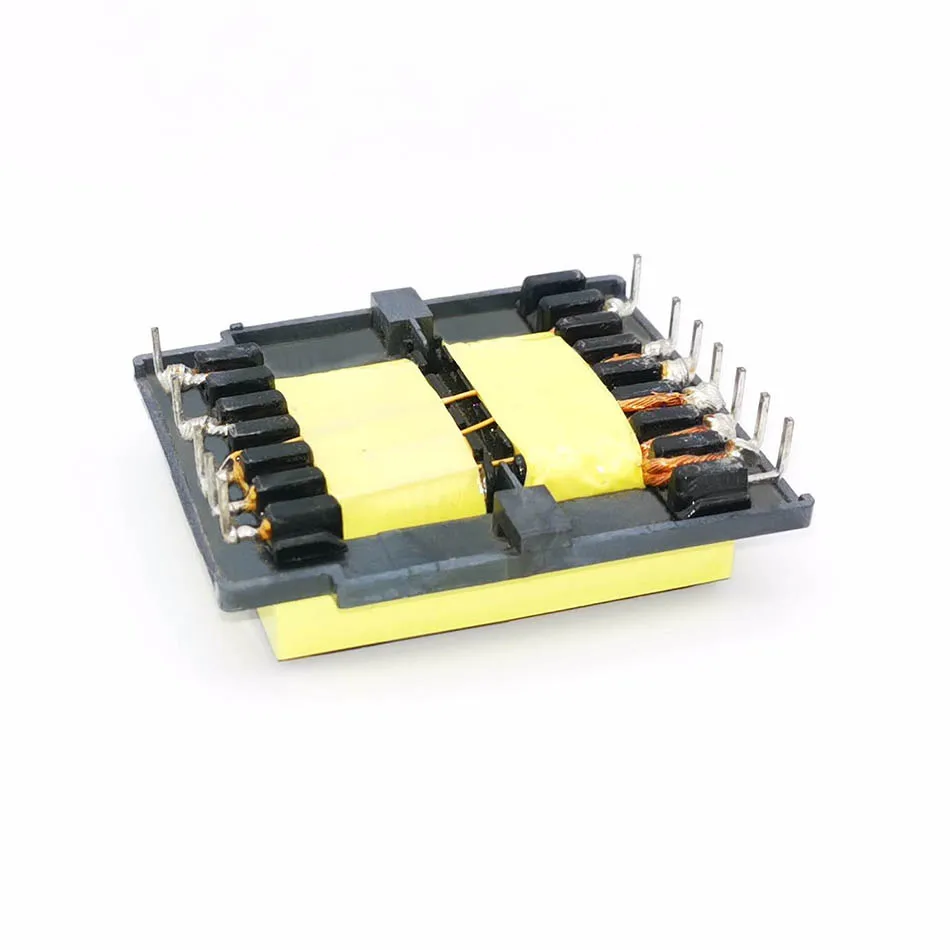

ETD39 transformer is used in Tv set.
 |  |
All of our product types
| NO. | Product Name | TYPE | Detailed Type | ||||||||||

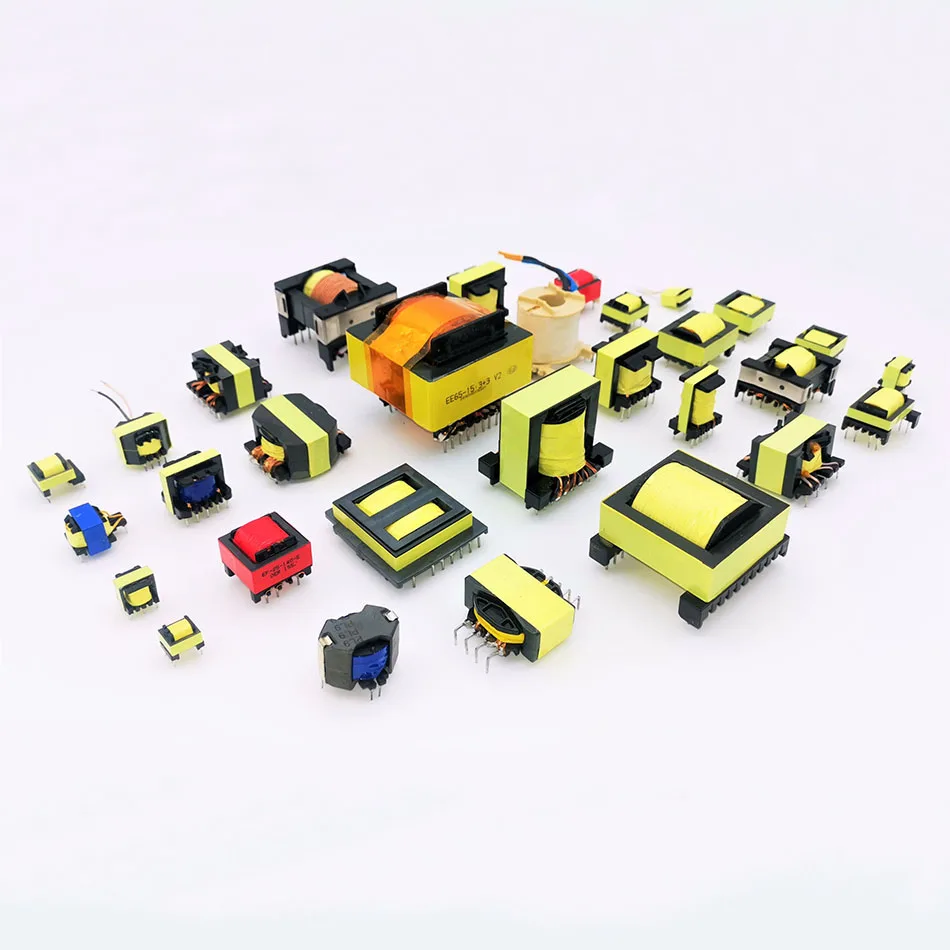

| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | |||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | |||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||

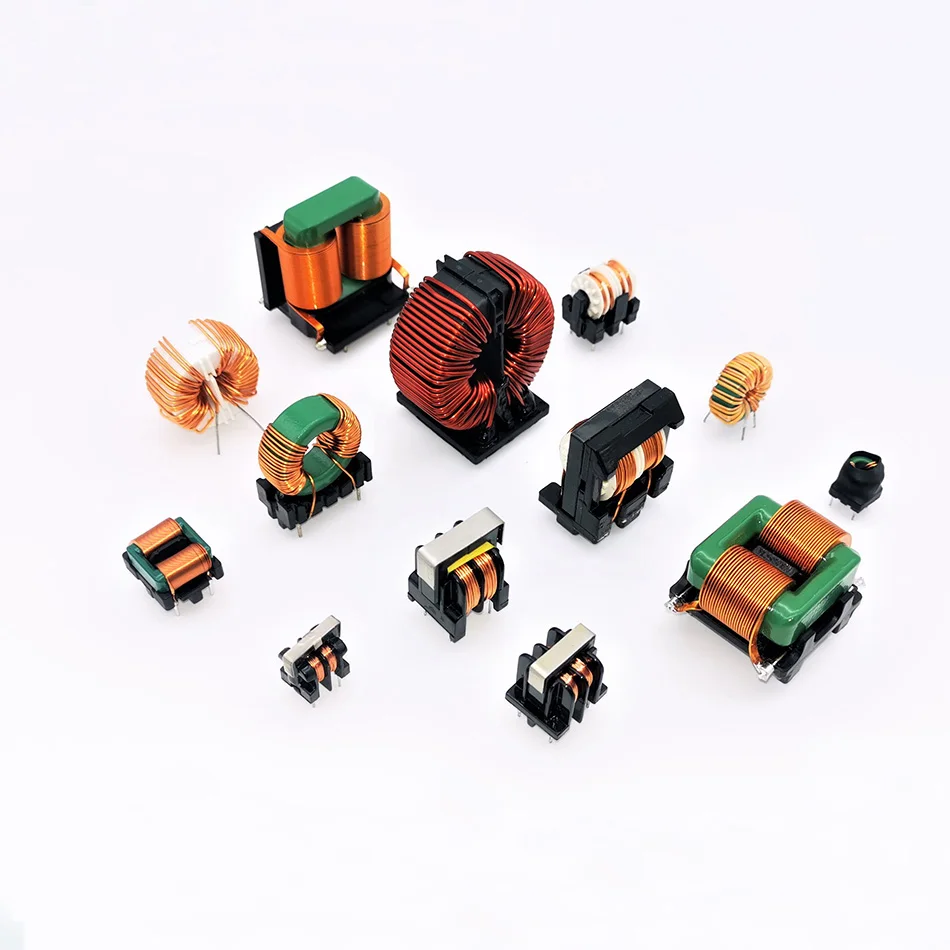

| 2 | Common mode chokes(Line filters) | EE Bobbin | EE8.3, EE12, EE19, EE25 | ||||||||||
| UU | UU9.8, UU10.5, UU16 | ||||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||

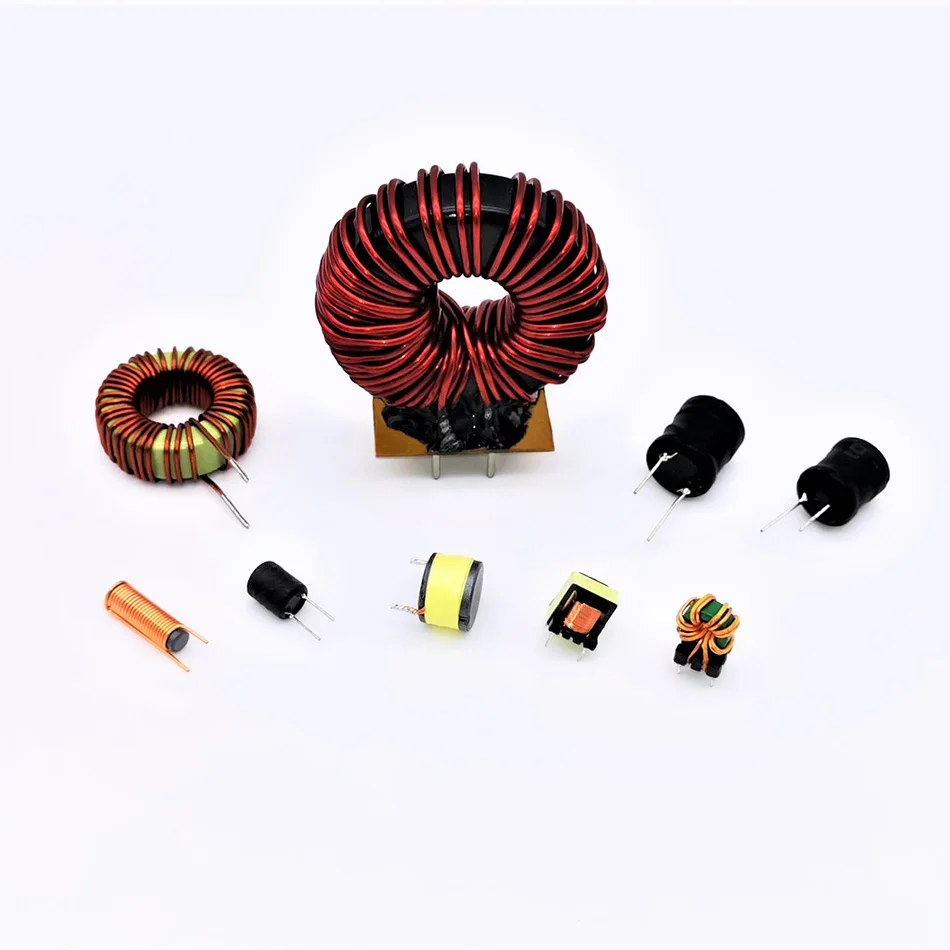

| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| EE Bobbin | EE8.3(I), EE10(I), EE13(I), EE16(I) | ||||||||||||
| 4 | SMD power inductors | Unshielded | SM , SMQ , SMF , SMG | ||||||||||
| Shielded | SMH, SMHII , SMP , SMB, SME, SML, SLF | ||||||||||||
Hot sell products- High Frequency Transformer RM8 Type
| Part No.: | TYH-RM8-14 | Materials: | Product Picture: | ||||||||||||||||||||||||||||||||
| Features: | Ferrite core:RM8-P3 |  | |||||||||||||||||||||||||||||||||
| Customizable | Phenolic bobbin:RM0801-12P | ||||||||||||||||||||||||||||||||||
| High quality materials | Copper wire:2UEW-F Φ0.10mm,Φ0.25mm | ||||||||||||||||||||||||||||||||||
| Low loss | Tube:CB-TFL | ||||||||||||||||||||||||||||||||||
| Lower profile and weight | Tape: JY25-A1/130℃ | ||||||||||||||||||||||||||||||||||
| Stable performance | Varnish: T4260(a)/155℃ | ||||||||||||||||||||||||||||||||||
| Larege transmission power | |||||||||||||||||||||||||||||||||||
| High frequency range: 10KHz-1000KHz | |||||||||||||||||||||||||||||||||||
Dimensions:(Unit:mm)
 |
Electrical Charactersistics:
| No. | Items | Test Terminals | Specification | Test Conditions (At 25℃) | Test meters | ||||||||||||||||||||||||||||
| 1 | Inductance | 12-7 | L=5500uH±5% | 10KHz/0.25V | HP-4284 | ||||||||||||||||||||||||||||
| 2 | Hi-Pot | P-S | 1500V /2SEC. | 50HZ ,5mA | DZ2672B | ||||||||||||||||||||||||||||
| 3 | D.C. Resistance | 6-1 | 78MΩ±15% | NF2511 | |||||||||||||||||||||||||||||
| 12-7 | 213MΩ±15% | ||||||||||||||||||||||||||||||||
1. Are you a trading company or a manufacturer? We are a manufaturer, and have our own trading company(Nantong Meican International Trading Co., Ltd.)
|
2. What are the advantages of your products? We have more than 12 years of experience in this industry. We hold several patents in this field. |
3. How about your after-sale service? We will reply customer within an hour when there is quality complaint. Also we need customer's help to provide relevant pictures and videos, and finish the accident investigation within 24 hours. If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced. The warranty period is 2 years. |
4. Do you provide customizable products? Yes, we can customize products as your requirements. |
Yes, it is. |
Samples need 2-7 days, mass production time is usually about 1-3weeks, but it depends on the order quantity. |
7. What is your MOQ for mass production? 500PCS, but any small trial orders are welcomed. |
8. What is your terms of payment? We accept T/T, L/C. |
9.Do you test all your proudcts before shipping? Yes, we 100% test before shipment, and we have full-automatic testing facilities which can reduce human error. |
10.Where is your shipping port? Normally Shanghai. |
11.What's your express service? Fedex, DHL, EMS, SF Express with great discount. |
EXW, CFR, FOB, CIF, DDU, DDP are all acceptable, or online transactions. |
