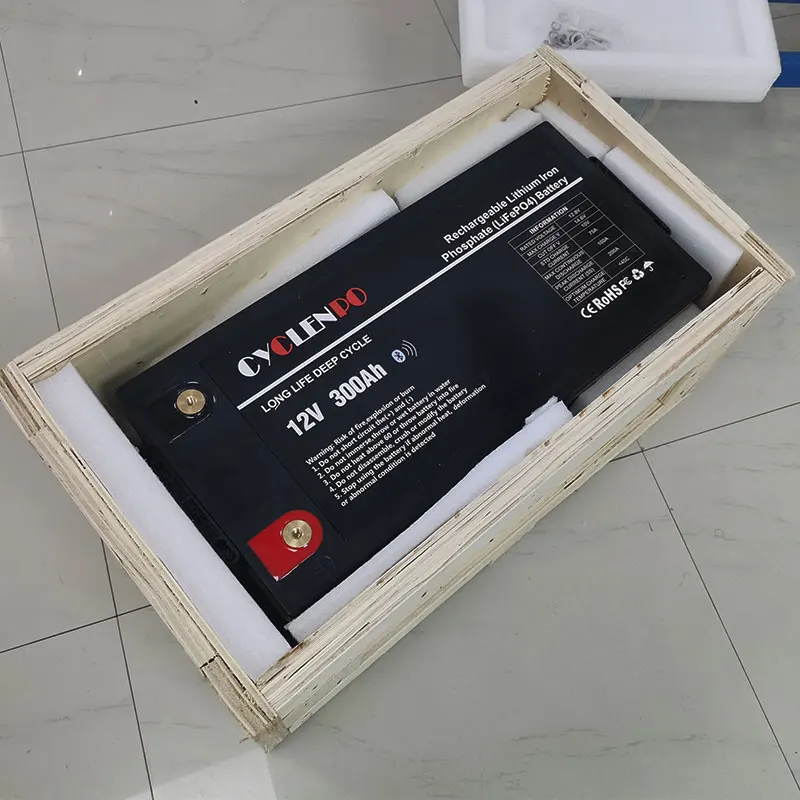

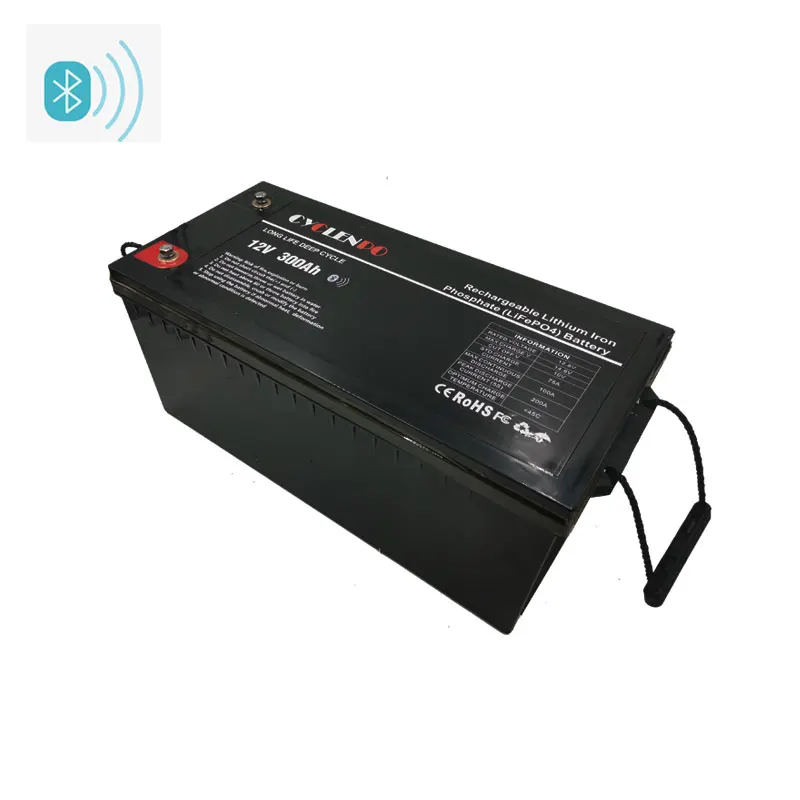

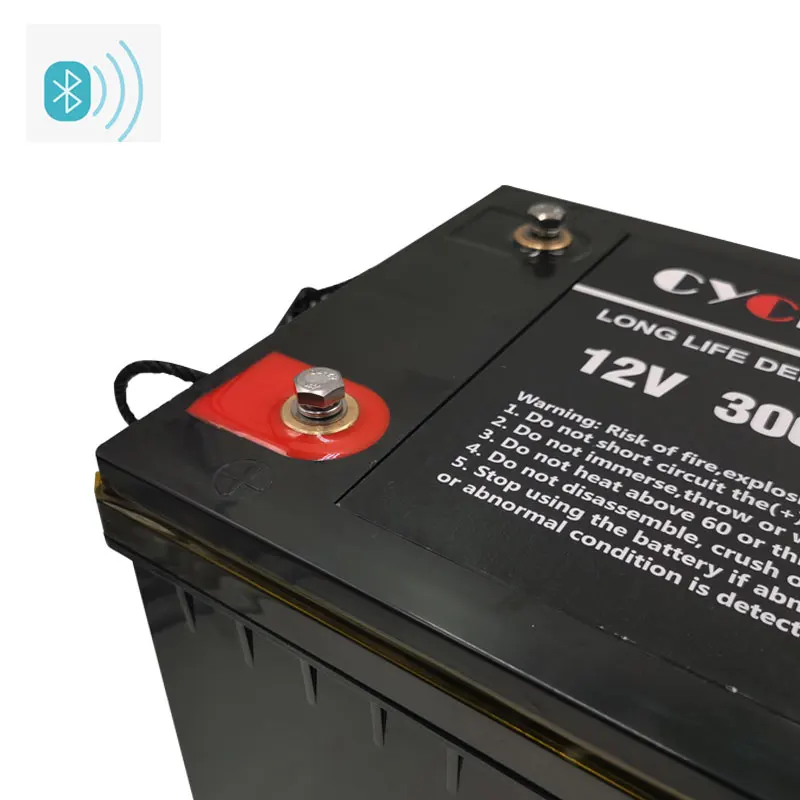

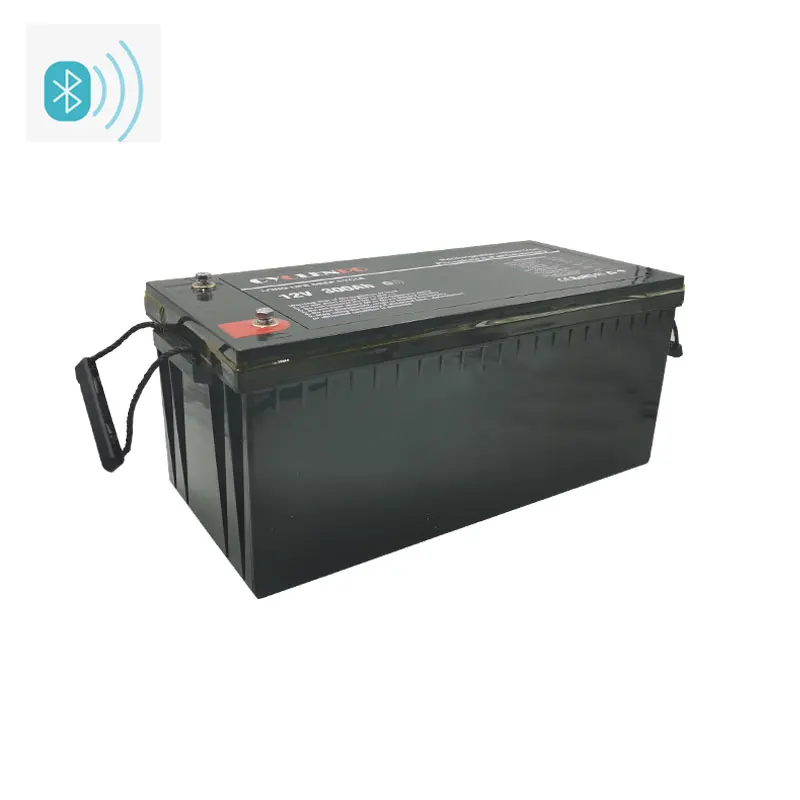

High quality with bms lifepo4 battery BT 12v 300ah hour for camping car motorhome
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (1600061183654):
Product Overview
Description
Product Description
Cyclen provides one-stop services and fully-integrated battery solution to meet your specific needs. The products we display don't represent the limitation of us.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.
In addition to the battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.
Normal parameters | ||||||
NO | Item | General Parameter | Remark | |||
1 | Model | IFR 3.2V 100AH | Single | |||
2 | Casing material for single cell | Nickel plated steel | ||||
3 | Standard capacity(0.2C5A) | 300Ah | ||||
4 | Rated voltage | 12.8V | 3.20V(Work voltage:3.20V) | |||
5 | Max.Charge voltage | 14.6V | 3.65V(Single Ave. charge Voltage) | |||
6 | Cut-off voltage | 10V | 2.50V(Single Ave. Discharge Voltage) | |||
8 | Standard charge current | 60A | 0.2C | |||
9 | charging Time | About 6-7h | ||||
10 | Max Continuous discharge current | 100A | 0.58C | |||
11 | Peak discharge current | 200A | 1.07C (10s) seconds | |||

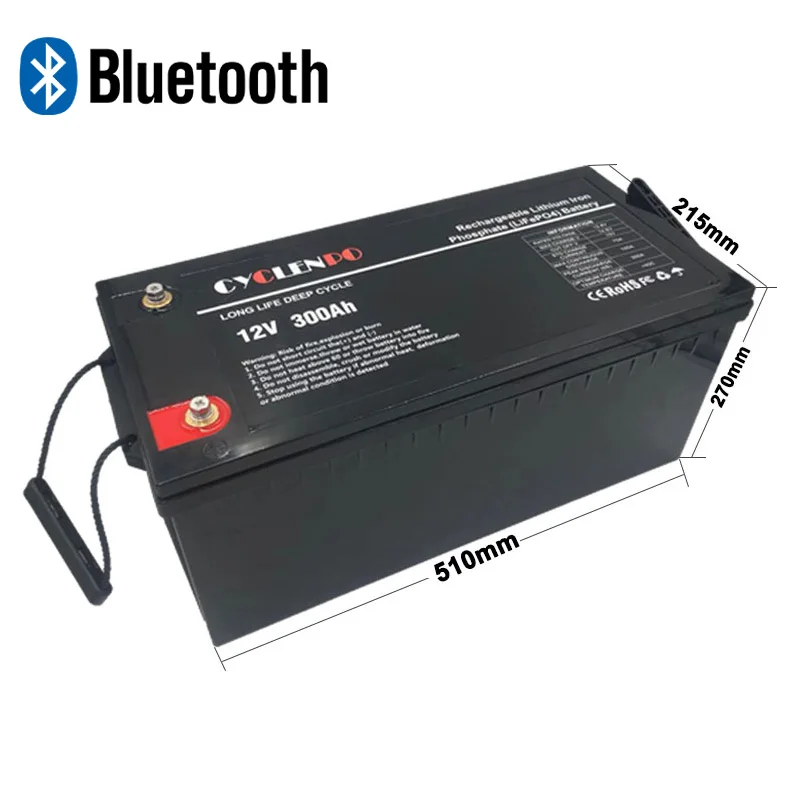

12 | Battery dimension | 520 * 238 * 218 mm | ||||
13 | (Approx.)Total weight(Approx.) | About 32kg | ||||
14 | (Max, at 1000Hz.)Impedance(Max, at 1000Hz.) | ≤ 20mΩ | ||||
15 | (CC/CV) Charge method (CC/CV) | Standard | 0℃~45℃ | |||
discharge | -20℃~45℃ | |||||
storage | -20℃~45℃ | |||||
Main Features
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.Up to 7-8 years lifespan.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.Up to 7-8 years lifespan.
3. Max discharge continuous current 175A, peak 320A.
4. Maintenance free.
5. Can connect in parallel and series.
6. IP65 waterproof ratings.Suitable for marine use.
6. IP65 waterproof ratings.Suitable for marine use.
7.Safer performance. Our batteries have passed different safety tests.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
