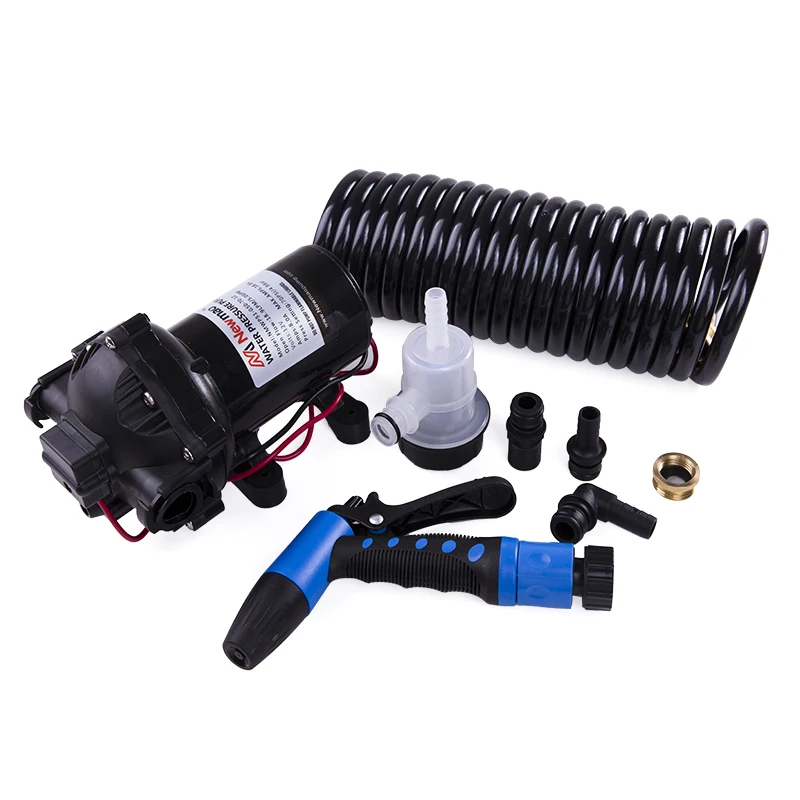

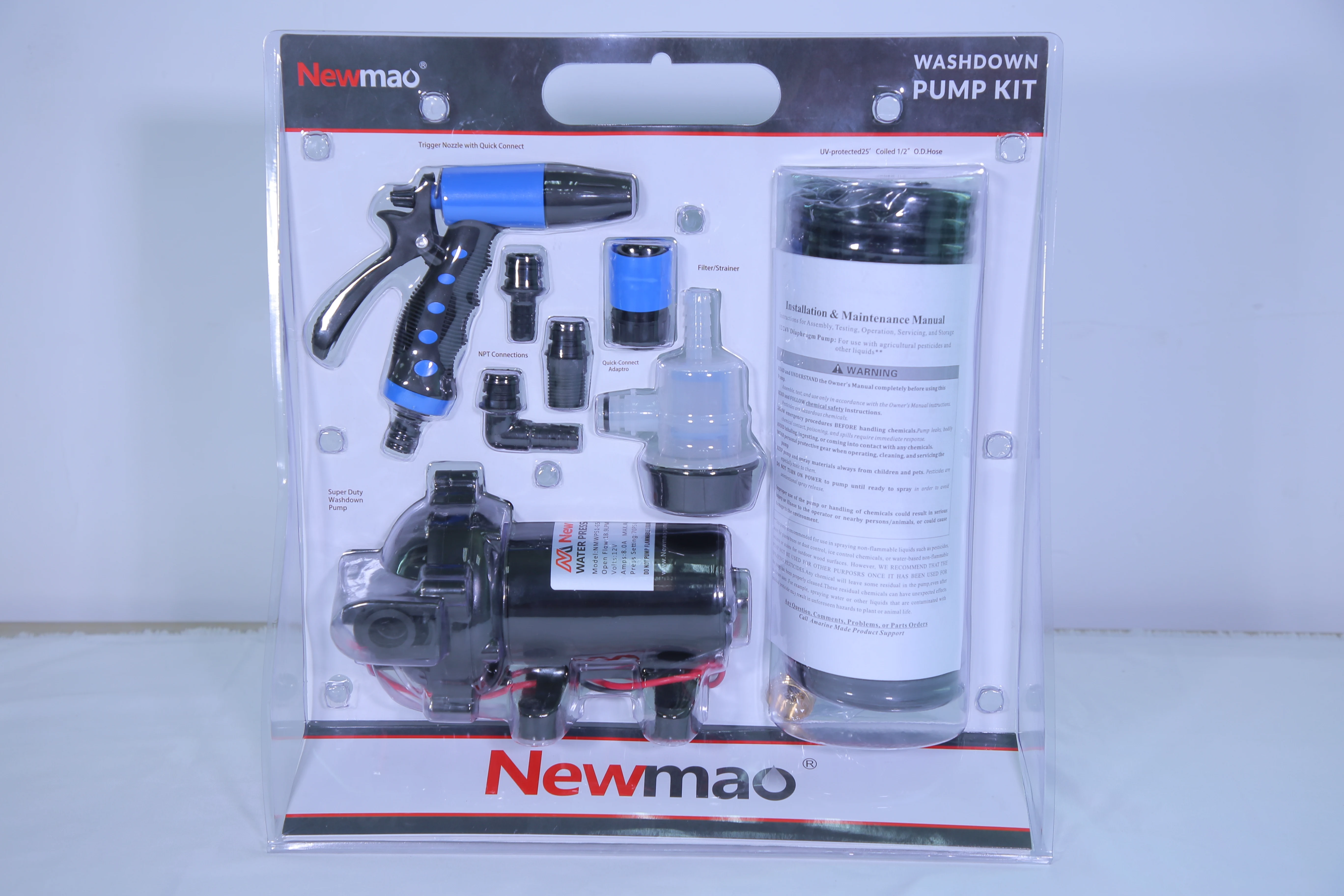

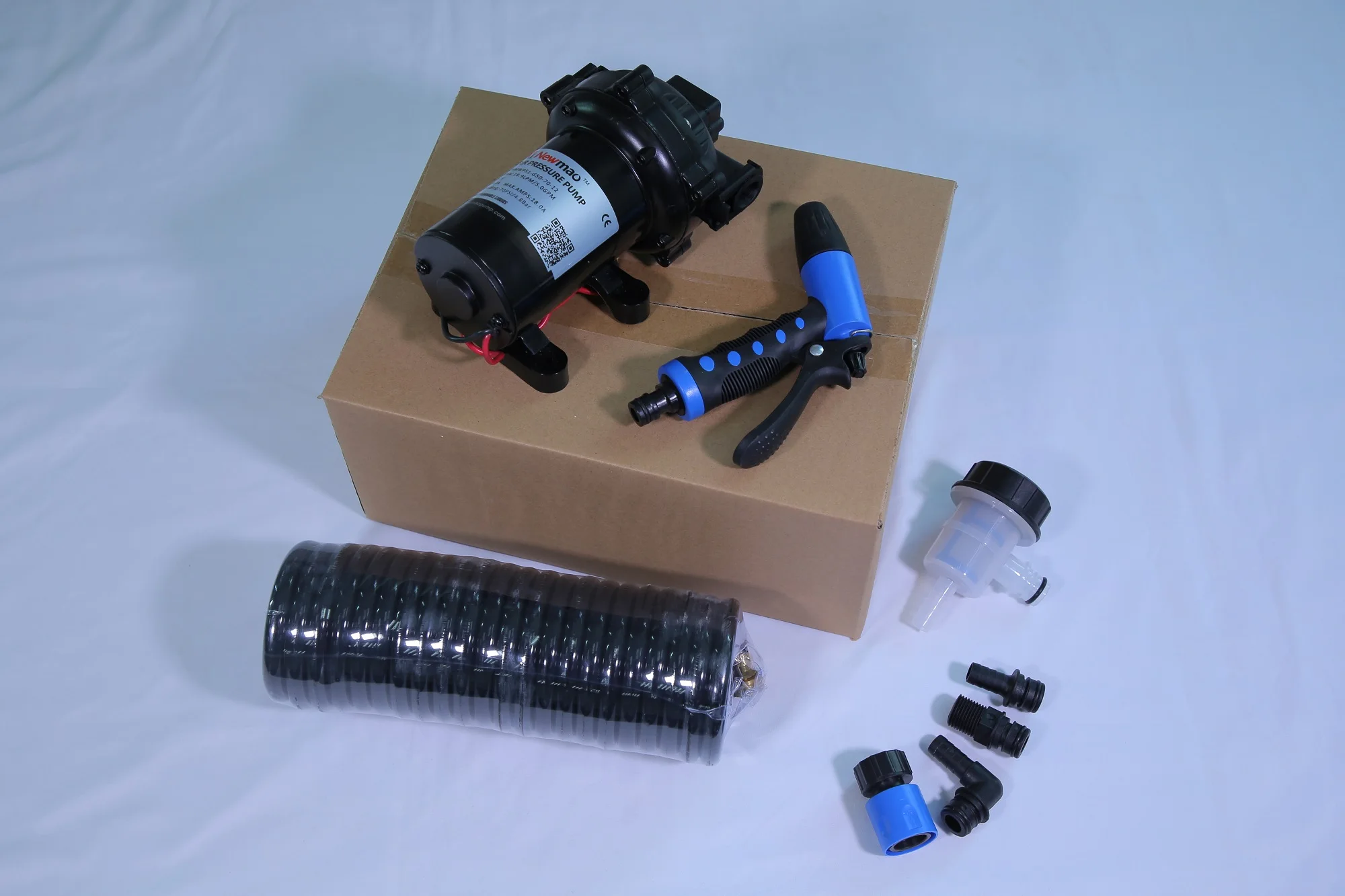

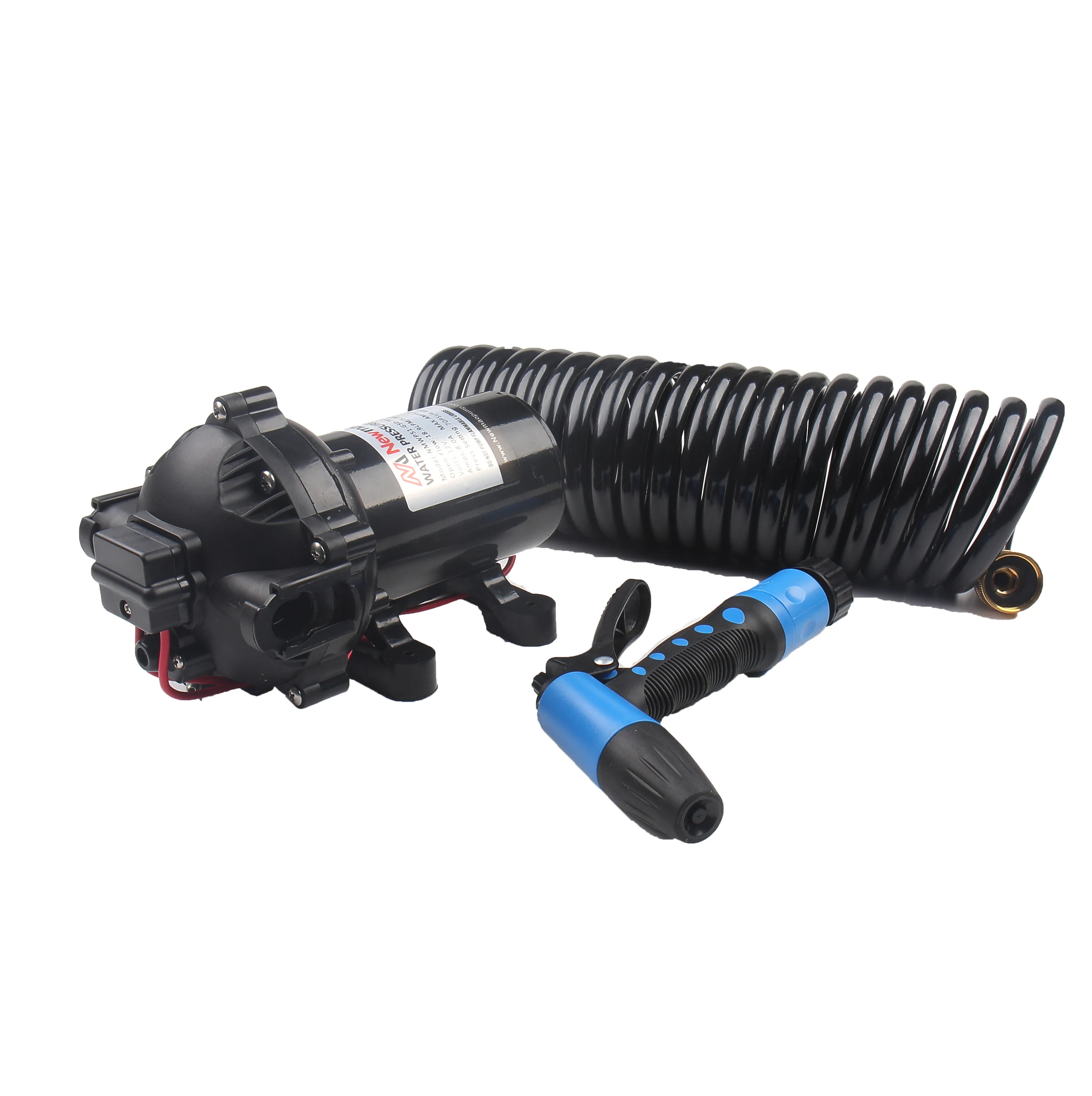

Newmao 12Volt dc portable electric power sea water fresh water pressure booster washdown pump bomba de agua
- Category: >>>
- Supplier: Xiamen Newmao Pump Industry Co. Ltd.
Share on (1600061349574):
Product Overview
Description
RV water treatment
Yacht and boat water treatment
Agriculture irrigation
Housing water supply boost
High level building water boost
Liquid transfer
1.Flow rate up to 5.0 GPM [18.9 LPM]

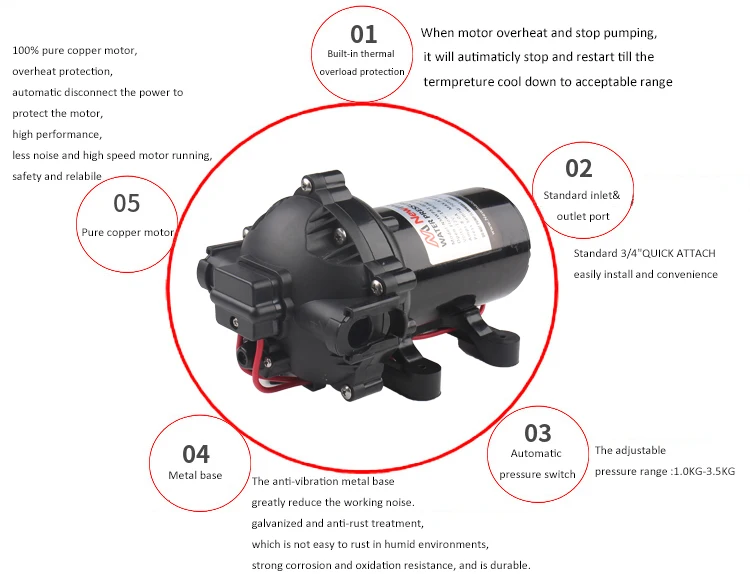

3.Automatically turn on and off
5.Quiet operation
7.On-demand use
3.Automatically turn on and off
5.Quiet operation
7.On-demand use
2.Can run dry without damage
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer
4.Self priming & built-in check valve
6.Chemically resistant materials
8.Designed for spraying and fluid transfer

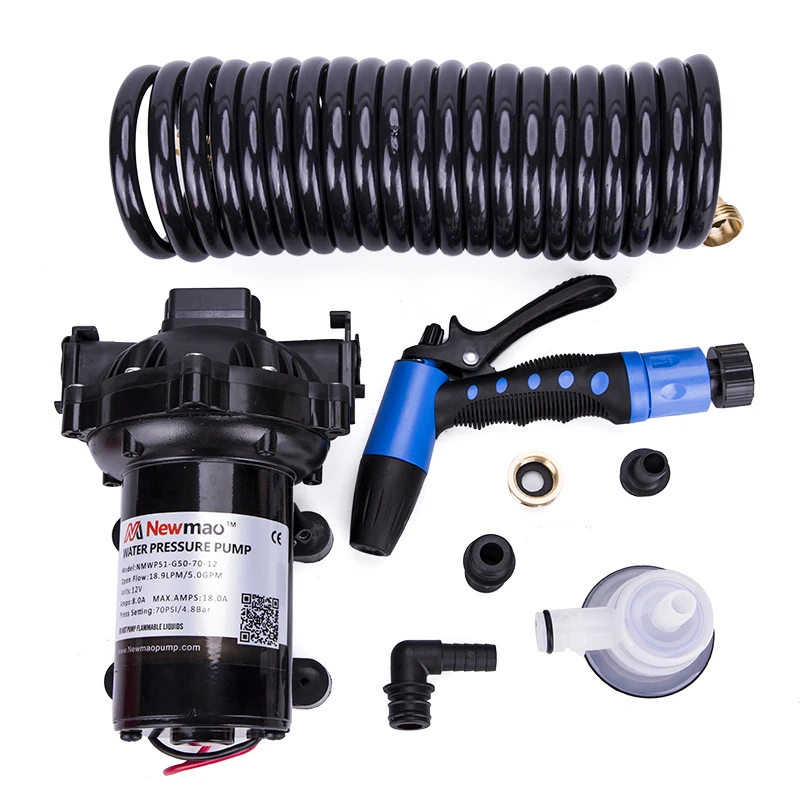

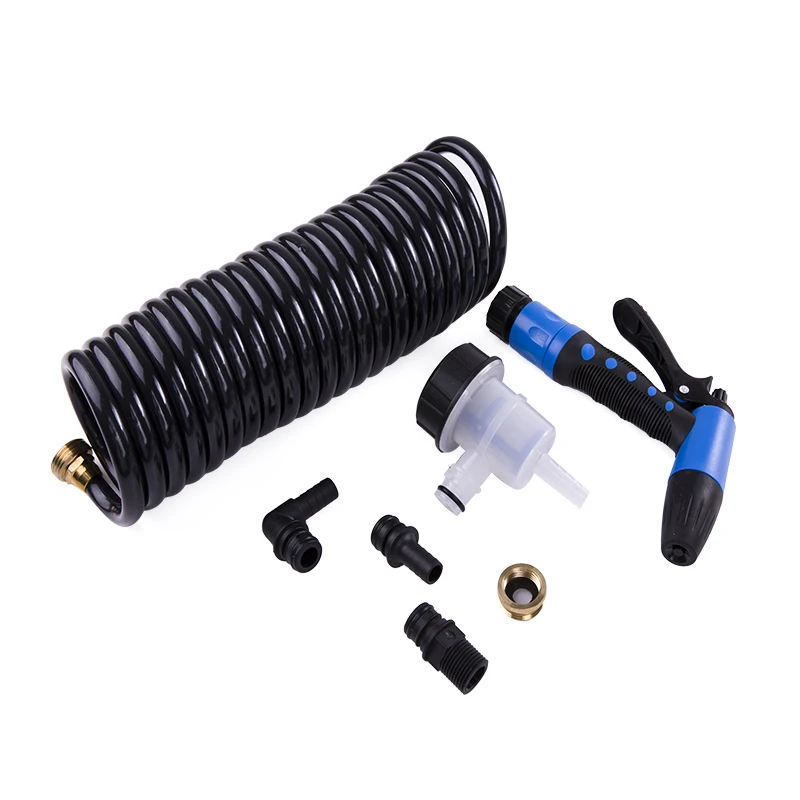

Product Name | Newmao 51 series washdown pump kit DC 12V/24V |
Pump Type | 5 Chambers Positive Displacement Diaphragm Pump |

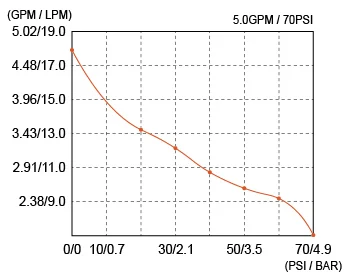

Max Flow Rate | 5.0 GPM [18.9 LPM] |
Max Pressure | 70 PSI / 4.8 Bar Max shut-off pressure |
Voltage | DC 12V / 24V |
Max Amp | 9.0 A |
Fuse | 18.0 A |
Switch Type | Built-in bypass and on-demand pressure switch |

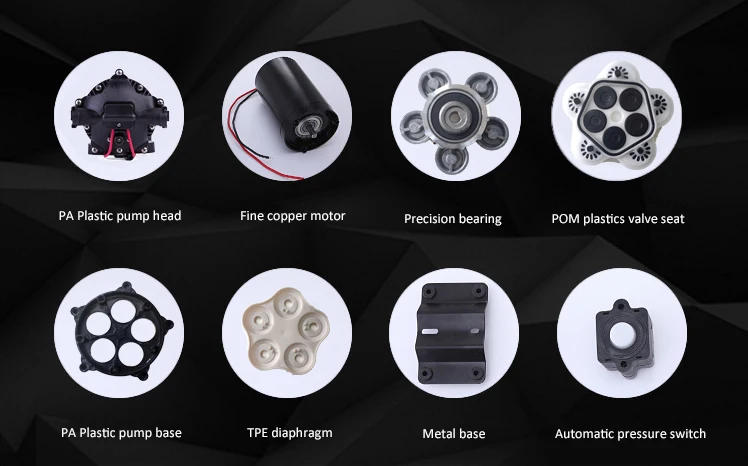

Diaphragm Material | Santoprene |
Valve Material | Viton, and EPDM is available |
Duty Cycle | Continuous |
Self Priming | 6' [1.8 m] suction |
Max Fluid Temp | 140 °F [60 °C] |
Inlet & Outlet Port | 3/4"QUICK ATTACH |
Model | Voltage | Open flow (GPM/LPM) | Max draw | Shut-off pressure (PSI / BAR) | Ports | Wire connections |
NMWP51-G50-70-12 | 12V | 5.0 / 18.9 | 18A | 70 / 4.8 | 3/4"QUICK ATTACH | 2-pin / Lead |
NMWP51-G50-70-24 | 24V | 5.0 / 18.9 | 10A | 70 / 4.8 | 3/4"QUICK ATTACH | 2-pin / Lead |
Unit N.W | 2.76 KG |

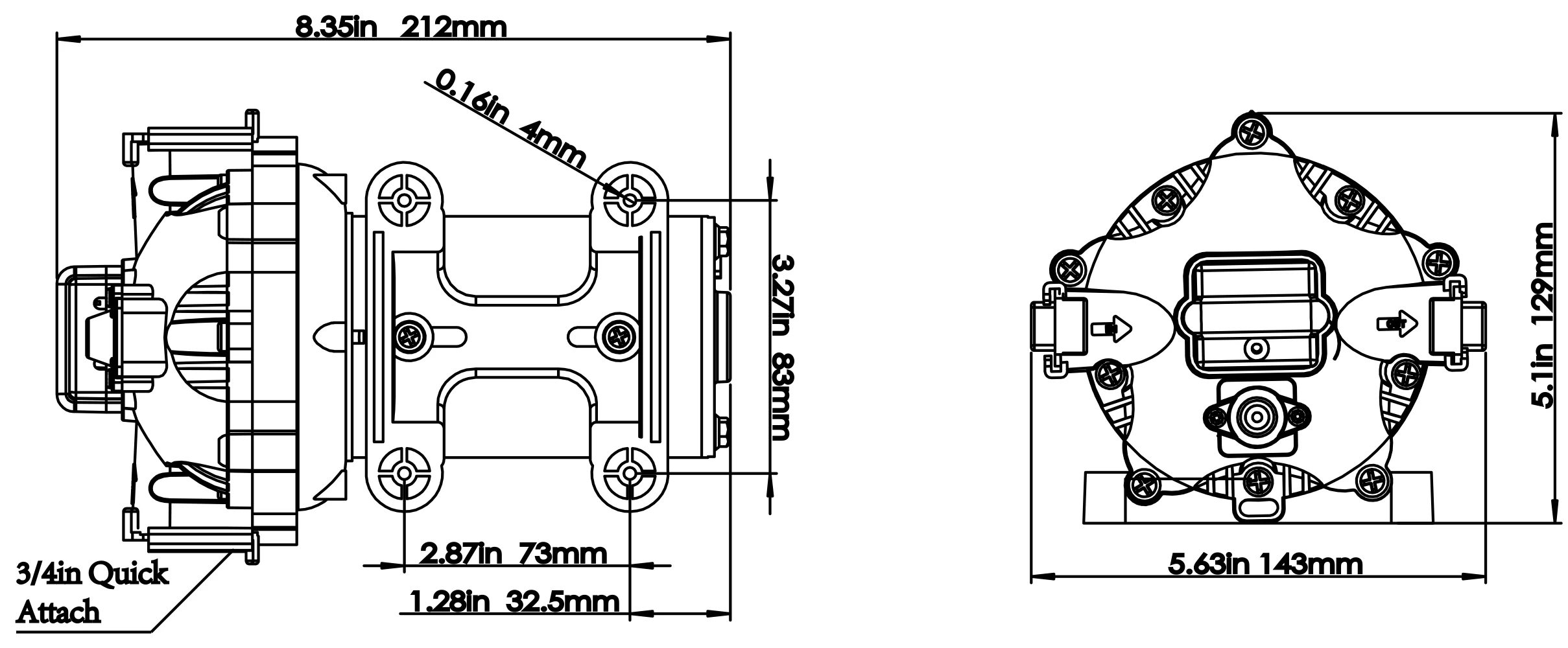

Unit Size (L x W x H) | 28.4 cm x 15.9 cm x 14 cm |
Unit G.W | 3.22 KG |
Master Carton Qty | 8 pcs / carton |
Master Carton Size (L x W x H) | 57.5 cmx 32.5 cmx 29.5 cm |
Master Carton Weight | 25 KG |
