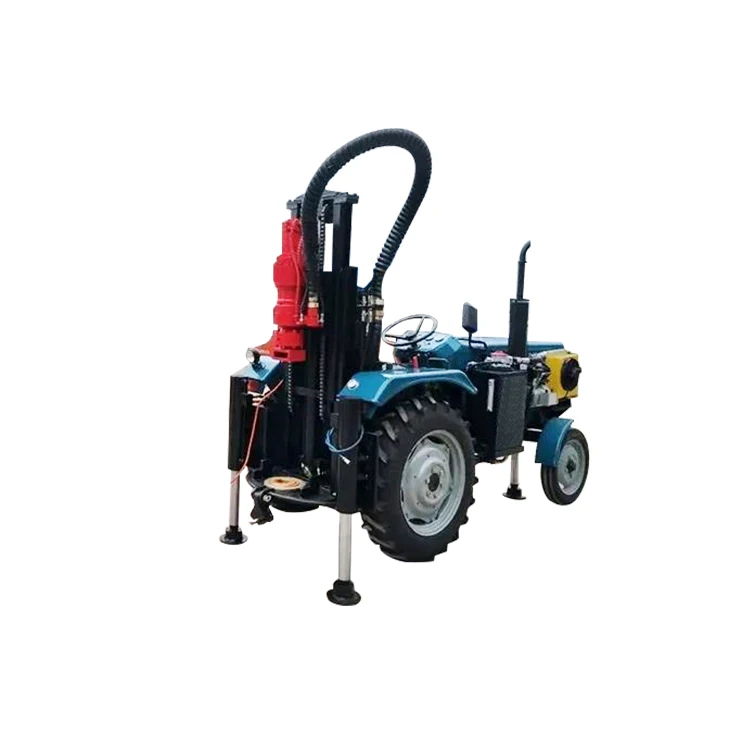

Tractor Mounted Core Mine Deep Water Well Drilling Rig Machine For Sale

Product Overview

Description



KF-150 tractor mounted water well drilling rig is powered by a tractor diesel engine. The working department of the drilling machine is integrated with the tractor. The tractor is both the drilling machine and the transportation machine. At the same time, the disel engine is also the working power of the drilling rig. When going to the work site, the tractor itself can also drag a trailer mounted air compressor, which saves the investment of transportation vehicles.

Lower cost, more convenient for work. A tricycle loading drill pipes can be equipped together.

Because the drilling rig is small and flexible, It is more suitable for all sorts of road condition such as off-road, village, the lane of the countryside, farmyard, etc.

The main function of this drilling machinery is to obtain underground material data, for example, core of rock, core of mine, rock debris, liquid samples, gas samples.

It can be used for drilling water well, and geothermal well.

The system uses hydraulic power from tractor as the drilling force to realize the function of drilling. You don't need to turn on the air compressor when lifting the drill pipes, just use its hydraulic power of tractor.

Features:

1, Strong engine power: the drilling machine is equipped 300 or 400 exactor. The power is sufficient to ensure the normal operation of drilling.

2, Welding machine setting: when drilling a disposable hole, no other power source and welder are required, It can be directly welded.

3, Remote control: convenient remote control plug for long distance operation ensures safety, health, convenient drilling and time saving.

4, Trailing braking system: the multi-purpose machine can drag air compressor, drill pipes, cargo box for long-distance driving.



Model	KF-150	Drilling diameter	90-235mm
Drilling depth	150m	Adapt to rock hardness	F = 6 ~ 20
air working pressure	0.7-2.5 MPa	air consumption	5-30 m3/h
Slide stroke	1800/2000mm	Ground clearance	400mm
Maximum torque	2700 N.m	Lifting force	39 KN
Boost speet	20 m/min	Climbing angle	30 degree
weight	2600 kg	Swing speed	30-90 rpm
Progressive efficiency	10-35 m/h	Drill pipe length	1500 mm
Drill pipe diameter	76 mm	Stratic height	1950 mm
Adaptor impactor	High wind pressure	Air compressor	18 m3/1.7 Mpa above



1. Q: Are you trading company or manufacturer?

A: We are original equipment manufacturer.



2. Q: How long is your delivery time?

A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock.It will be 15-30 days if you want to customize the machines.



3. Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.



4. Q: What is your terms of payment?

A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.Payment<=USD 5000, 100% in advance.Payment>=USD 5000, 30% T/T in advance, balance before shipment.
