Hot Selling Small Portable Borehole Drilling Machines Water Well Drilling Equipment

Product Overview

Description

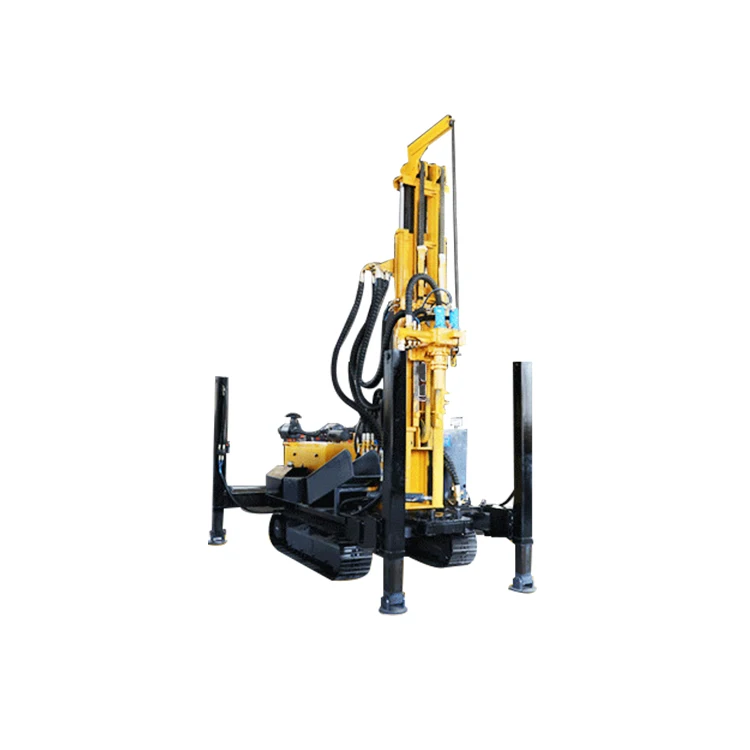

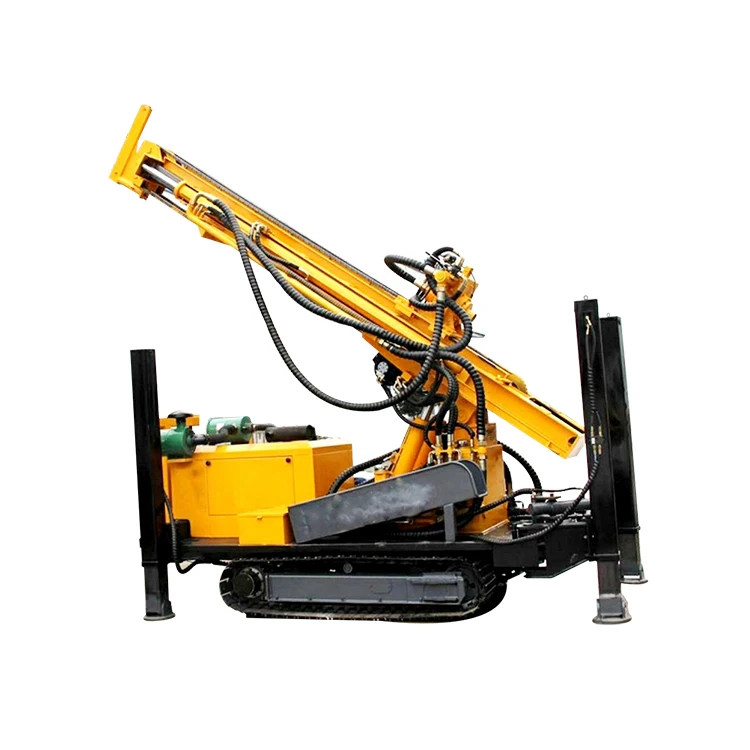

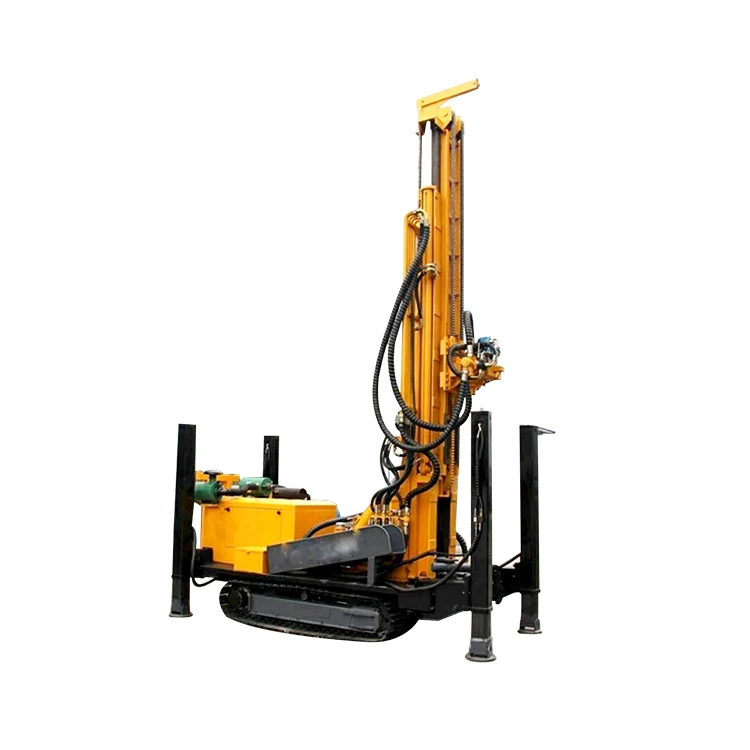

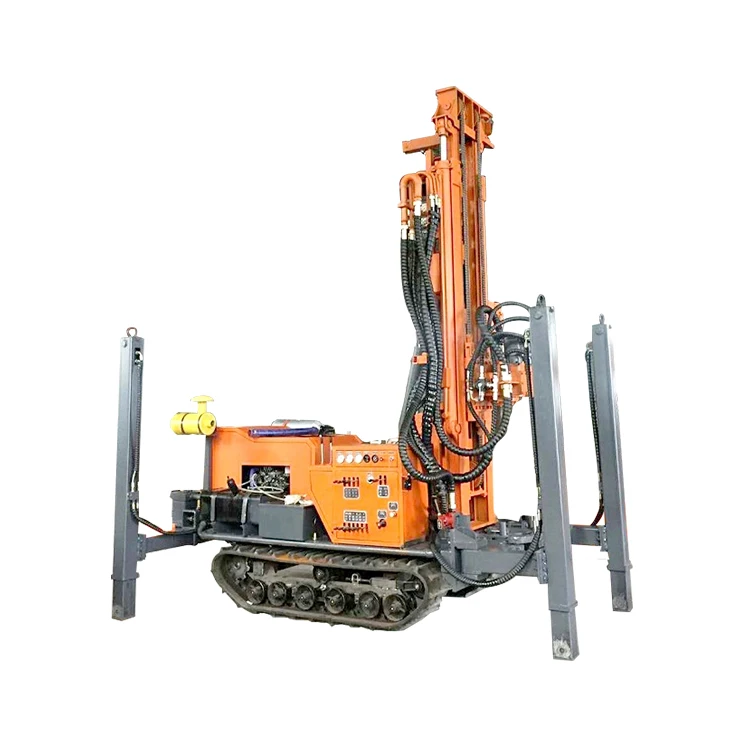

Walker FD200 series deep water well drilling rig uses full hydraulic control system and the top driving to rotate the drilling tools with very high drilling efficiency.

The equipment uses crawler-mounted design or loaded in truck for trasportation with good maneuverability.

The equipment is very flexible in off roads and can be widely used in many fields such as water wells, coalbed methane, the shallow layer of shale gas, geothermal well, etc, and can also be used for coal-mine gas exploitation salvage work.

The top mounted driving head can drill a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air dirlling, and air foam driling, meeting the demands for well-drilling at different terrain strata.

Machine weight:	5.5T
Dimensions:	3800 × 1700 × 2350mm
Drilling depth:	200m
One-time advancement length:	3.4m
Walking speed:	2.5Km / h
Climbing angles	30Max
Using air pressure	1.7-3.0
Air consumption:	17-30m3 / min
swing speed	50-70
swing torque	5000-6500
Rig lifting force	18T



1. Q: Are you trading company or manufacturer?

A: We are original equipment manufacturer.



2. Q: How long is your delivery time?

A: It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock.It will be 15-30 days if you want to customize the machines.



3. Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.



4. Q: What is your terms of payment?

A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.Payment<=USD 5000, 100% in advance.Payment>=USD 5000, 30% T/T in advance, balance before shipment.
