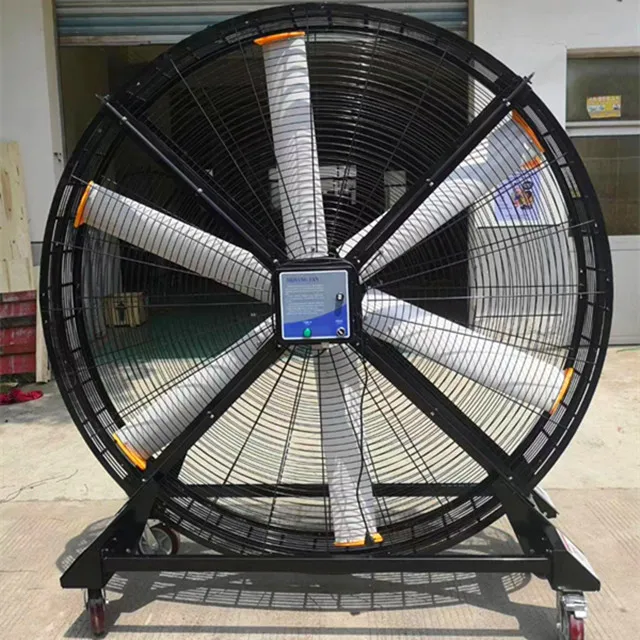

BLDC Motor Heavy Duty Movable Industrial Floor Stand Fan Malaysia Price

Introduction of Mobile Fan

1. 1630m³/min, large air volume, long distance air blow, up to 20m

2. Movable, easy to move with 4 wheels

3. Low power with only 350W
4. Waterproof, low noise with PMSM motor

Technical Parameters

Inverter	Holip
Max Speed	190RPM
Range of Wind Speeds	0-24M(7M/S-0.9M/S)
Motor	PMSM Motor
Motor Power	350W
Input Power	220V/1P
Plug  Wire	2.5M
Weight	150KG



Motor

The fan adopts permanent magnet brushless motor, which has high power efficiency and power factor.Fully enclosed structure, no
transmission gear wear adn transmission gear noise, no lubrication, maintenance free.
Permanent magnet motor is built-in high insulation enamel coil, super magnetic steel body, high temperature resistance bearing.
Super torque, large load operation, good temperature rise, smooth operation, very quiet.
High power density, compact size and light weight.

       Blades

       The surface of blades are treated with           natural color antisepsis and oxidation,           and then powder spraying was                       carried  out. By curing at a high                     temperature of nearly 200 degree,  a             film of 70 ± 5 um is formed on the               surface of fan blade, which is smooth,           delivate,
       beautiful and easy to clean.Color of             blade    can be customized according             to requirement.







Control system

Apply the vector variable frequency control methods with the smart technology. Adopts the famous brand inverter " Holip".
Well-adapted power environment.
Power supply phase failure protection, overvoltage protection, overcurrent protection, pverload protection, output phase loss
protection, output ground protection, over temperature protection, signal disconnection.

1. Every details we can concern: place order, manufacture, delivery, you just accept them.

2. 3-year warranty for each fan to guarantee

3. Can customize as your reqiurements

4. Free maintenance for the fan

5. Contact us by

Q: Are you the factory?

A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.

Q: Where does your fan use in?

A: Ths fan is widely used in commercail spaces to ventilate and cool, like gyms, stadium, fitness clubs, restaurants, halls etc.

Q: Is it used in electrcity?

A: Yes, it's power supply is electricity, but only 400W or less, very energy-saving.

Q: What the price per fan?

A: We will offer you the best price according to the qty and the model.

Q: How long is the delivery time?

A: Normally 3-5 working days.

Q: How long is the warranty?

A: We offer 3-year warranty to guarantee the qualitys.
