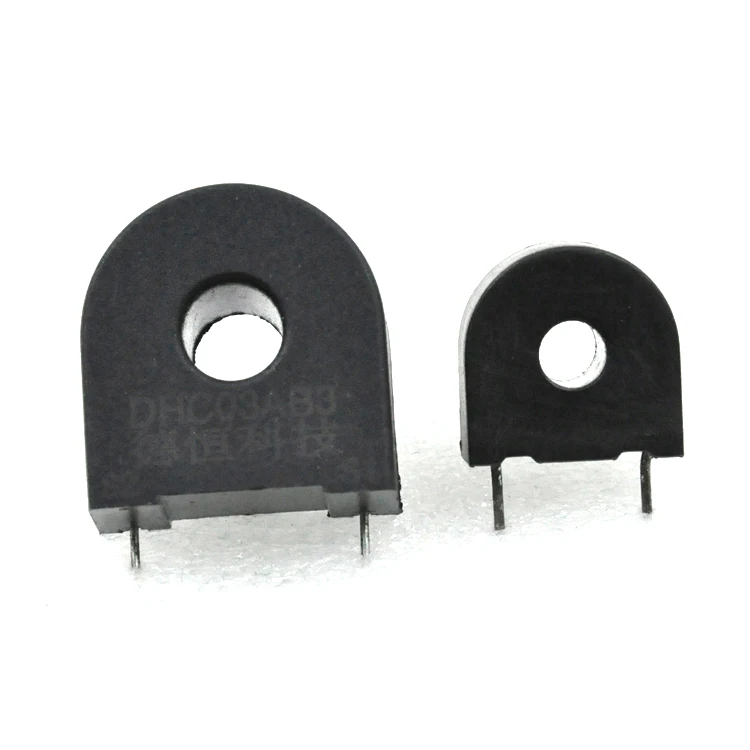

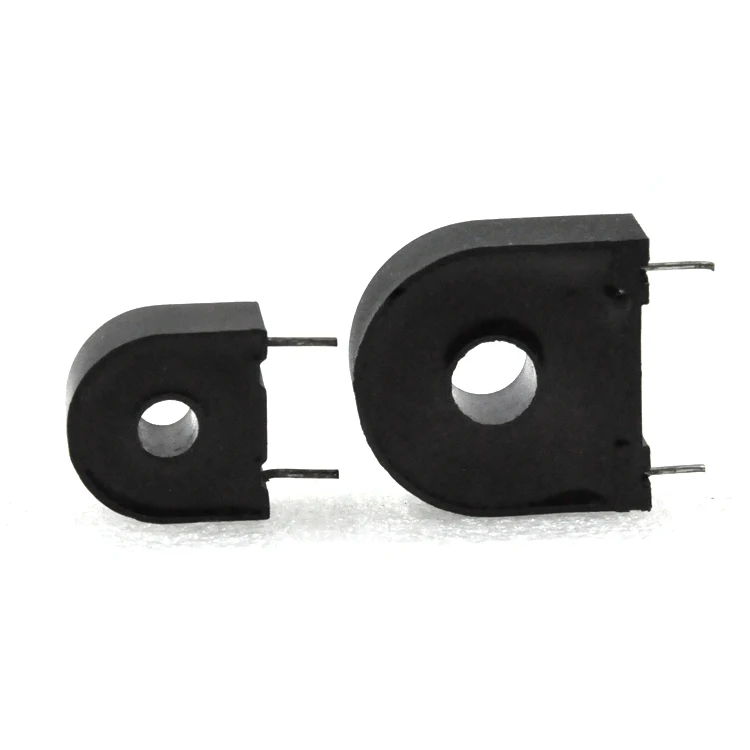

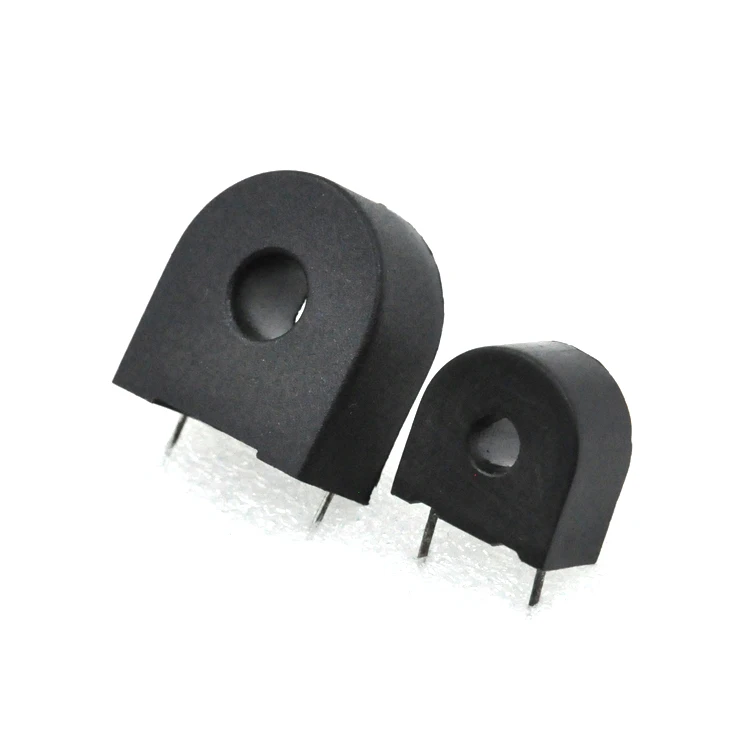

ct manufacturer 4.6mm diameter 5A small size current transformer

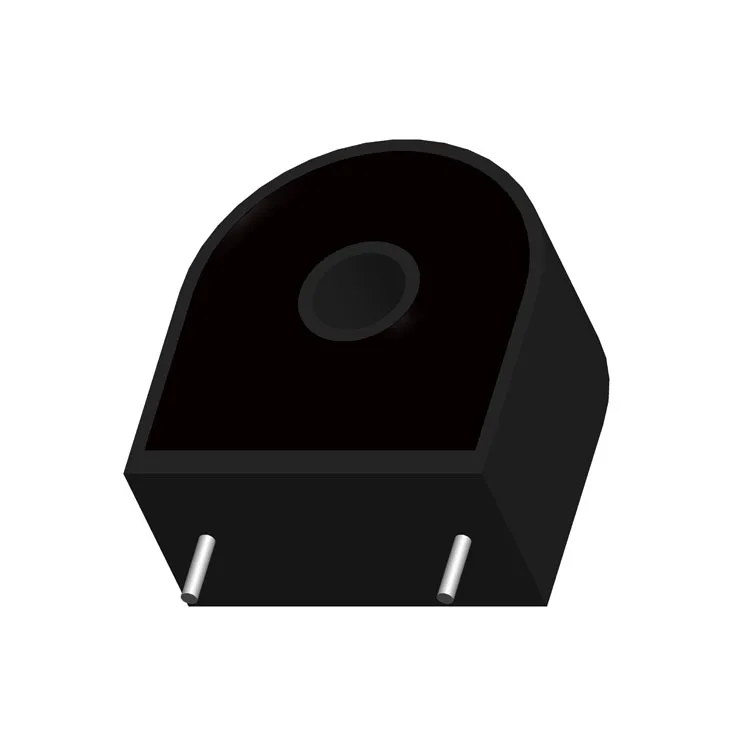

DHC04A Series Current Transformer

Feature:

1. Permalloy core,

2. High precision, good linearity;

3. Epoxy potting , Safe and reliable

4. Flame retardant (UL94- V0),

5. Environmental protection( EU RoHS).

6. Small, Compact Design

7. Easy to assemble and weld

Guideline:

National standard gb 1208-2006;

Industry Standard jbt 10665-2006.

Use Temperature:-25℃-+85℃

Relative humidity:≤95%

Scope of application:

Suitable for instrumentation, etc., need to convert large current into small current for precise measurement, Used for precision measurement or as electrical safety protection.

Notes:

If the load connected to the secondary of the transformer exceeds the rated load capacity, it may result in reduced accuracy or saturation. If you need to increase the load capacity and we can provide customized.

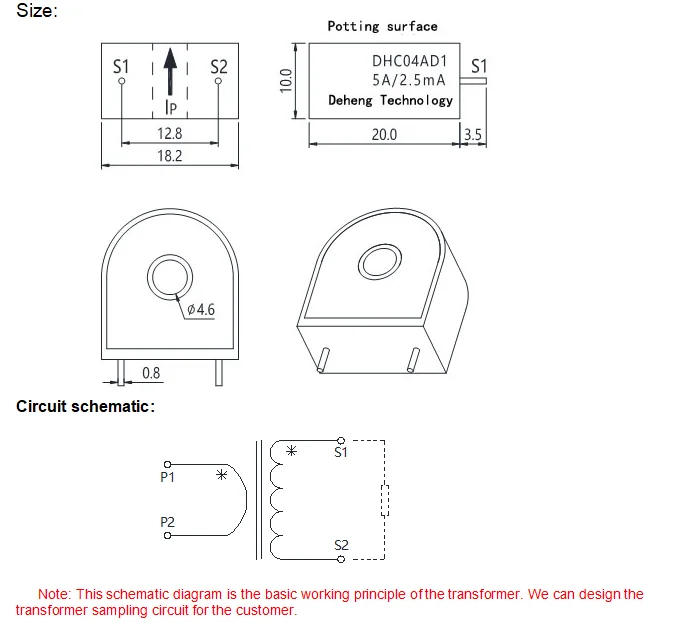

Specification:

Note: If there is no product suitable for your use in the above table, we can tailor the product according to your technical and structural requirements.

<Our Certification >

   we are professional manufacturer of sensor including current transformer, hall sensor, fluxgate sensor, rogowski coil sensor, EV charging equipment as so on, Also we can provide customized service for you.

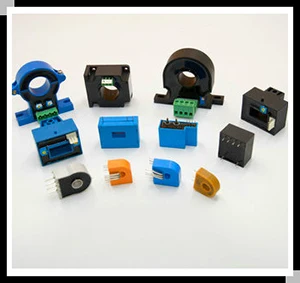

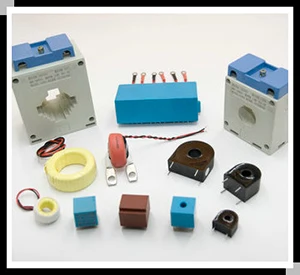

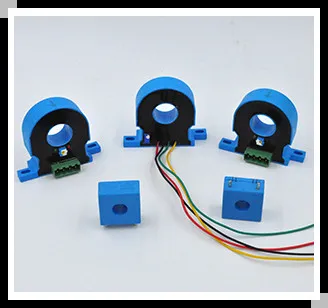

                Hall Current Sensor                                                       Current Transformer

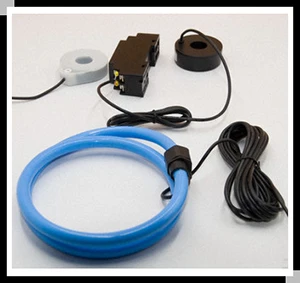

              Rogowski Coil Sensor                                                           Fluxgate Sensor
