4K Dual HDMI Video Capture Card Equipment for Live Streaming with Loop Camera link to USB 3.0 Type C Recording Game Video Mixer
- Category: >>>
- Supplier: Shenzhen Gaia Vision Technology Co. Ltd.
Share on (1600062054265):
Product Overview
Description
Product Description

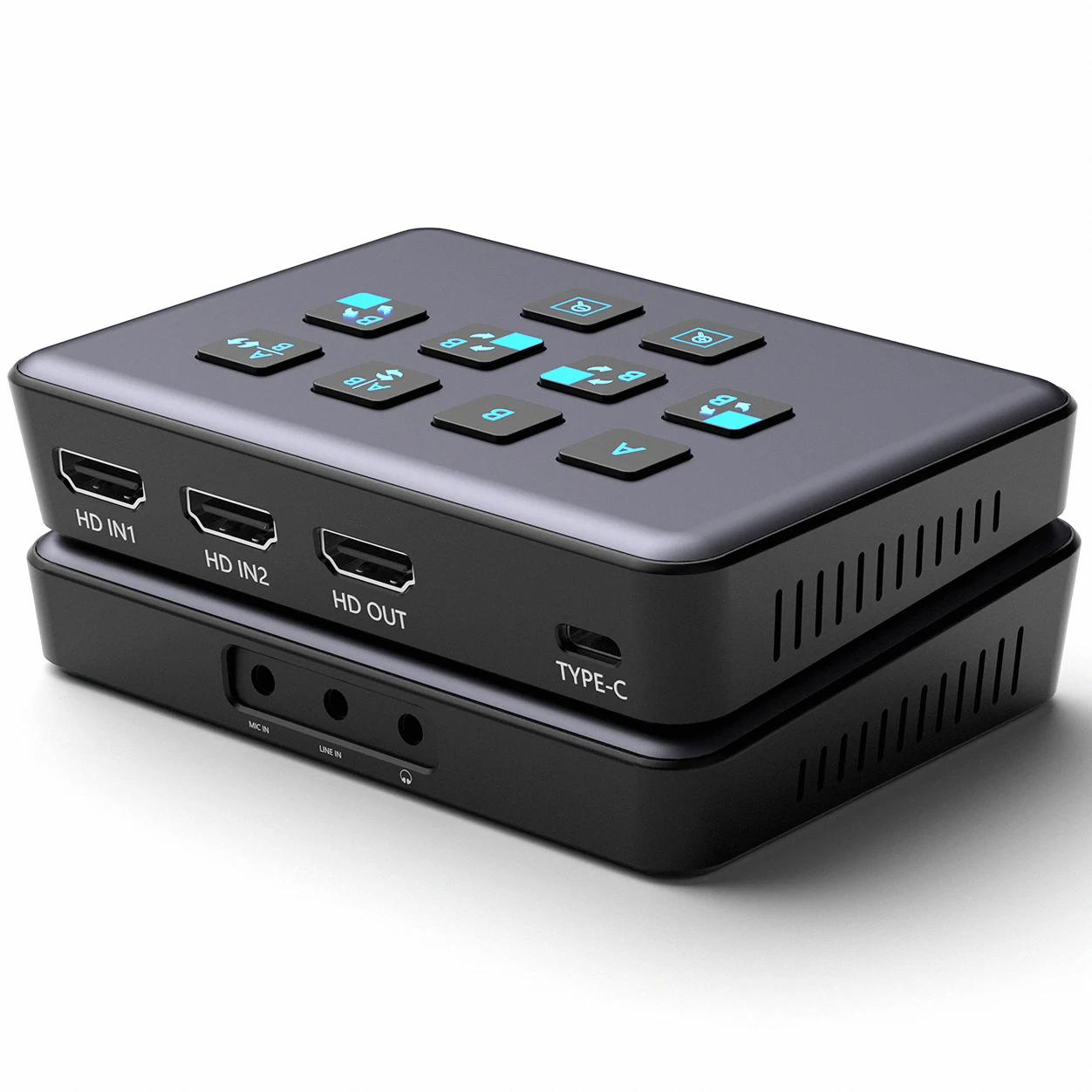

4K Dual HDMI Video Capture Card Equipment for Live Streaming with Loop 4K HDMI Camera to USB 3.0 Type-C Recording Game Device Capture Video Cards

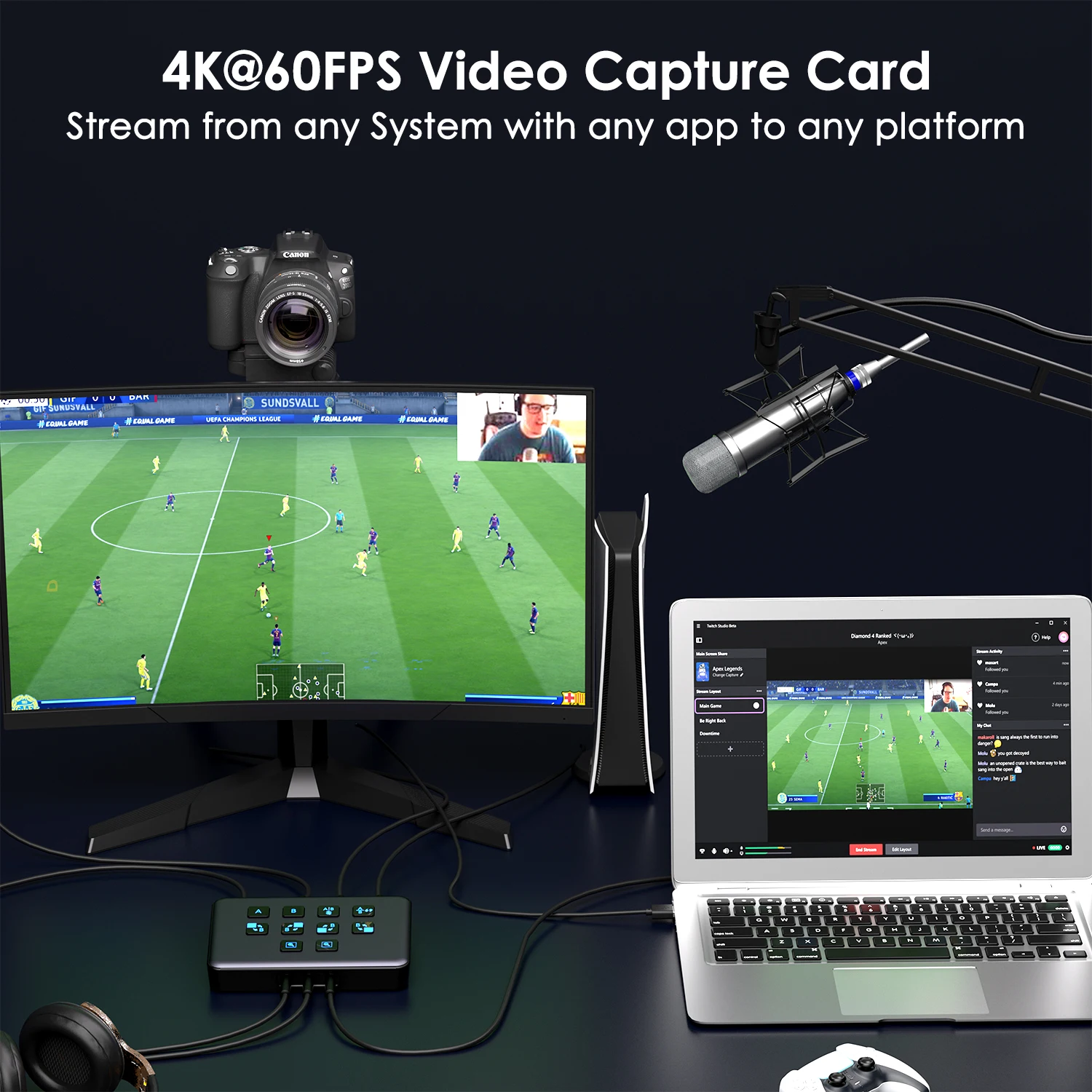

The USB 3.0 dual channel HDMI video capture card can simultaneously capture dual 4K HDMI input video signals, while supporting HDMI 1080P loop out, compatible with Windows7/8/8.1/10/11, Linux and Mac OS, and backward compatible with USB2.0, by USB 3.0/Type‐C interface to connect to the computer, through play/capture software to achieve preview, recording, live streaming and other functions.
Specification
1. The input can support up to 4K@60Hz, loop out and capture recording resolution up to 1080P@
2. Recording video format support RGB/24bit, YUY2/
3. Support UAC / UVC protocol, support for 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop out and capture.
6. Support microphoneaudio input, line audio input, and headphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
2. Recording video format support RGB/24bit, YUY2/
3. Support UAC / UVC protocol, support for 48KHz audio sampling rate.
4. No driver required, compatible with Windows 7/8/8.1/10/11, Linux and Mac OS.
5. Support HDR color input, loop out and capture.
6. Support microphoneaudio input, line audio input, and headphone monitoring.
7. Low power consumption, ultra-low latency, clearer picture quality, RGB color range 0~255.
ITEM | Specification |
USB-C | USB 3.0, 5Gb/s transfer bandwidth |

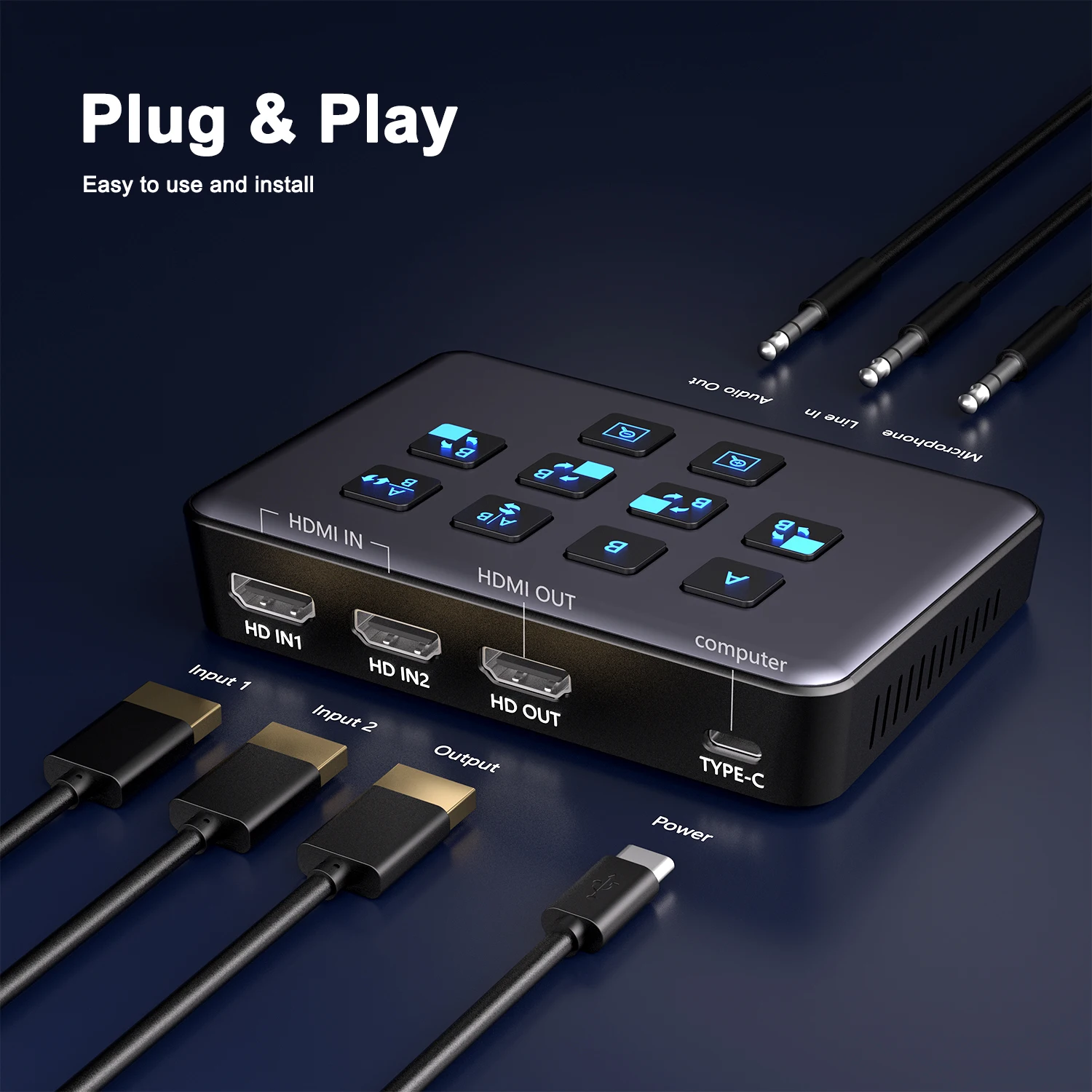

Input | 2*HDMI video input, 1*Line in audio input, 1*Microphone audio input. |
Output | 1*HDMI loop-out, 1*USB-C to computer, 1*Headphone audio |
Capture | Compliant with UVC(USB Video Class) and UAC (USB Audio Class) standards. |
Input Format | HDMI 2.0 |
Capture Video Format | RGB, YUY2 |
Input Resolution | 720P, 1080P, 4K@30Hz, 4K@60Hz |
USB3.0 Capture Video Format | YUY2 16bit, RGB 24bit |
HDCP | Support |
HDR | Support 4K/60Hz HDR input as well as ring out, support capture HDR color degree, backward compatible. |
Compatible Software | Windows Media Encoder, Adobe Flash Media Live Econder, Reel Producer Plus QuickTime Player, VLC, OBS, vMix, PotPlayer... |
