New arrival superior 10x optical zoom ptz camera 3 video outputs usb hd ptz camera for livestreaming
- Category: Video Conference System >>>
- Supplier: SZ Tenveo Video Technology Co. Ltd.
Share on (1600062059296):
Product Overview
Description
New arrival superior 10x optical zoom ptz camera 3 video outputs usb hd ptz camera for livestreaming
Product Description
1. Technical specifications: TEVO-NV10A video conference camera
Wide field of view with no video distortion;
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
| Model No | TEVO-NV10A |
| Image Sensor | 1/2.9 inch HD Color CMOS |
| Effective Pixel | 2.38 mega pixel |
| Horizontal Resolution |
1080P60/50/30/25,1080i60/50,720P60/50 |
| Focal Length | 138 degree fixed focus wide angle |
| Signal Standard | NTSC/PAL |
| Zoom | Fi focus |
| Horizontal View Angle |
Near-end 51.8°~Far-end 5.86° |
| Gain Control | Auto/Manual |
| SNR Ratio |
8 to 1/10000s (auto) |
| Preset Position |
IR remote control supports 9 presets, PELCO Protocol supports 255 presets; VISCA Protocol supports 64 presets |
| Pan/Tilt Movement Range |
Pan: +-175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S) |
| Control Protocol | VISCA,PELCO-D,PELCO-P (RS-232,RS485) |
| Control Teminal | USB, RS-232, RS-485 |
| Video Output | USB |
| Noise Reduction | 2D/3D |
| Work Temperature | -10°~50° |
| Work Humidity | -20°~60° |
| Baud Rate |
38400/9600bps |
| Address Set | 1~255 |
| Decoder | Built-in decoder |
| Installation | Support desktop, Tripod, Wall mount and ceiling mount |
| Video Compression Format | YUV, MJPEG,H.264 |
| Accessories | DC 12V power adaptor, IR remote control,manual, ceiling brackets and screws. |
| Size: | 182*182*182mm/262*233*220(before/ after packing) |
2. Main features of TEVO-NV10A video conference camera
10x optical zoom; Sleek and intelligent design;
1/2.9inch high quality, 2.38MP (16:9) CMOS sensor;3G-SDI, HDMI USB Video Output;
Superior quality with Full Glass Lens Material;
Wide field of view with no video distortion;
Support ceiling mount, wall mount and tripod mount (Reverse mountable)

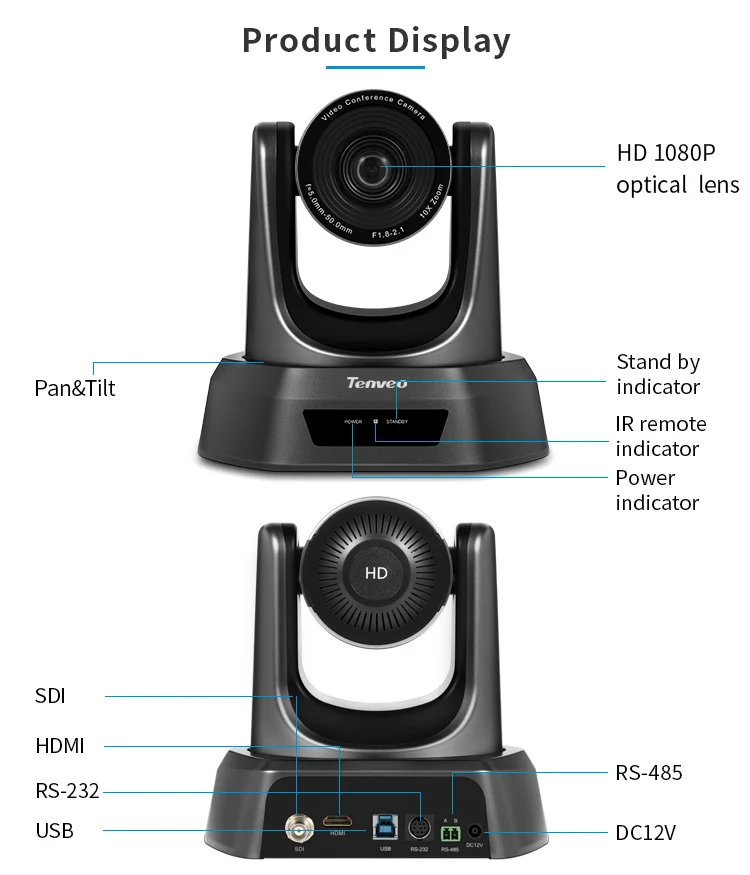

3.Main details of TVEO-NV10A video conference camera:
4.Main application of TVEO-NV10A video conference camera:
5.Application Scenarios:
New arrival superior 10x optical zoom ptz camera 3 video outputs usb hd ptz camera for livestreaming
Related Products
»»» CLICK HERE TO SEE MORE STOCK
Packaging & Shipping
1.Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
