hand comb cardboard corrugated cardboard cnc oscillating knife cutting plotter machine for carton packaging

Share on:

Price:$11,400.00 - $11,500.00
Price in USD:Details


Product Overview


On the basis of replacing manual processing to improve processing accuracy, efficiency and safety on a large scale, cardboard digital flatbed cutter can also avoid environmental pollution caused by laser cutting and other processing methods, so as to achieve automatic processing with high accuracy, high efficiency, high reliability and environmental protection.

Product Description

hand comb cardboard corrugated cardboard cnc oscillating knife cutting plotter machine for carton packaging

CNC Oscillating Knife Cutting Machine Features:

High speed: Only need 80 seconds to finish one set of car foot mat., only need 6 minutes to finish one set of car cushion mattress

High efficiency: don't need any die mold, or die mold cutting machine, this machine can press mark, cutting and molding on soft material such as leather, carton etc. Save much labor and cost.

Low cost:
one machine can do design, cutting instead of manual design and cutting, save labor, and material wastage cost.

Wide application: This machine can cut leather, PU, fiber, EVA, XPE, sponge cladding, composite cladding, Sponge+drape+composite leather, PVC foot mat, paper, carton, plastic board etc. Soft material.

Good performance: adopt Taiwan TBI ball screw or Wuxi High precision rack pinion, low noise, accurate transmission. Long lifespan and high precision.

Technical Paramaters:
X working size
Y working size
Z working size
50mm, max cutting thickness of material is 50mm
Cutting head
cnc oscillating knife cutting head +creasing wheel/roller
Display way
English LED touch screen
Machine table
Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other soft material
Data transfer way
Vacuum pump
9KW air type vacuum pump
Driving system
Taiwan delta servo driver and motor
Control system
RD control system
Guiding system
Taiwan TBI square rail
About 1200kgs
380V 50HZ

PS: All the working area and specifications can be customized according to your requests.

CNC Oscillating Knife Cutting Machine Advantages:

1. Stable structure: thick wall square tube welding, side plate tempering treatment, the lathe bed is processed by five side milling processing center, aging treatment, solid without deformation.
2. Ruida control system, high precision, high efficiency, high reliability, green and environmental protection automatic processing
3. Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.
4. Vacuum adsorption table, high-power vacuum pump, air volume up to 300m3 / h.
5. Perfect lubrication system to extend the service life of the machine.
6. The gantry type movement is adopted, and the materials on the working table can be processed at will, so the operation is convenient.
7. X / Y axis is driven by high-precision rack, with high speed and precision.
8. The z-axis is driven by high-precision double nut automatic clearance ball screw with high precision.
9. The cutting machine adopts square linear guide rail to ensure the high precision of the machine and bear large load
10. The wire adopts imported high flexible shielded cable

Detailed Images


CNC Oscillating Knife Cutting Machine Application:

Sofa, seat, car seat cover, car floor mat, car carpet, luggage, handbag and other industries.

It is applicable to shoe industry, clothing industry, composite material industry, luggage industry, automobile industry

Advertising and printing industry, electronic industry, decoration industry, furniture industry, etc.

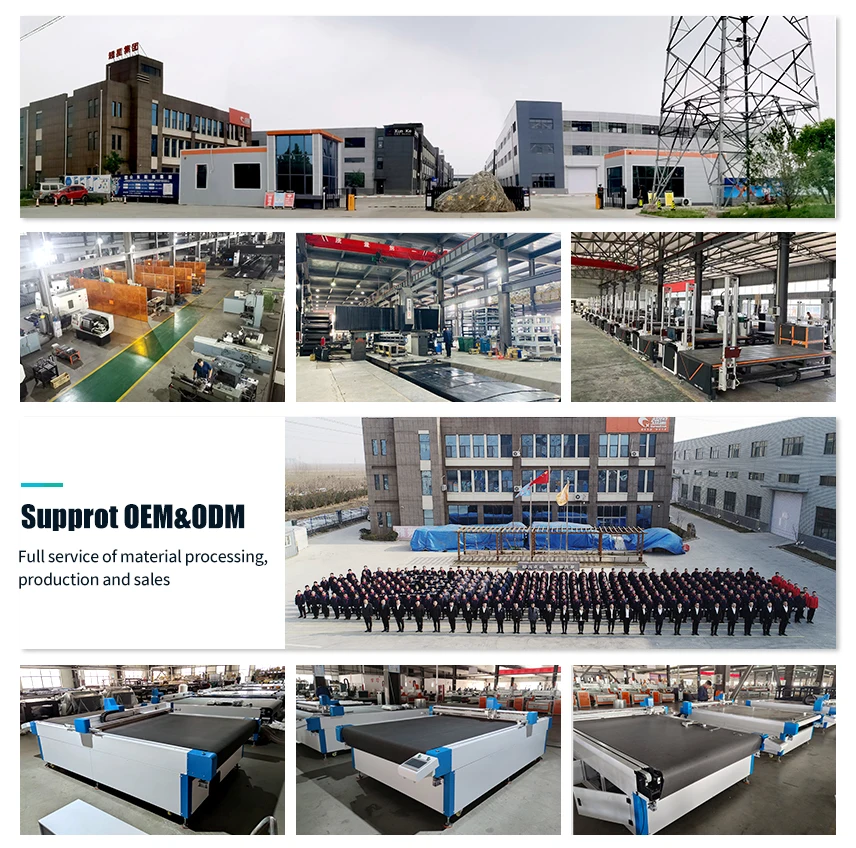

Company Information

Shandong Sameng CNC Equipment Co.,ltd established in 2010 and belongs to the Superstar Group. As one of the most established machinery manufactures in China, SM CNC is your preferred partner for high quality Oscillating knife cutting machine, Laser machines, Hot wire foam cutting machine and CNC Routers, we focus on the customer who business for the flexible materials,advertising,packing cartons and construction works.we will design and product the machine according to your cutting requirements,we had flexibly help customer from all over the world.

Please Feel Free To Send Us Inquiry Or Message To Know More About The Shipping Response Will Be Within 1 Minutes During Working Time, And Within 6 Hours During Off Duty Time.

Service & Feedback


Q1: Are you manufacturer ?
Yes,We are factory since 2003.
Q2: How can I get an accurate price?
Please tell us your cutting material and the working size.
Q3: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.
Q4: How long is the delivery time?
Generally 7 ~ 15 days.
Q5: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM
Q6: If my machine is broken. Can you repair it for me?
Yes. We have free traning online. If there is big trouble with your machine in the warrenty time, we can repair it.
Q7: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.
Q8: What’s your MOQ and delivery?
1 set by LCL. 3~9 sets by container
