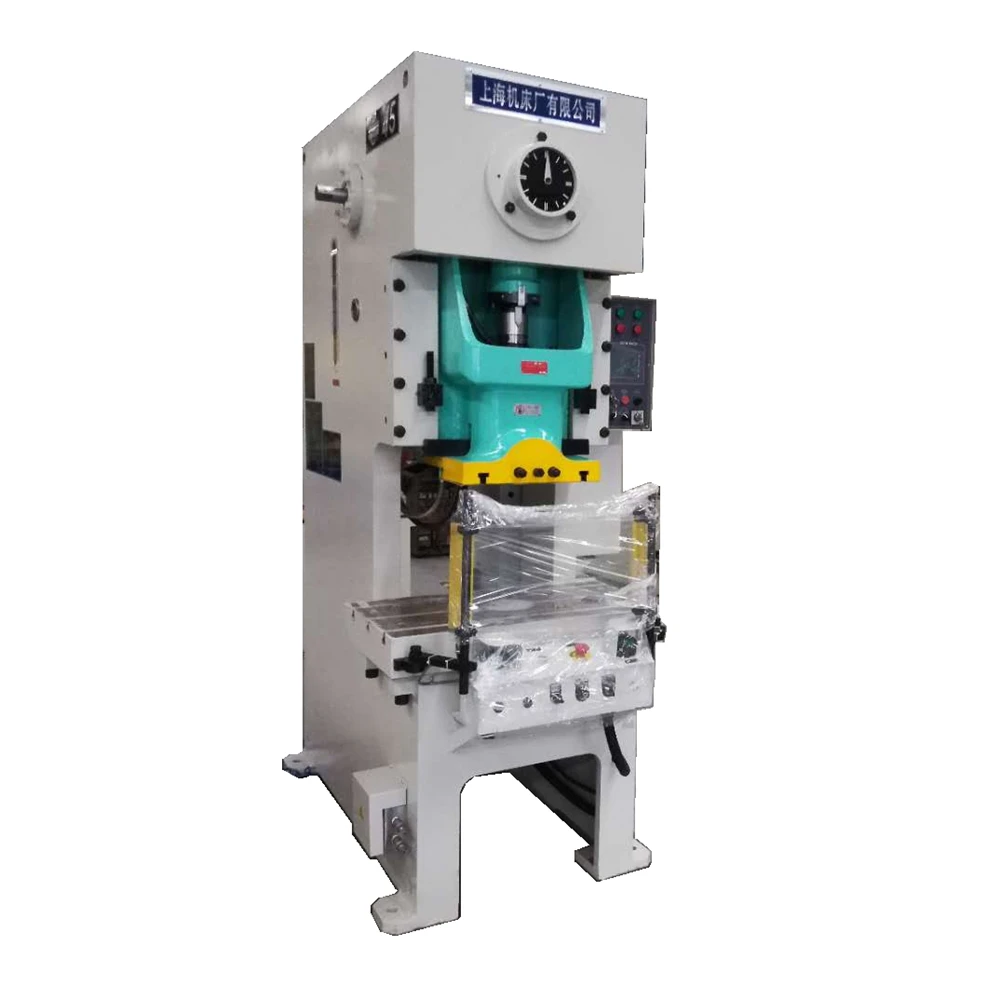

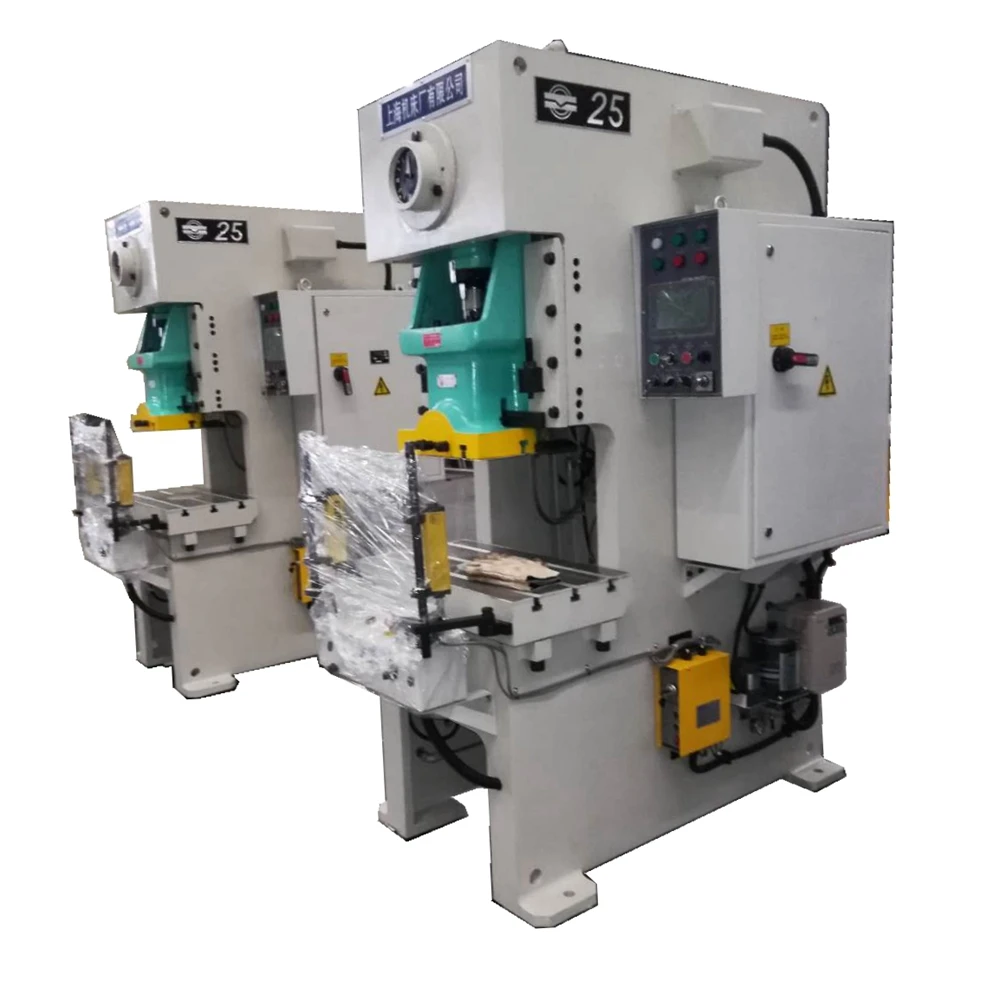

High Precision 60 Ton JH21 C Frame Single Crank Pneumatic Power Press
- Category: >>>
- Supplier: Anhui Nanxia Machine Co. Ltd.
Share on (1600062333267):
Product Overview
Description
Factory JH21-60T Series Pneumatic Punching Machine With High Quality
What Features of our JH21 Pneumatic Punching Machine ?
v Horizontal Crankshaft.
v Combined dry pneumatic Friction clutch and brake.
v Manual die height adjustment with scale display.
v Safety dual solenoid valve
v PLC of international brand
What Specification of our JH21 Pneumatic Punching Machine ?
SI.No. | Title | Unit | JH-60 | JH-80 | JH-125 | |
1 | Nominal Force | KN | 600 | 800 | 1250 | |
2 | Slider Stroke | mm | 140/80 | 160/90 | 180/100 | |
3 | Max. Die Height-Closed | mm | 300/330 | 320/355 | 350/390 | |
4 | Die height Adjustment | mm | 70 | 80 | 90 | |
5 | Between slide center to Frame ( Min.) | mm | 270 | 310 | 350 | |
6 | SPM- Fixed | Min-1 | 70 | 60 | 65 | |
7 | SPM- Variable L | Min-1 | 40-70 | 35-60 | 35-65 | |
| SPM- Variable S |
| 60-110 | 55-100 | 50-95 | |
8 | Bolster | L-R | mm | 870 | 950 | 1100 |
| F-B | mm | 520 | 600 | 680 | |
9 | Bolster plate Thickness | mm | 130 | 140 | 155 | |
10 | Slide Block | L-R | mm | 480 | 540 | 620 |
|
| F-B | mm | 400 | 460 | 520 |
11 | Dimension | L-R | mm | 1200 | 1280 | 1220 |
| F-B | mm | 1685 | 1990 | 2125 | |
| Height | mm | 2560 | 2725 | 3055 | |
12 | Motor Power | kw | 5.5/7.5 | 7.5/11 | 7.5/11 | |
13 | Weight | kg | 5500 | 7500 | 11000 | |
More Details of our J23 Mechanical Punching Machine ?

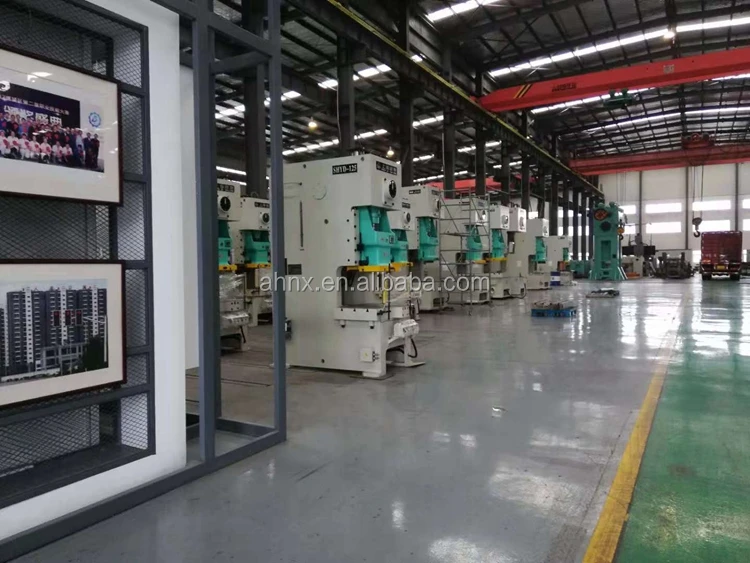

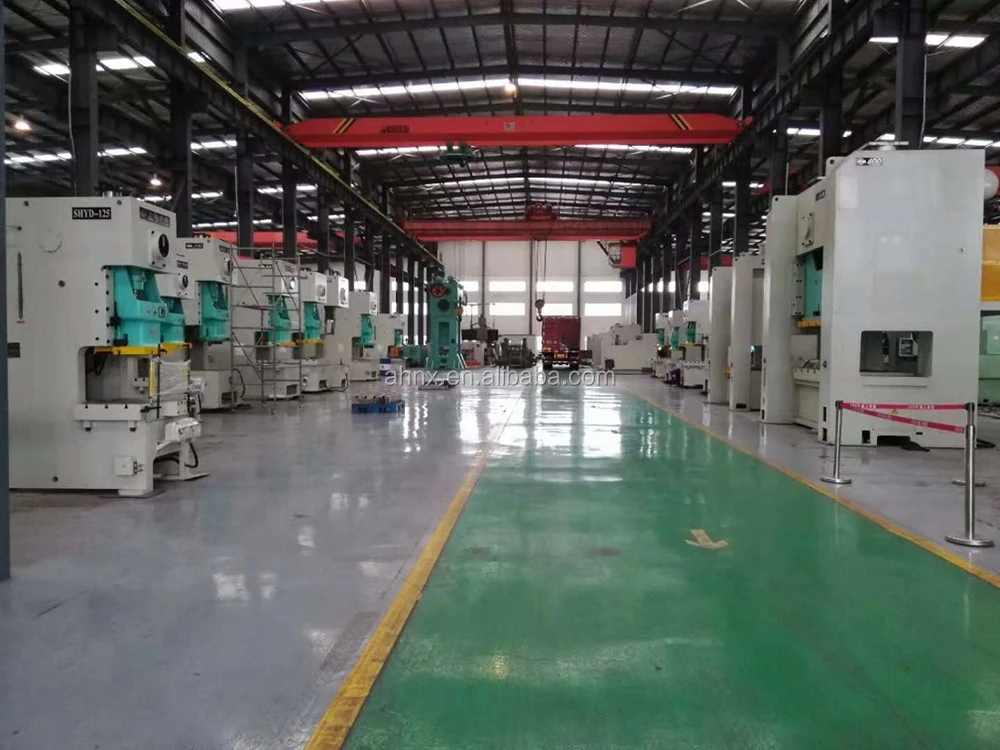

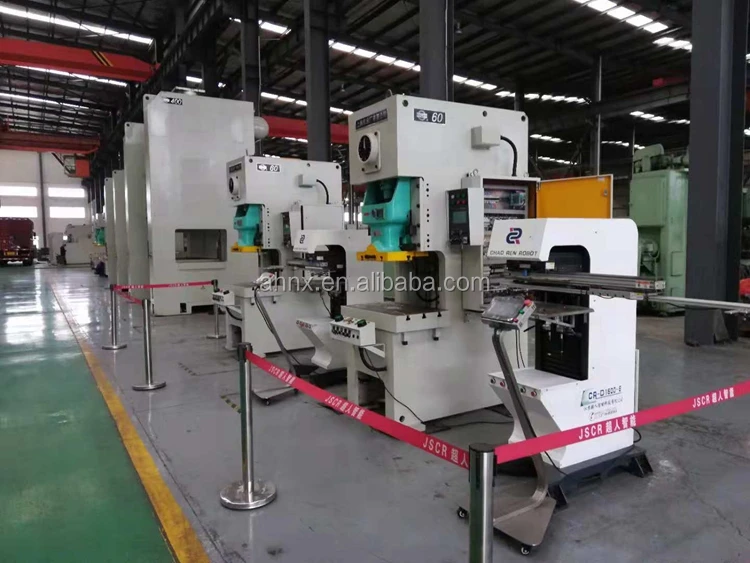

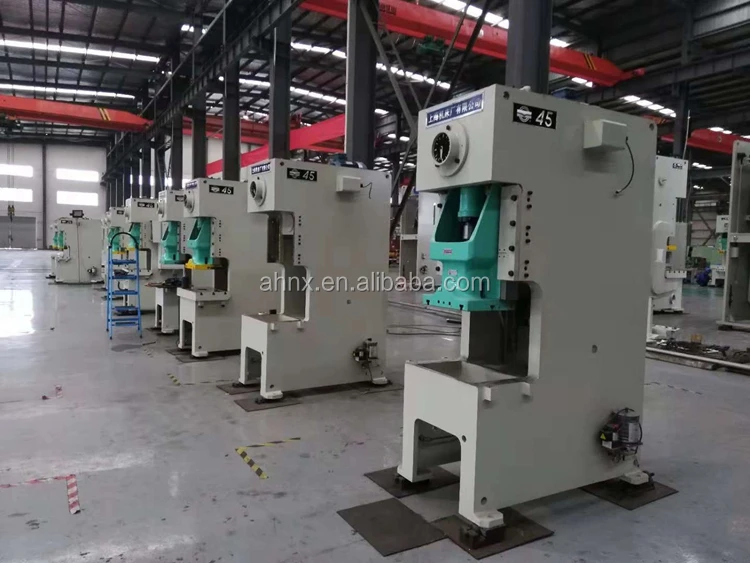

Our Workshop
FAQ
