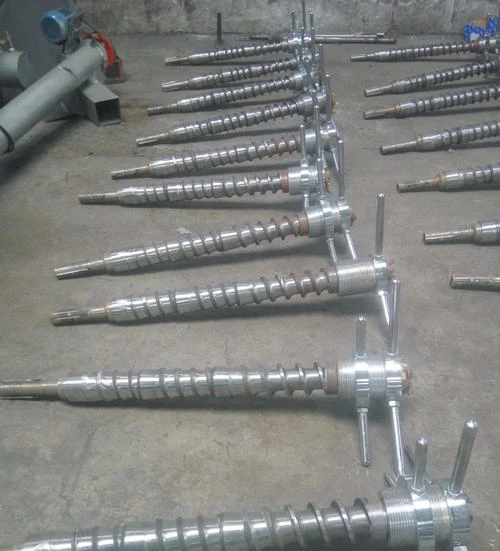

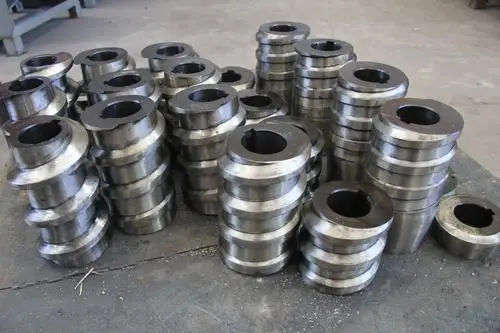

6YL 100 Oil Press Machine parts screw worm
- Category: >>>
- Supplier: Zhengzhou Zhuomiao Import & Export Trading Co. Ltd.
Share on (1600062373447):
Product Overview
Description
Hot sale oil press machine for sale
Oil press machine technical data:
|
Model |
6YL-80 |
6YL-100 |
6YL-120 |
6YL-160 |
|
Screw diameter |
φ 81mm |
φ 101mm |
φ 120mm |
φ 160mm |
|
Rotating speed |
47r/min |
38r/min |
37r/min |
32r/min |
|
Main engine power |
5.5KW(Y132M-4) |
7.5KW(132M-4) |
11KW(Y132M-4) |
15KW(Y132M-4) |
|
Vacuum pump power |
0.55KW(Y801-4) |
0.75KW(Y802-4) |
0.75KW(Y802-4) |
0.80KW(Y802-4) |
|
Heater power |
2.2KW |
2.2KW |
2.2KW |
2.2KW |
|
Capacity |
65-130Kg/h |
140-280Kg/h |
250-400Kg/h |
300-550Kg/h |
|
Weight |
880Kg |
1250Kg |
1500Kg |
1800Kg |
|
Size mm |
1500×1200×1750 |
1700×1300×1850 |
2000×1300×1500 |
2100×1300×1600 |
1.Adopt micro-motor control, infrared heating, vacuum filter and three-level squeeze
2.The most ideal equipment for individual
Product name: oil press machine
6YL oil press machines are modern products developed and improved our company newly. These machine adopt micro-motor control, infrared heating, vacuum filter and three-level squeeze. They may be used for both cold squeeze and hot squeeze and are the most ideal equipment for individual process.

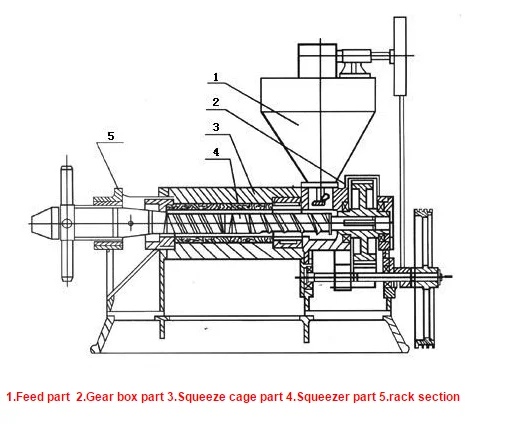

Oil press machine structural drawing:

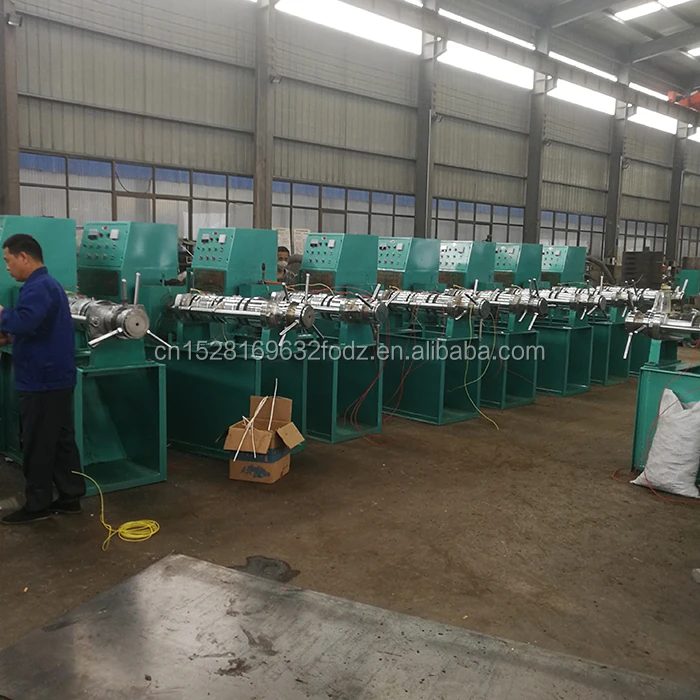

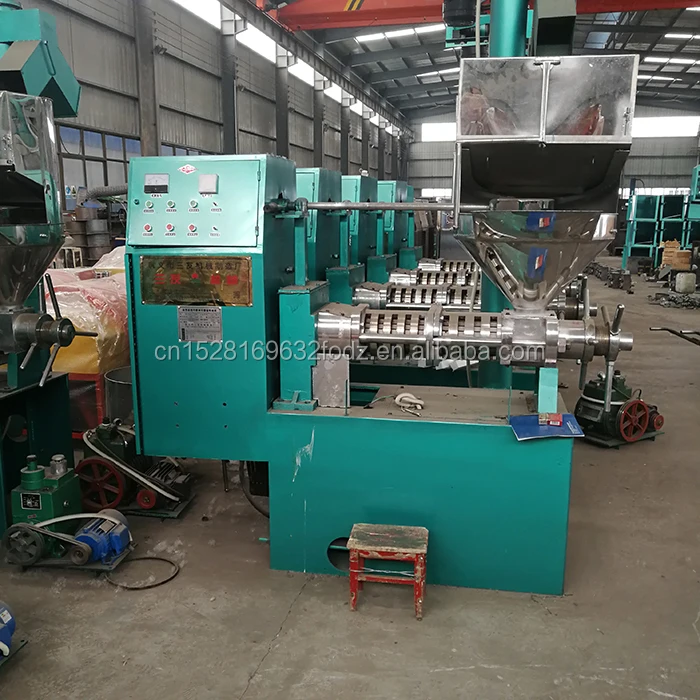

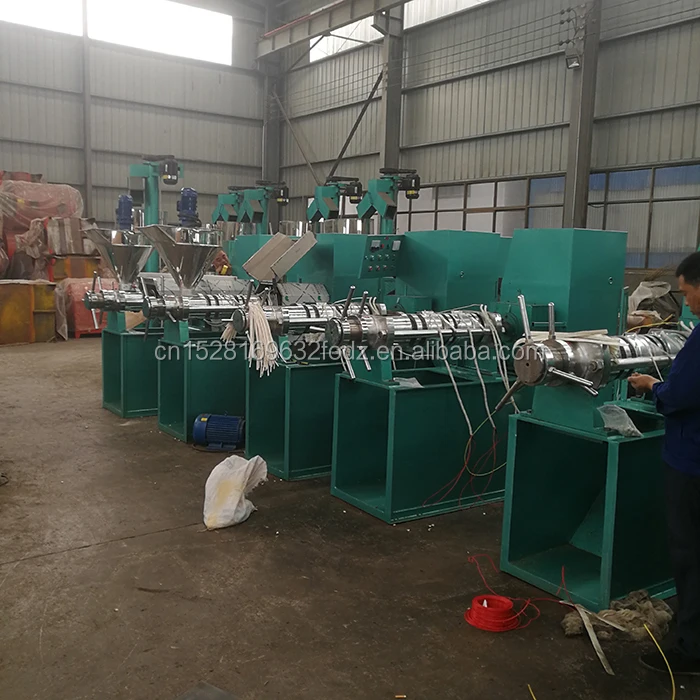

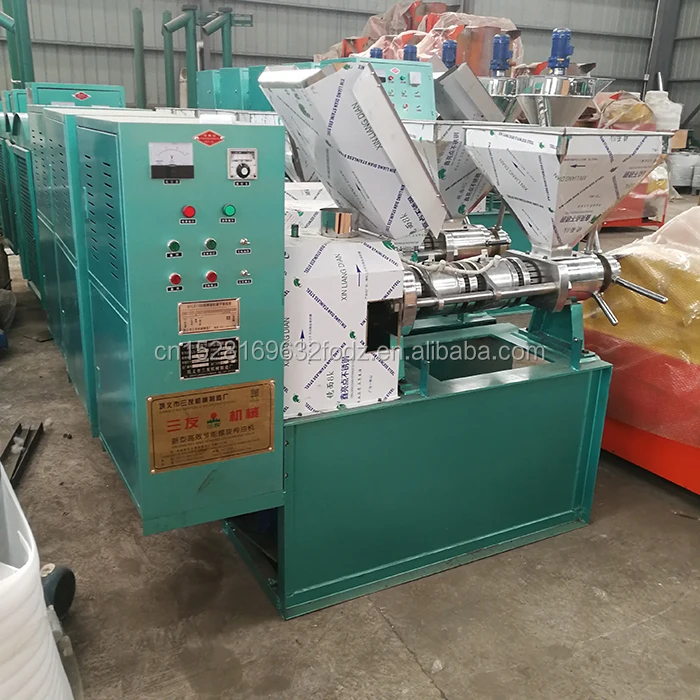

Our machines in stock:

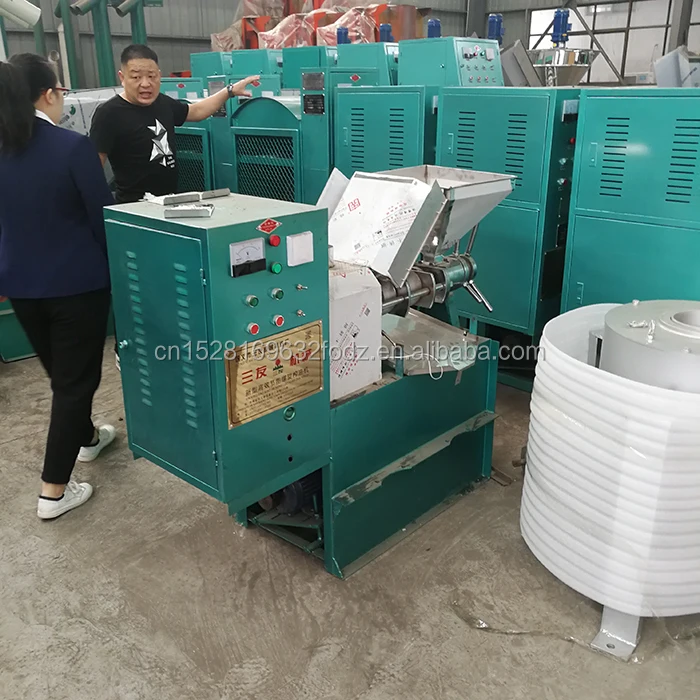

Our small model 70 oil press:

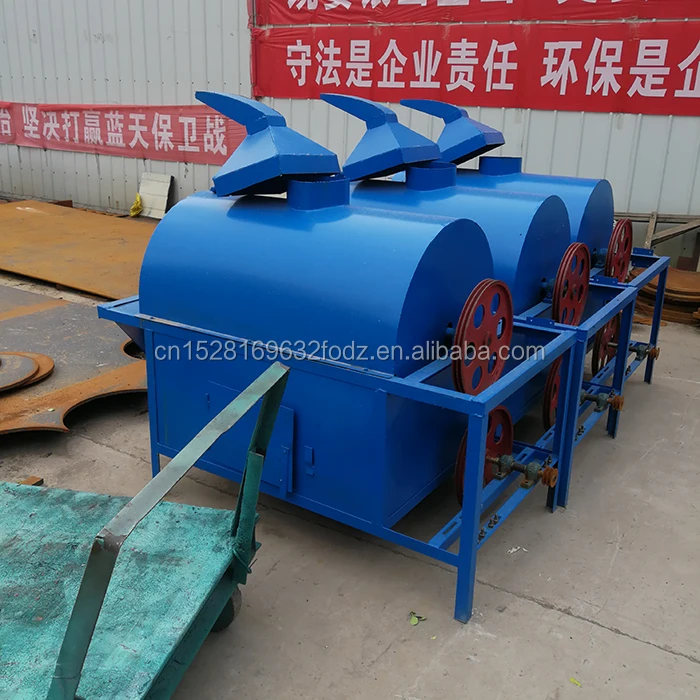

This is seeds frying machine,which is used to get the moisture out before press:
