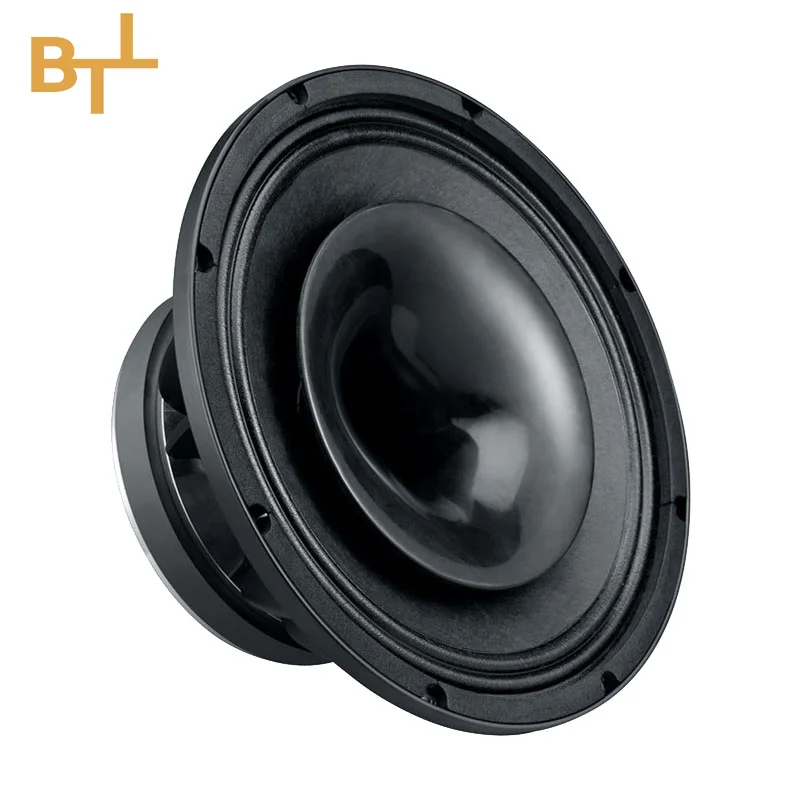

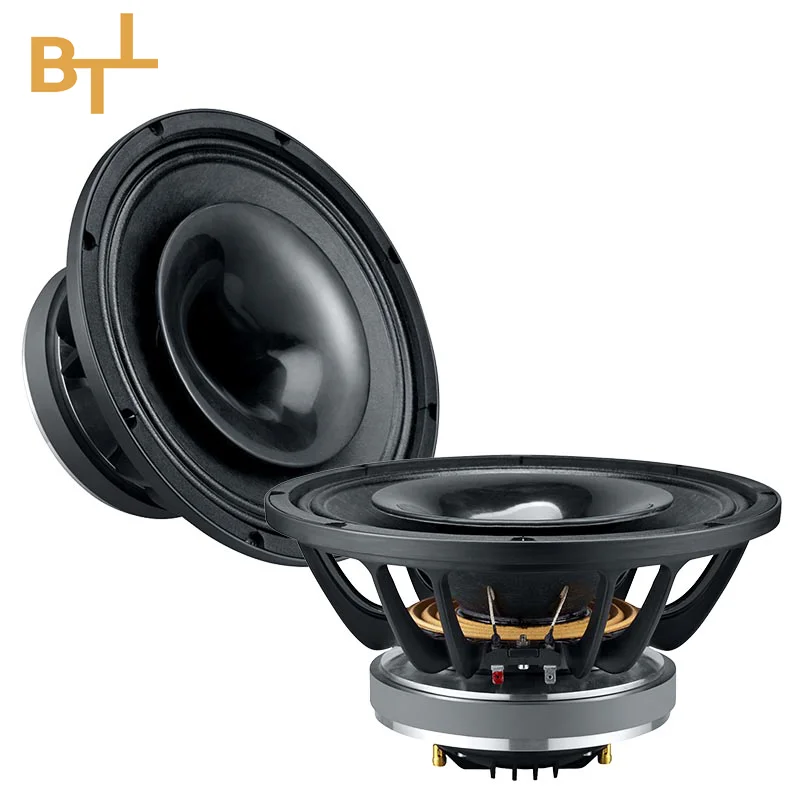

Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver
Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver

Professional stage high frequency and low frequency monitor use 12 inch coaxial speaker driver

Share on (1600062394858):


Price:

Quantity:


Product Overview

Description


GCF12H75H-1


W1-02

























































































































  Model Number  GCF12H75H
  Musical power(W)  800LF-160HF
  Nominal power AES (W)  400LF- 80HF
  Nominal diameter(''/mm)  12'' (320mm)
  Nominal Impedance(ohm)  8LF-8HF
  Voice coil diameter(mm)  76mm LF- 75mm HF
  Sensitivity 1W/1m(dB)  99dB LF-105dB
  Frequency Range  60 Hz-18KHz
  Re  6 ohm LF-6 ohm HF
  Fs  60Hz
  Qms  4.20
  Qes  0.39

  Qts


  0.38
  Mms  49.2g
  Cms  0.13mm/N
  Sd  531cm2
  Vas  51.3L
  BL  17.07 Tm
  Xmax  +/-4mm
  Le(1kHz)  1.47mH
  Basket Type  Aluminium Die-Cast
  Magnet Type  Ferrite
  Cone Material  Paper
  Suspension Material  Treated Cloth
  Spider Material  Fabric
  Former Material  Fiberglass LF- Kapton HF
  Winding Material  Copper LF
  Connector Type  Faston
  Cone Shape  Exponential

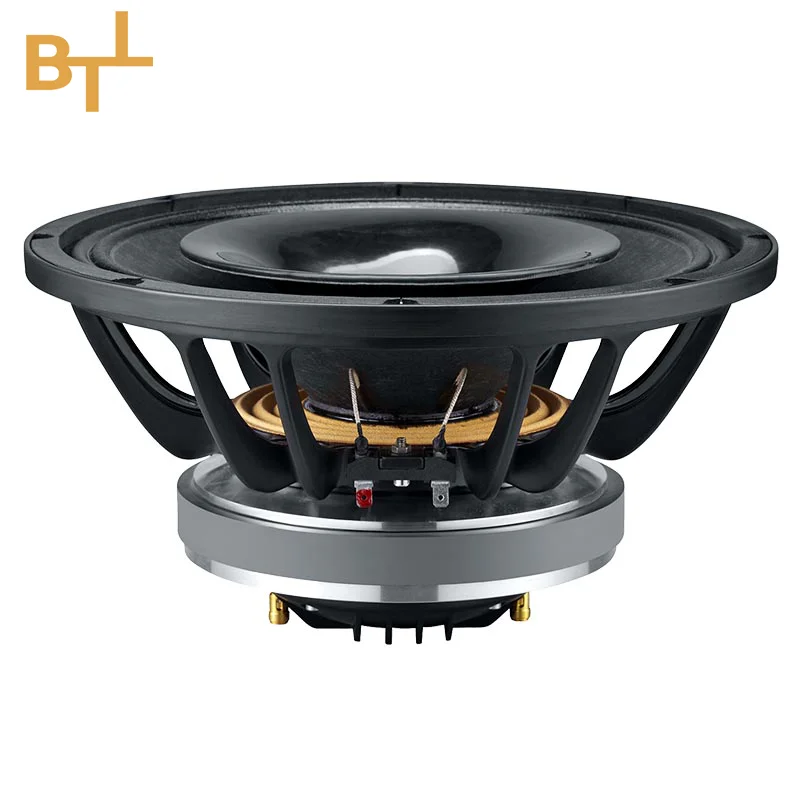

GCF12H75H(2)GCF12H75H(1)


2


_04

















_06_07_08_09_10_1112-coaxial speaker
