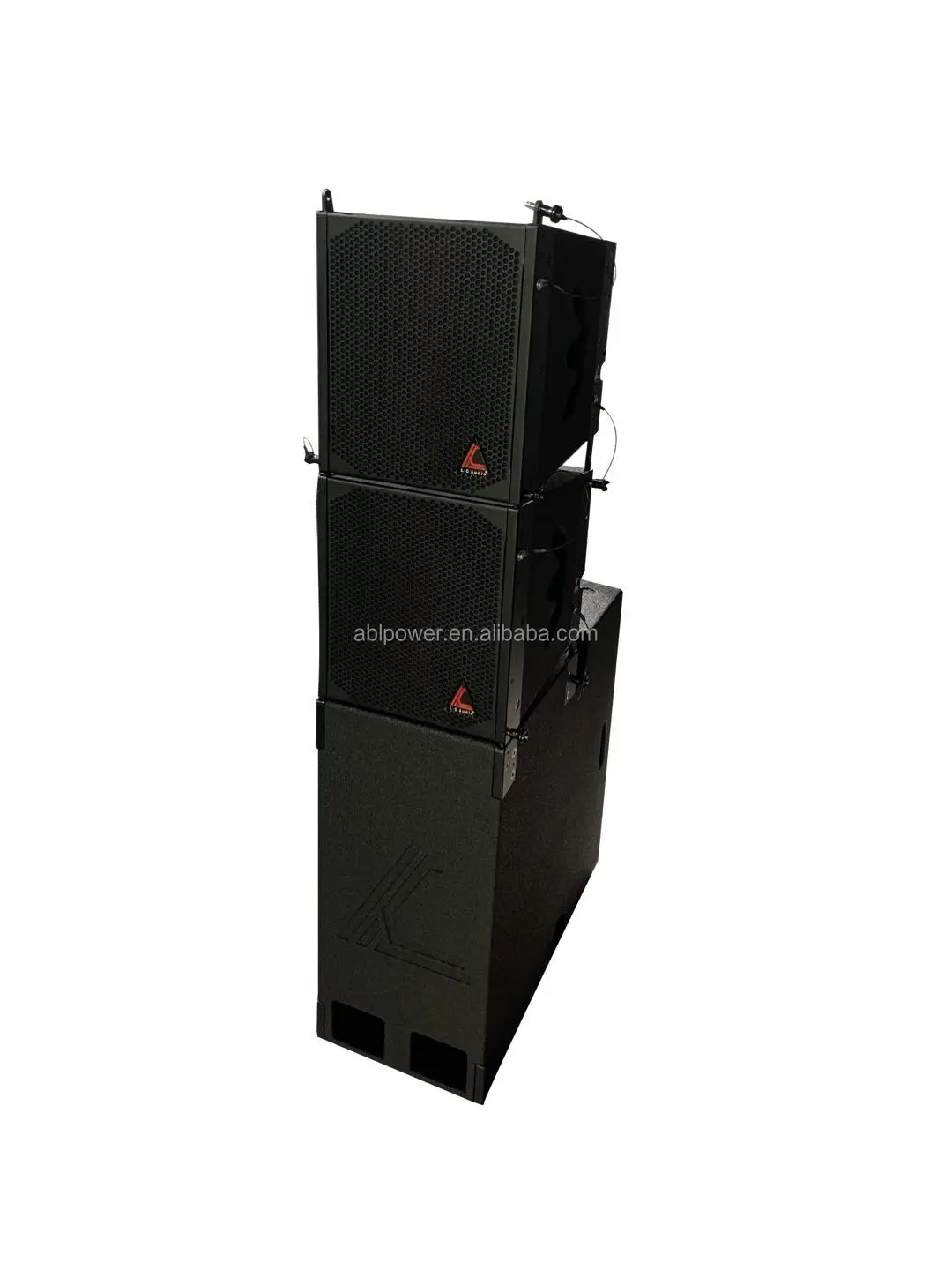

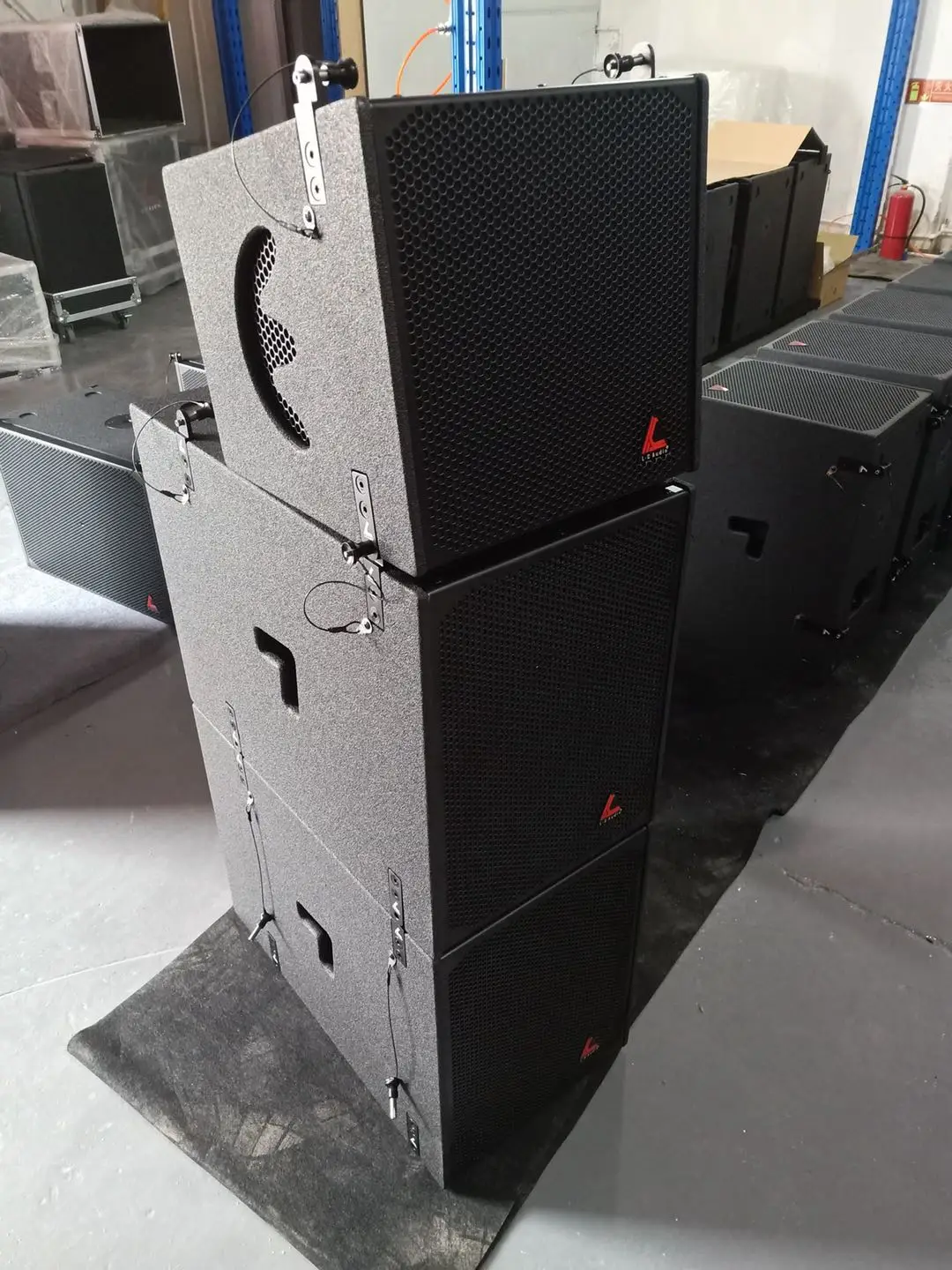

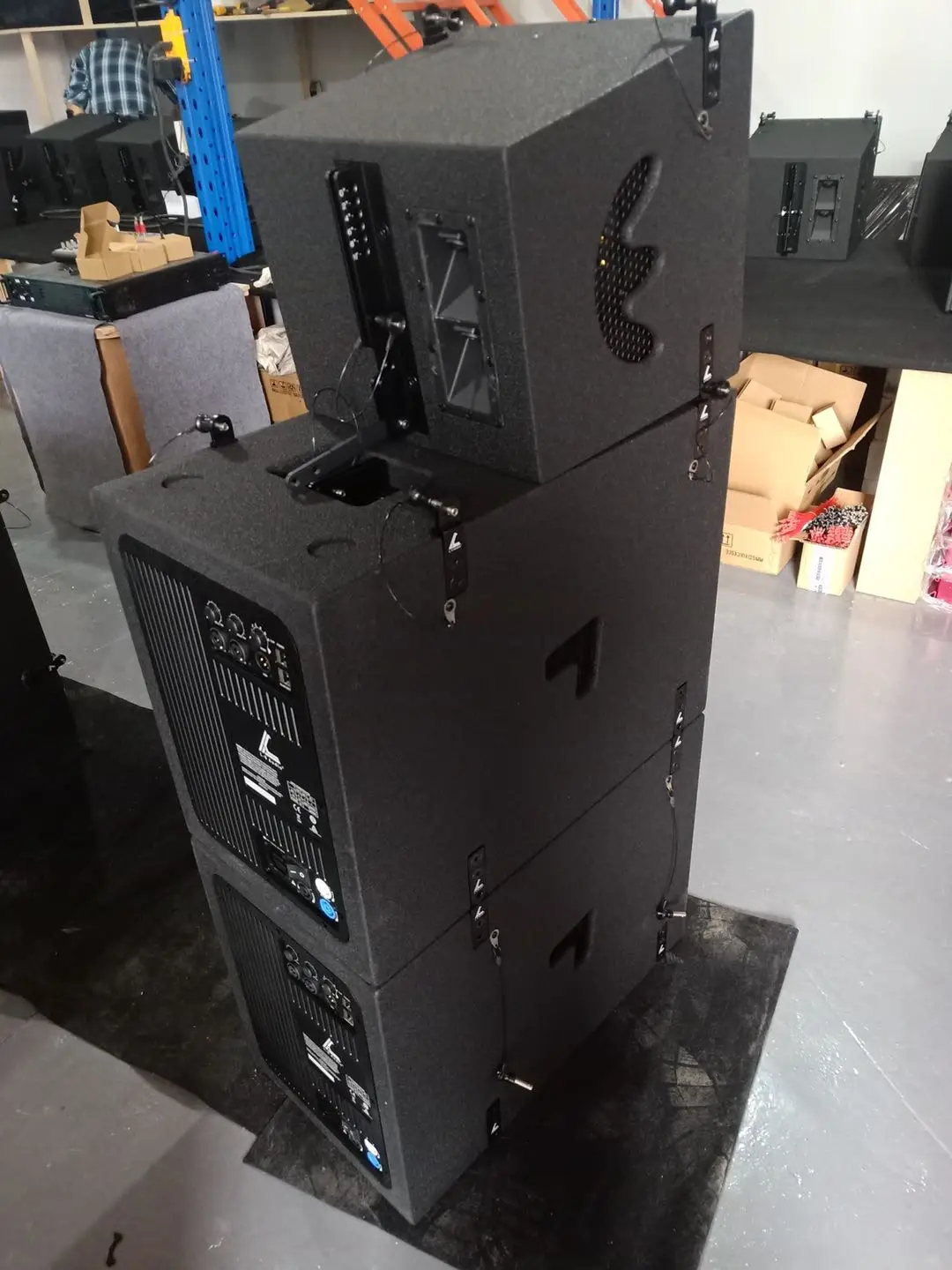

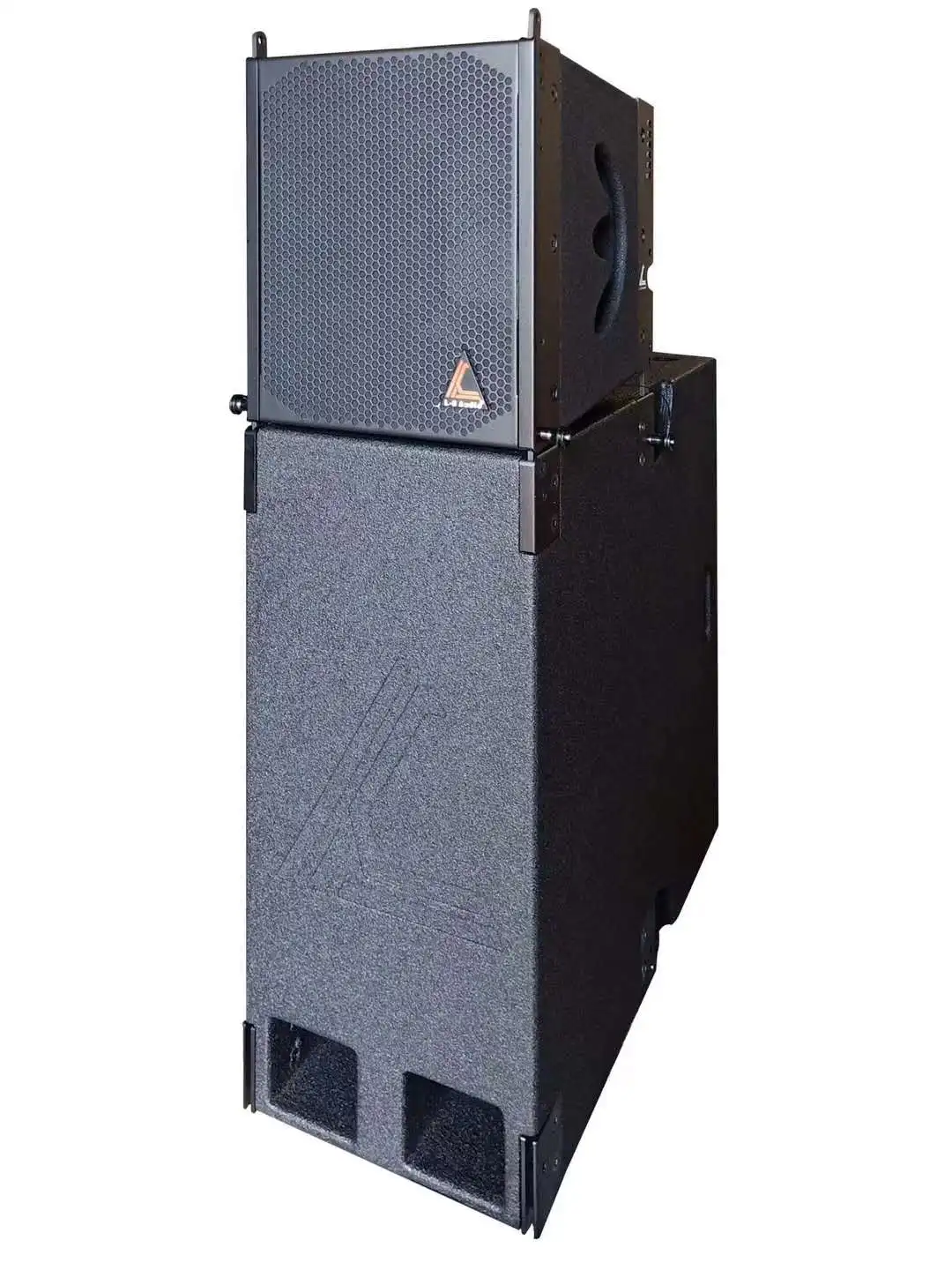

Variable modeling single 10 inch active array speaker set 8 4 Suitable for medium and small performances
- Category: >>>
- Supplier: GUANGZHOU MAIJUNBAO AUDIO EQUIPMENT CO. LTD
Share on (1600062418751):
Product Overview
Description
Product Description
product feature
Model: MX - 10A
Type: long stroke plane wave output binary frequency line array.
Composition unit: low frequency: 10" (100mm) X1 high frequency: 2"(44mm)×2
Impedance: 8 Ω, high-frequency: 8 Ω
Average power: low frequency: 450W high frequency: 350W
Peak power: low frequency: 700W high frequency: 550W
Frequency response: 60hz-20khz
Sensitivity (1W/1M) : 116dB
Frequency division point: 4KHZ
Loudest pressure level (MAX SPL) : 138dB
Diffusion Angle: 100 H×10 V
Installation method: bracket stack hanging
Full size HWD(mm) : 344×300×350
Net weight (Kg) : 10
Type: long stroke plane wave output binary frequency line array.
Composition unit: low frequency: 10" (100mm) X1 high frequency: 2"(44mm)×2
Impedance: 8 Ω, high-frequency: 8 Ω
Average power: low frequency: 450W high frequency: 350W
Peak power: low frequency: 700W high frequency: 550W
Frequency response: 60hz-20khz
Sensitivity (1W/1M) : 116dB
Frequency division point: 4KHZ
Loudest pressure level (MAX SPL) : 138dB
Diffusion Angle: 100 H×10 V
Installation method: bracket stack hanging
Full size HWD(mm) : 344×300×350
Net weight (Kg) : 10
Models: MX - 112A
Type: active ultra low speaker.
Type: active ultra low speaker.
Composition unit: low frequency: 12" (100mm) X1 neodymium magnetic unit
Ω impedance: 4
Average power: low frequency: 500W
Peak power: low frequency: 1200W
Frequency response: 40hz-125hz
Sensitivity (1W/1M) : 105dB
Loudest pressure level (MAX SPL) : 128dB
Mounting method: bracket stack
Full size HWD(mm) : 420*620*350
Net weight (Kg) : 23
Ω impedance: 4
Average power: low frequency: 500W
Peak power: low frequency: 1200W
Frequency response: 40hz-125hz
Sensitivity (1W/1M) : 105dB
Loudest pressure level (MAX SPL) : 128dB
Mounting method: bracket stack
Full size HWD(mm) : 420*620*350
Net weight (Kg) : 23
Applicable field

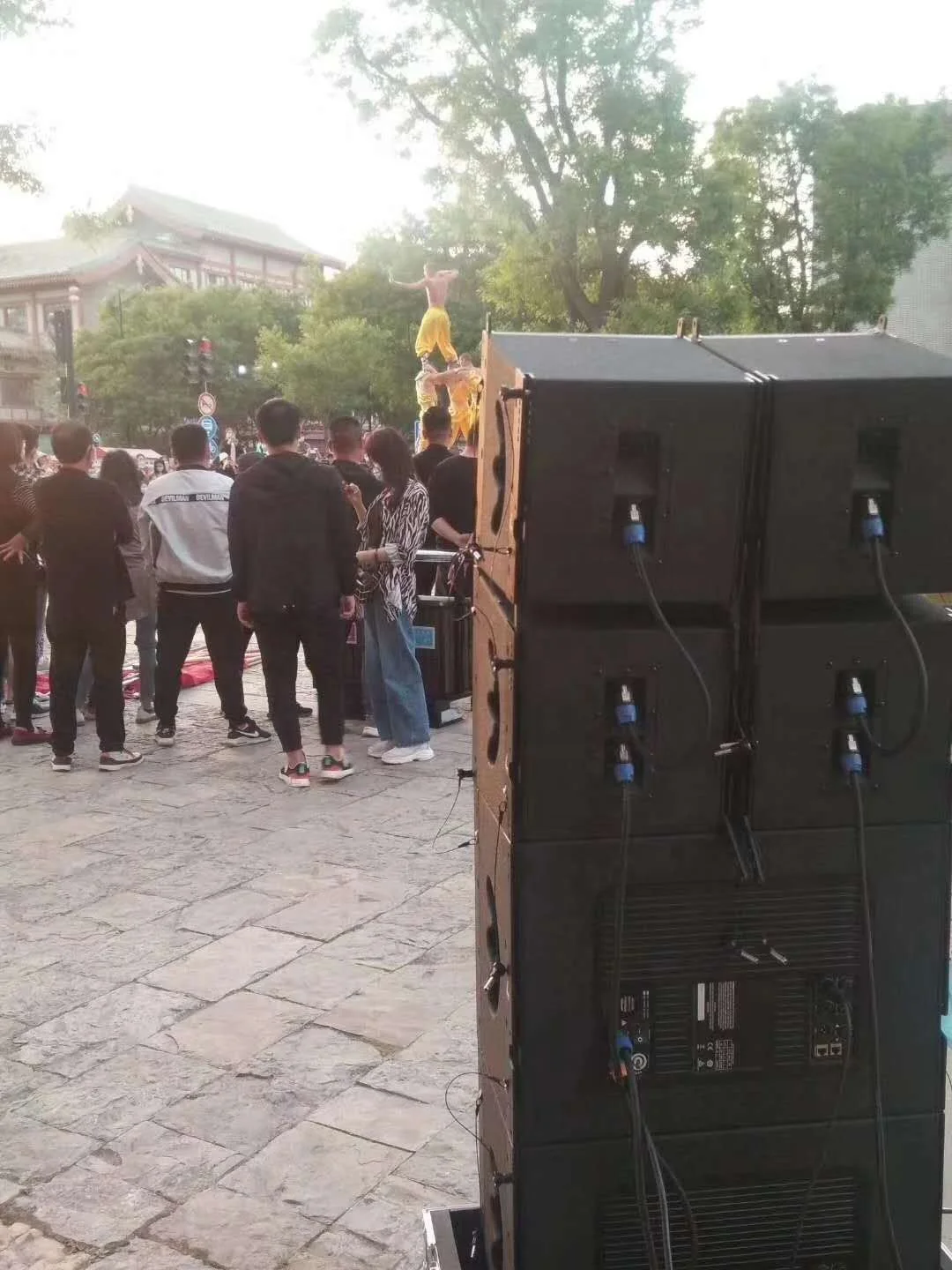

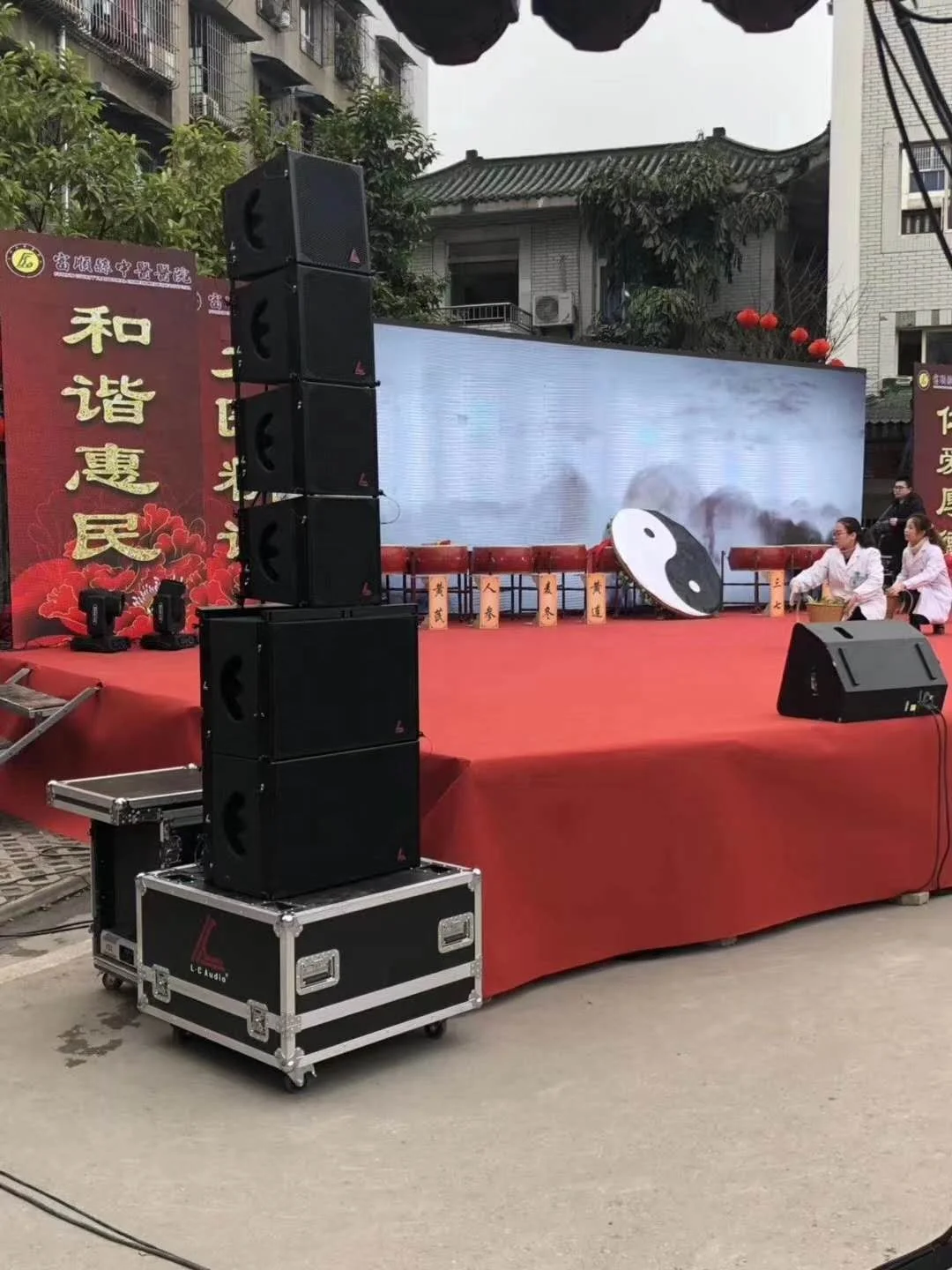

Small and medium performance, fixed installation works
Product features
1. Patent structure design
2. Single 10 "double 10" stacking
3. Both active and passive sources can be matched
4. Full-frequency two-frequency division, 10-inch 100-cell full-frequency horn unit, and the high frequency division point of the split patent voice coil can reach 4K, which can solve the problem that the customer is worried about the power big voice
2. Single 10 "double 10" stacking
3. Both active and passive sources can be matched
4. Full-frequency two-frequency division, 10-inch 100-cell full-frequency horn unit, and the high frequency division point of the split patent voice coil can reach 4K, which can solve the problem that the customer is worried about the power big voice
Long stroke plane wave single 10 - inch line array speaker | Single 12 "subwoofer | Built-in frequency divider | Built-in power amplifier module | Set the price |
8 piece | 4 piece | 12 piece | 4 piece | USD6360 |
