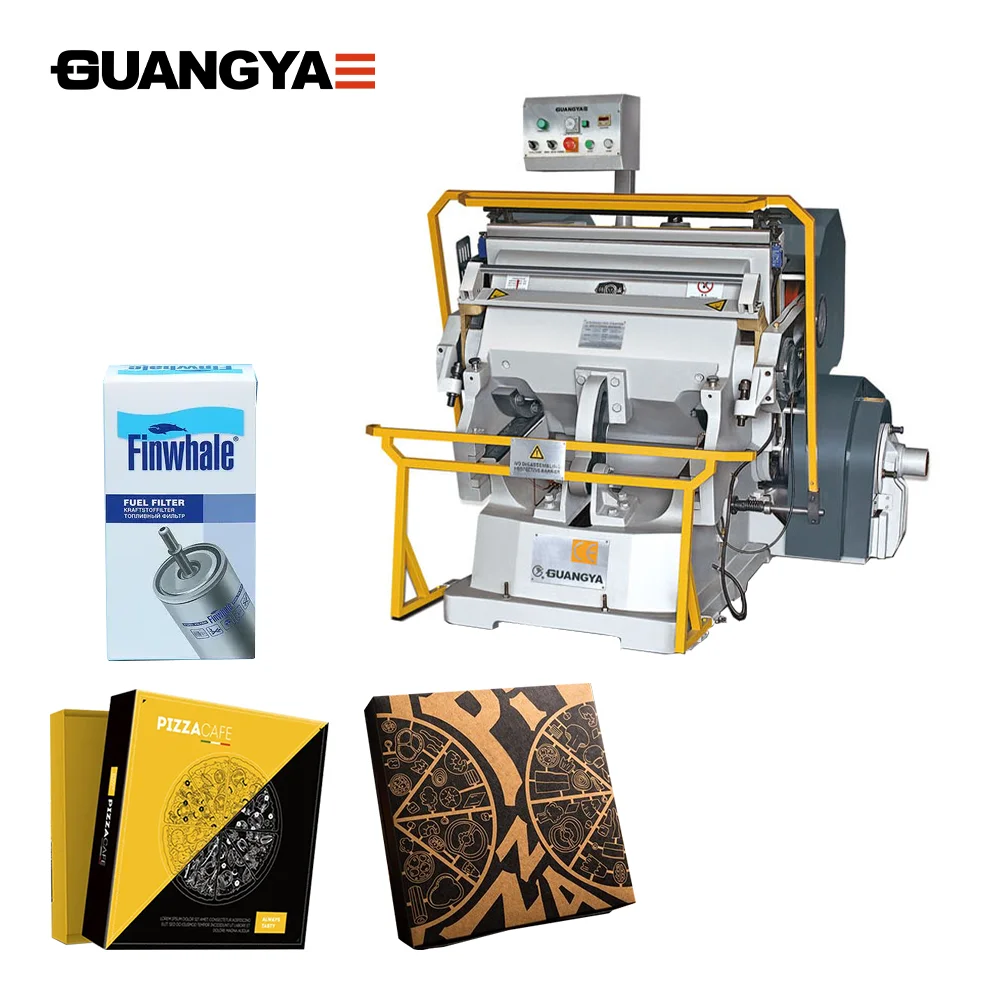

ML 203 930 X 660 mm Manual Creasing Embossing Cutting Paper Die Cutting Machine
- Category: >>>
- Supplier: Wenzhou Guangya Machinery Co. Ltd.
Share on (1600062568554):
Product Overview
Description
PRODUCT FEATURES
A manual die-cutting Machine is one kind of basic die-cutting machine for sampling and customizing products. Changing the cutting plate easily, operating easily, and the perfect protection system are the main reason which can win the market. It is also the perfect model for creasing, suitable for many kinds of different-weight cardboard.
Our “SHIWEI” brand ML series Manual Creasing and Die Cutting Machine is widely used in post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure, and low noise with a 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standards.
6) Single, continuous operation and opening delay are available, the delay range is adjustable.
7) Reliable safety system.
8) Adjustable chases with a moveable bar.
9) Concentrated automatic lubricating system.
Our “SHIWEI” brand ML series Manual Creasing and Die Cutting Machine is widely used in post-press industry, this platen converts paper, carton board, heavy solid board, semi-rigid plastic, corrugated into different products with high efficiency, such as food/beverage/ personal care/ home&office/ industrial package and so on.
As a professional manufacturer of hot stamping die-cutting machines with a long history, GUANGYA - SHIWEI has laid the foundation for current mainstream manual foil stamping and die-cutting machines in the market.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure, and low noise with a 2-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standards.
6) Single, continuous operation and opening delay are available, the delay range is adjustable.
7) Reliable safety system.
8) Adjustable chases with a moveable bar.
9) Concentrated automatic lubricating system.
TECHNICAL PARAMETER
Model | ML-203 |
Inside chase size | 930*660mm |
Max. die cutting size | 930*660mm |
Speed | 25±2 sheets/min |
Max. rule length | ≤ 26m |
Motor power | 4kw |
Pressure | 180T |
Overall machine dimensions | 1960*1760*1720mm |
Weight | 3000kg |
configuration of chase | Active |
MAIN FEATURES

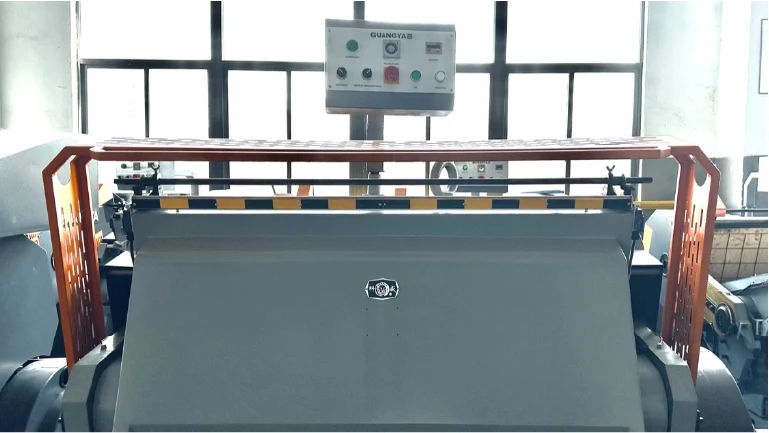

Main Host
• Highest strength casting iron, strong, stable, and sturdy
• All the castings are treated with annealing, which will reduce the wear of the machine
• Pressure micro-adjustment device, easy for setting up
• Excellent workmanship, quality assurance
• Good appearance and design concept
• All the castings are treated with annealing, which will reduce the wear of the machine
• Pressure micro-adjustment device, easy for setting up
• Excellent workmanship, quality assurance
• Good appearance and design concept

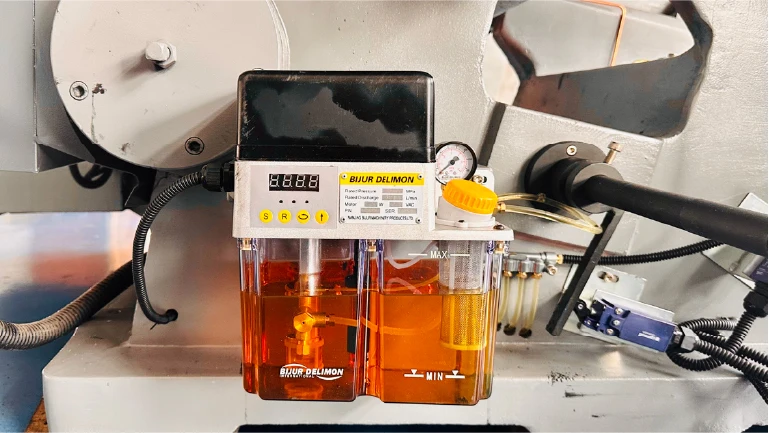

Lubrication System
• Automatic centralized lubrication system
• The frequency of lubricating can be adjusted
• Easier for maintenance
• The frequency of lubricating can be adjusted
• Easier for maintenance
Control System
Operating System
• Equipped with LCD screen, easy to operate
• Delay function can control machine opening and creasing time.
• Equipped with LCD screen, easy to operate
• Delay function can control machine opening and creasing time.

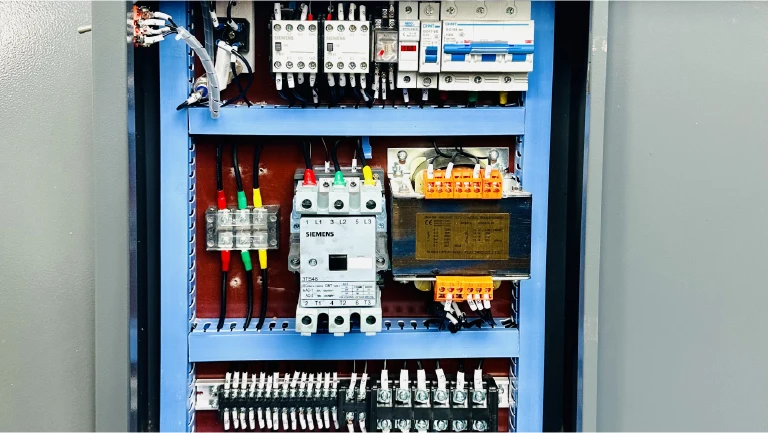

Electrical System
• Modular design of the electrical system
• CE standard electric system
• Imported electrical appliances, quality assurance
• CE standard electric system
• Imported electrical appliances, quality assurance
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES
ABOUT US
VR
Pre-Sales Service
* Inquiry and consulting the support
* Testing support in our factory
* Inspect machine in our Factory
* Testing support in our factory
* Inspect machine in our Factory
After-Sales Service
* Training how to install the machine, training how to
use the machine
* Engineers available to service machinery overseas
use the machine
* Engineers available to service machinery overseas
PROCESSING EQUIPMENT
DELIVERY
CERTIFICATIONS
SALES SERVICE
THE UNIQUE HUMAN CARE AND PROFESSION
PASSIONATE SALES SERVICE SYSTEM
We have professional sales and engineers who are ready to send emergency repair parts in 24 hours and easily damaged parts in 5 days with professional knowledge.
We focus on customer service, all-year non-stop service, personal training, and so on.
Not only provide customer service. But also a pre-sales system, including solutions to product selection, storage of parts, technical guidance, operating training, exchange management platform, and so on.
Realizing the idea of focusing on customer success, creating value to customers.
We focus on customer service, all-year non-stop service, personal training, and so on.
Not only provide customer service. But also a pre-sales system, including solutions to product selection, storage of parts, technical guidance, operating training, exchange management platform, and so on.
Realizing the idea of focusing on customer success, creating value to customers.
