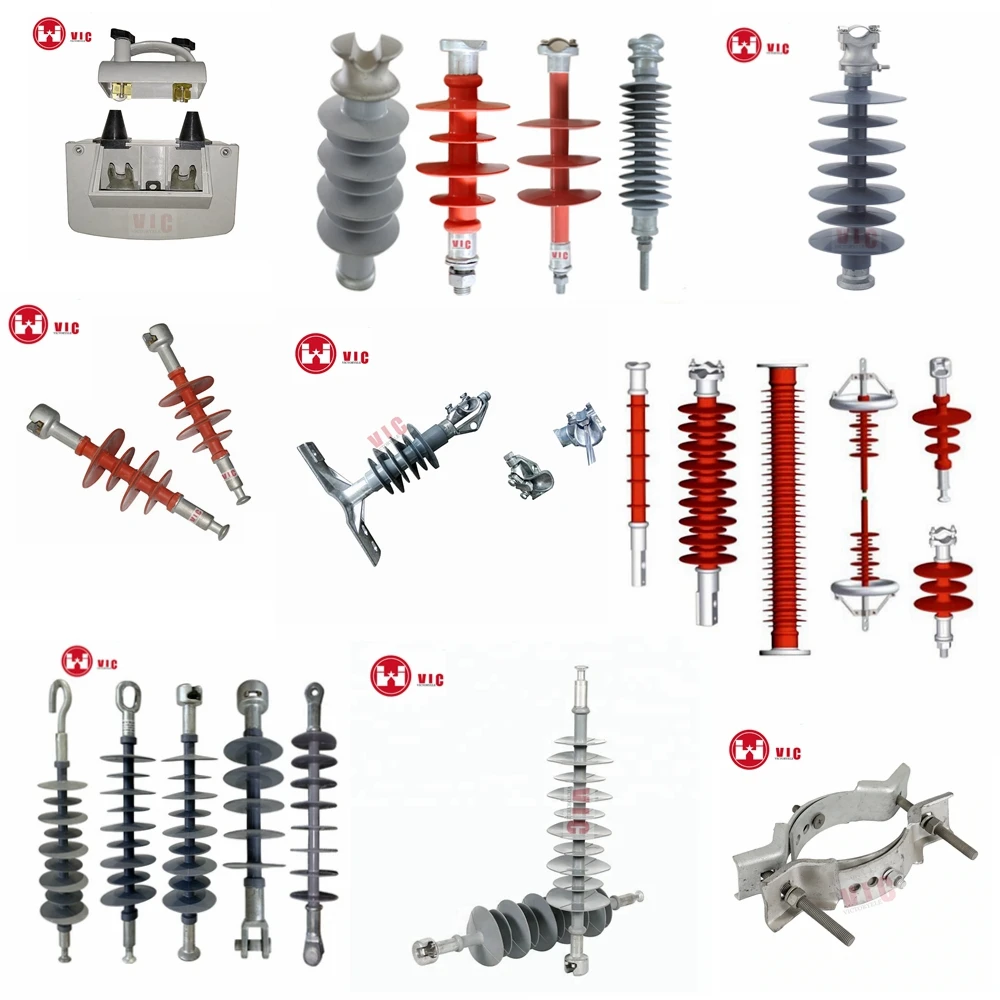

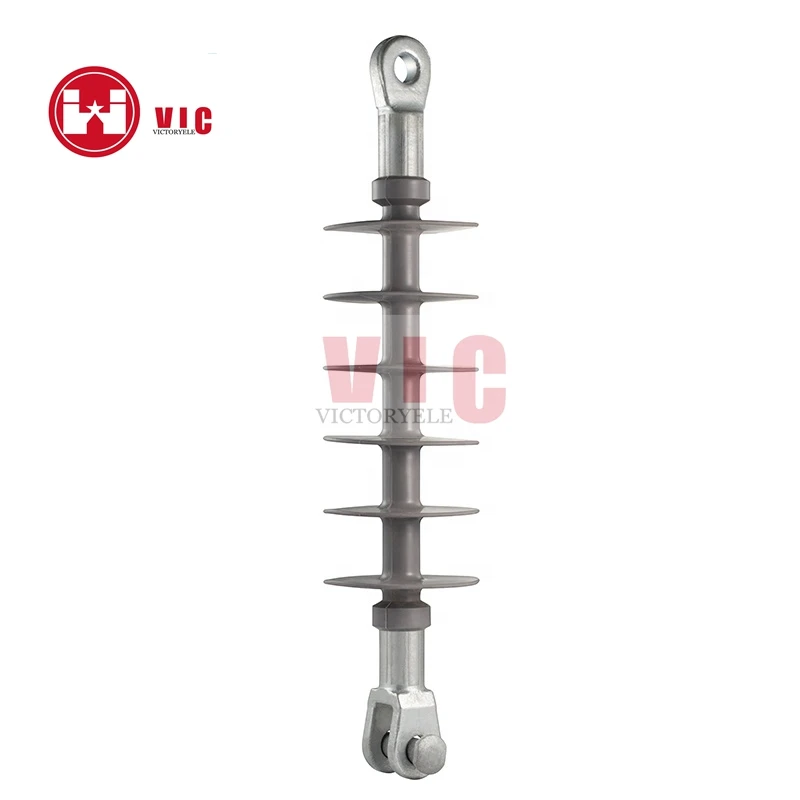

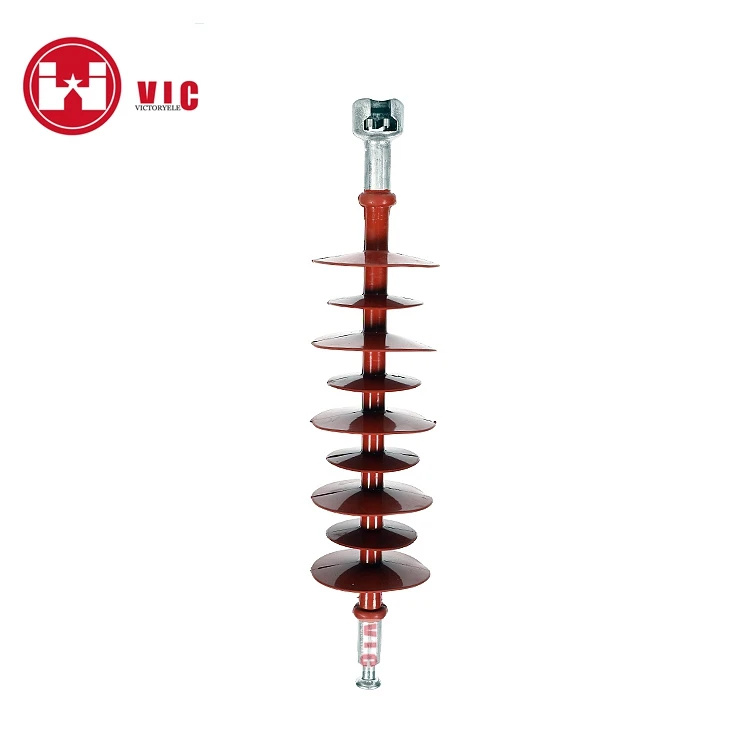

high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator
high voltage silicone rubber composite polymer suspension insulator

high voltage silicone rubber composite polymer suspension insulator

Share on (1600062797641):


Price:$0.50 - $1.00

Quantity:


Product Overview

Description

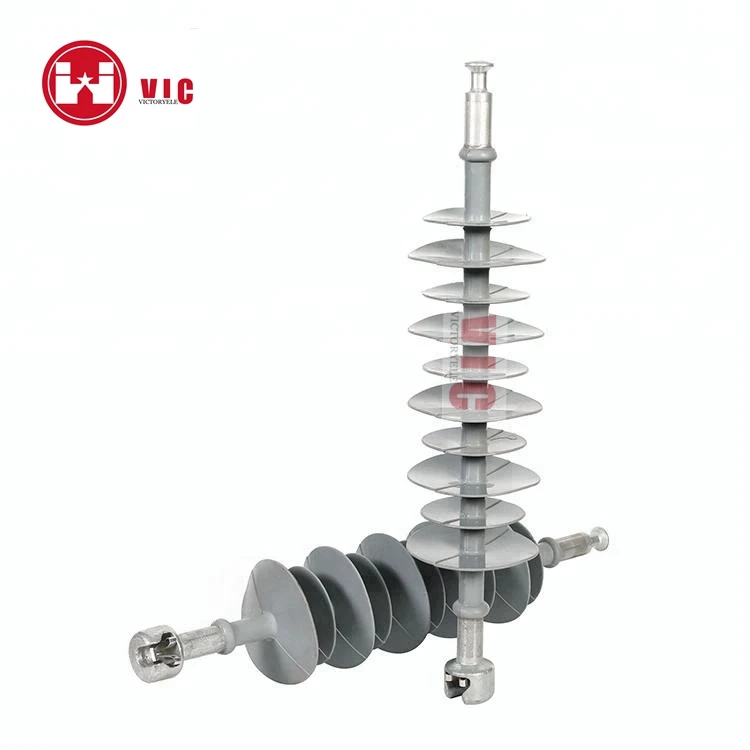

33kV Poly Insulator 5.jpg

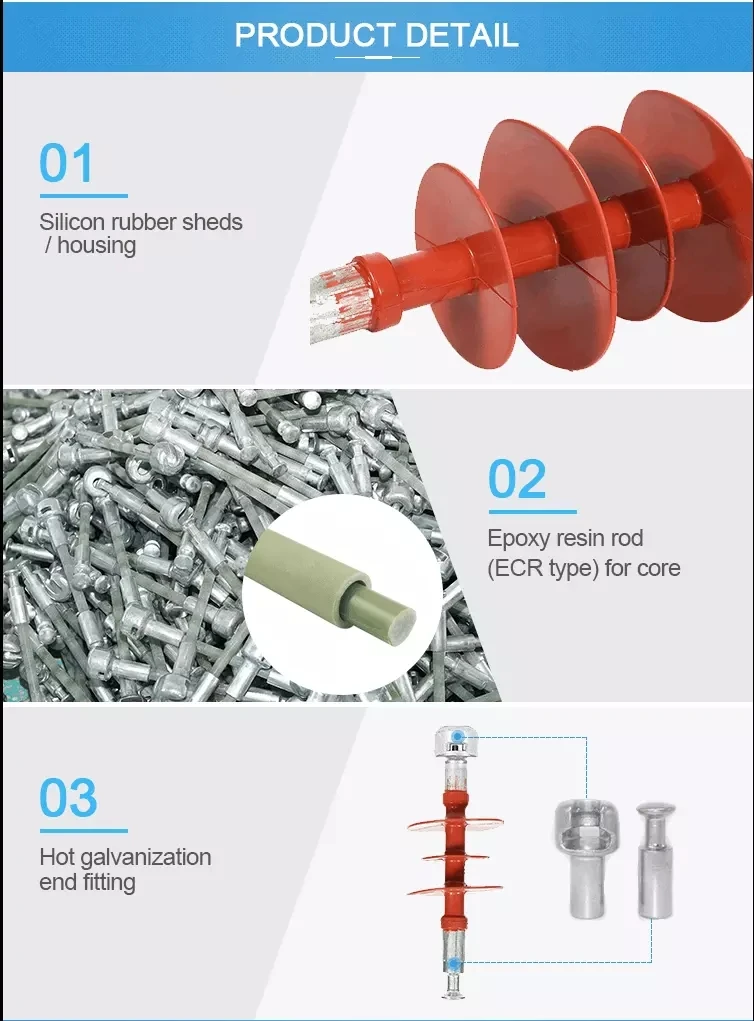

Poly Ins de 1..jpg

















































































































SPECIFICATIONUNITCATALOGUE NUMBER
FXBW-15/70FXBW-28/70FXBW-35/70FXBW-46/70
Voltage ClasskV15283546
ANSI Class-DS15DS28DS35DS46
Specified Mechanical Load (SML)kN70707070
Section Lengthmm330445482559
Dry Arcing Distancemm203311345426
Leakage Distancemm420660800954
Low Frequency Dry FlashoverkV110130150180
Low Frequency Wet FlashoverkV75110135145
Critical Impulse Flshover(Pos.)kV140200235280
Critical Impulse Flshover(Neg.)-160225255290
Number of sheds-4679
Note:The catalogue in the above table are for "CT"clevis-tongue fittings. For other combinations of end fittings,
specified mechanical strengths or require a longer creepage distance etc, please indicate before ordering.

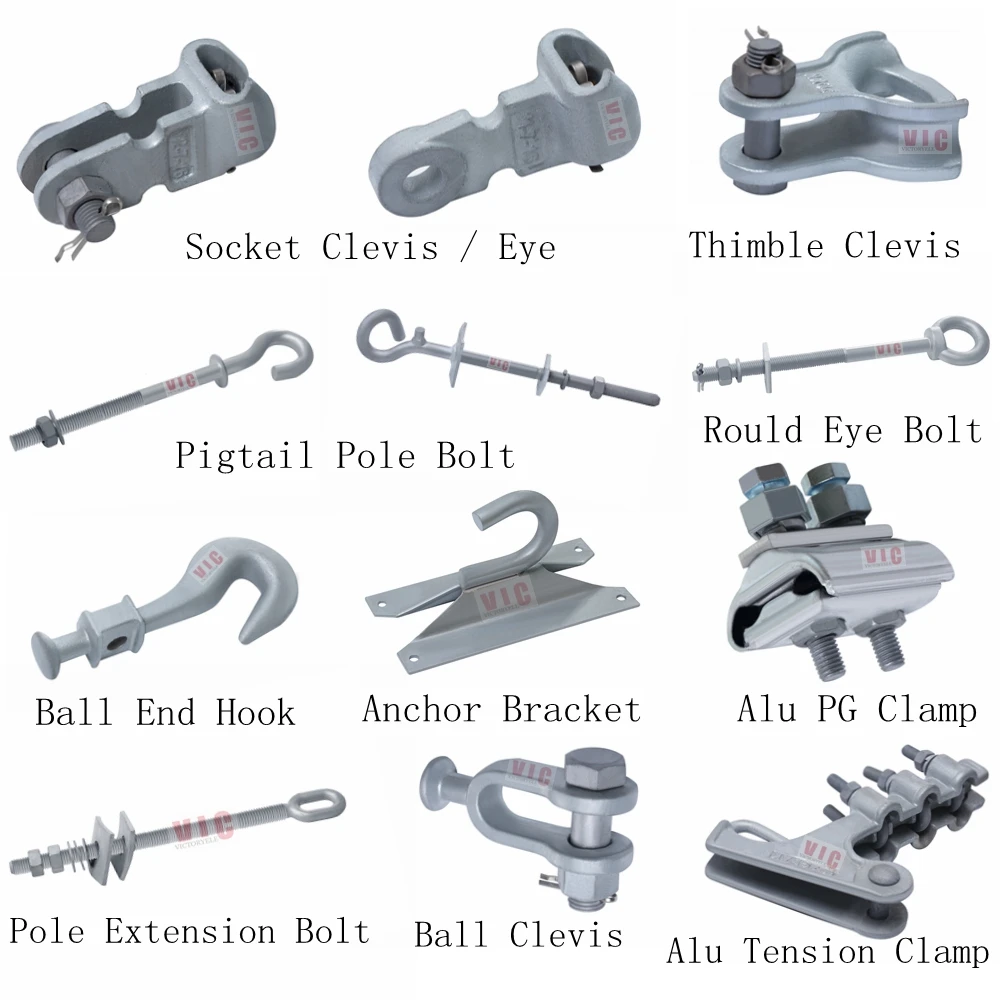

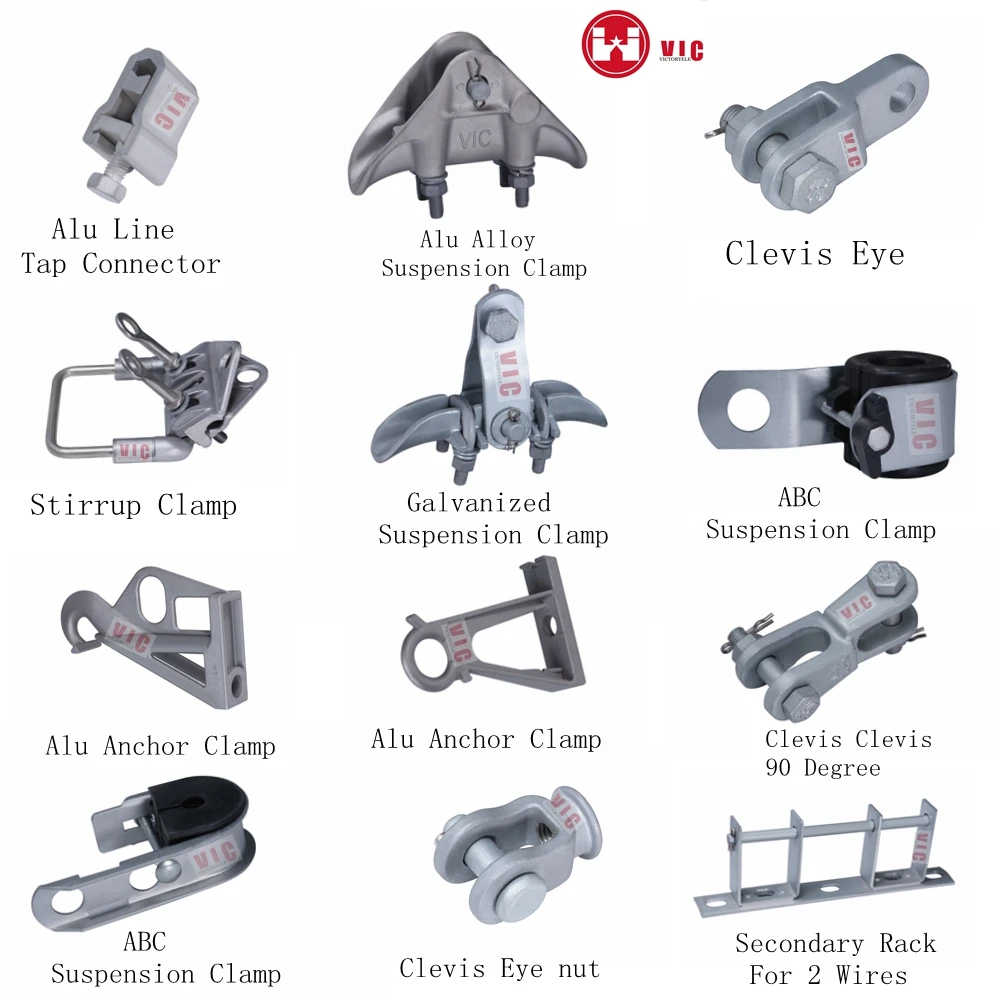

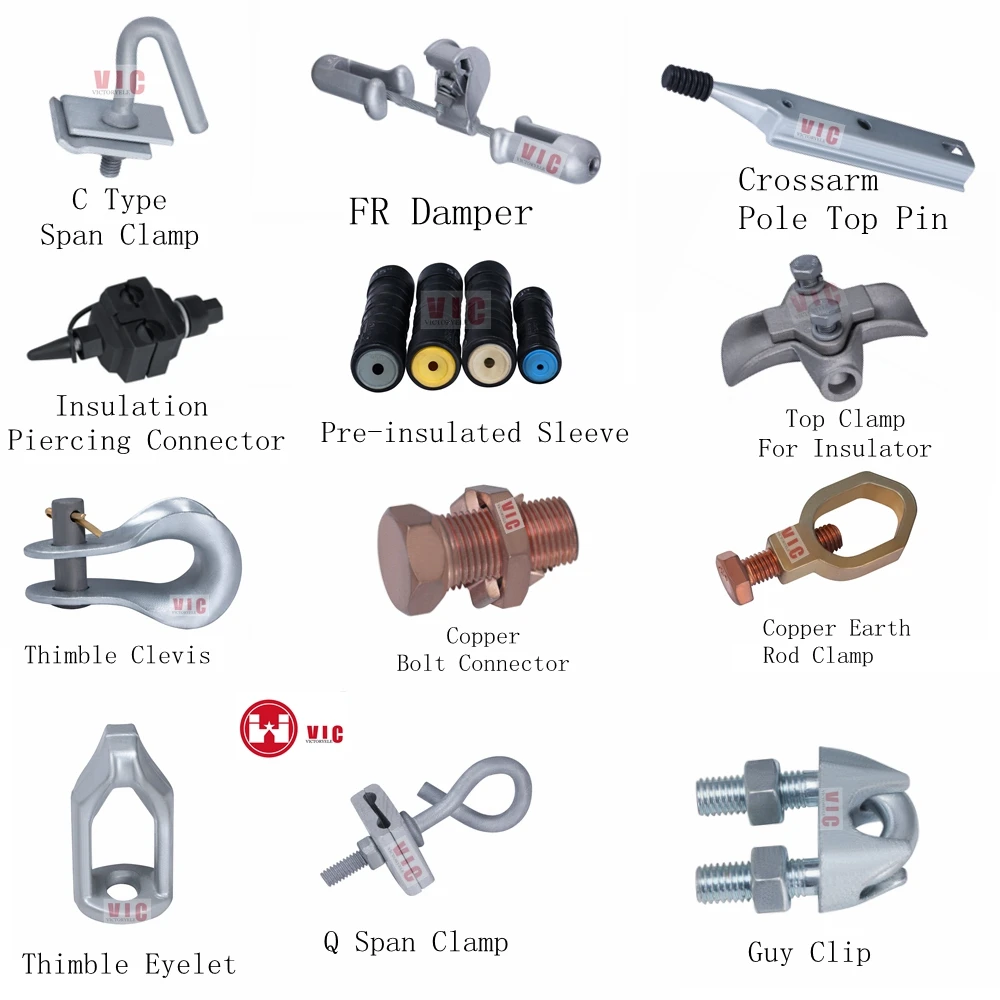

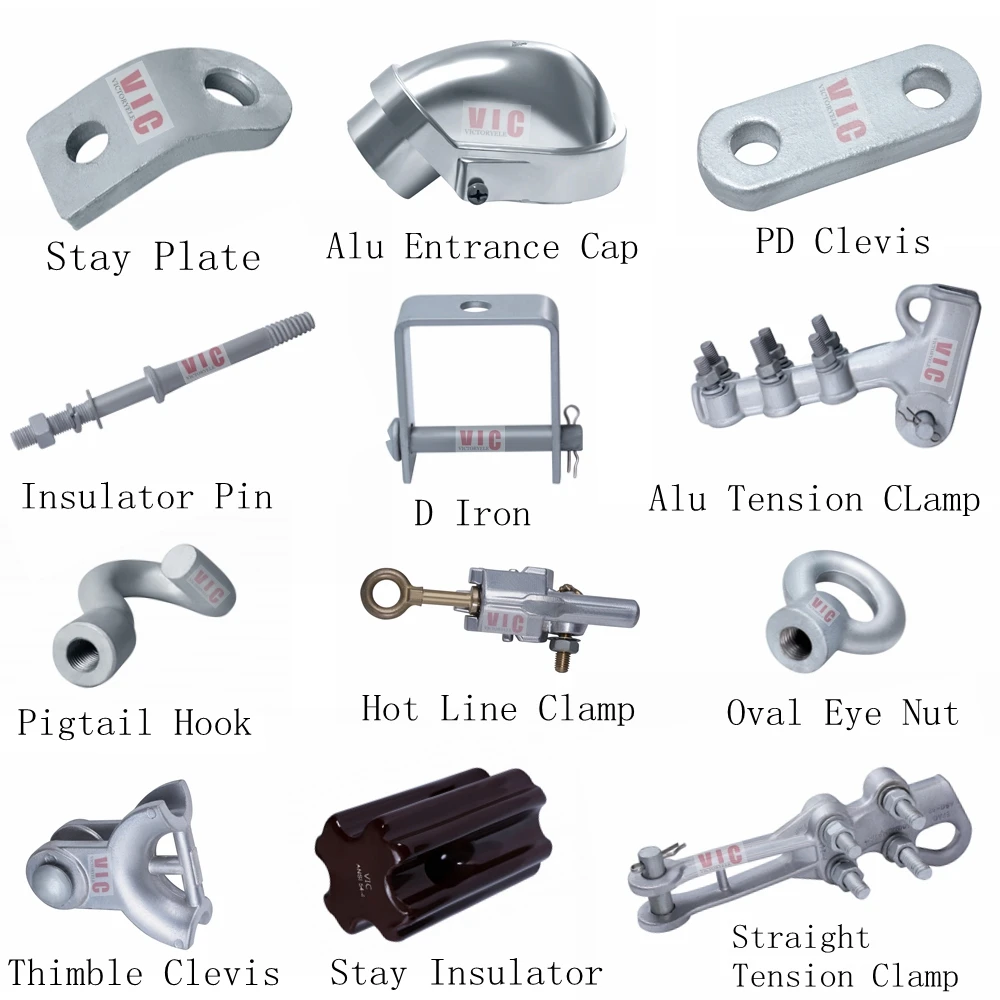

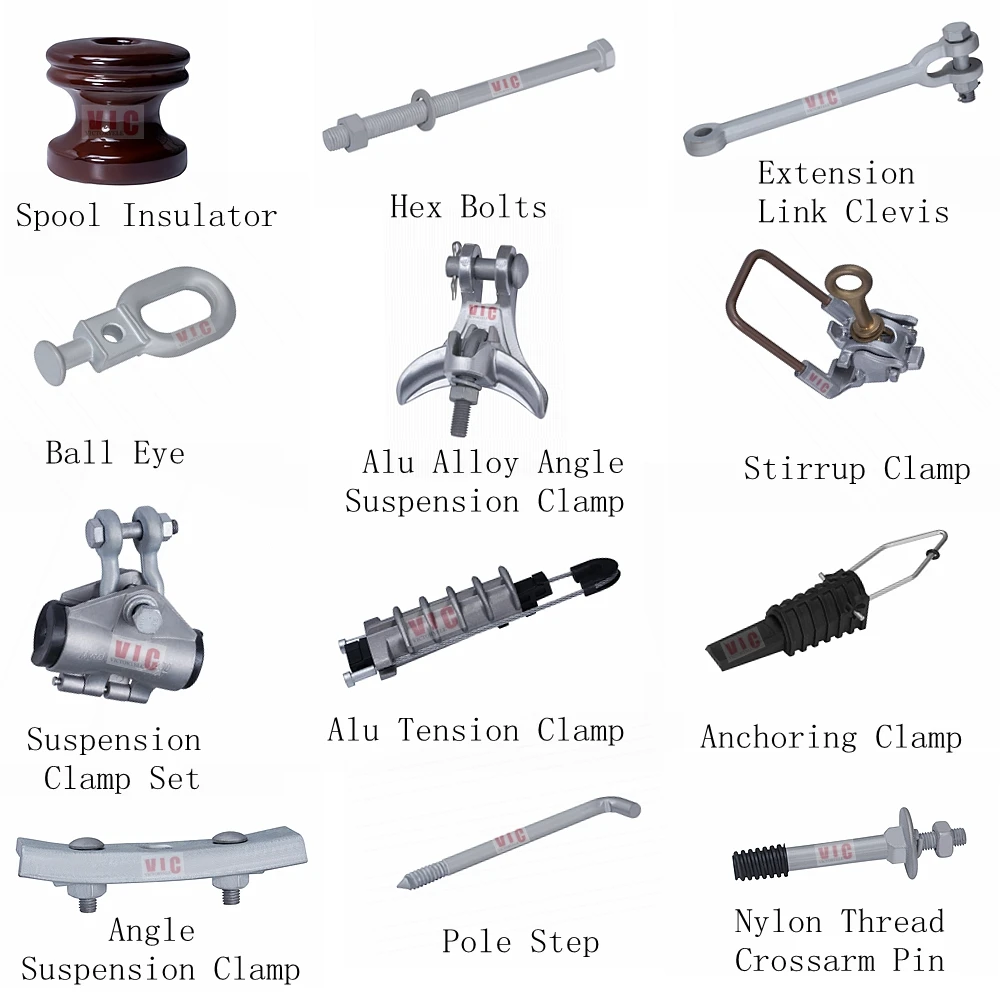

Production Collection 1.jpgProduction Collection 2.jpgProduction Collection 3.jpgProduction Collection 4.jpgProduction Collection 5.jpg

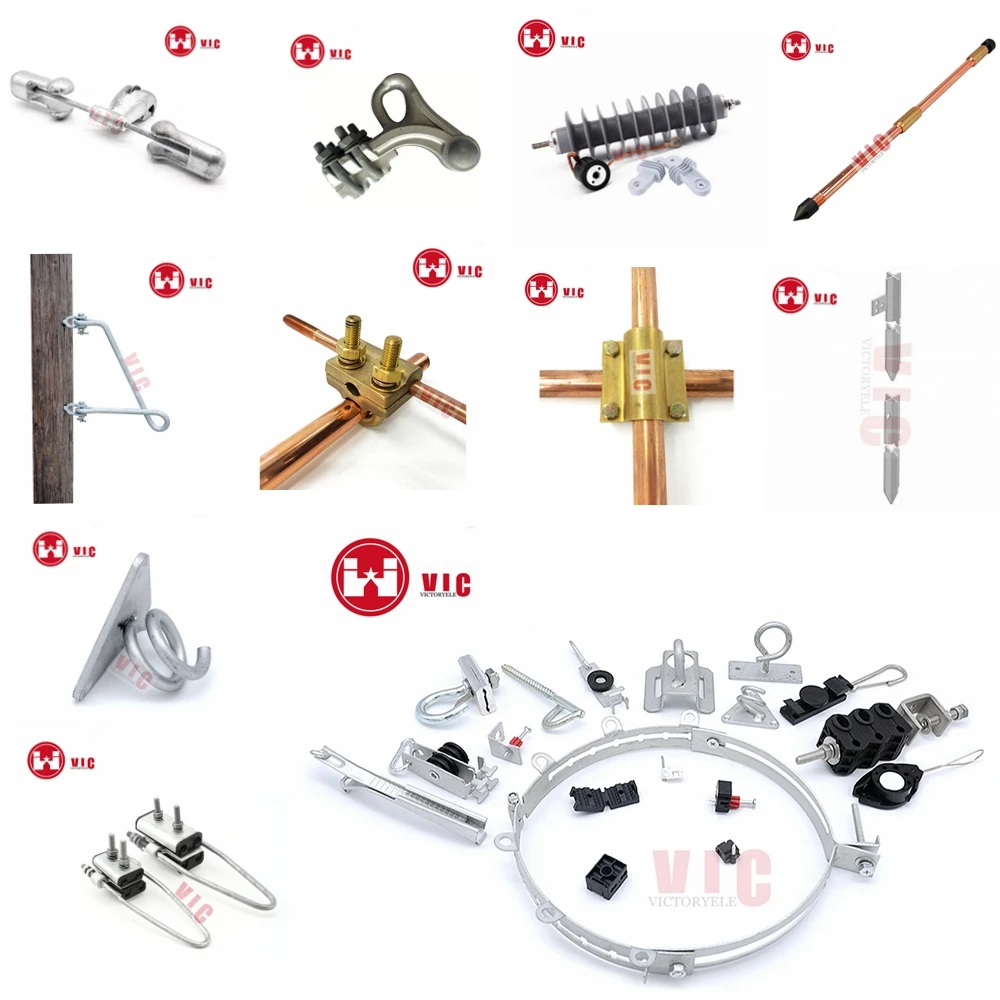

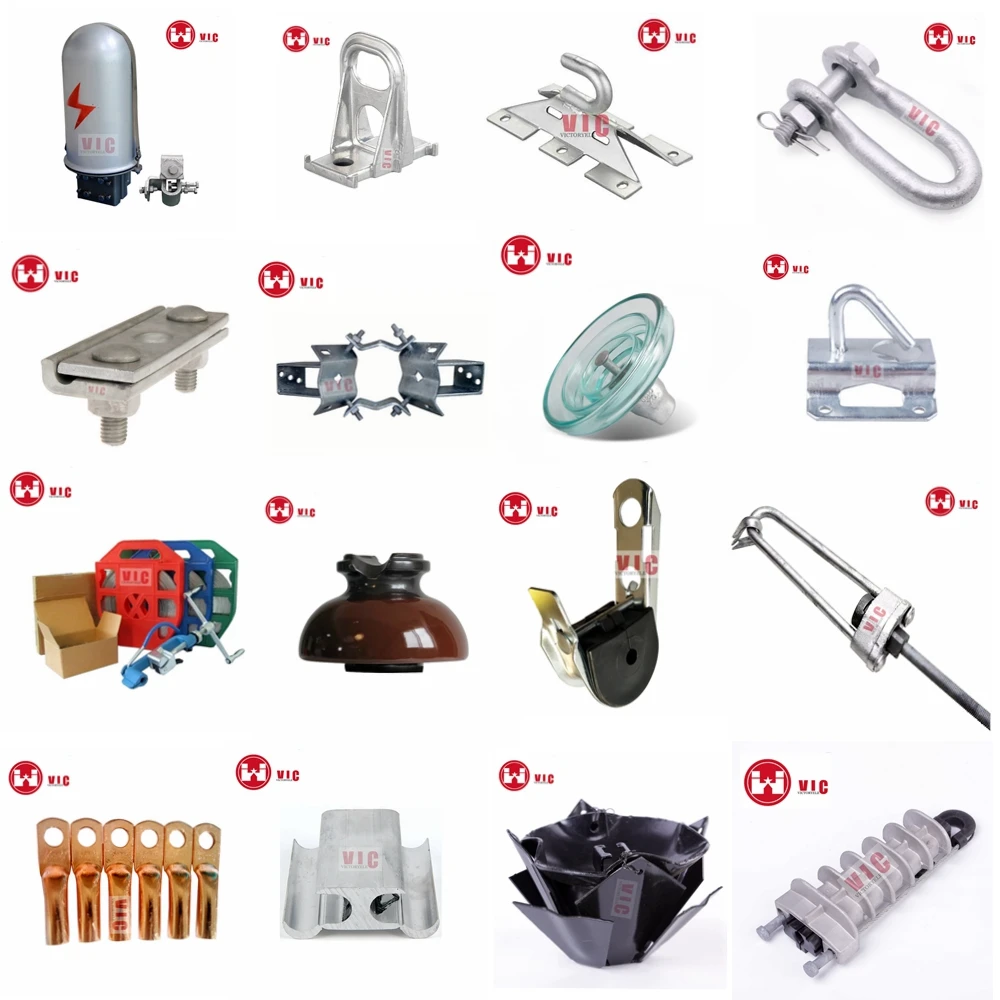

collection 4.jpgcollection 5.jpg

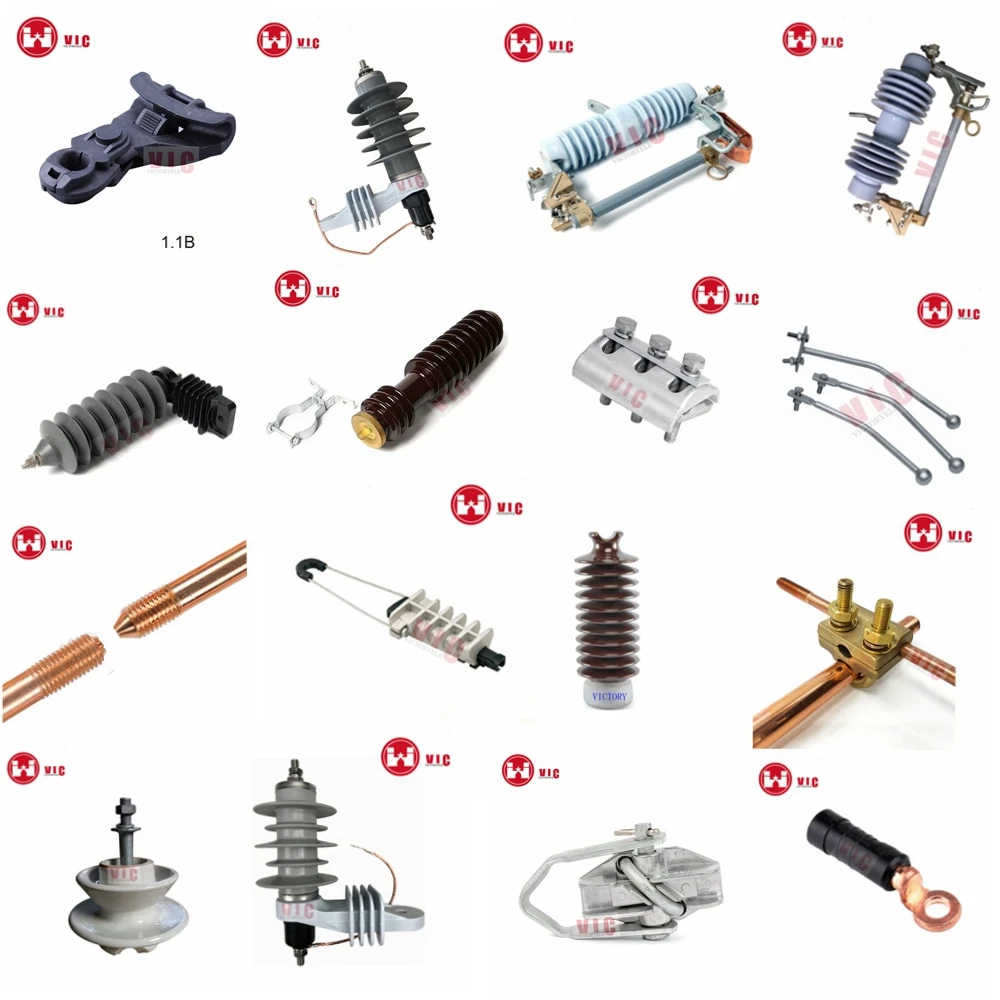

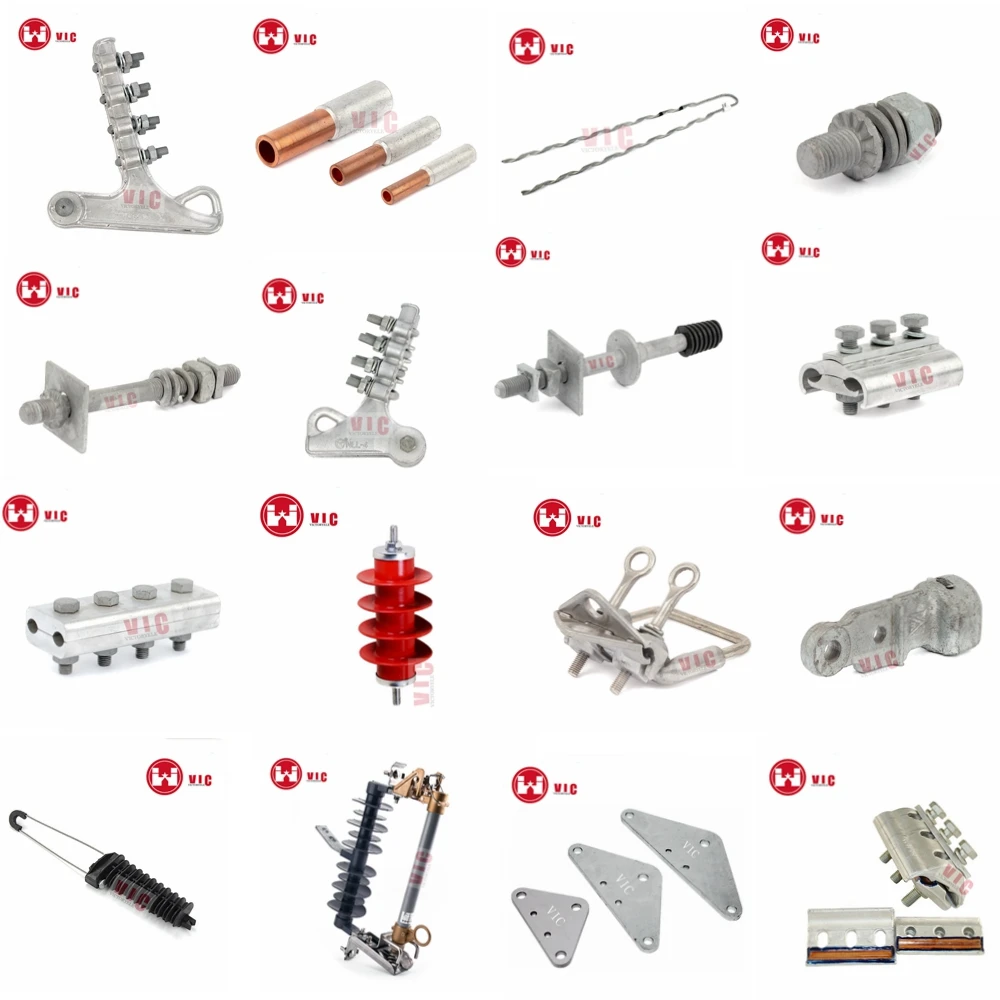

collection 1.jpgcollection 2.jpgcollection 3.jpg
