Parcol 1 4827 control valves combined with electric or pneumatic actuator urea control valves
- Category: Other Valve Parts >>>
- Supplier: Xiangjing (Shanghai) M&E Technology Co. Ltd. [Shanghai China]Xiangjing
Share on (1600063233992):
Product Overview
Description

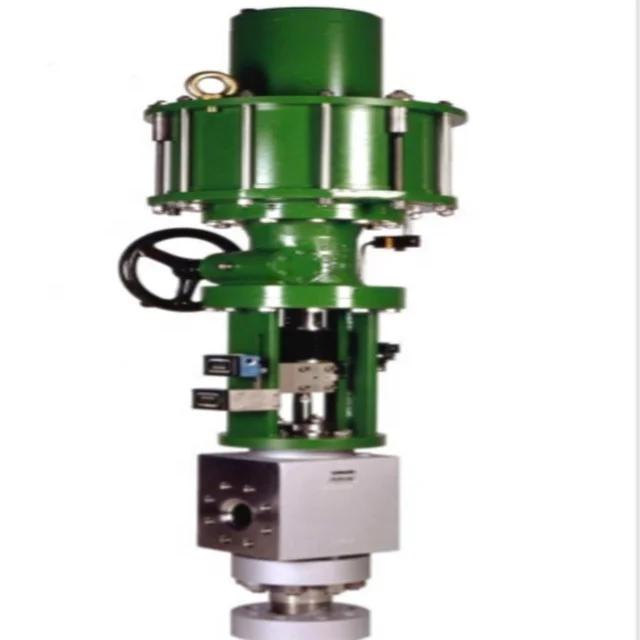

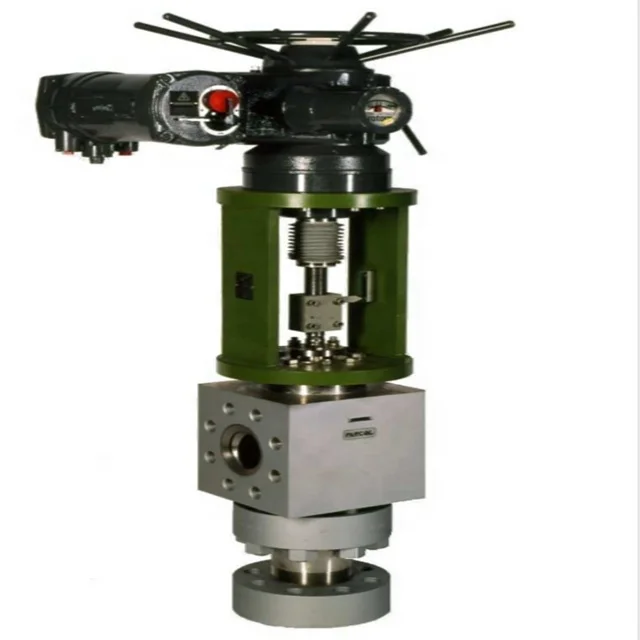

Parcol 1-4827 control valves combined with electric or pneumatic actuator urea control valves
Specification
| Product Name | Parcol 1-4827 control valves combined with electric or pneumatic actuator urea control valves |
| Model | 1-4827 urea control valves |
| Application | urea control valves |
| Body style | split body angle design, streamlining design with integral bonnet. |
| Body Pressure ratings | ANSI 900 to 2500, DIN and UNI PN 160 to 400 |
| Body Construction | from forged block only |
| Connections | flanged ends and stud bolts with lens-type seal according to Customer's std., flanged DIN and ANSI standard. |
| Body materials | ASTM A182 F316L, AISI 316L modified |
| Plug Sizes | full or reduced ports as per Cv's table |
| Seat materials | as per plug ones |
| Body Options | steam heating, companion flanges with BW connection, etc. |
| Seat face design | metal seated only with leakage class IV or V according to IEC 60534-4 (ANSI B16.104 |
Detailed Images
Our Services
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very quickly.
