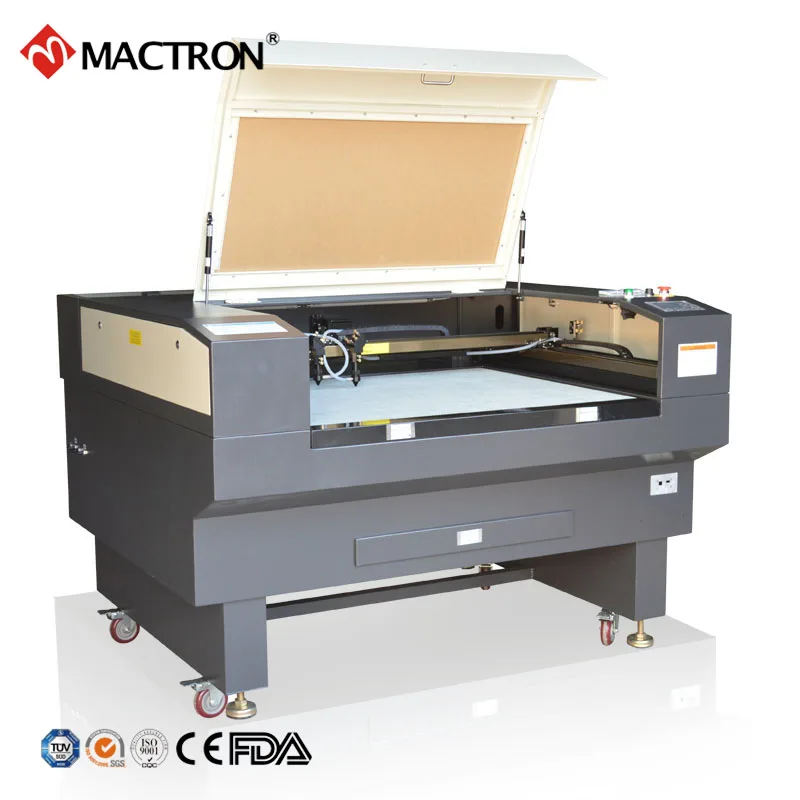

This series models adopt DSP&laser power source, self-developed laser power supply as well as integrated frame-structure. The system’s working performance is stable and reliable. It is equipped with latest software, Auto CAD, CoreIDRAW, CAD, and other graphical software, and it can directly output pictures.
With dual laser head, the MT-D/F series can ensure two laser tubes or three laser tubes or even four laser tubes work simultaneously. The system is suitable for large-batch producing industry like patch embroidery. The advantages of the system are that it can double the processing efficiency and ensure the high quality of cutting.So it can combine saving cost with boosting production optimally. The system can be widely applied to garment, leather, cloth toy, computerized embroidery and clipping, cutting of template, art gift, advertisement decoration, building upholster, package, printing ,paper product and other industries.
Mode
MT-1080D
Laser Type
CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power
70W/80W/100W
Wavelength
10.6um
Cutting Precision
0-36000mm/min
Cutting Speed
0-64000mm/min
Local Length
38.1,50.8,63.5,76.2,101.6MM
Location Precision
0.015mm
Min.Line Width
0.15-0.3mm
Cooling Mode
Water Cooling and Protection System
Graphic Formats Supported
PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Controlling System
DSP High Speed Controller
Operating temperature
0℃-40℃
Warranty
1 Year
Humidity
5% to 85% (No Condensed )
Gross Power
<1250W
Power source
AC110V/220V± 10%, 50/60HZ
Processing Area
1000*800mm
Working Environment
Clean, Free of Dust
Safety Protection Class
Ip54
Laser Generator Safety Class
IV

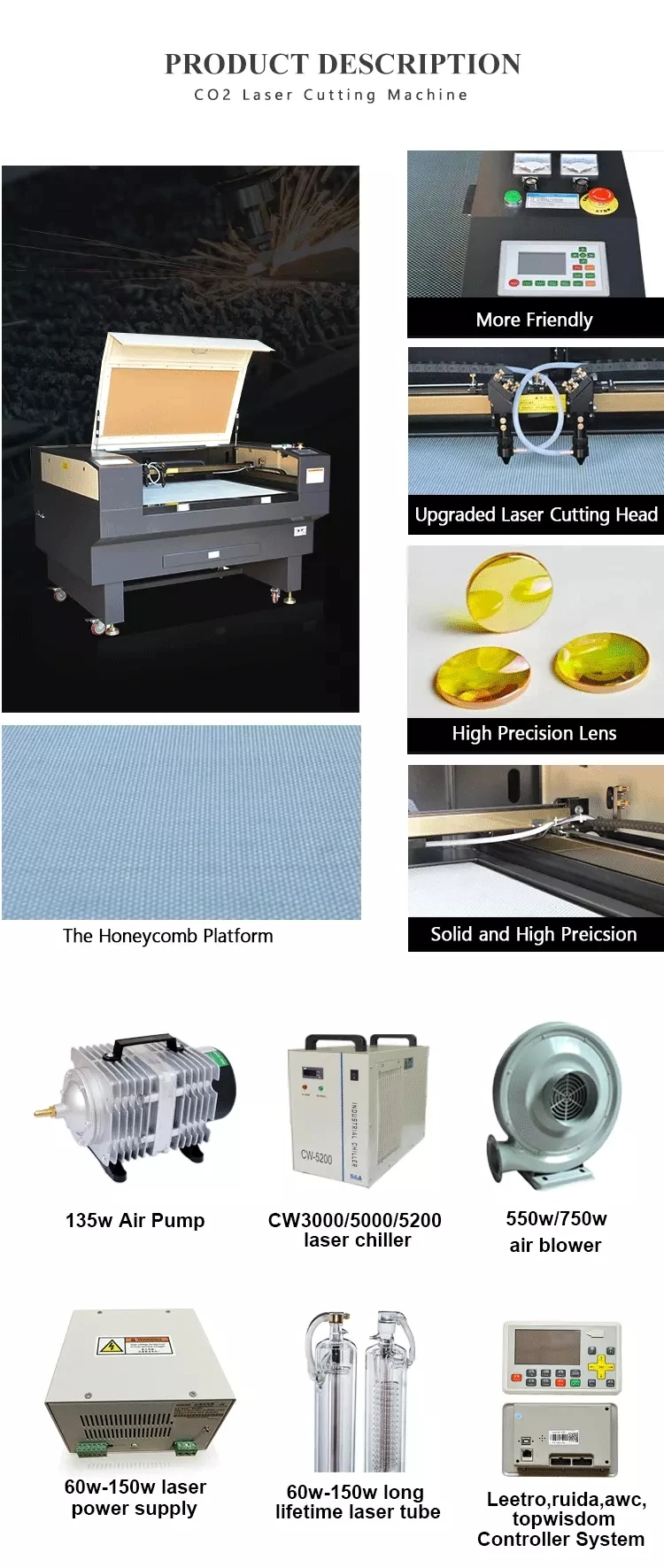

Product display
Production Process
Others Product
FAQ
1. Q: Are you a factory or a trading company? A: We are factory manufacturing laserequipment and we provide perfect OEM and after-sale service.
2. Q: How can you guarantee that I have a good sale on this product? A: We offer professional technology and after-sale service.
3. Q: How can I know your machine is designed for my product? A: You can send us samples of your product and we test it on machine.
4. Q: How can I get the sample to check the quality? A: If you want to check the quality, please send us the sample for testing.
5. Q: How long can I expect to get the sample? A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.
6. Q: How can I pay my order? A: We accept T/T, Western Union ,Money Gram paying methods.
7. Q.If we do not know how to use the machine,can you teach us? A: Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy, we will have our professional engineer to your country,you only need pay for some fee,like tickets, hotel and meal.
