BBA dual working platform welding equipment automatic soldering machine double iron head soldering system PCB soldering robot
- Category: >>>
- Supplier: Dongguan City Bobang Intelligent Technology Co. Ltd.
Share on (1600063407722):
Product Overview
Description

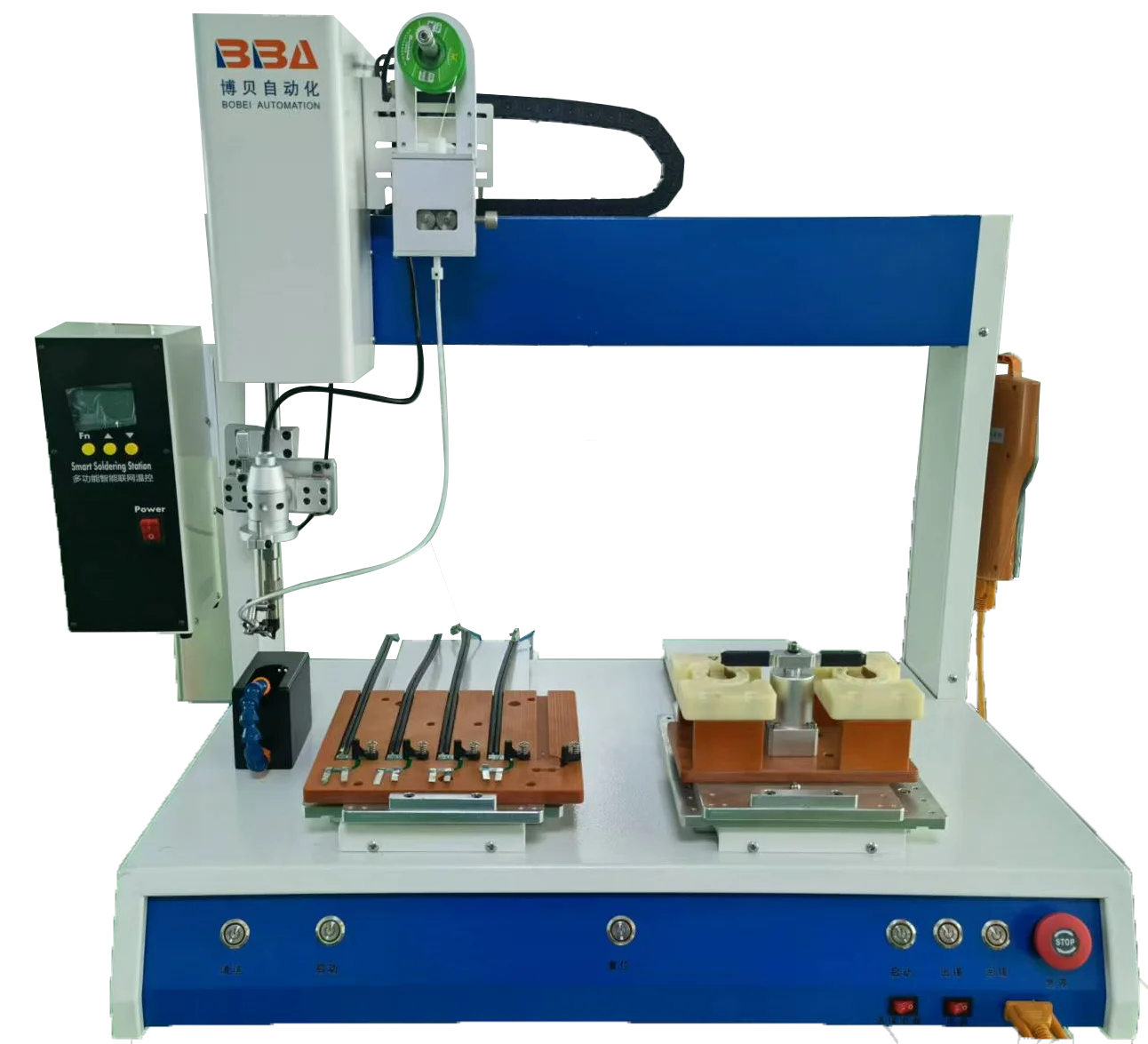

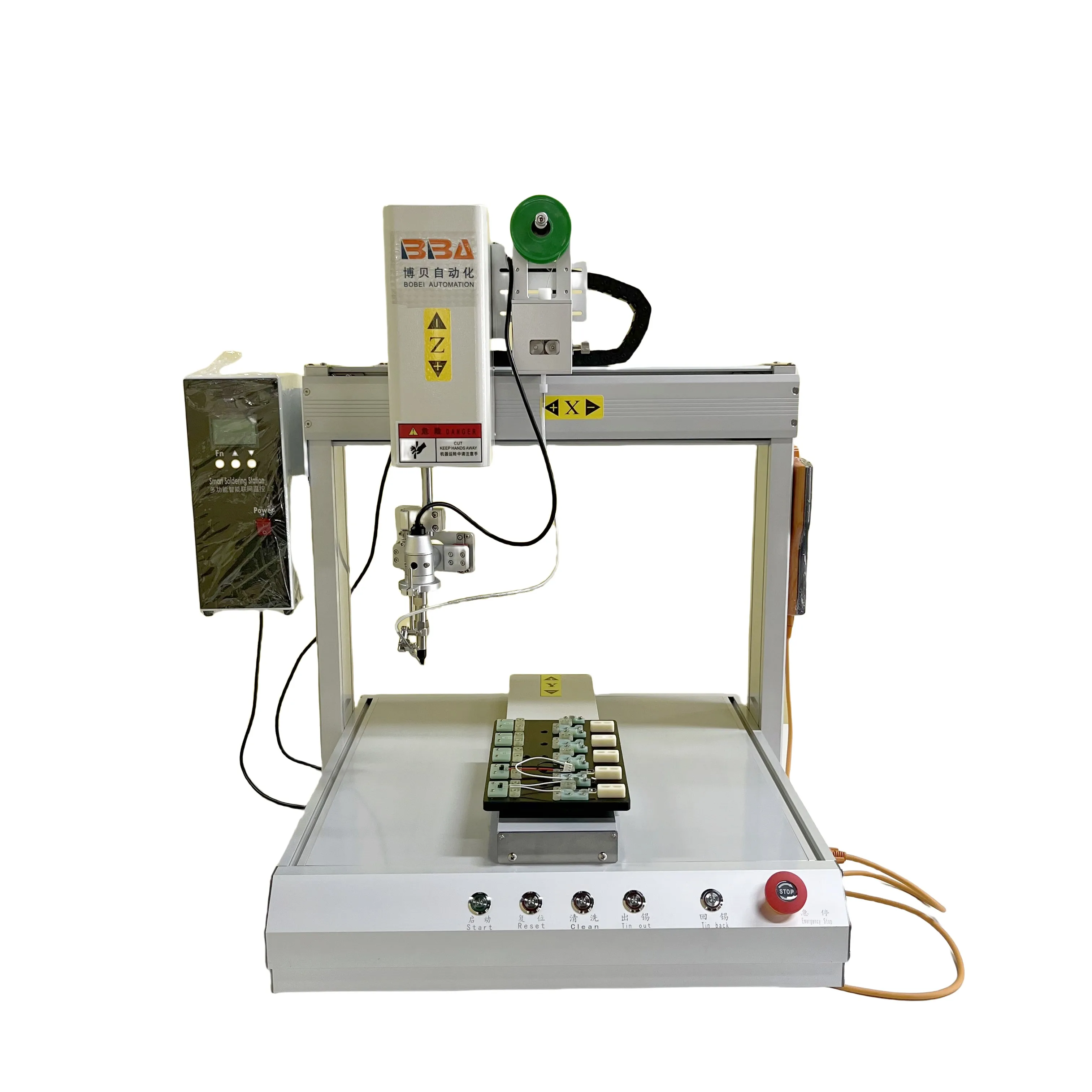

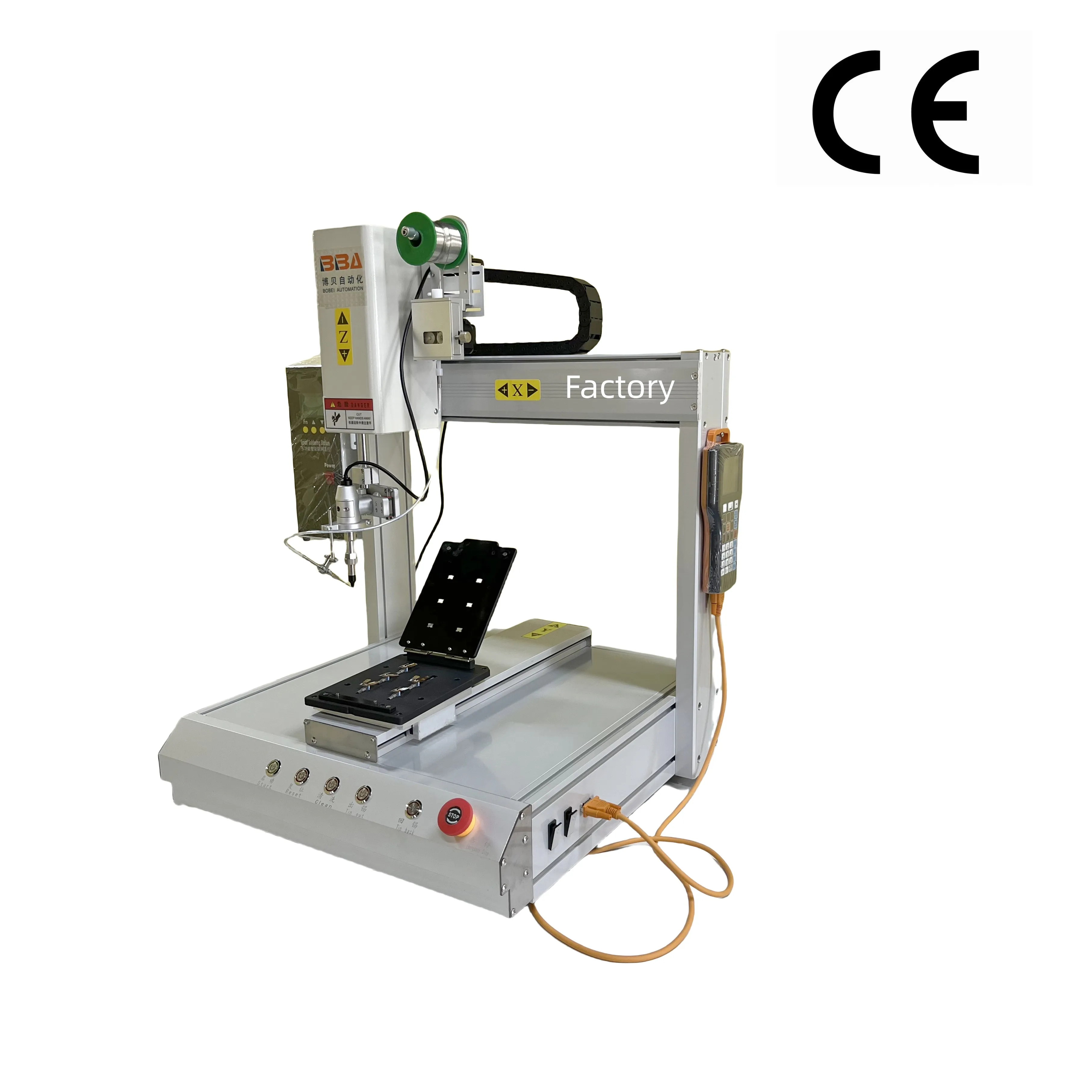

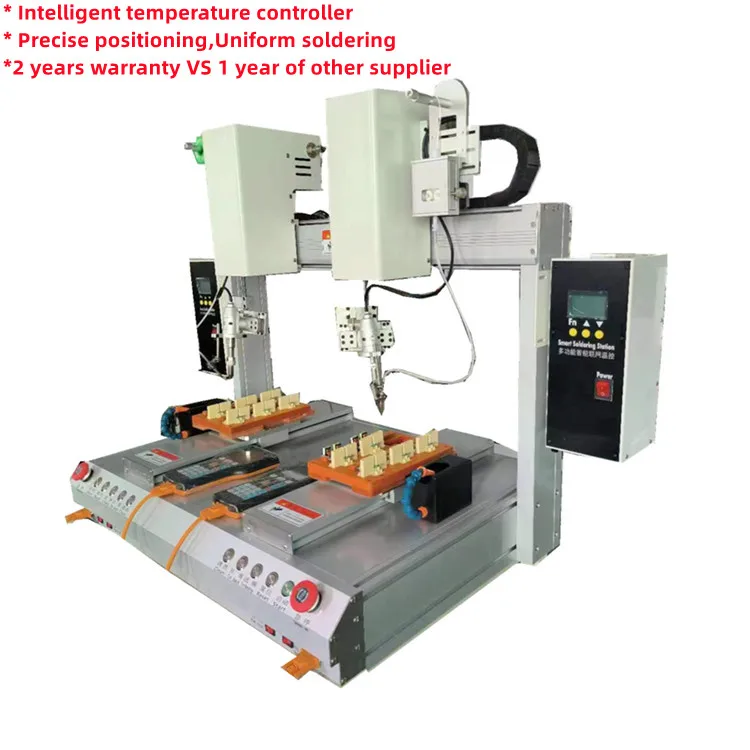

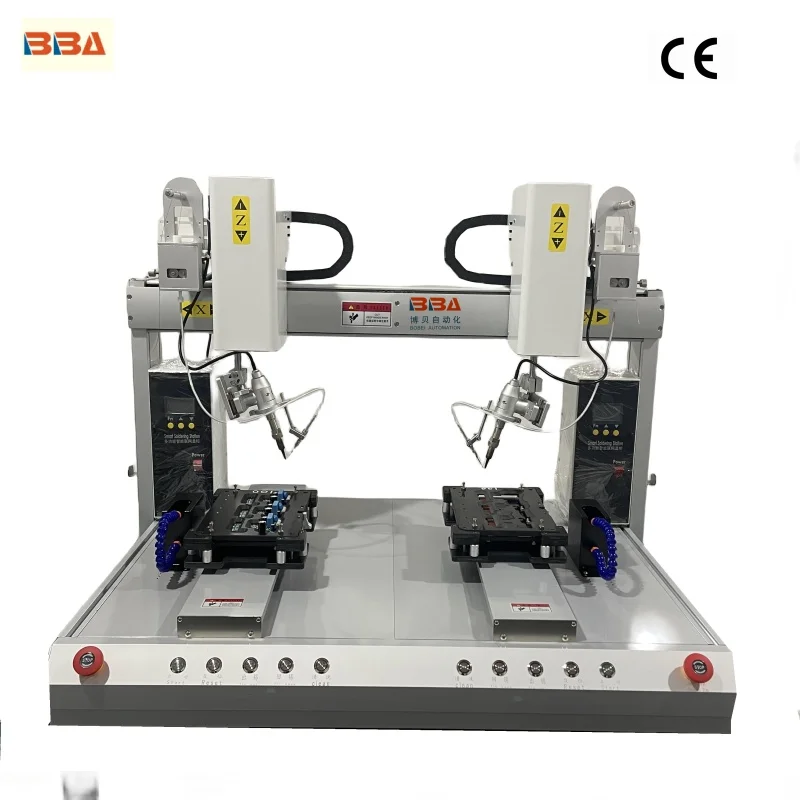

Bench Top PCB Robot Soldering Automatic Desktop Led Module Double Head Robot Soldering With Enclosure Solder Stations Machines
Products Description

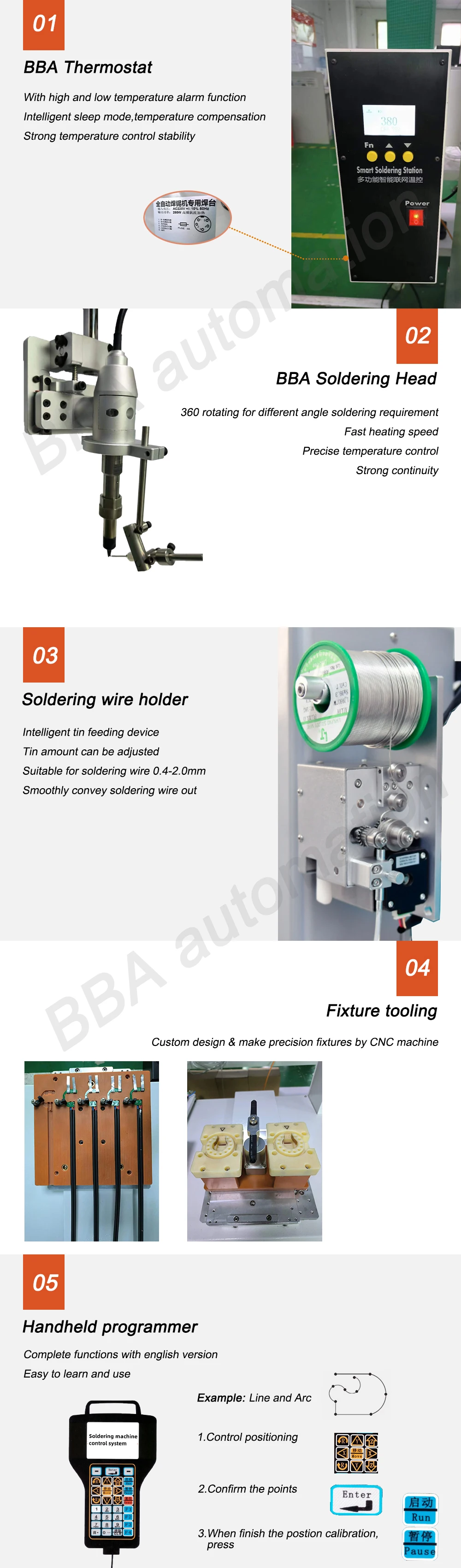

Machine external accessories
Detailed operating instructions & videos prepared to teach you step by step
Customaztion available
Specifications of soldering machine series
Model | BBA-331HX (Single Y platform) | BBA-5331HX (Dual Y platforms) | BBA-6331HX (Dual soldering systems) | BBA CUSTOMIZED | |||||||||
Voltage | AC 110/220V 50/60HZ | ||||||||||||
Power | 350W | 350W | 700W | To order | |||||||||
Movable range | X | 300mm | X | 500mm | X | 500mm | To order | ||||||
Y | 300mm | Y1/Y2 | 300mm | Y1/Y2 | 300mm | ||||||||
Z | 100mm | Z | 100mm | Z | 100mm | ||||||||
R | 360° | R | 360° | R | 360° | ||||||||
Max moving speed | X | 600mm/s | X | 600mm/s | X | 600mm/s | To order | ||||||
Y | 600mm/s | Y1/Y2 | 600mm/s | Y1/Y2 | 600mm/s | ||||||||
Z | 400mm/s | Z | 400mm/s | Z | 400mm/s | ||||||||
R | 300°/s | R | 300°/s | R | 300°/s | ||||||||
Repeat Positioning Accuracy | ±0.02mm (X * Y * Z), ±0.05° (R) | To order | |||||||||||
Maximum Load Weight | 8KG (For Work Platform) | To order | |||||||||||
Programming File Capacity | 256MB, up to 999 files, single file up to 1000 points | To order | |||||||||||
Preheating Temperature Range | 0℃~ 550℃ | To order | |||||||||||
Solder Wire Diameter | 0.4, 0.6, 0.8, 1.0, 1.2,1.6 (mm) | To order | |||||||||||
Tin feeding control | Precision stepper motor | To order | |||||||||||
External Dimensions(L*W*H) | 70*60*85(CM） | 85*60*85(CM） | 100*60*85(CM） | To order | |||||||||
Weight | 65KG | 90KG | 120KG | To order | |||||||||
Customer case
Packing & Delivery
Company Profile
FAQ
Q: Why choose us? | ||||||||
A: We are factory and provide overall solutions for processing equipment. Our standard equipment is very complete,all are in stock and can be shipped quickly. We have our own equipment factory, which can fully customize equipment according to customer requirements, such as ordering different machine size& appearance and brand for agents. | ||||||||
Q: How can we guarantee quality? | ||||||||
A: We implement strict incoming materials inspection and 100% tests before shipment. Furthermore, our products have CE certificate. | ||||||||
Q: How long is your warranty? | ||||||||
A: Lasts for 12 months, lifetime technical support. | ||||||||
Q: Why need use automatic soldering machine? | ||||||||
A: Can guarantee all soldering point are uniform and precise by iron soldering machine | ||||||||
Q: What solder wire can be used for automatic soldering robot? | ||||||||
A: 0.4~2.0mm solder wire. | ||||||||
Q: What's the bulk order delivery time? | ||||||||
A: Order lead time will be 3~10 working days, depends on your product. | ||||||||
