RoHS CODACA CSCF2014 series Ferrite Core Smd Power Choke High Current Power Inductor coil
- Category: >>>
- Supplier: Shenzhen Codaca Electronic Co. Ltd.
Share on (1600063447200):
Product Overview
Description
Features
Magnetic shielding structure, excellent resistance to electro magnetic interference.
- Assemblage design, sturdy structure.
- Small volume, high current, low magnetic loss,low ESR, small parasitic capacitance.
- Temperature rise current and saturation current is less influenced by environment.
- Operating temperature : -40℃ ~ +125℃(Including coil’s temperature rise)
Product Description
1. Key Parameter
| Type | High Current Power Inductor |
| Inductance (μH) | 2.2~33.0 |
| Tolerance | 20% |
| DCR(mΩ) | 1.7~8.6(Typical) 2.2~9.5(Max) |
| Isat(A) | 9.0~55.0 |
| Irms(A) | 16.0~28.0 |
| Temp.Range(℃) | -40~+125 |
| Dimension(mm) | 21.8*14.0*14.5 |

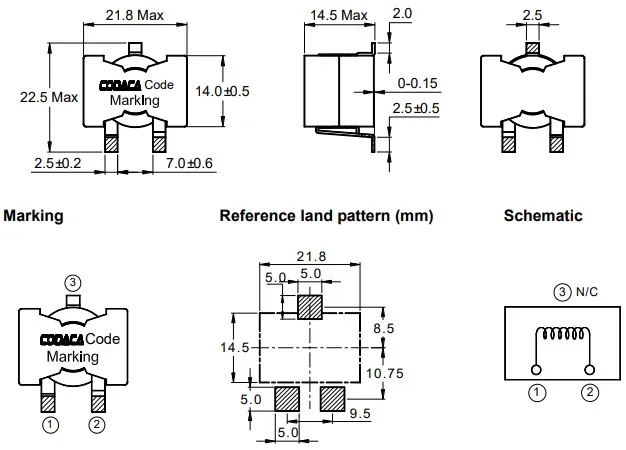

2. Product Appearance and Dimension (mm)

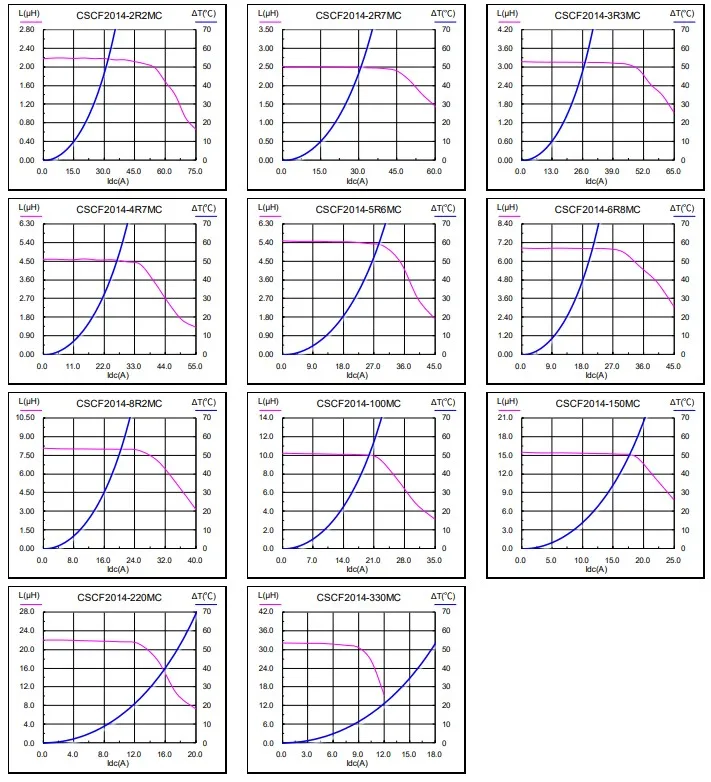

3. Saturation Current VS Temperature Rise Current Curve
4. Series Reference
| Part No. | Inductance (mH) ±20% | D.C.R. (Ω) | Saturation Current (A) | Termperature Rise Current (A) | |
| Typical | Max | Typical | Typical | ||
| CSCF2014-2R2MC | 2.2 | 1.7 | 2.2 | 55 | 28 |
| CSCF2014-2R7MC | 2.7 | 1.7 | 2.2 | 48 | 28 |
| CSCF2014-3R3MC | 3.3 | 3.28 | 3.8 | 48 | 24 |
| CSCF2014-4R7MC | 4.7 | 3.28 | 3.8 | 35 | 24 |
| CSCF2014-5R6MC | 5.6 | 3.28 | 3.8 | 30 | 24 |
| CSCF2014-6R8MC | 6.8 | 6.6 | 7.3 | 34 | 18 |
| CSCF2014-8R2MC | 8.2 | 6.6 | 7.3 | 29 | 18 |
| CSCF2014-100MC | 10 | 6.6 | 7.3 | 23 | 18 |
| CSCF2014-150MC | 15 | 8.6 | 9.5 | 18 | 16 |
| CSCF2014-220MC | 22 | 8.6 | 9.5 | 13 | 16 |
| CSCF2014-330MC | 33 | 8.6 | 9.5 | 9 | 16 |
