Product Overview
Description
Illite, pyrophyllite, vermiculite application brick grinding machine for Indonesia
Product Description
Applicable material |
Ultrafine grinder mill is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials. |
Capacity(t/h) |
0.5-2.5TPH |
Max Feeding |
20mm |
Final size |
325-2500 mesh |
Model Number |
SCM8021 SCM9024 SCM10036 SCM12544 |
Main unit motor powder |
55KW 37*2KW 110KW 160KW |
Raw material which has been crushed to the size specified is elevated into a hopper from which the stuff is loaded. And then through the vibrating feeder ,the materials will transferred evenly and continuously into the cement tube mill for powder-processing. After this, the ground stuff is carried by the air from the blower into the classifer for regrinding.The set's airflow system is closely sealed up and circulated under the condition of negative and positive pressure. As the high-speed revolving air current mixed with ground stuff is flown into the cyclone-collector ,the ground stuff is separated from the air-current.
Illite, pyrophyllite, vermiculite application brick grinding machine for Indonesia best feature:
1)Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
2)The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3)As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4) High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
5)The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
| Name & Model | SCM8021 | SCM9024 | SCM10036 | SCM12544 | |
| Ring roll number (pcs) | 21 | 24 | 36 | 44 | |
| Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1300 | |
| Grinding rill and roller path number (pcs) | 1X3 | 2x4 | 1x4 | 2x4 | |
| Revolving Speed (rmin) | 230-240 | 200-220 | 180-200 | 135-155 | |
| Max feed size (mm) | ≤10 | ≤20 | ≤20 | ≤20 | |
| Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | |
| Output (kgh) | 400-4500 | 600-5500 | 400-7500 | 1200-12000 | |
| contour dimension (mm) | 13000x3000x5800 | 14700x4800x8600 | 18000x4600x8600 | 14000x9000x10250 | |
| Whole machine capacity (kw) | 144-165 | 185-204 | 263-290 | 380-430 | |
| Main motor | Model | YB2-250M-4 | YB2-280M-8 | YB2-315L1-6 | YB2-315L2-6 |
| Power (kw) | 55 | 45x2 | 110 | 160 | |
| Rotate speed (rmin) | 1440 | 980 | 990 | 990 | |
| Analytical engine (FM motor) | Model | Y180M-4 | Y180L-4 | Y100L1-4 | YB2-225S-4 |
| Power (kw) | 18.5 | 22 | 30 | 37 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Blower motor | Model | Y225M-2 | Y250M-2 | Y280M-2 | YB2-250M-2 |
| Power (kw) | 45 | 55 | 75 | 55x2 | |
| Rotate speed (rmin) | 2940 | 2940 | 2940 | 2940 | |
| Elevator | Bucket model | TH-200 | TH-200 | TH-300 | TH-300 |
| Motor model | Y100L-4 | YB2-100L2-4 | YB2-112M-4 | YB2-112M-4 | |
| Motor power (kw) | 3 | 3 | 4 | 4 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Hammer Crusher | Hammer Crusher model | PC300x400 | PC400x600 | PC400x600 | PC600x800 |
| Motor model | YB2-160M-4 | YB2-180M-4 | YB2-180M-4 | YB2-280S-6 | |
| Power (kw) | 11 | 18.5 | 18.5 | 45 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 990 | |
| Magnetic vibrating feeder | Model | GZ1F | GZ1F | ||
| Power (kw) | 0.06 | 0.06 | |||
| Electrical machine | Model | LS159x1050 | LS159x2000 | ||
| Power (kw) | 2.2 | 3 | |||
| Discharge valve | Discharge valve model | ZJD-200 | ZJD-200 | ZJD-200 | ZJD-250 |
| Motor model | YB2-80M2-4 | YB2-80M2-4 | YB2-80M2-4 | YB2-90S-4 | |
| Power (kw) | 0.75x2 | 0.75x2 | 0.75x3 | 1.1 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |
| Pulse dust collectors | Model | DMC120-II model | DMC144-II model | DMC184-II model | DMC160-II model*2 |
| Air compressor | Air compressor Model | KSH100D-7.5KW | KSH240D-15KW | KSH240D-15KW | KSH240D-15KWx2/td> |
| Motor model | YB2-132M-4 | YB2-160L-4 | YB2-160L-4 | YB2-160L-4 | |
| Power (kw) | 7.5 | 15 | 15 | 15 | |
| Rotate speed (rmin) | 1440 | 1440 | 1440 | 1440 | |

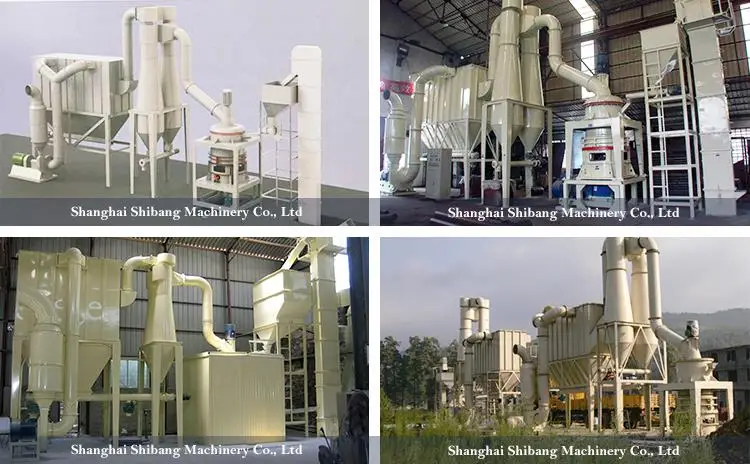

Customer's Site
Company Information
1. More than 20 years professional experience
2. All products achieved ISO9001:2000, CE certificate
3. Have the most powerful and most professional team
4. Have professional technical staff
5. Modernized production workshop
6. Good after-sales service
Our Services
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit SBM working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of SBM, they are now strategically located home and abroad, working for our customers.
Packaging & Shipping
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
FAQ
Q: Why we believe in Shanghai shibang company?
A:
1. More than 20 years experience.
2. SBM is the leading professional supplier of solution, equipments and service for crushing and grinding industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
Contact us
Send Message or Chat Now for Get Latest Price!!!
please tell me the following questions, so we can send you accurate quotation with additional discount:
♥ What's the raw materials you want to process(such as limestone)?
♥ What is capacity you want tons per hour? such as10TPH
♥ Your email address or phone number

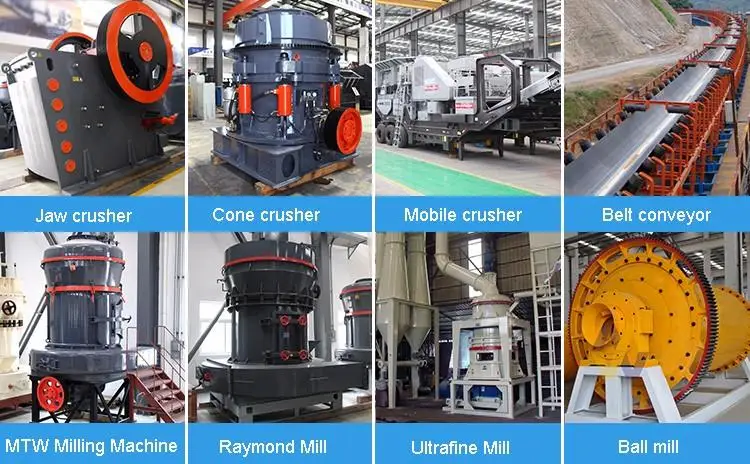

♥ Other requirements. (We are the leading manufacturer of mining machinery: jaw crusher, impact crusher, cone crusher, sand making machine, mobile crushing plant, vibrating feeder, vibrating screen, belt conveyor, raymond mill)
↓↓↓
