Air Cooling SJ150 Plastic Granule Production Machine for EVA

Share on:

Price:RUB 9,259,632.00
Price in USD:Details


Product Overview


Air Cooling SJ150 Plastic Granule Production Machine for EVA

Technical Parameter
                                         SJΦ150 EVA Air Cooling Granule Line
No. Item Description Specification

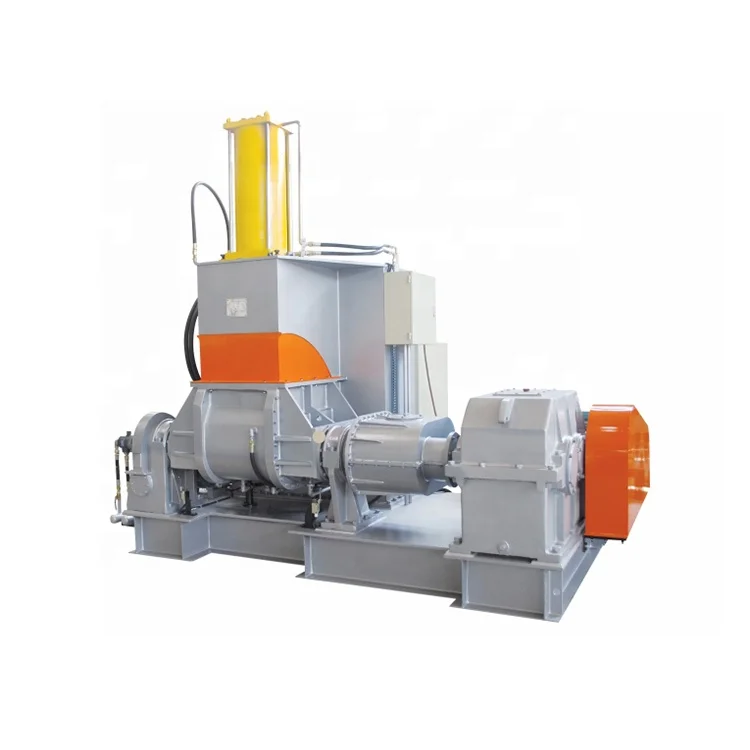

1 Kneader(optional) Model  X(S)N-75L
    Capacity 75L
    Actuating motor power 110kw

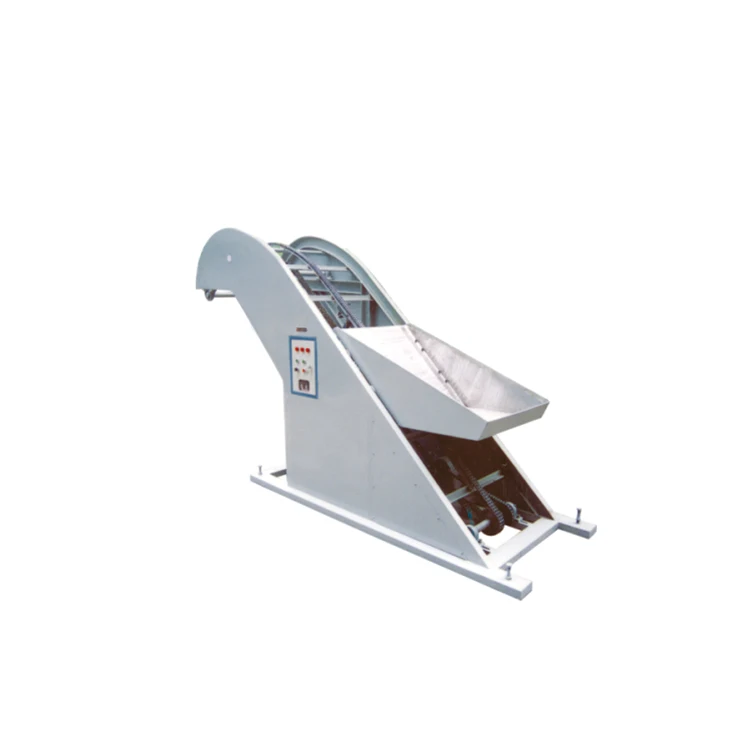

2 Bucket conveyer for EVA Material  Stainless
    Motor Power 1.5kw
    Bucket dimension 700*600*300mm
3 Mixing roller(optional) Model  XK-400
    Diameter of roller 400mm
    Main motor power 45kw
2 Main extruder Screw  dia Φ150mm
    Screw Speed 0-50r/min
    Main motor power 55kw (all with inverter)
    Feeder motor power 7.5kw (all with inverter)
    Cutter motor power 2.2kw (all with inverter)
    Heat power 11kw
    Gear box oil bath lubrication,hardened gear reducer
    Cutting system air cooling
    Auto thermo control 5 zones
    Screw/barrel material 38CrMoAIA
    Barrel cooling system water cooling
    Granule diameter 3-5mm
    Output 500-550kg/h
    Overall dimension (L*W*H) 4500*2000*1600mm
    Weight  2800kg
3 Whirlwind cooler a. Cooling tank diameter  Φ650*1set
    b. Cooling tank diameter  Φ850*2sets
4 Cooling conveyer Length and width 4200*610mm
    Thermal Design Power 4.5kw
    Material Stainless

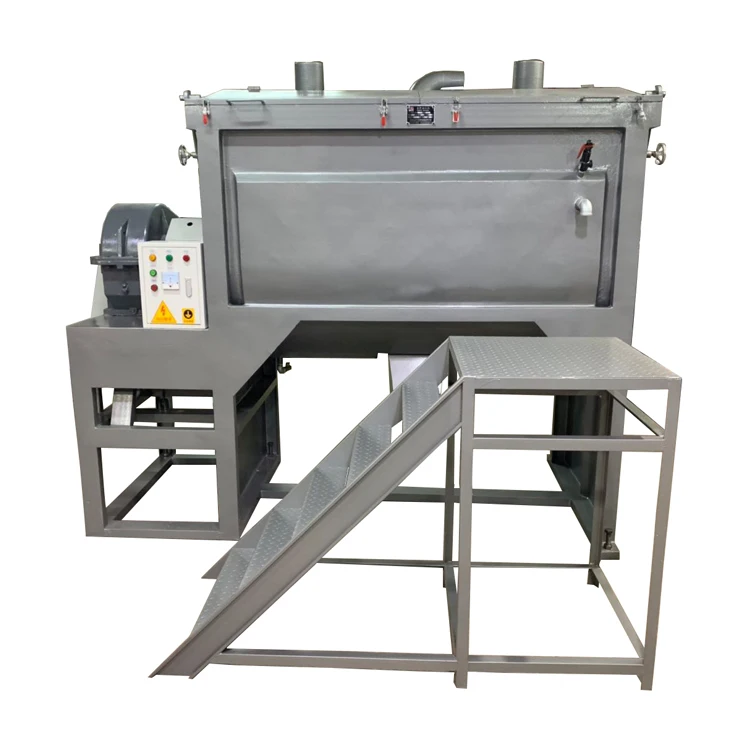

5 Blender Capacity  1000L
    Spindle speed 10r/min
    Motor power 11-4kw
6 Air machine Motor power 4.0kw
    Screw speed  2880r/min
7 Air machine Motor power 5.5kw
    Screw speed


Product Description


This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.

The whole production line:

Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter -  Whirlwind Cooler(1st Process) -   Cooling Conveyer - Whirlwind Cooler(2nd Process) -   Mixing machine(blender)  - Final prodcts.


eva compounding machine 1.jpg





Our Certifications






Why Choose Us


1, XINHUA MACHINERY are a customer-oriented enterprise.

2, Professional techinicians can help abroad installation and training.

3, Multiple patents have been obtained.

4, Solutions offered to meet your requirements.

5, 12 months guarantee of the machine can be offered.

6, Soon reply after getting your inquiry.
