Factory sand vibration screen, portable mobile screener
Product Description
sand vibration screen is a new type of multi-layer, it is widely used for product grading in departments of mining area, sandstones, building materials, transportation, energy, chemical industry, etc. It is particularly applicable to heavy type, middle type, fine screening and many other screening operations, and is the ideal screening equipment for primary crushing, secondary crushing and finished materials.
Factory sand vibration screen, portable mobile screener application:
screen sieve is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydropower, transportation, chemical industry, smelting and so on. For material quality of screen mesh is changeable, the application is quite extensive.
Factory sand vibration screen, portable mobile screener structure:
Mainly by the sieve box, vibrator, suspension (or support) devices and motors and other components. The V-belt motor, spindle drive exciter, the exciter on the uneven weight of the centrifugal force of inertia, so that by the vibrating screen box. Change the eccentric weight exciter, available in different amplitude.
Factory sand vibration screen, portable mobile screener specification:
Model
Layers
Screen Area (m²)
Sieve Pore Size (mm)
Spec. of Screen (mm)
Max. Feed Size (mm)
Capacity (t/h)
Vibrating Frequency (Hz)
Double Amplitude (mm)
Power (Kw)
Weight (Excluding Motor) (t)
Overall Dimension (LxWxH) (mm)
2YA1237
2
4.44
3~50
1200x3700
200
7.5~80
800~970
8
5.5
2.34
4642x2250x2659
3YA1237
3
4.44
3~50
1200x3700
200
7.5~80
800~970
8
7.5
3.05
4898x2250x3133
2YA1548
2
7.2
5~50
1500x4800
400
50~208
970
8
15
5.33
5802x2585x3053
3YA1548
3
7.2
5~50
1500x4800
400
50~250
970
8
15
6.07
6046x2585x3537
2YA1848
2
8.64
5~80
1800x4800
400
50~260
970
8
18.5
6.65
5802x2947x3053
3YA1848
3
8.64
5~80
1800x4800
400
50~300
970
8
18.5
6.93
6046x2947x3538
2YA1860
2
10.8
5~80
1800x6000
400
50~300
970
8
22
7.52
7011x2947x3471
3YA1860
3
10.8
5~80
1800x6000
400
50~350
970
8
22
7.72
7243x2987x3955
4YA1860
4
10.8
5~80
1800x6000
400
50~350
970
8
22
8.70
7498x2987x4439
2YA2160
2
12.6
5~100
2100x6000
400
100~500
730
6~8
30
10.2
7076x3402x3666
3YA2160
3
12.6
5~100
2100x6000
400
100~500
730
6~8
30
10.5
7284x3467x4092
4YA2160
4
12.6
5~100
2100x6000
400
100~500
730
6~8
30
10.8
7551x3467x4582
2YA2460
2
14.4
5~150
2400x6000
400
150~700
730
6~8
37
10.4
7046x3770x3603
3YA2460
3
14.4
5~150
2400x6000
400
150~700
730
6~8
37
10.8
7289x3

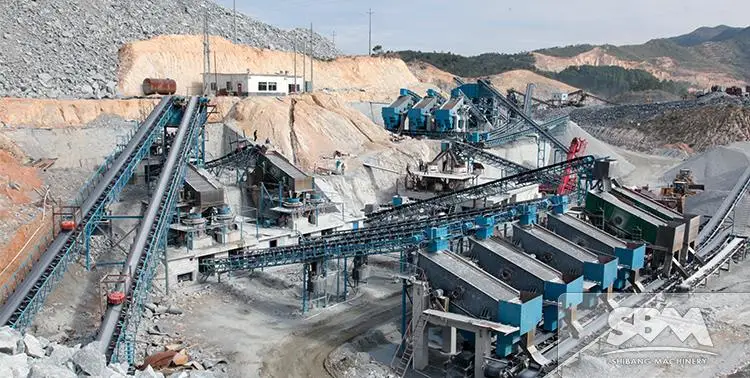

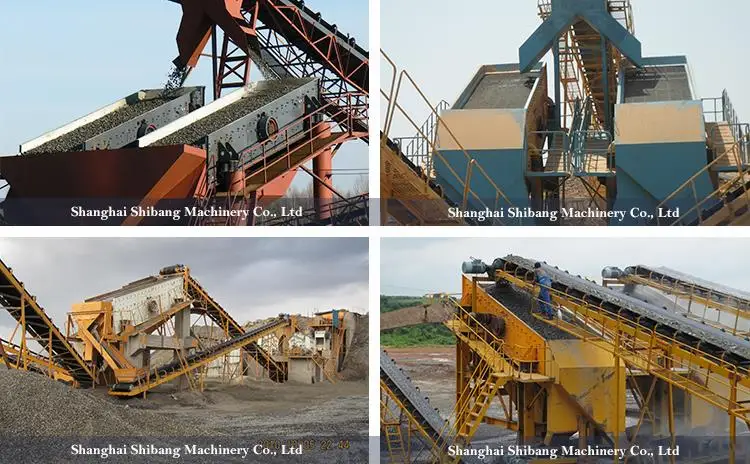

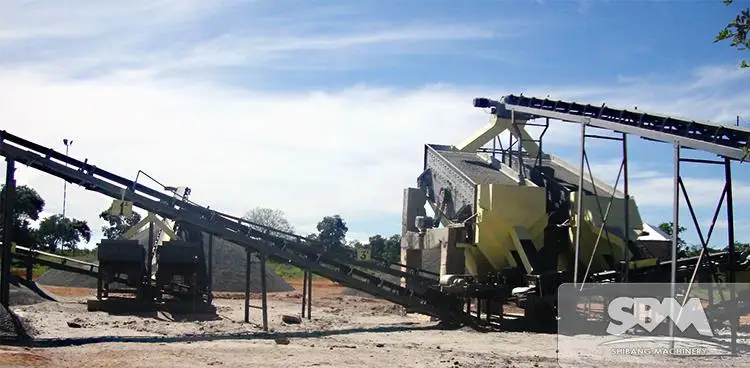

PRODUCTION LINE
Exhibition Site
Shanghai Shibang Machinery Sales Co.,Ltd participate in various exhibitions frequently.
Such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Company Information
Founded in 1987, SBM has attained 124 patents on crushers & mills over the past 30 years. 22 overseas offices not only manifest our popularity, but also solve your puzzles quickly in operation. So if you are looking for crushers or mills, SBM deserves your attention!
World-Class Manufacturer of Crushing &Grinding Machines
Shanghai Shibang has always been committed to manufacturing mining crushing equipment, sand-making equipment and industrial grinding equipment. History --- 30 years Annual Output Value --- 4 billion Bases --- 600 thousand square meters
1.Boasts its 90000 square meters production base 2.30 years industry experience 3.Owns complete modernized metal cutting equipment, equipped with advanced Solidworks 3D mechanical design and Computerized Simulation Test System 4.Professional technology and after-sales service team 5.Achieved ISO9001:2000 Quality Management Certificate and EUCE Certificate. 6.Have been exported to more than 130 countries 7.Products cover more than 20 models of 3 major series: mill series, crushing series, and sand making series.
Warmly welcome you to visit our factory !!!
