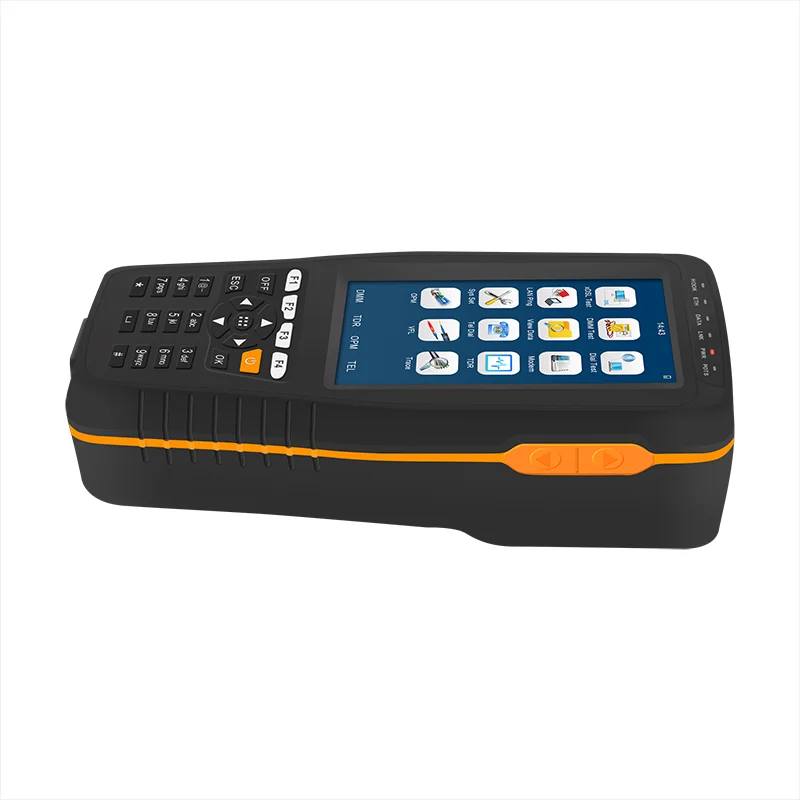

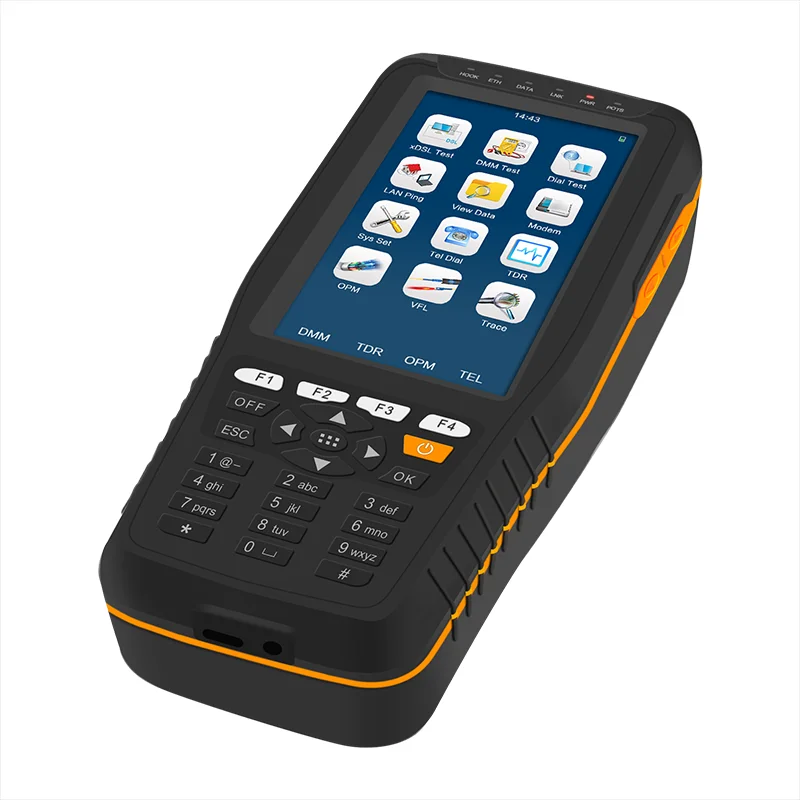

ONEFIND WF 602 VDSL Tester Support ADSL/VDSL/OPM/ VFL/TDR /Tone Tracker, all in one unit DMM Telecom test ADSL TESTER

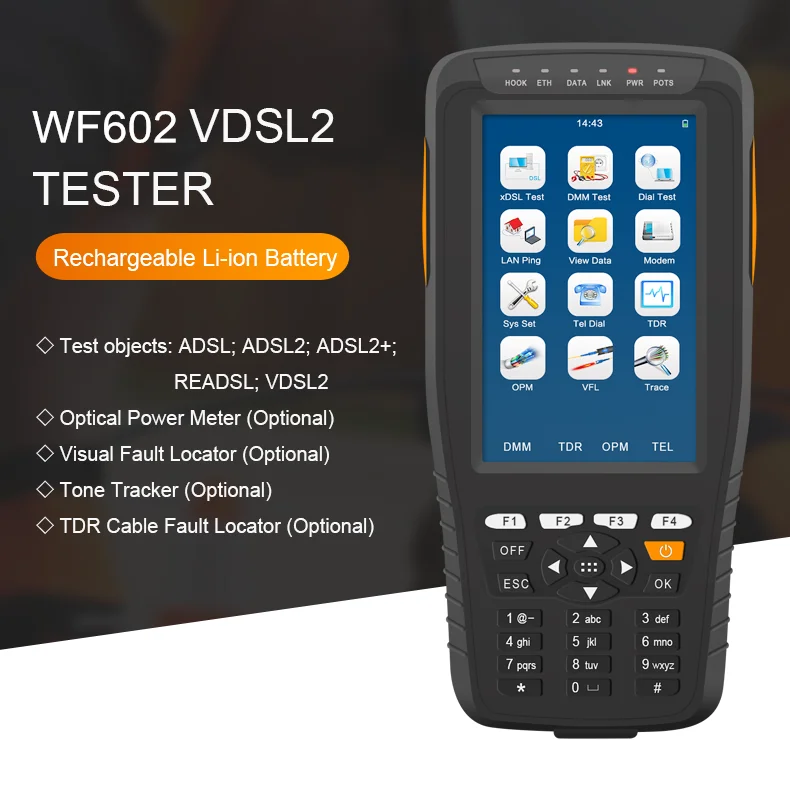

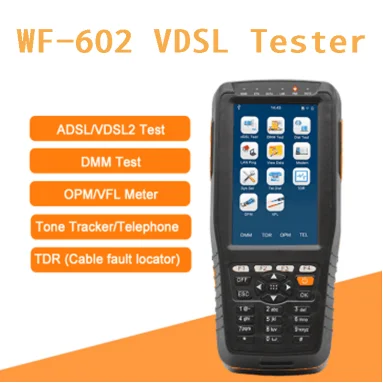

WF-602 VDSL Tester:
1.Optical Power Meter (Optional)

2.Visual Fault Locator (Optional)

3.Tone Tracker (Optional)

4.TDR Cable Fault Locator (Optional)

 1.Specifications:

WF-602 VDSL tester specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.

WF-602 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;

It is one multifunction tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc

 2. Key Features:

• Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2


• Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)


• Supports Modem emulation and simulating login to Internet


• Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)


• Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

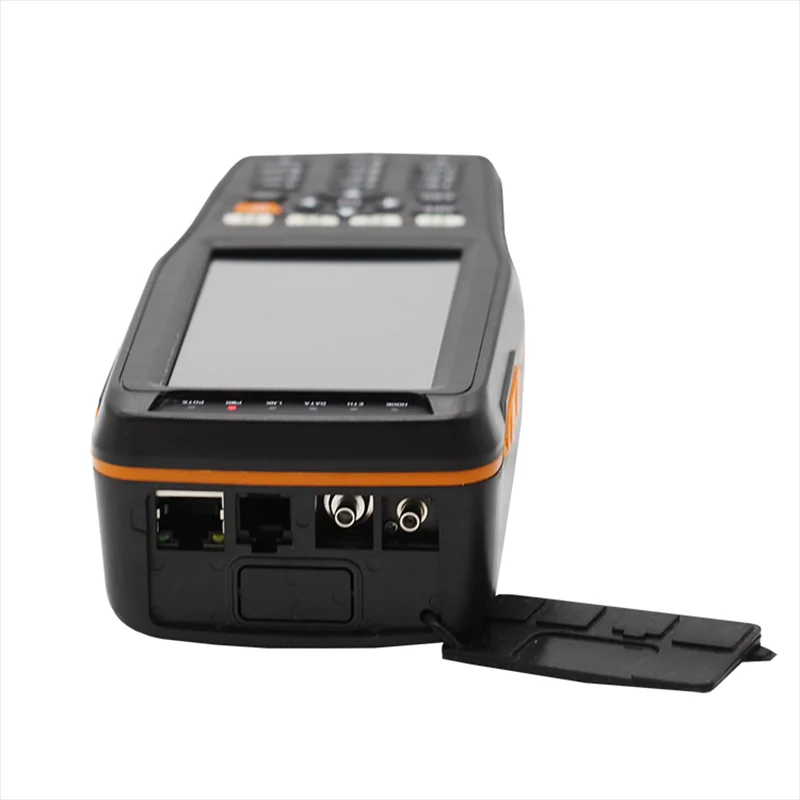

• Connects to CO via alligator clip or RJ11

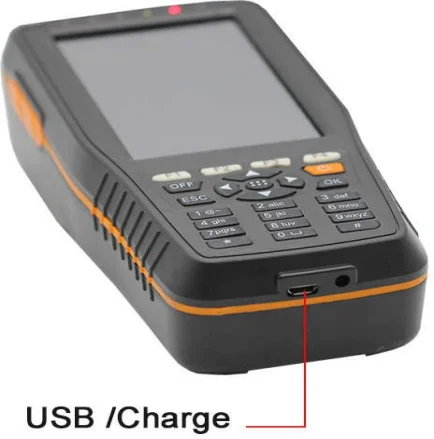

• Rechargeable Li-ion Battery


• Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)


• Data memory fuction


• LCD display, Menu operation


• Auto shut off if no any operation on keyboard


• Compliant with all known DSLAMs


• Software management


• Simple, portable and money-saved

 3. Functions:

• DSL Physical layer test


• Modem Emulation (Replace the user Modem completely)


• PPPoE Dialing (RFC1683,RFC2684,RFC2516)


• PPPoA Dialing (RFC2364)


• Telephone Function


• DMM Test


• Ping Function (WAN & LAN)


• Data upload to computer and software management


• Setup system parameter: backlight time, shut off automatically time without operation, press tone,


• Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and so on.


• Check dangerous voltage


• Optical Power Meter (Optional)


• Visual Fault Locator (Optional)


• Tone Tracker (Optional)


• TDR Cable Fault Locator (Optional)
