Factory Direct Supply Durable 300mm Glide DC Motor Silent Tubular 2600rpm Linear Actuator 1500N For TV Cover Lift Mini Tractor
- Category: >>>
- Supplier: Nanjing Yongnuo Transmission Equipment Co. Ltd.
Share on (1600064385256):
Product Overview
Description
Product Description
Our YNT-02 linear actuator DC motor is IP54 CE and ROHS approved, widely used in industrial and agricultural machinery, hospital equipments and home appliance, for exampl: electric elderly chairs, electric sofa, LCD TV lifts, massage chairs, dental chairs and other needs of the linear operation of the
occasion.
occasion.
Mode | YNT-02 | Power | 60W |
Input voltage | 12/24 VDC | Stroke | Customized Stroke Available |
Free load max speed | 36mm/s(500N) | Noise level | <=50dB |
Full load max speed | 4mm/s(6000N) | IP grade | IP54 |
Limit switch | Built-in | Standard | CE, ROHS |
Duty cycle | 20% (2 minutes continuous use in 8minutes) | Operation temperature | -26℃~65℃ |
Dynamis load force(N) | 6000 | 1500 | 500 | ||
Static load force(N) | 6000 | 1500 | 500 | ||
Speed with load(MM/S) | 5 | 18 | 35 | ||
Input voltage(VDC) | 12/24/36/48 | ||||

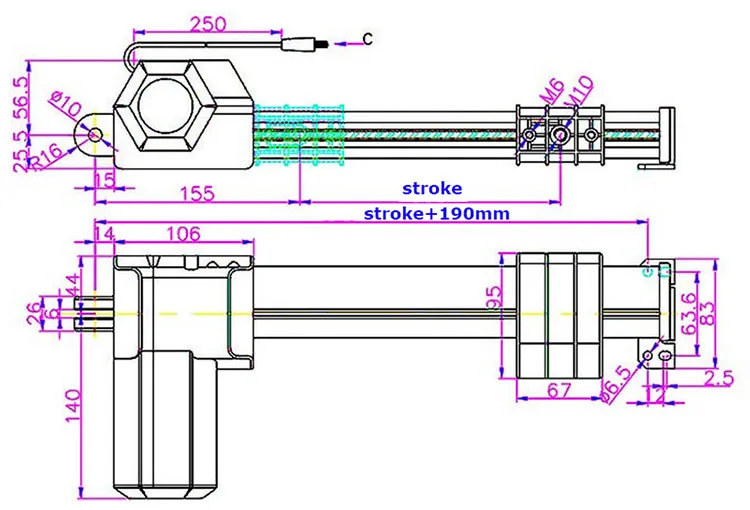

Mounting Drawing in Millimeter
1.Low noise
2.Using permanent magnet DC motor3.Slider design, according to different chair frame for different custom programs
4.High precision, self-locking strong ability
5.Shell with high-intensity fire-resistant materials
6.Load and speed to meet different customer custom requirements
7.Maintenance is simple, maintenance-free, with controller
Details Images
Main Material
1.DC drive motor(copper motor not the alloy motor).
2.Screw and the plastic turbine.
3.Plastic slider.
4.Surface sandblasting treatment and oxidation trreatment, smooth, and easy to clean.
5.The chassis is brand new, pa66 material.
Aluminum alloy outer tube
DC drive motor
Chassis
Turbine
Slider
Screw
Certifications
Our Company
Welcome to YONGNUO
Our factory address is No. 10 in Shiba Road, Taowu Industrial Park, Jiangning Development Zone, Nanjing, China. We specialize in manufacturing linear actuator, control box and handset.
Our products are widely used in massage sofa, bed lifting, TV lifting, hospitable bed adjustment, window opener, door opener, industrial equipment parts, agricultural machinery parts, solar tracking, sanitation sweeper and special vehicles.
Our factory address is No. 10 in Shiba Road, Taowu Industrial Park, Jiangning Development Zone, Nanjing, China. We specialize in manufacturing linear actuator, control box and handset.
Our products are widely used in massage sofa, bed lifting, TV lifting, hospitable bed adjustment, window opener, door opener, industrial equipment parts, agricultural machinery parts, solar tracking, sanitation sweeper and special vehicles.
We are dedicated to producing products with high quality, reasonable price and excellent service. Meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction.
In one word, we are your ideal cooperator. Choose us, you will choose success!
In one word, we are your ideal cooperator. Choose us, you will choose success!
Company Photo
FAQ
1、Q：Do you get the relevant certification?
A：Yes, so far, we have got certification of CE and ROSH.
2、Q：What is the shipping pot?
A：Shanghai or Ningbo Port
3、Q：How can I get the quotation?
A：You need to send up information, we will let our regional sales to contact with you, and the details you should provide us: your email address, telephone number, material, size, input and other customized product information you want to purchase.
4、Q: Is it all right to make customer’s own brand name?
A：That is all right. If you required, we will make customer’s own brand name, otherwise, we make our own brand name.
5、Q：How is the lead time of our order?
A：Normally 3-5 days, the lead time is according to the quantity.
6、Q：How to change the speed?
A：You can our below speed controller to change your speed from 0-10rpm.
7、Q：Why still not receive my order?
A：Sometimes, come cargo would be slightly delay on road, please contact with us first, we will offer a good solution for you.
8、Q：How long is your delivery time?
A：Generally it is 5-10 days if the good are in stock. Or it is 15-20 days if the if the goods are not
9、Q：How much does shipping cost and what shipping methods do you support?
A：Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation.
10、Q：How much is the packing size?
A：Packing size is in accordance with your order, your product specifications to determine the package size.
A：Yes, so far, we have got certification of CE and ROSH.
2、Q：What is the shipping pot?
A：Shanghai or Ningbo Port
3、Q：How can I get the quotation?
A：You need to send up information, we will let our regional sales to contact with you, and the details you should provide us: your email address, telephone number, material, size, input and other customized product information you want to purchase.
4、Q: Is it all right to make customer’s own brand name?
A：That is all right. If you required, we will make customer’s own brand name, otherwise, we make our own brand name.
5、Q：How is the lead time of our order?
A：Normally 3-5 days, the lead time is according to the quantity.
6、Q：How to change the speed?
A：You can our below speed controller to change your speed from 0-10rpm.
7、Q：Why still not receive my order?
A：Sometimes, come cargo would be slightly delay on road, please contact with us first, we will offer a good solution for you.
8、Q：How long is your delivery time?
A：Generally it is 5-10 days if the good are in stock. Or it is 15-20 days if the if the goods are not
9、Q：How much does shipping cost and what shipping methods do you support?
A：Shipping cost is calculated based on the weight of the order and the distance it is travelling; Transport of large trucks to the seaport and international transport cooperation.
10、Q：How much is the packing size?
A：Packing size is in accordance with your order, your product specifications to determine the package size.
