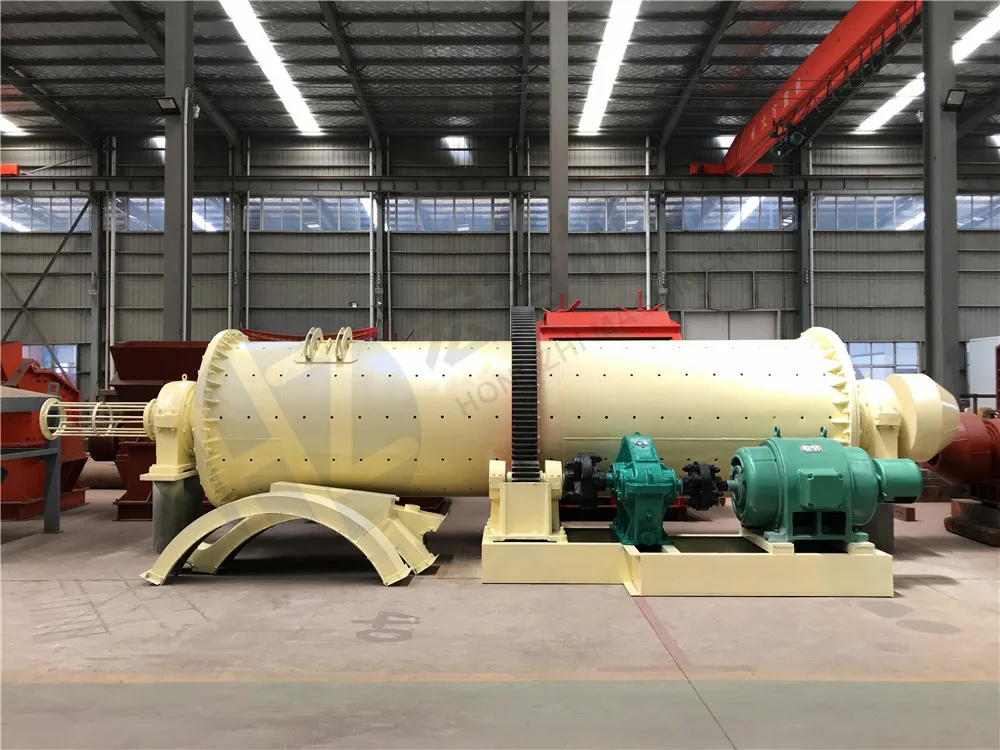

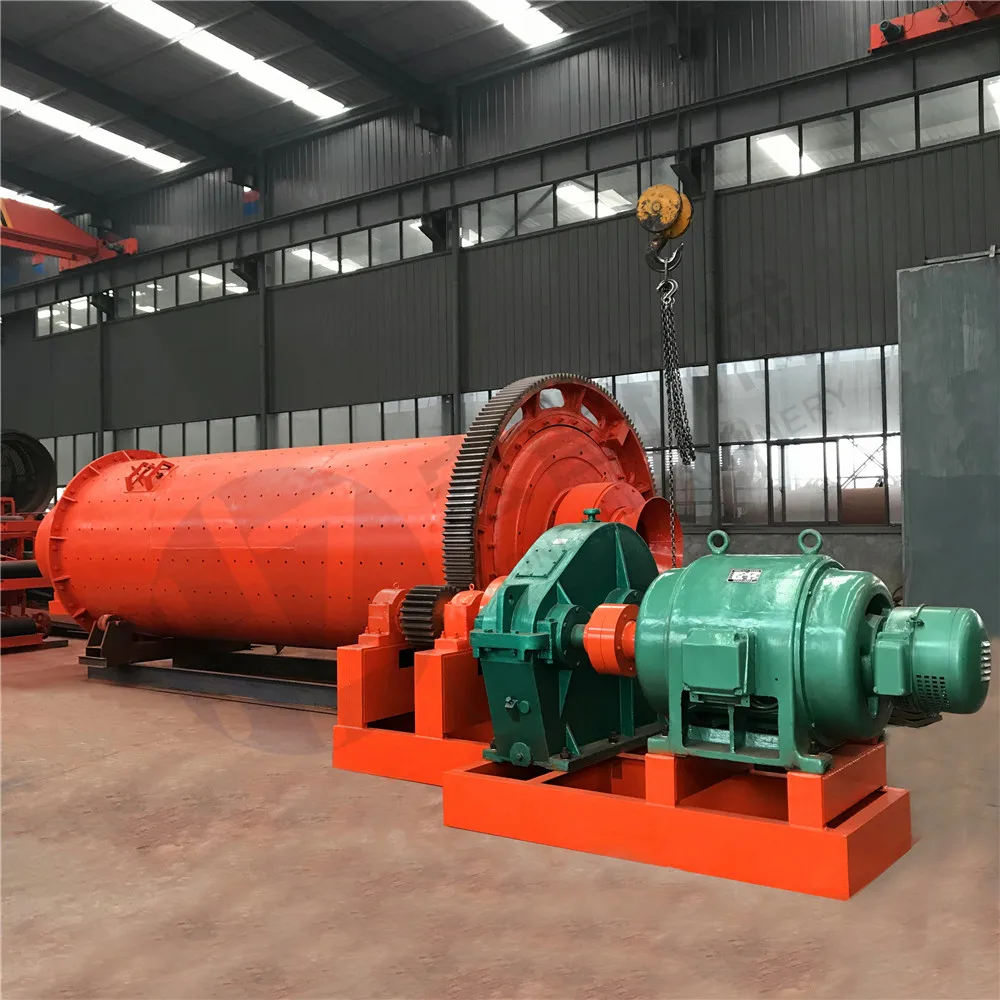

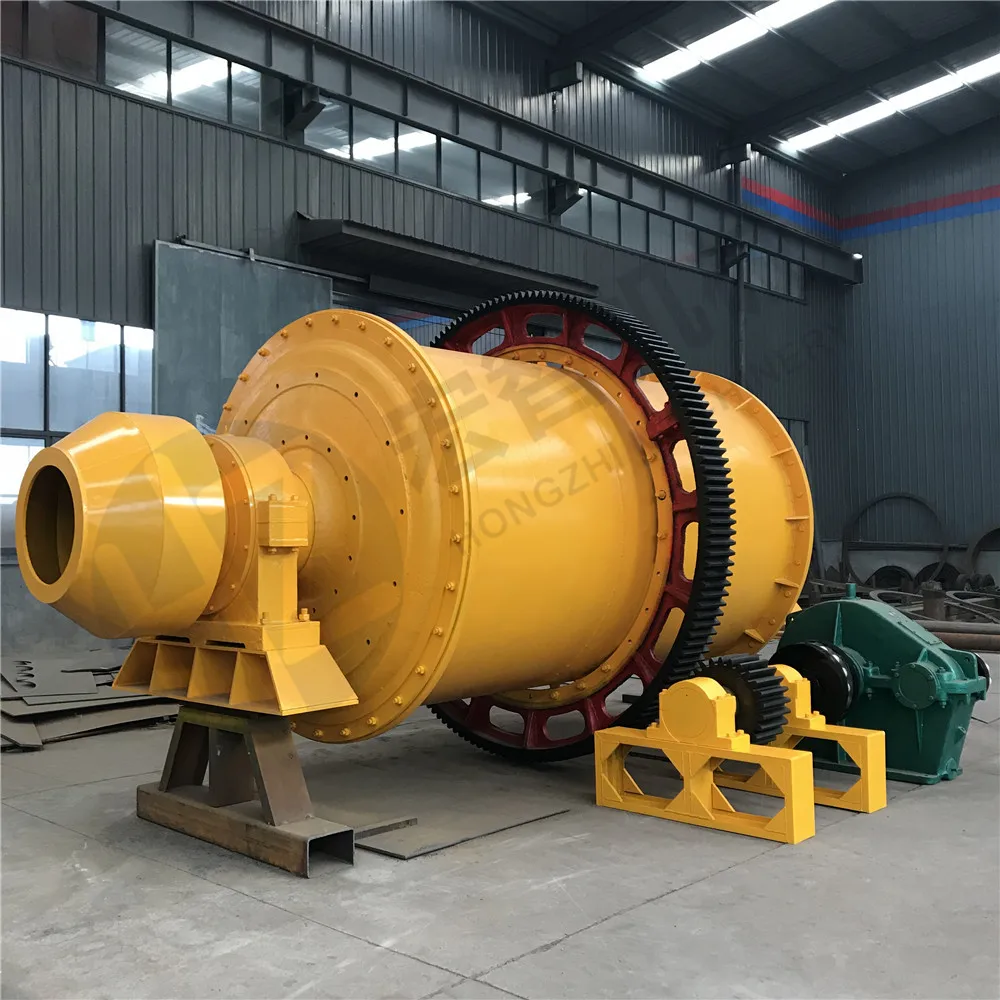

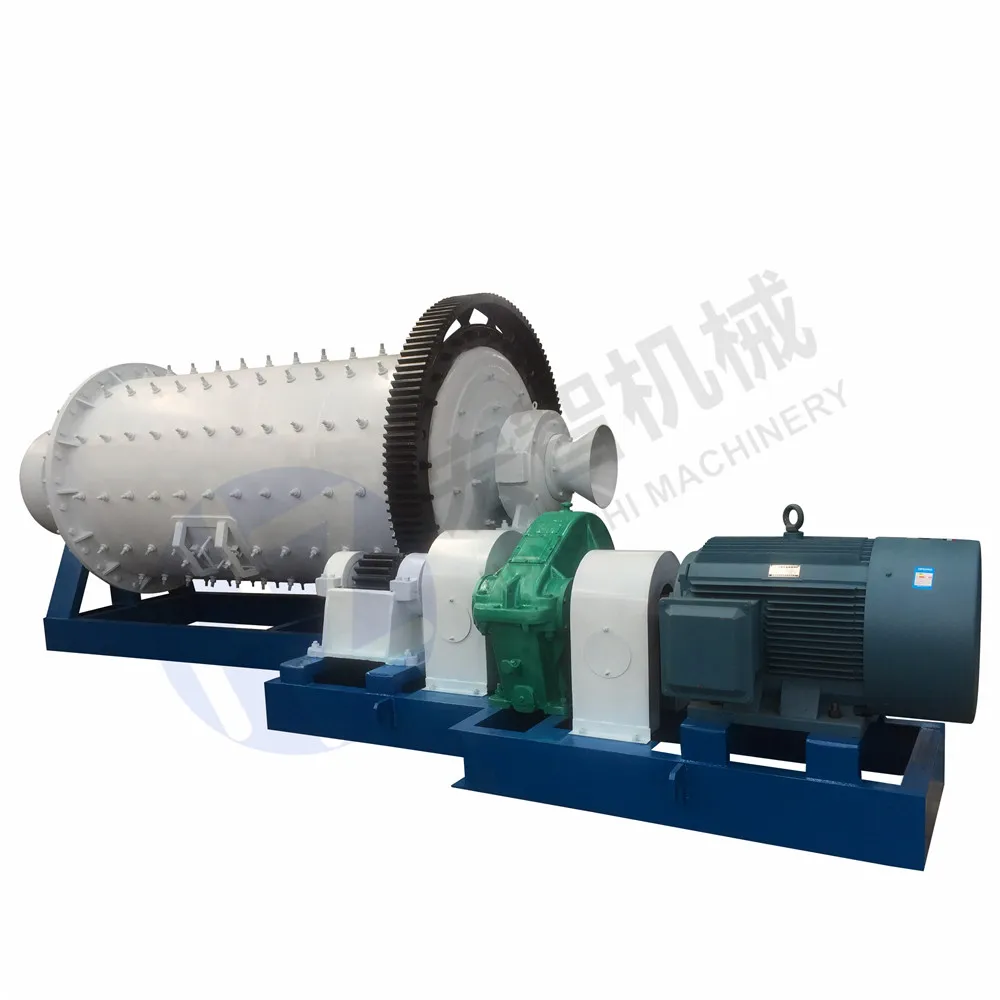

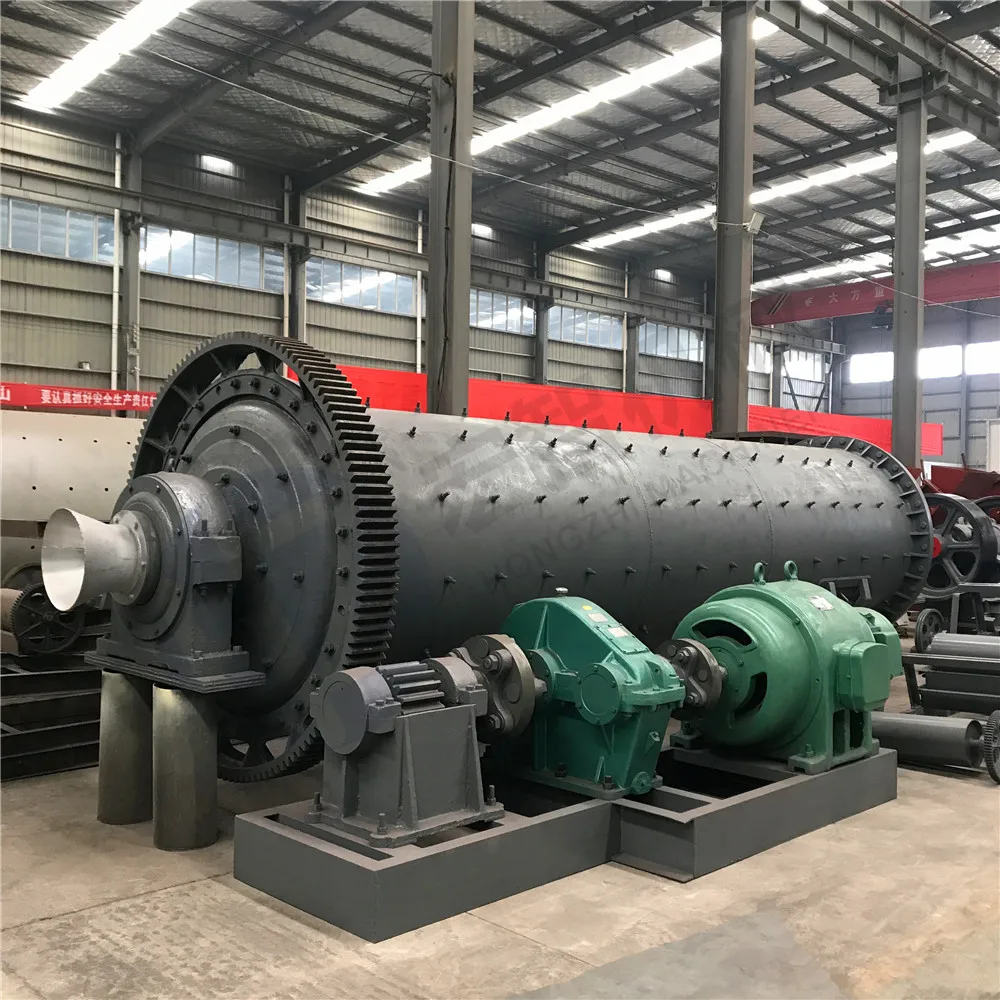

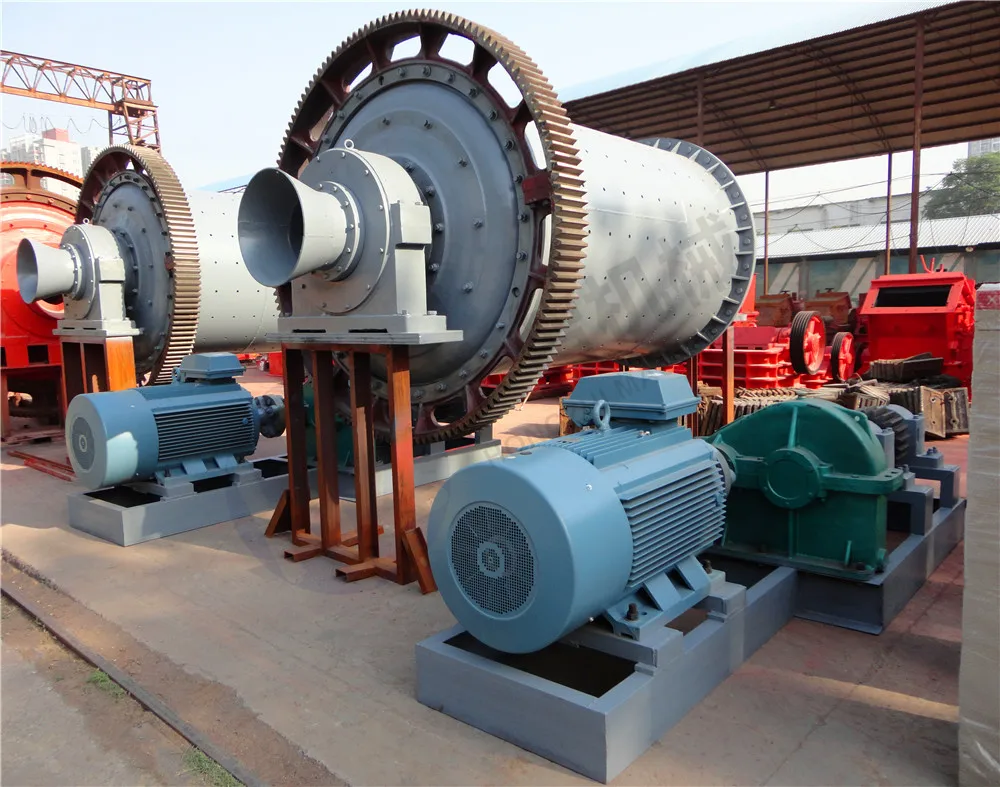

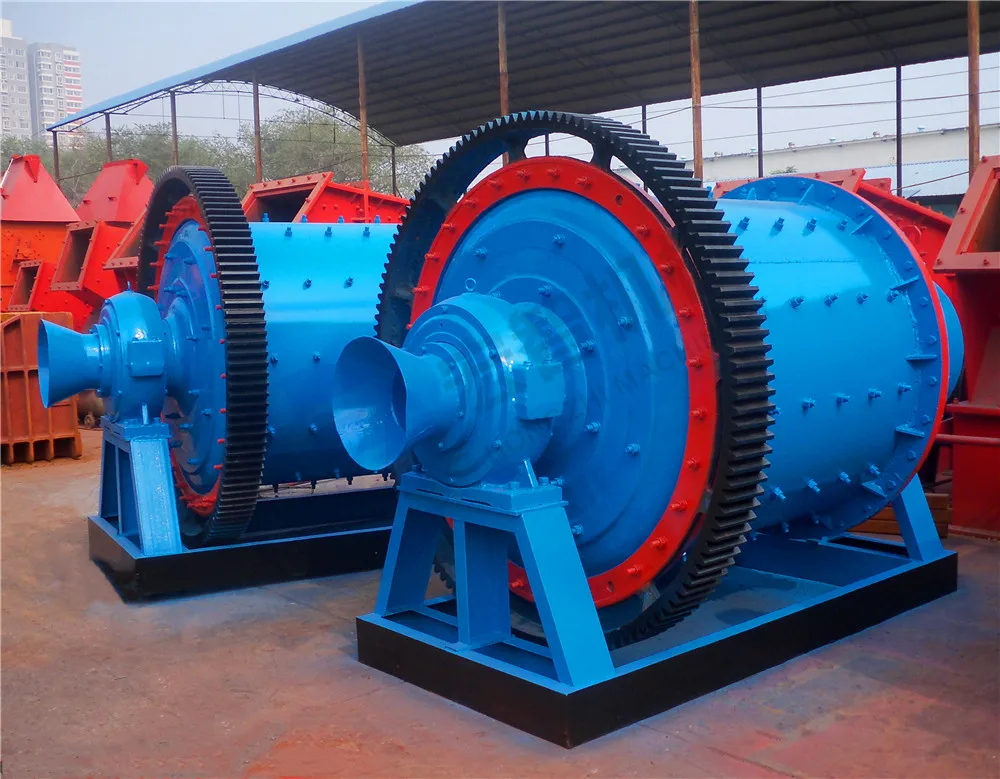

Best Factory Ore Grinding Mill Machine Gold Mining Ball Mill

 Brief Introduction to Ore Grinding Mill Machine Gold Mining Ball Mill

Ore Grinding Mill Machine Gold Mining Ball Mill is the key equipment for further crushing, widely applicable for industries including but not limited to cement, silicate, new building materials, fireproof materials, fertilizer, ferrous and non-ferrous metal, and glass ceramic, for purpose of proceeding dry grinding or wed grinding with regard to all kinds of minerals and other kinds of abrasive materials.

Working Principle for Ore Grinding Mill Machine Gold Mining Ball Mill

The ball mill is a type of grate ball mill, equipped with horizontal drum rotating device, external gear transmission device and two chambers. After passing through feeding unit, materials would be delivered to feeding hollow shaft where the same are evenly delivered into the 1^st Chamber along with the spiral movement. The Chamber is equipped with stepped lining plate or corrugated lining plate, and different steel balls which would be lifted up to a certain height due to centrifugal force generated from drum rotation and drop down therefrom to complete impacting and grinding process. Subjected to rough grinding in the 1^st chamber, the same would pass through the single bulkhead and be delivered into the 2^nd chamber where there is equipped with flat lining plate and steel balls for further grinding. Finally, powder materials would be discharged from grate plate to complete grinding process.

Features of Ore Grinding Mill Machine Gold Mining Ball Mill

This type of ball mill is mainly composed of feeding unit, discharging unit, rotating unit, and transmission unit which consists of reducer, small transmission gear, motor and electronic control system, featured by stationary and reliable operation.

• Hollow shaft is made of cast iron;


• Lining could be replaced;


• Large rotating gear is made of casting after gear hobbing;


• Drum is equipped with anti-abrasive lining plate internally, with a high anti-abrasion performance;

Technical Parameters for Ore Grinding Mill Machine Gold Mining Ball Mill

Technical Parameters Table for Ore Grinding Mill Machine Gold Mining Ball Mill

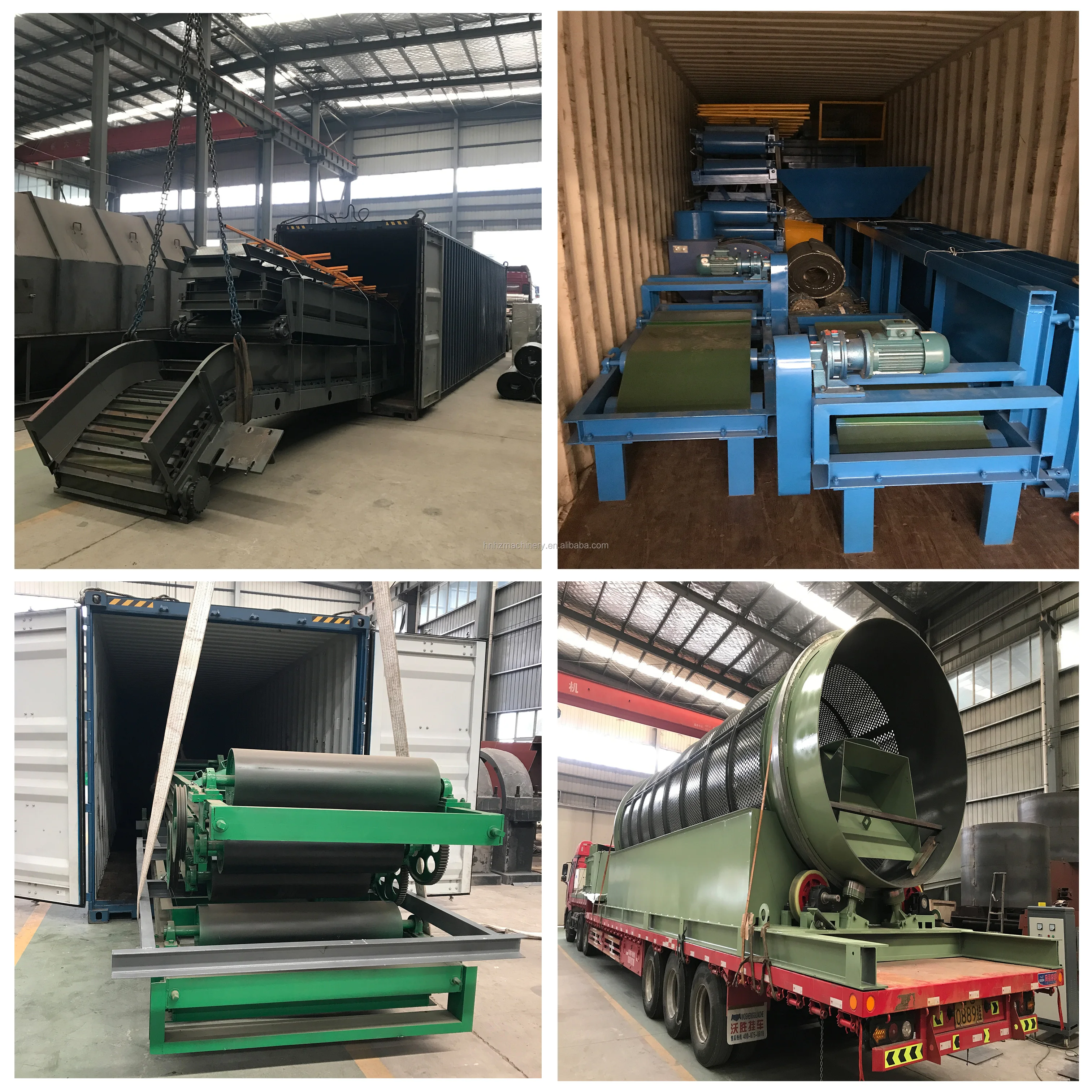

Packaging & Shipping for Ore Grinding Mill Machine Gold Mining Ball Mill

Payment&Delivery&Warranty for Ore Grinding Mill Machine Gold Mining Ball Mill

1. Package: Bare package for equipment and wooden box for spare parts.

2. Time of Delivery: 30 days after receipt of down payment.

3. Terms of Payment: T/T, 30% of the total amount to be paid in advance, the balance to be paid before delivery by T/T

4. Warranty: Warranty period for Ore Grinding Mill Machine Gold Mining Ball Mill is 1 year from the purchase date (excluding quick-wear parts, which are guaranteed to be manufactured without defects in material and workmanship and are not easily to be worn under normal use. ) This warranty policy shall not apply to misuse, negligence, accident, incorrect wiring by others or improper installation.

5. Installation and debugging: The seller is responsible for providing foundation drawings and operating instructions for installation. The seller could dispatch engineer to assist the buyer in installation and trial running in accordance with requirements of the buyer, who should not only prepare necessary materials in advance, but also bear any and all actual expenses incurred with regard to engineer service on site, including but not limited to return ticket, accommodation, insurance and labor charges (100$ per day) .

Valid period of the offer: 30 days, the final price should be subjected to current exchange rate.

Customer Visiting

What is a ball mill used for?

A ball mill is a type of grinder used to grind, blend and sometimes for mixing of materials for use in mineral dressing processes, paints, pyrotechnics, ceramics and selective laser sintering. ... The grinding media are the balls, which may be made of steel (chrome steel), stainless steel, ceramic or rubber.

How does a ball mill work?

A Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation.

You are wormly welcomed to our factory for site investigation!

Please contact us if any interests in our Ore Grinding Mill Machine Gold Mining Ball Mill.
