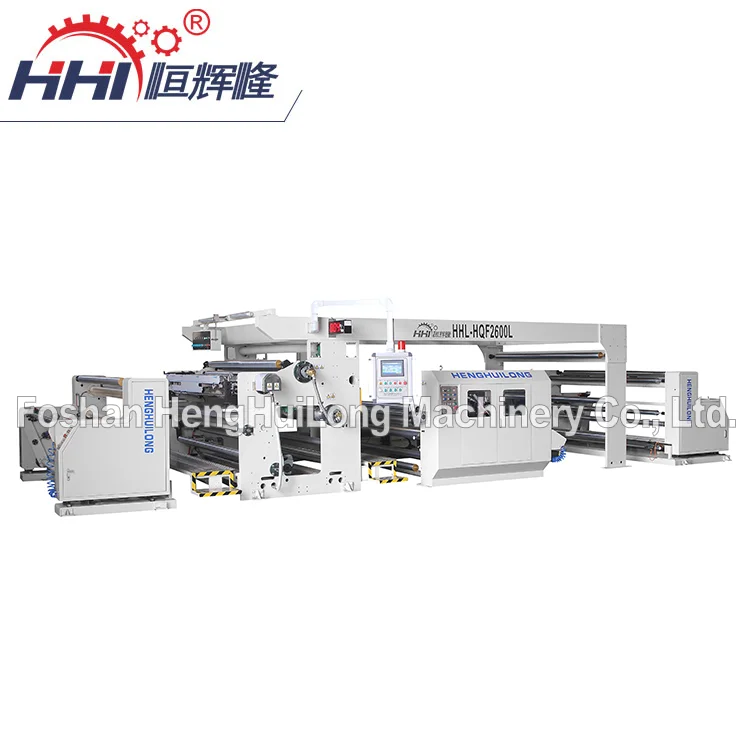

HHL HQF2600L High Speed PUR Hot Melt Glue Medical Protective Cloth Surgical Gown Pet Supplies Laminating Machine
- Category: Laminating Machines >>>
- Supplier: Guangdong Henghuilong Machinery Co. Ltd.
Share on (1600064446336):
Product Overview
Description
Applications
Used for diaper bottom film, medical protective clothing, surgical gown, pet supplies, adult incontinence products,other breathable composite products.
model | HQFW2600 |
Mechanical speed [m/min] | 200 |
Coating weight | 2-6g/㎡ |
Structure type | Double wall panel |
Rewinding and unwinding | Single release single collection |
Inner diameter of paper tube for placing and receiving [mm] | 76/3' |
Raw material width [mm] | 1300-2450 |
Maximum raw material diameter [mm] | 1200 |
Precise tension control | Servo motor |
Maximum receiving diameter [mm] | 1200 |
Total power of equipment | 96 |
Equipment width X height X length | 9800*5000*2800 |
equipment weight | About 15 tons |
Production Process
Glue on the cloth, unwind the film, fit one, cut and rewind
Main features
1.Adopt low glue volume, high speed, high precision mesh roller transfer coating form, coating control accuracy and service life are greatly improved
2.Servo motor drive system controls winding and unwinding to provide precise tension control
3.Unwinding is equipped with correcting device, high-performance photoelectric sensor and servo actuator ensure the neatness of the coil
4.Tension closed loop automatic control, stable tension and speed control before compounding, product quality assurance
5.Automatic tension feedback and automatic diameter calculation
Glue on the cloth, unwind the film, fit one, cut and rewind
Main features
1.Adopt low glue volume, high speed, high precision mesh roller transfer coating form, coating control accuracy and service life are greatly improved
2.Servo motor drive system controls winding and unwinding to provide precise tension control
3.Unwinding is equipped with correcting device, high-performance photoelectric sensor and servo actuator ensure the neatness of the coil
4.Tension closed loop automatic control, stable tension and speed control before compounding, product quality assurance
5.Automatic tension feedback and automatic diameter calculation
Comparison of the properties for Dot transfer lamination & Suspension scraping lamination
Item | Dot transfer lamination（other used） | Suspension scraping lamination（we uesd） | ||||
Post-maintenance | Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble. | Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long. | ||||
Frequently change the width of the glue coating, the baffle is easy to damage | The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled. | |||||
Glue coating material | Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.) | Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated | ||||
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
