Direct Sale COG Mini 16x2 2.26 Inch Green Color Micro Oled Character Display
- Category: Display Modules >>>
- Supplier: Shenzhen Goldenmorning Electronic Co. Ltd.
Share on (1600064983045):
Product Overview
Description
Product Description

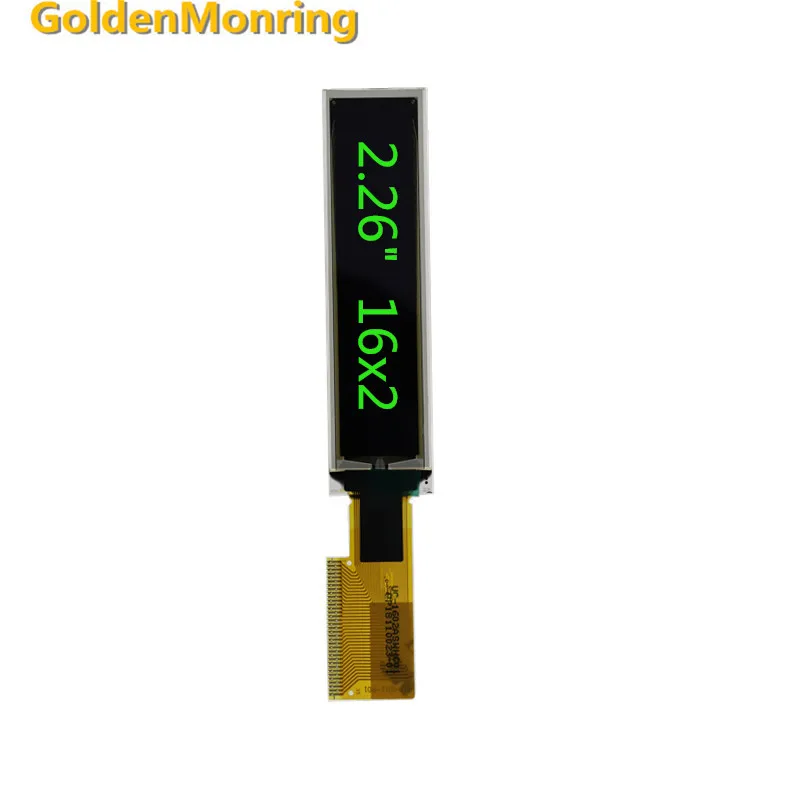

Direct Sale COG Mini 16x2 2.26 Inch Green Color Micro Oled Character Display
2.26" green oled display
| Diagonal Screen Size | 2.26inch |
| Color | Mono(Green) |
| Model number | GME1602-04 |
| Resolutions |
16x2 |
| Outline dimension | 68.50x17.50x2.00 mm |
| Active area | 56.22x11.52mm |
| Pixel pitch | 0.60x0.70 mm |
| Pixel size | 0.57x0.6mm |
| Driver IC | US2066 |
| Voltage | 3-5V |
| Interface | 4-/8-bit 68XX/80XX Parallel, SPI, I2C |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~90℃ |
| Assemble | Soldering |
| Pins | 33P |
Drawing(2.26" oled display)

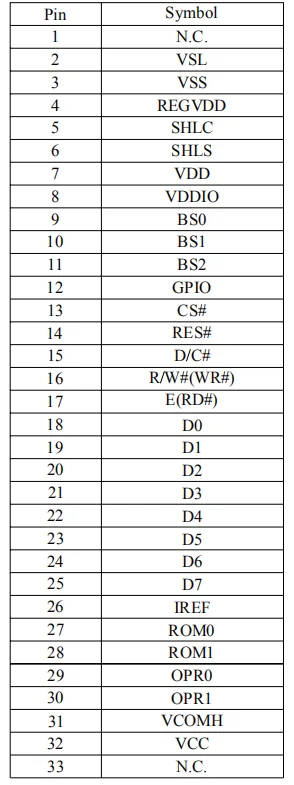

Pin Assignment(2.26" oled.Pins:33P)
Application
