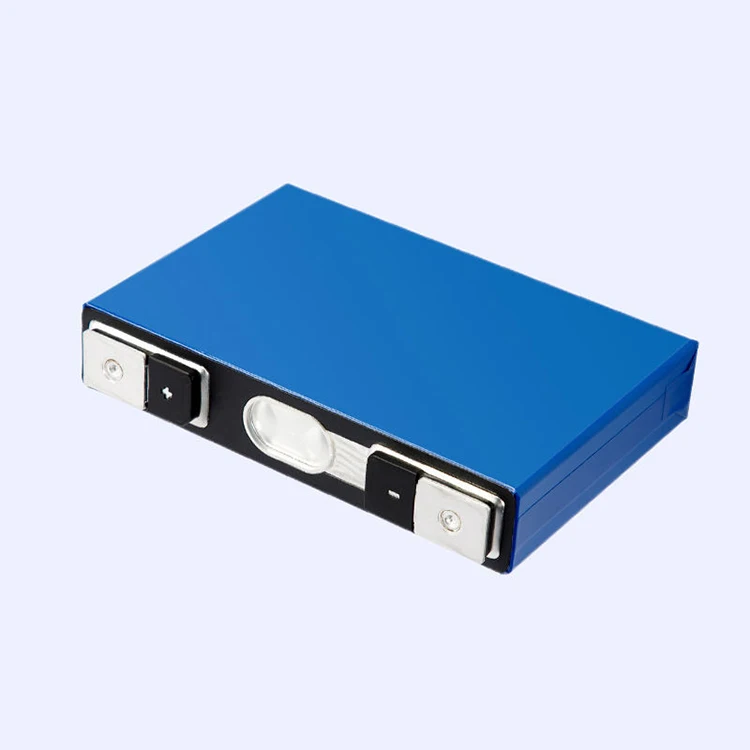

Lithium pouch cell 3.7v 30ah 40ah 50ah 53ah lithium ion prismatic cells for Solar / ebike/ UPS
- Category: >>>
- Supplier: Shenzhen Kai Xinda Energy Technology Limited Company
Share on (1600064989512):
Product Overview
Description
Product Description
Lithium pouch cell 3.7v 30ah 40ah 50ah 53ah lithium ion battery cell for Solar / ebike/ UPS
Main Features
2. Use a grade prismatic cells. More than 2000 cycle times.
3. Max discharge continuous current, 1C TO 3C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade prismatic cells. More than 2000 cycle times.
3. Max discharge continuous current, 1C TO 3C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
6. Optional: Lithium Battery built with BMS
Normal parameters | ||||
NO. | Item | General Parameter | ||
1 | Type | Lithium Battery Cell | ||
2 | Model | KXD-3.7V-50AH | ||
3 | Casing material for single cell | Nickel plated steel | ||
4 | Standard capacity(0.2C5A) | 50Ah | ||
5 | Rated voltage | 3.7V | ||
6 | Max.charge voltage | 4.2V | ||
7 | Cut-off voltage | 2.75V | ||
8 | Standard charge current | 50A | ||
9 | Max continuous discharge current | 50A | ||
10 | Peak discharge current | 150A | ||
11 | Battery dimension | L148*H98*T27mm | ||
12 | (Approx.)Total weight(Approx.) | about 0.65KG | ||
13 | Standard charging temperature | 0℃~45℃ | ||
14 | Discharge temperature | -20℃~60℃ | ||
15 | Storage temperature | -20℃~45℃ | ||
16 | Cycle life | >2000 times | ||
17 | Case | blue PVC wrap | ||
18 | Option | BMS/Connector/Capacity | ||
Optional: Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
Main Applications
1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat
Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup /
Engine Starting Battery,etc.
Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment.
3.Other Applications:Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup /
Engine Starting Battery,etc.
Company Introduction
Shenzhen Kaixinda Energy Technology Co., Ltd.
KXD-BATTERY is a professional leading lithium ion battery producer with more than 15 years history in China.
KXD-BATTERY is a professional leading lithium ion battery producer with more than 15 years history in China.
The main productus are lithium battery packs, lithium polymer batteries, LiFePO4 battery packs, AGV car batteries, or any customized battery projects.
We’ve grown to a company with complete R&D team and quality inspection system. We focus on battery solutions for Energy Storage System, AGV robots Solar Street Lighting, Electric Vehicle, Telecom, Medical and UPS etc
Why choose us
Certification
ISO9001:2015, ISO14001:2015
CE, RoHs, IEC62133, CB, UL, KC,PSE, UN38.3 , MSDS
Packing and shipping
FAQ
Q: 1. Can I have a sample for customized specification?
A: Of course. please send us your specific requirement.
Q: 2. What is the lead time?
A: 3~7 days for sample, 10~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive.
For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
