modular aluminum ceiling mounted workstation crane
- Category: >>>
- Supplier: Zhejiang Jndo Hoisting Equipment Co. Ltd.
Share on (1600065029702):
Product Overview
Description
Product Description
modular aluminum workstation crane ceiling mounted
Do you have the problem of stuff complaining about heavy duty and repetitive material handling work?
Here we recommend our aluminum light crane system to deal with material handling work in workshop or warehouse.
It will be an ergomonic solution for your material handling work.
We can offer four sizes of aluminum track,A-105,A-140,A-180 and A-220.Capacity range from 250kg to 1200kg.
With a variety of accessories,including runway mountings,crane bridge suspensions,aluminum trolley,connecting plate and so on,aluminum light crane can be modular and be integrated into your infrastructure easily.

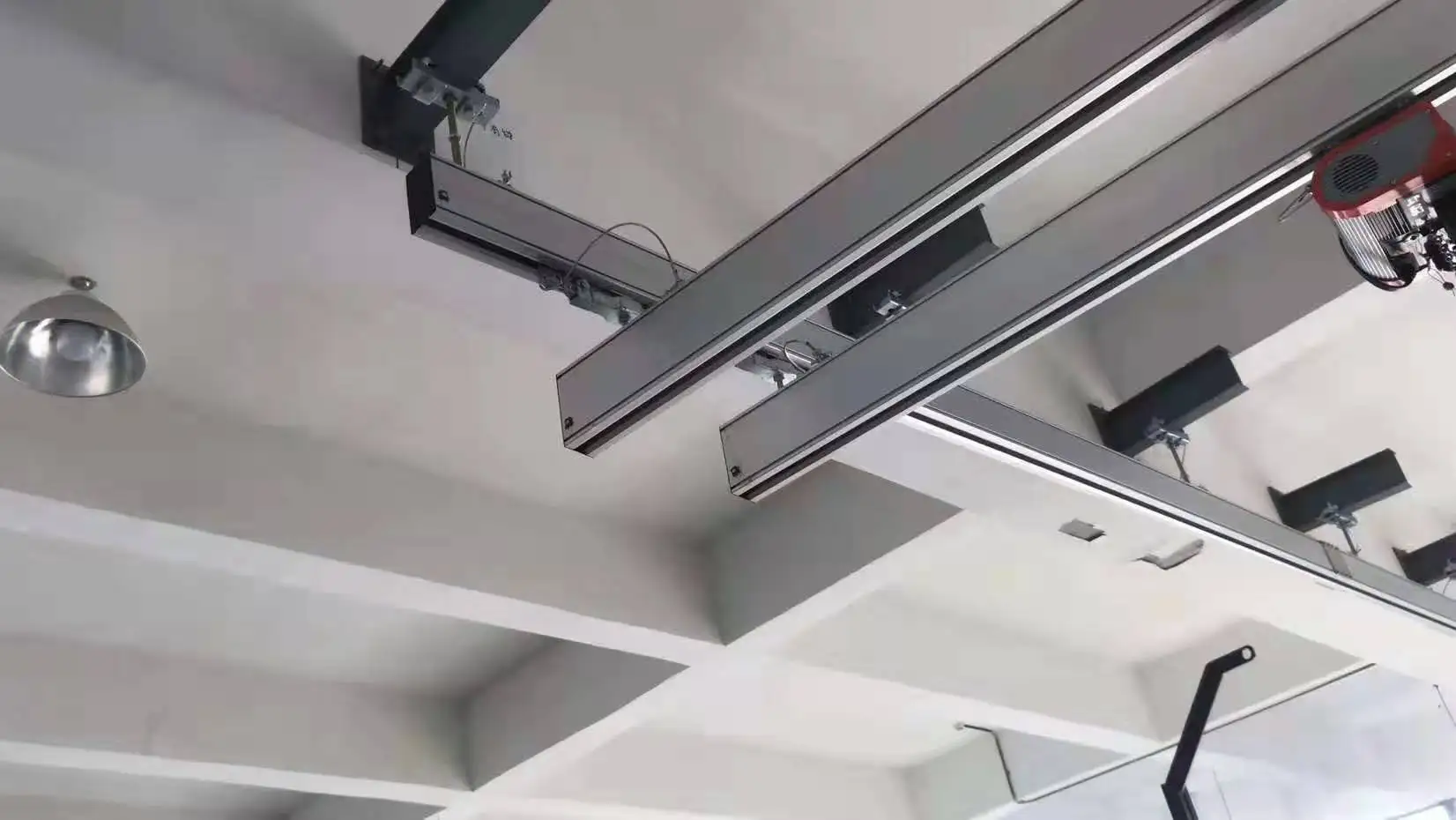

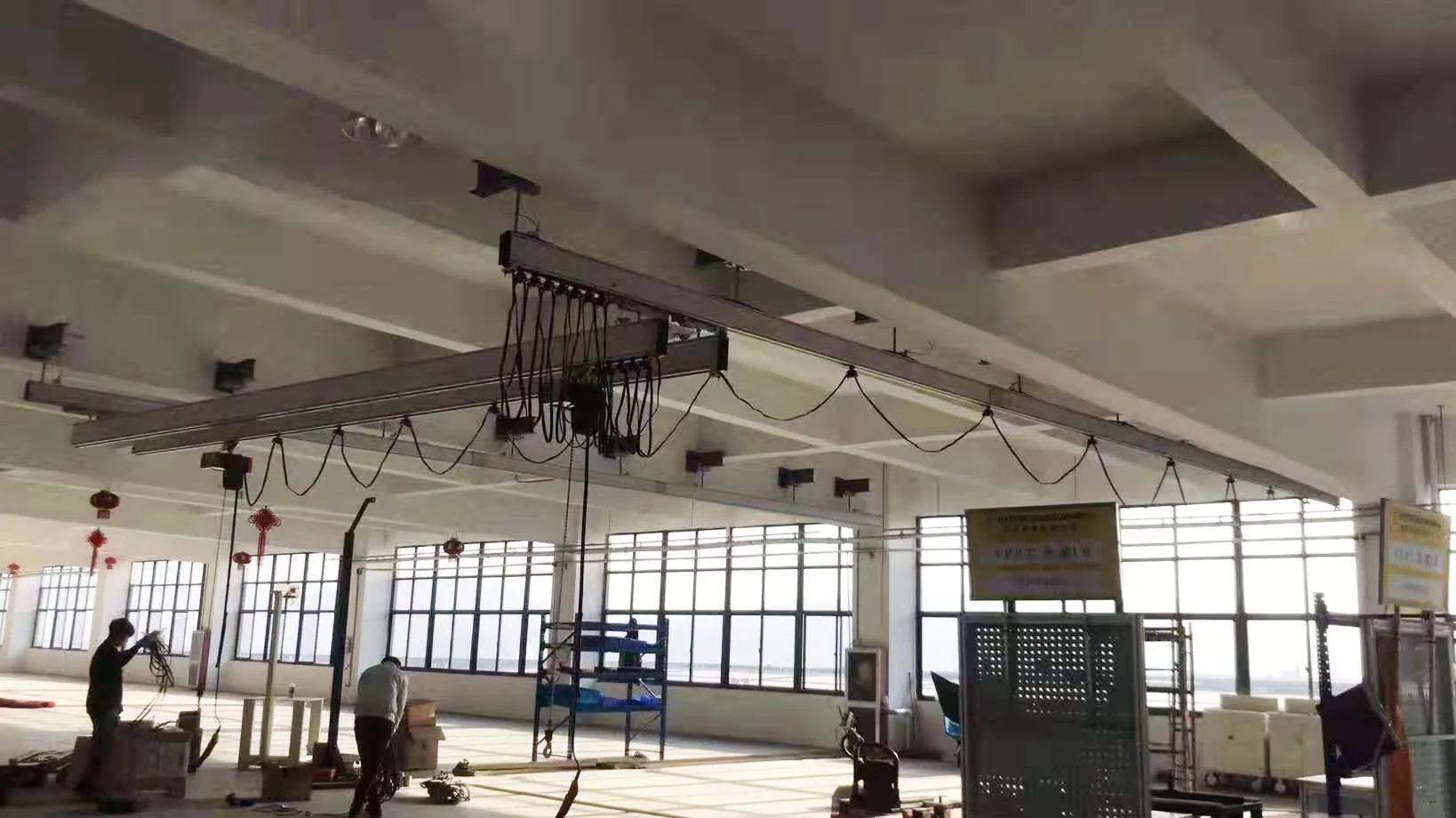

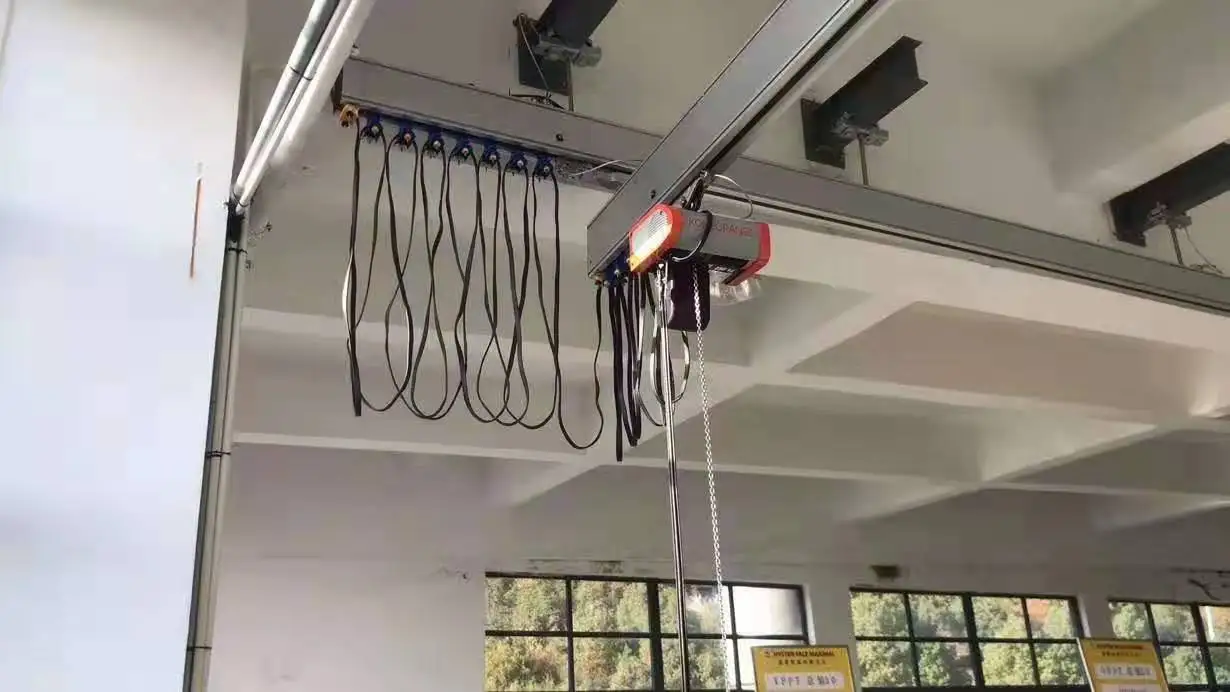

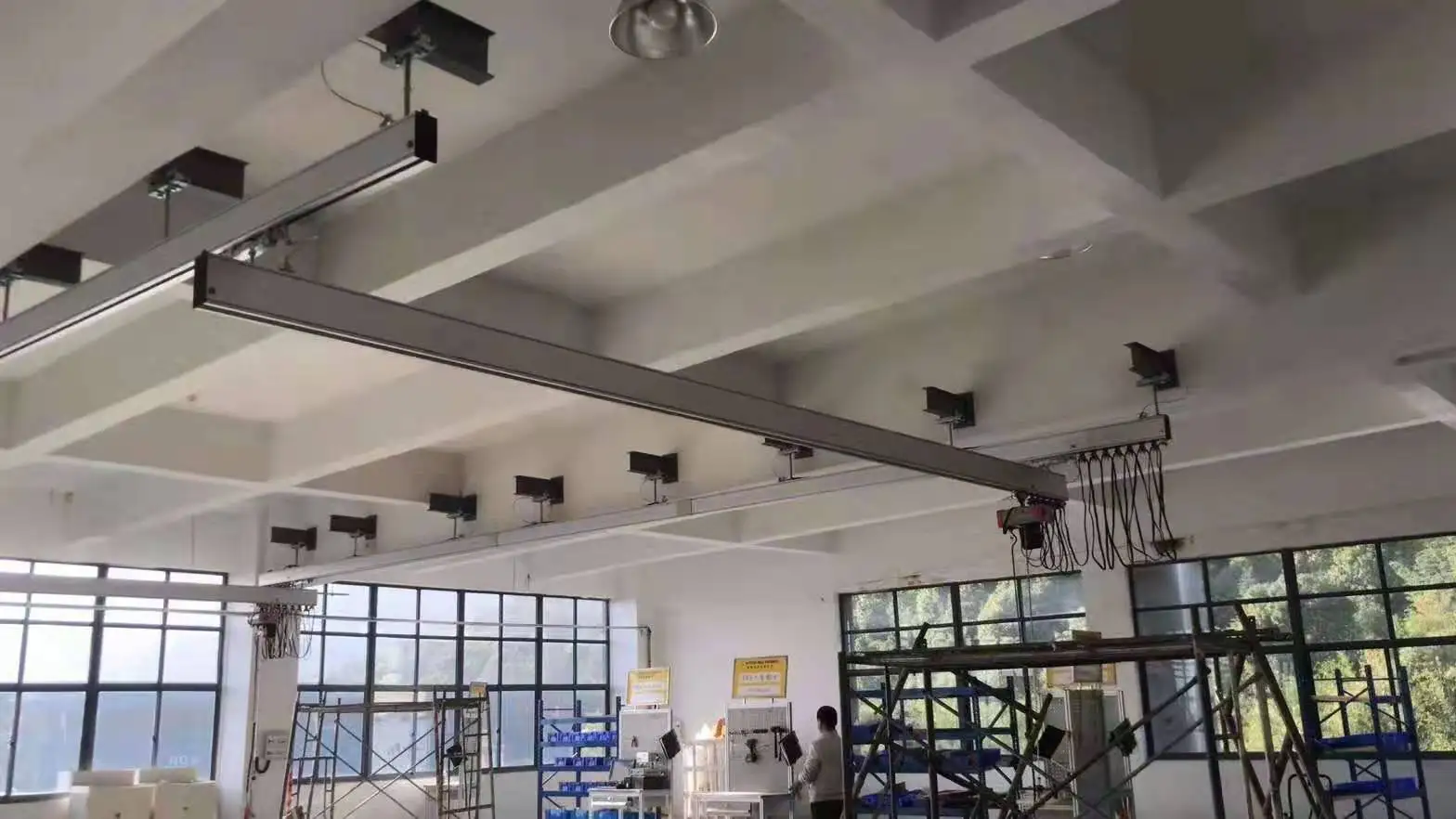

Ceiling-mounted systems require a building with an adequate overhead structure to hang the crane. Ceiling Mounted
bridge cranes are a great solution to keeping floors clear.

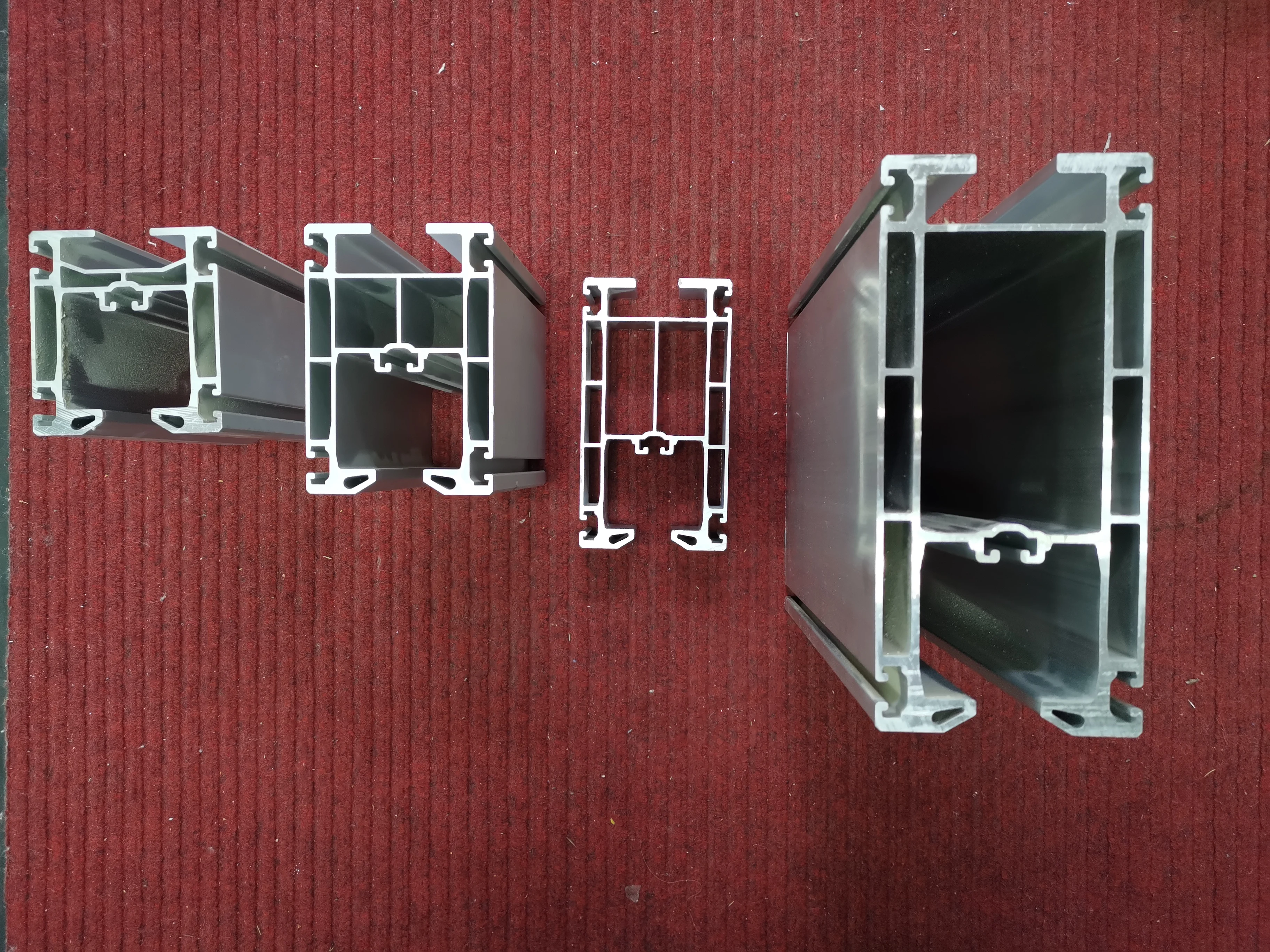

Four sizes of aluminum track

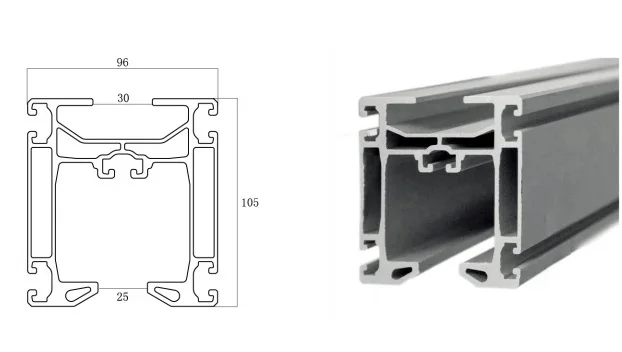

A-105
A-105 aluminum rail is made of EN AW 6063T66 natural aluminum.
Track height is 105mm
Its light weight,5kg/m
It surface is anodized for corrosion resistance.
A-105 is suitable load weight less than 250kg.
Track height is 105mm
Its light weight,5kg/m
It surface is anodized for corrosion resistance.
A-105 is suitable load weight less than 250kg.

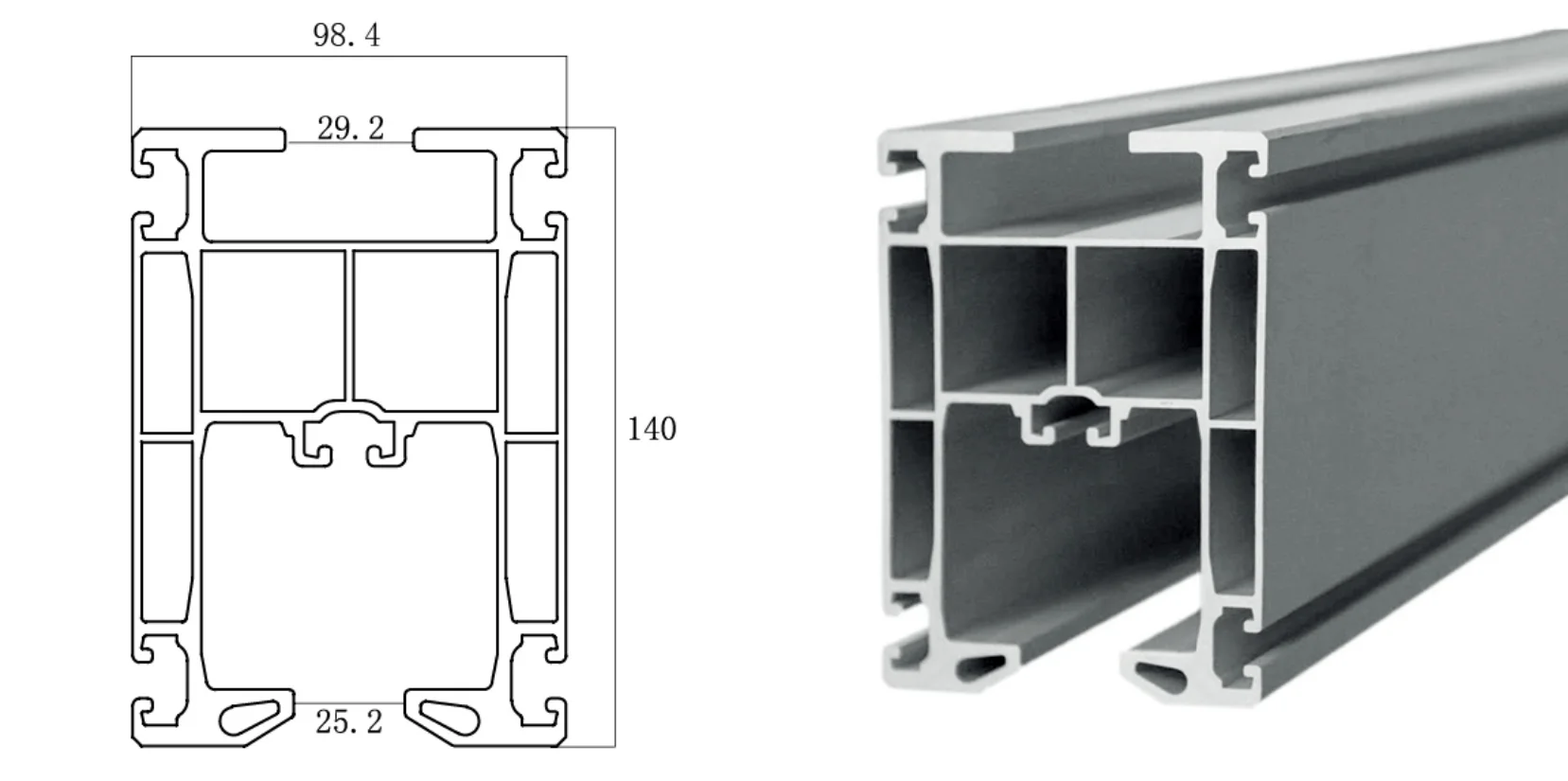

A-140
A-140 aluminum rail is made of EN AW 6063
T66 natural aluminum
Track height 140mm
Its weight is light 7kg/m
Track surface is anodized for corrosion resistance and good looking.
max capacity is 500kg

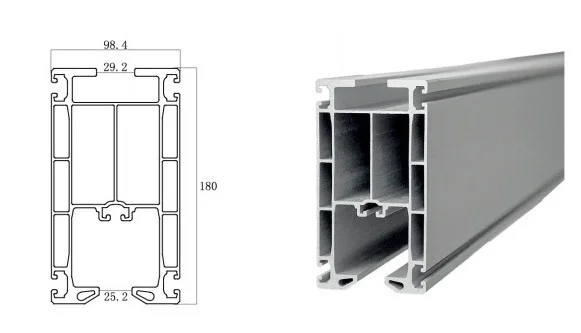

A-180
A-180 aluminum track is made of EN AW 6063 T66 natural aluminum
Track height 180mm
Its weight is light 8.5kg/m
Track surface is anodized for corrosion resistance
max capacity is 750kg

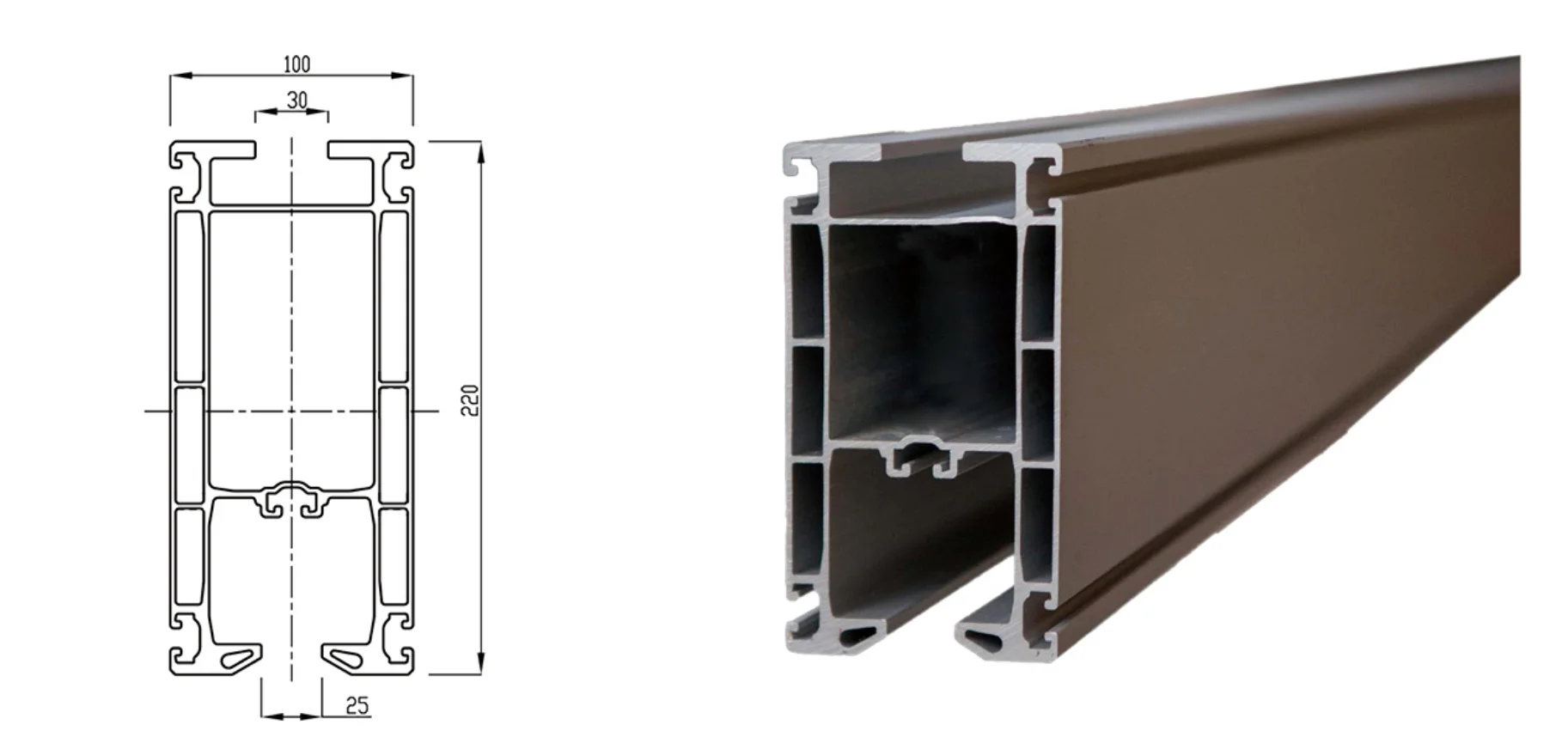

A-220
A-220 aluminum track is made of EN AW 6063 T66 natural aluminum

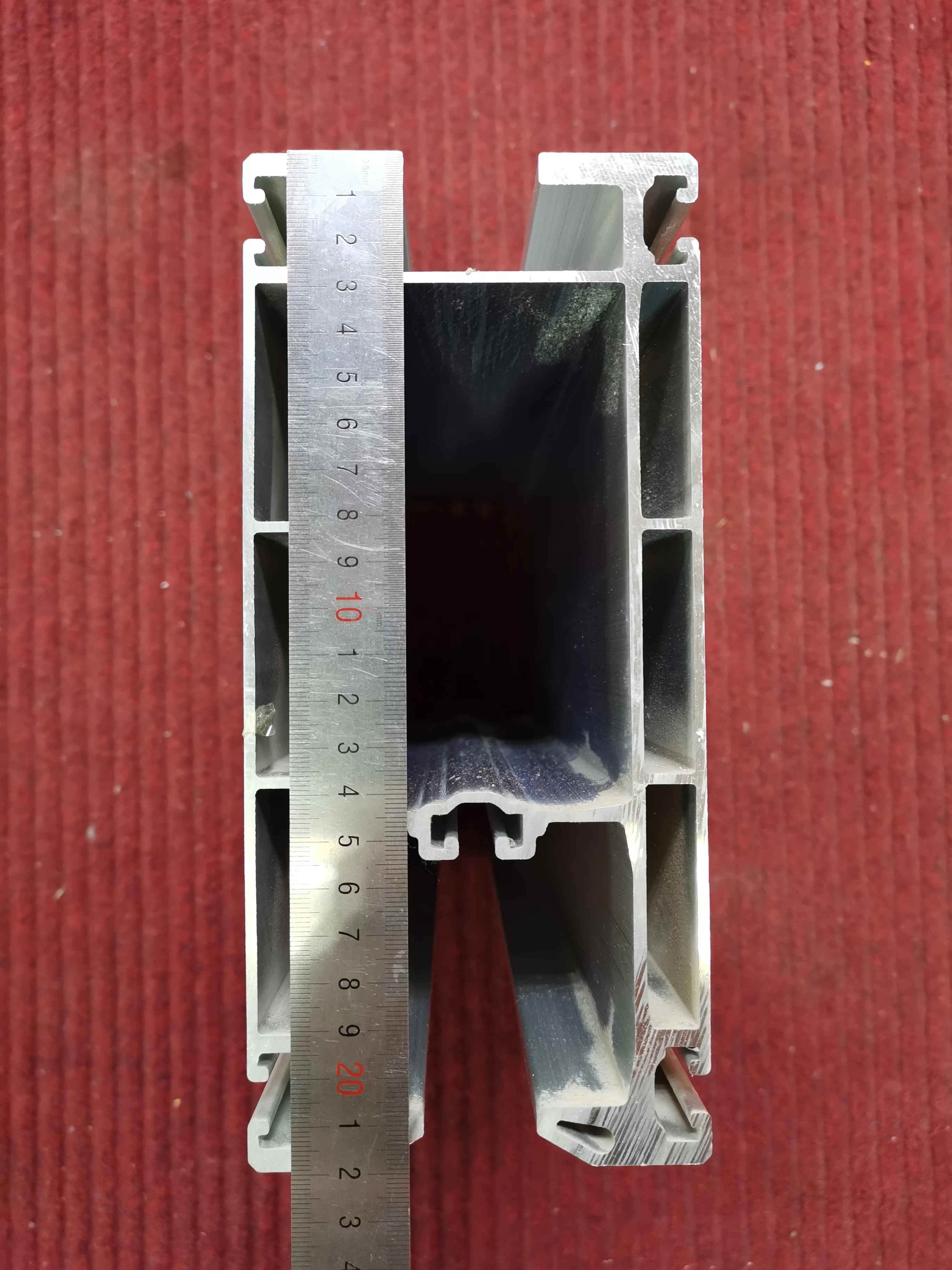

Track height is 220mm
Its weight is light.10kg/m
Track surface is anodized for corrosion resistance.
max capacity is 1200kg
Model | A-105 | A-140 | A-180 | A-220 |
Track height | 105mm | 140mm | 180mm | 220mm |
Weight | 5kg/m | 7kg/m | 8.5kg/m | 10kg/m |
material | EN AW 6063 T66 natural aluminum | EN AW 6063 T66 natural aluminum | EN AW 6063 T66 natural aluminum | EN AW 6063 T66 natural aluminum |
surface | anodized | anodized | anodized | anodized |
max capacity | 250kg | 500kg | 750kg | 1200kg |

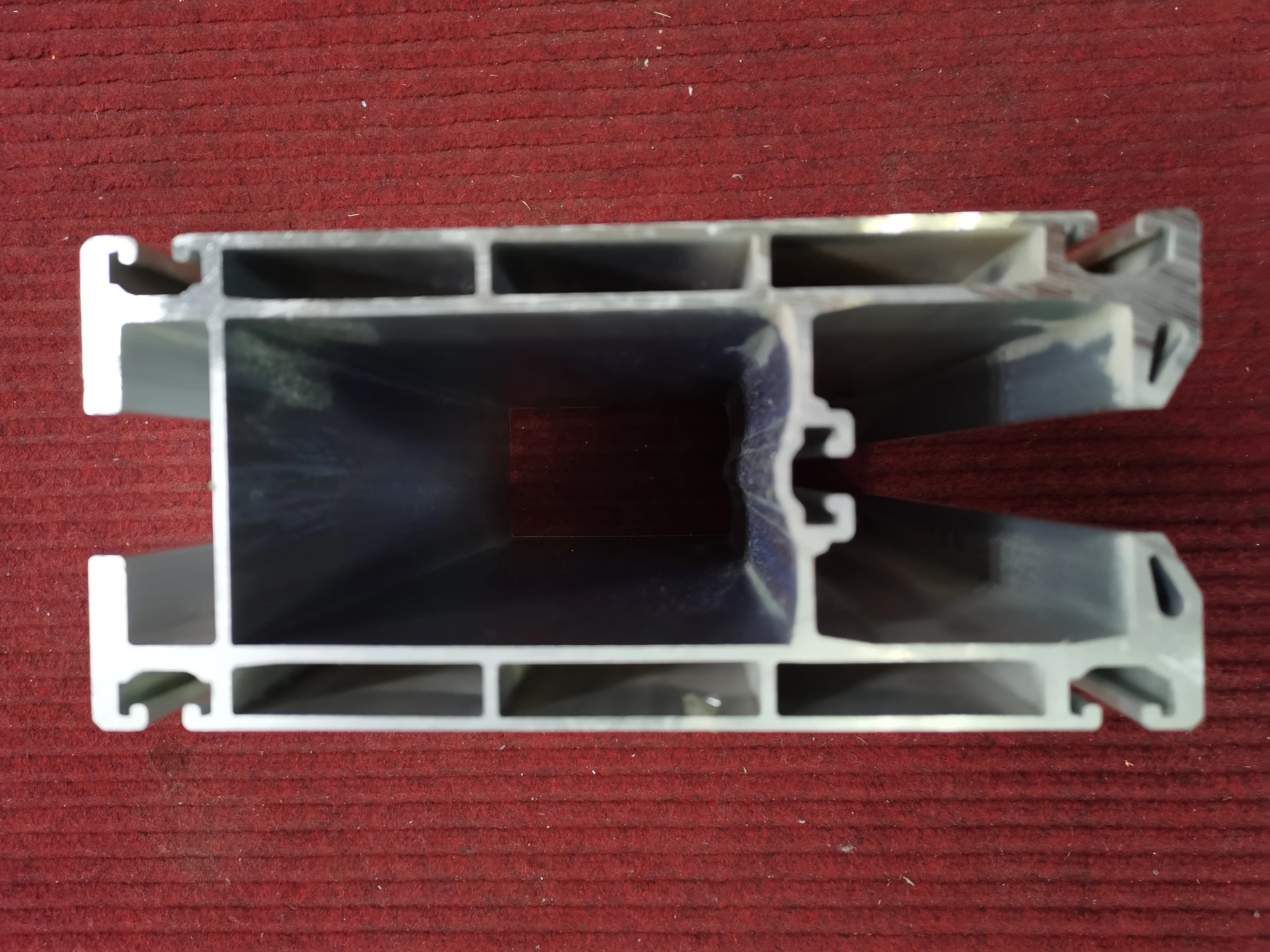

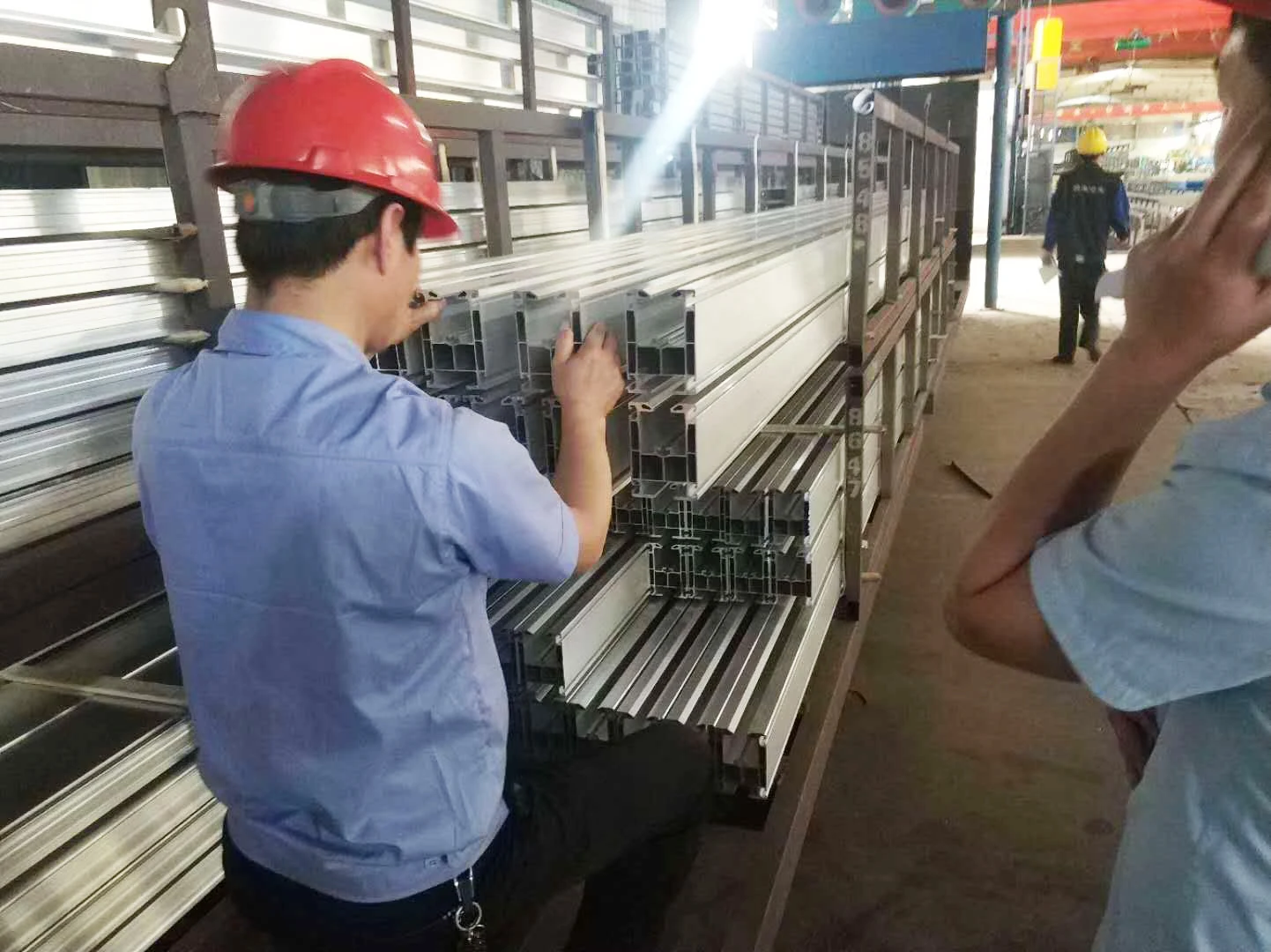

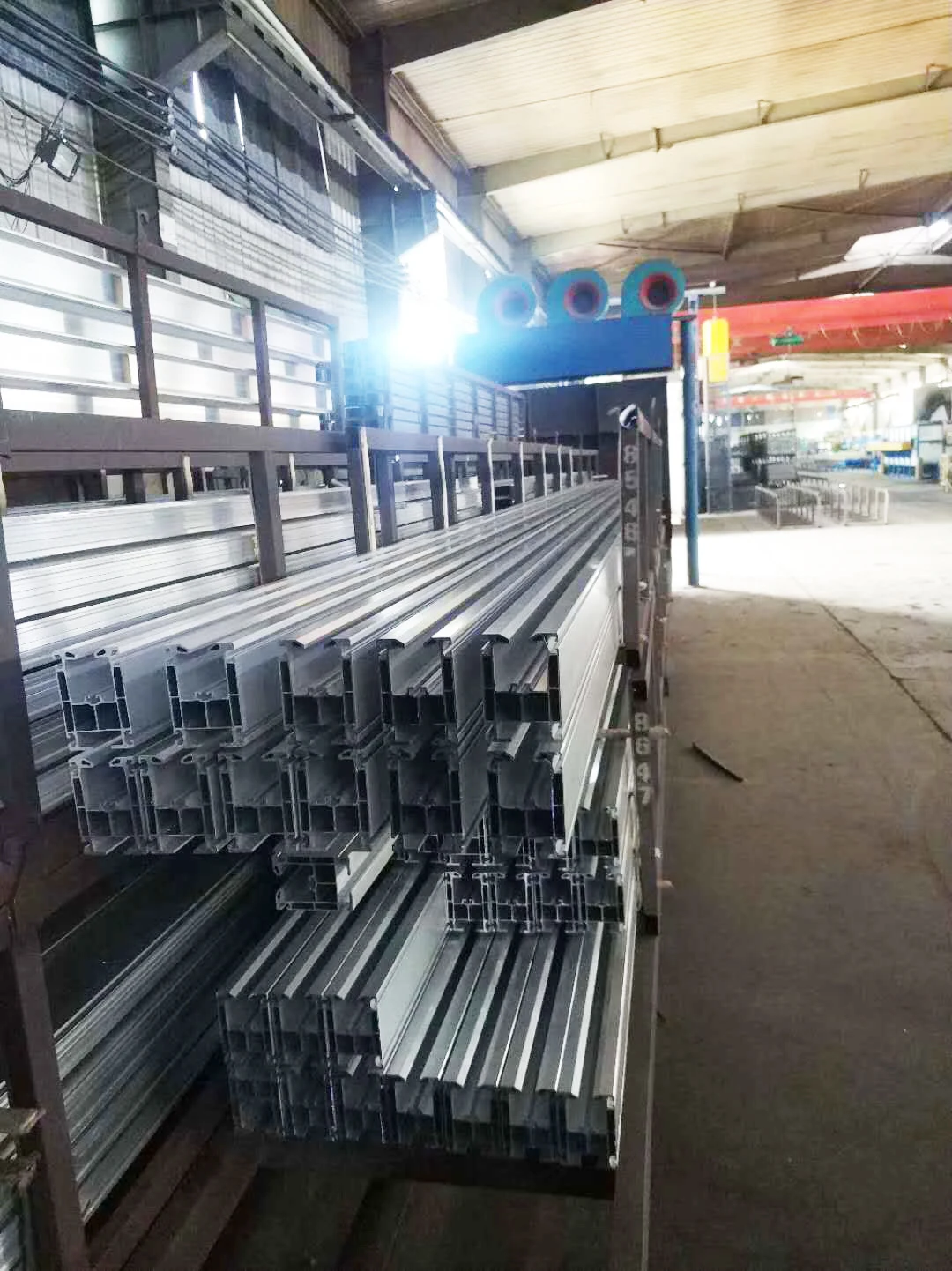

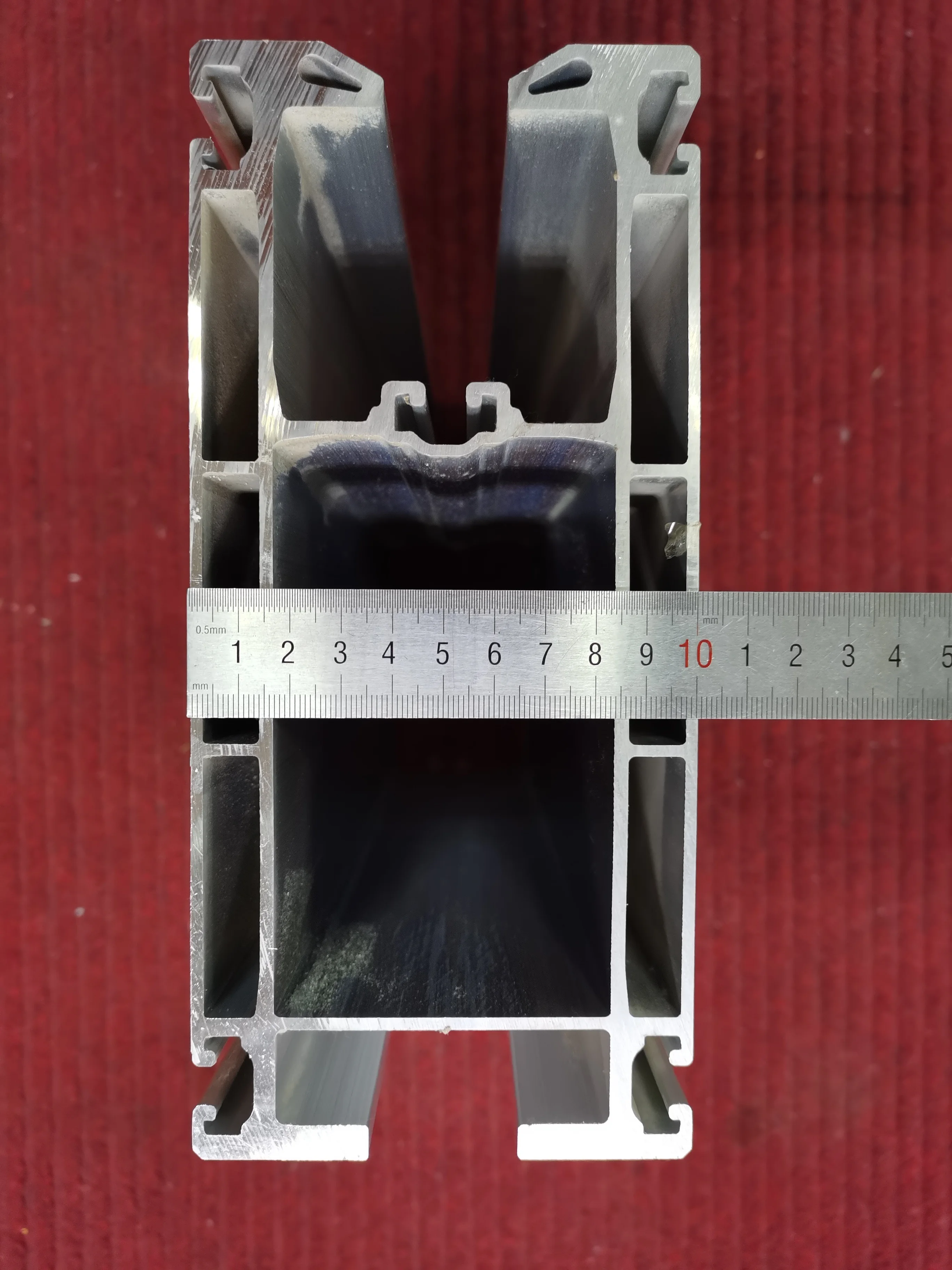

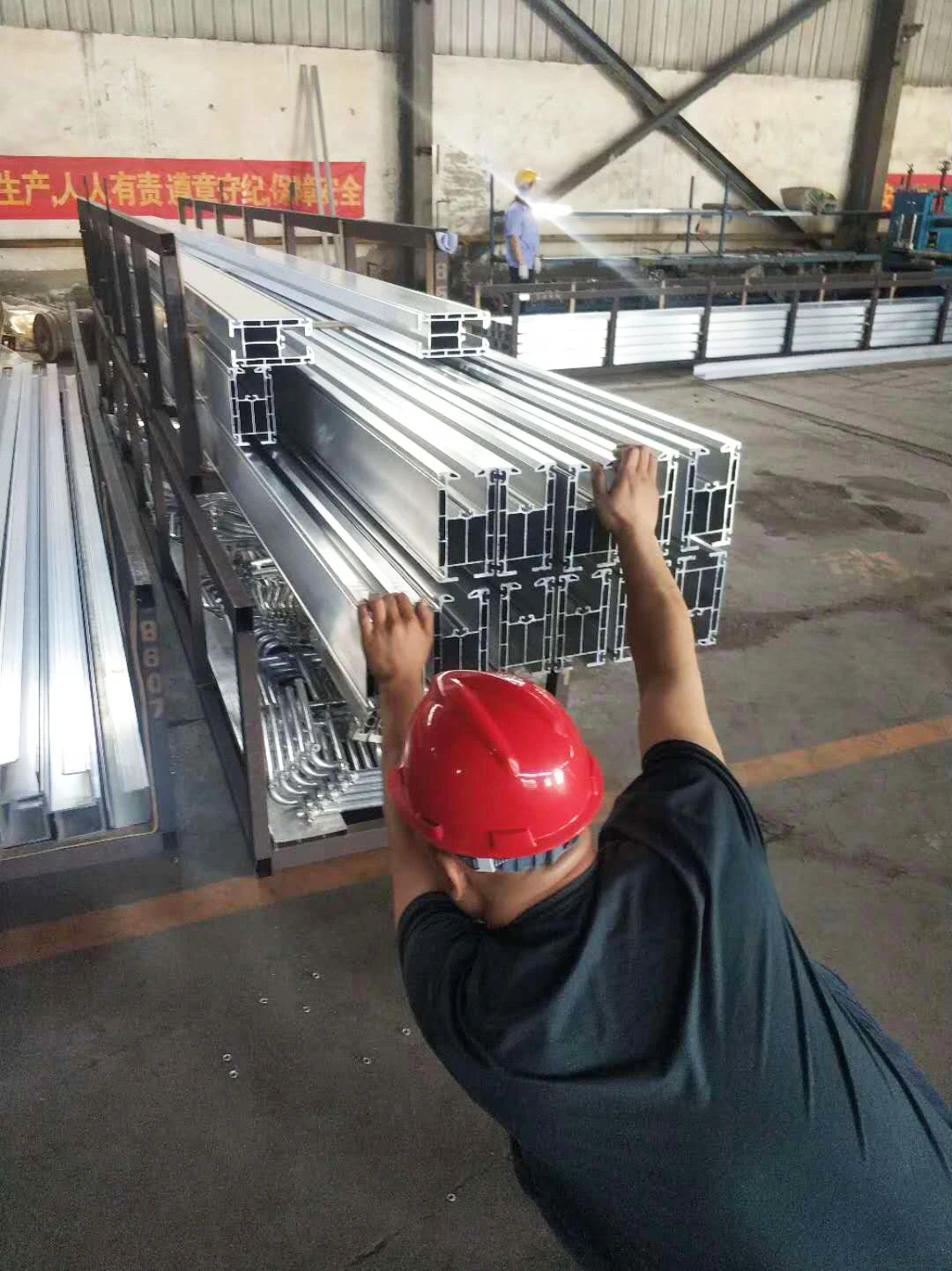

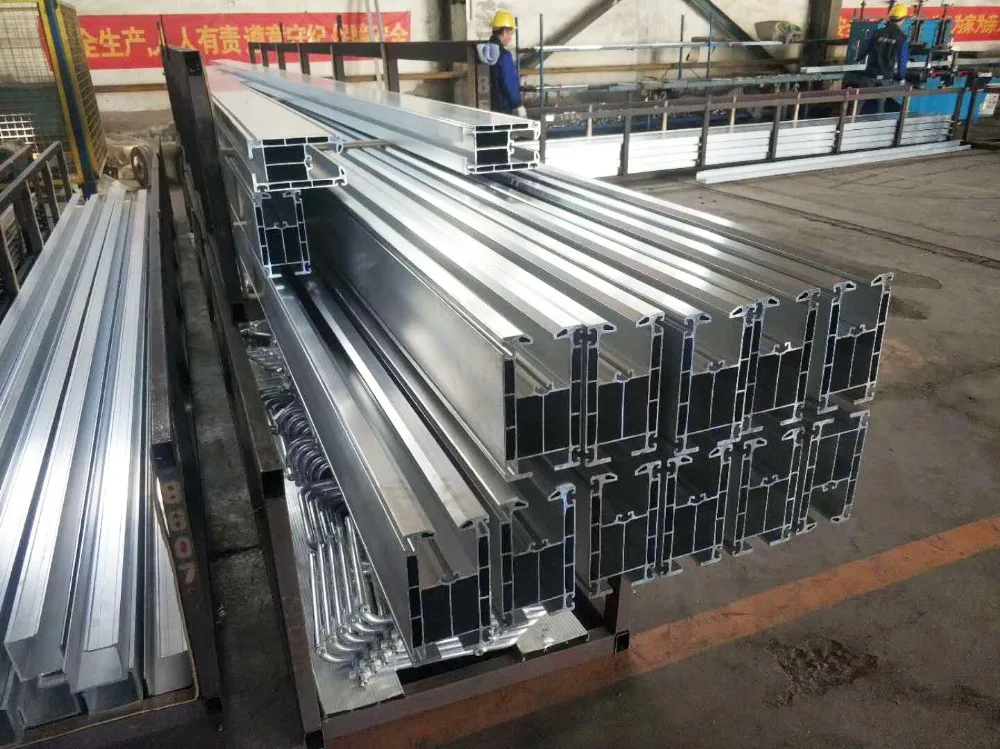

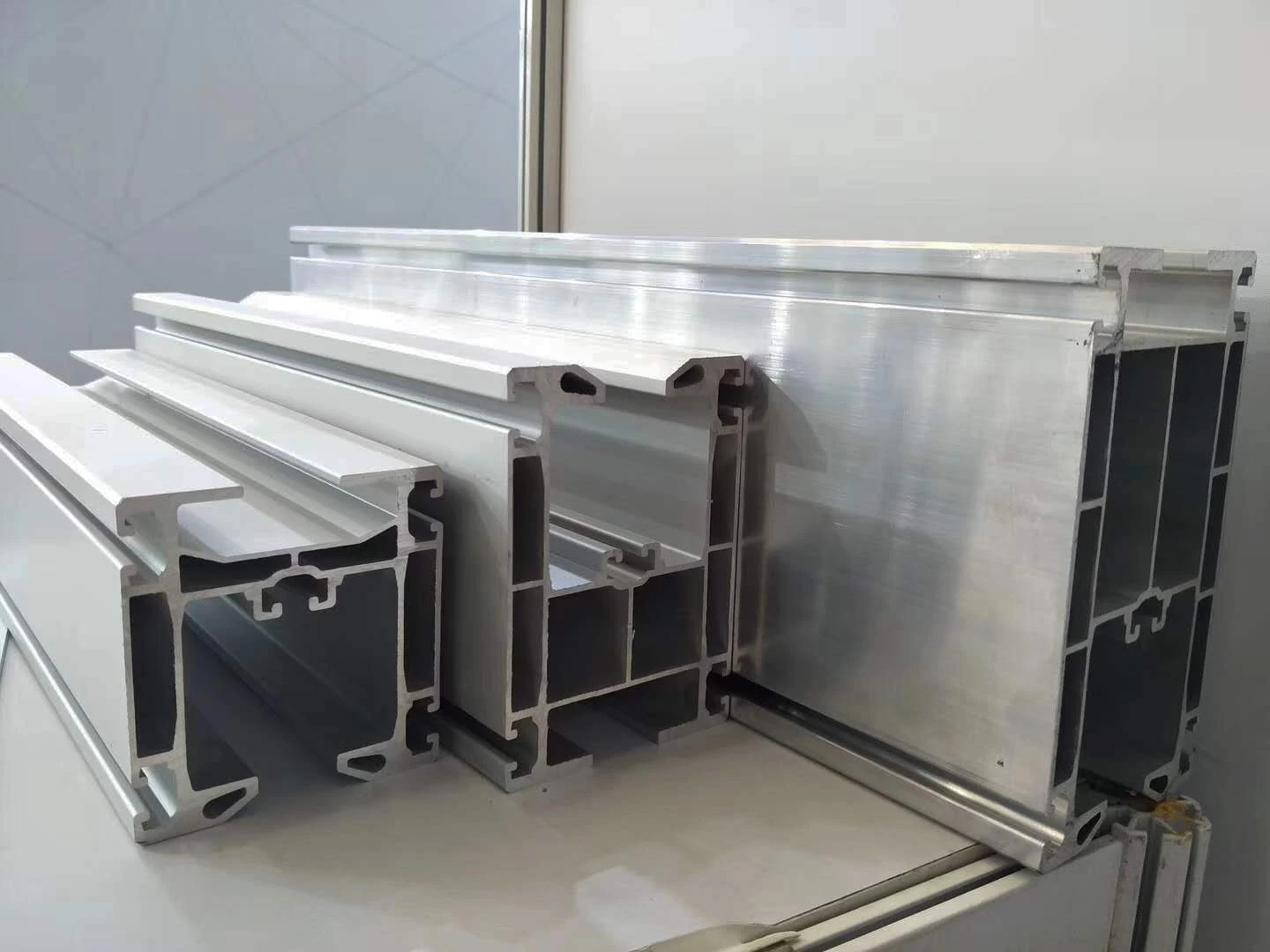

real pictures of tracks
accessories
Accessories play an important role in aluminum light crane system.They realize light crane modularization.
Light crane can be easily integrated into plant easily.

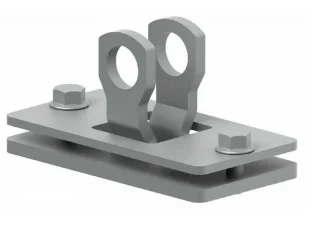

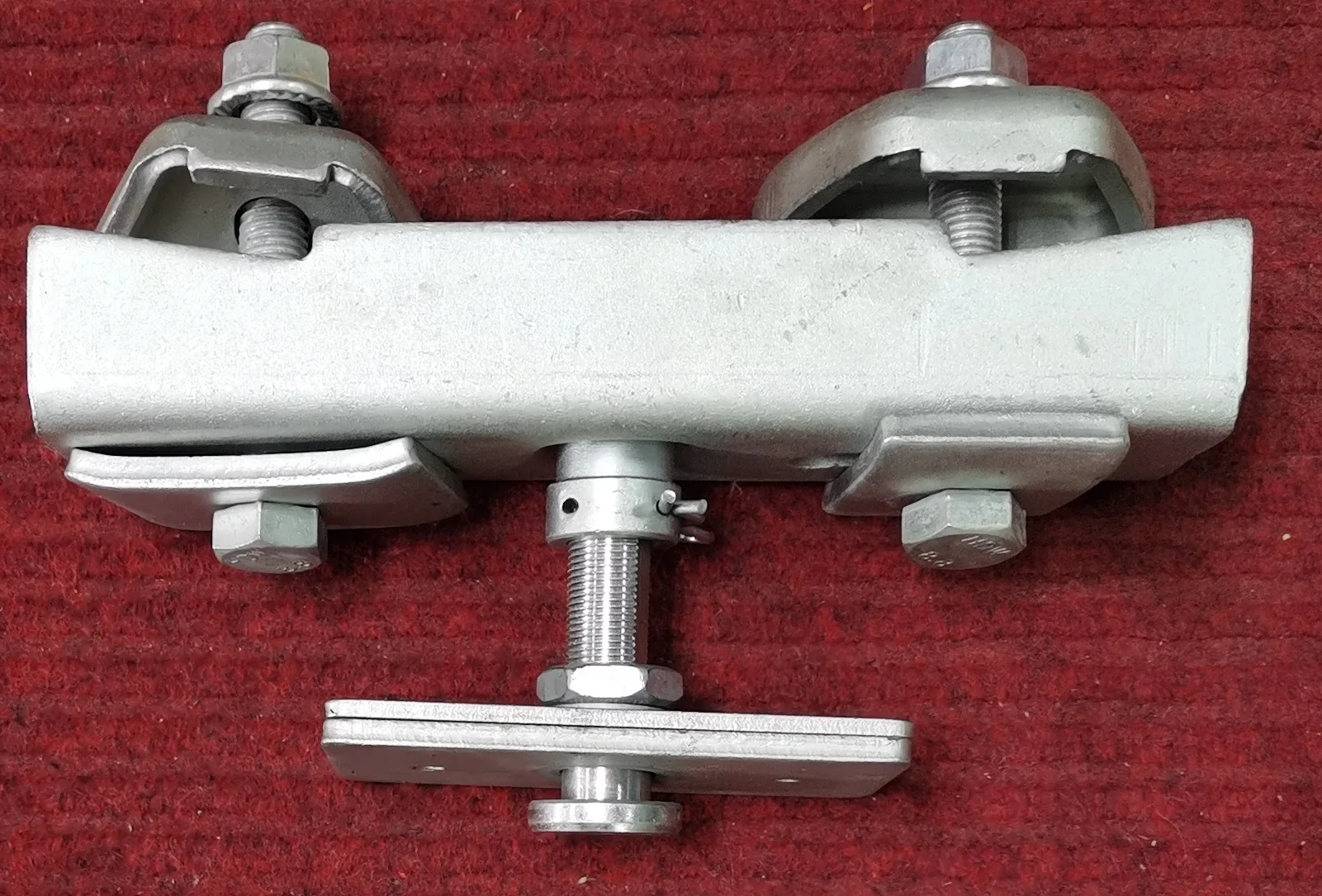

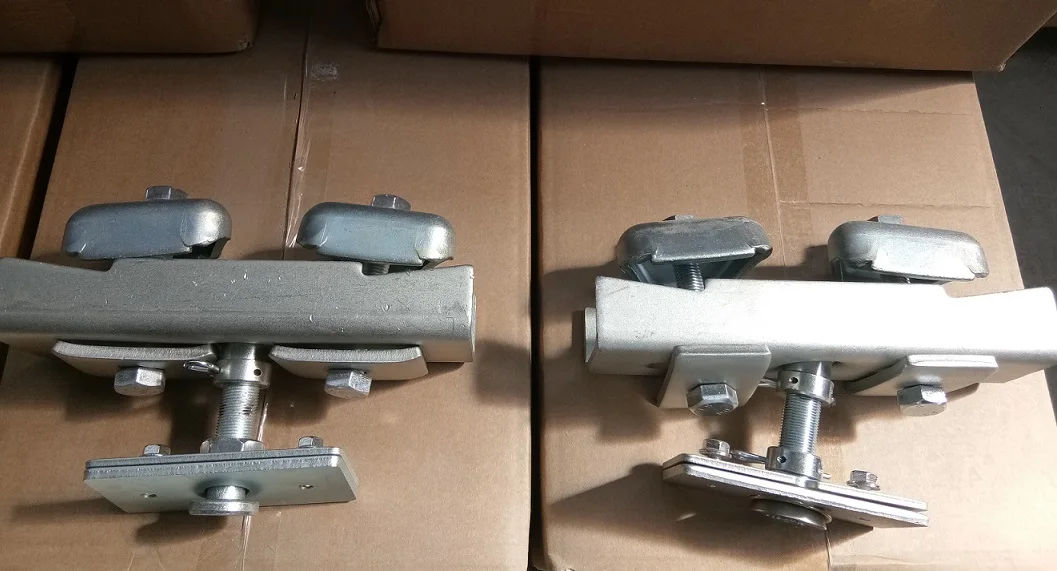

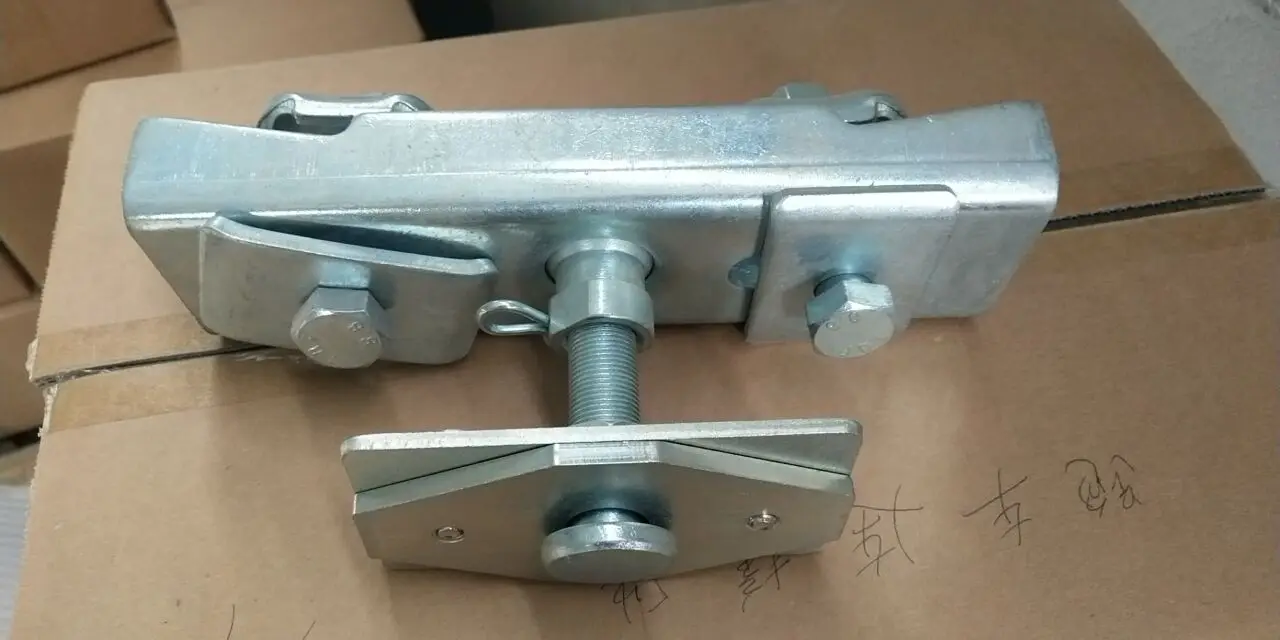

Rigid mounting
Pendular mounting
Mounting for curved rail
Aluminum gab trolley

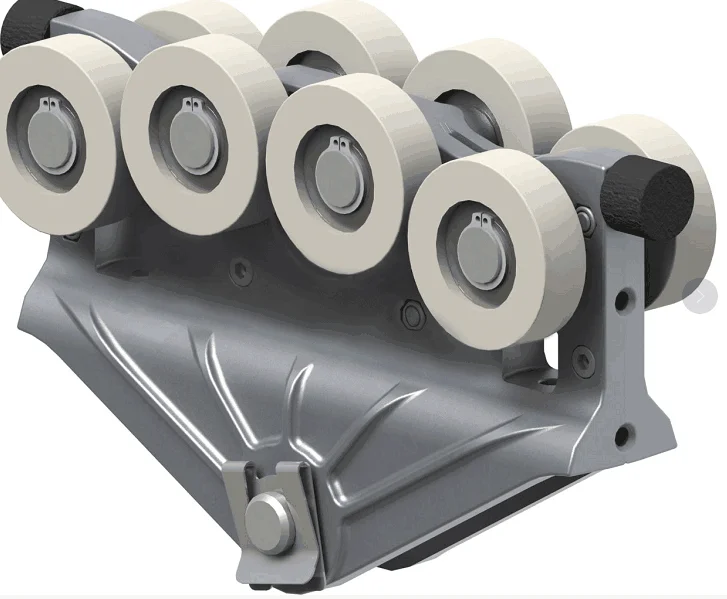

Aluminum crane bridge trolley

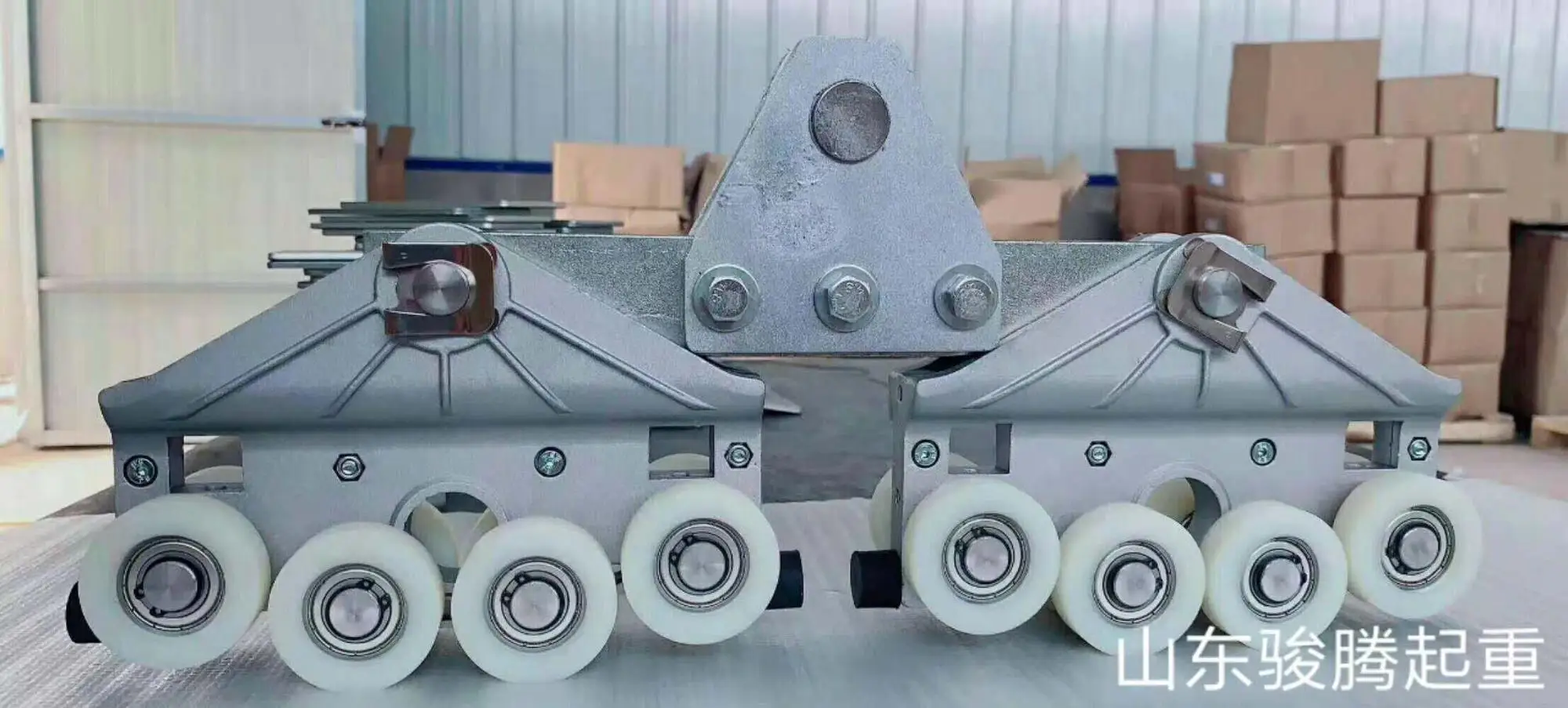

Aluminum tandem trolley

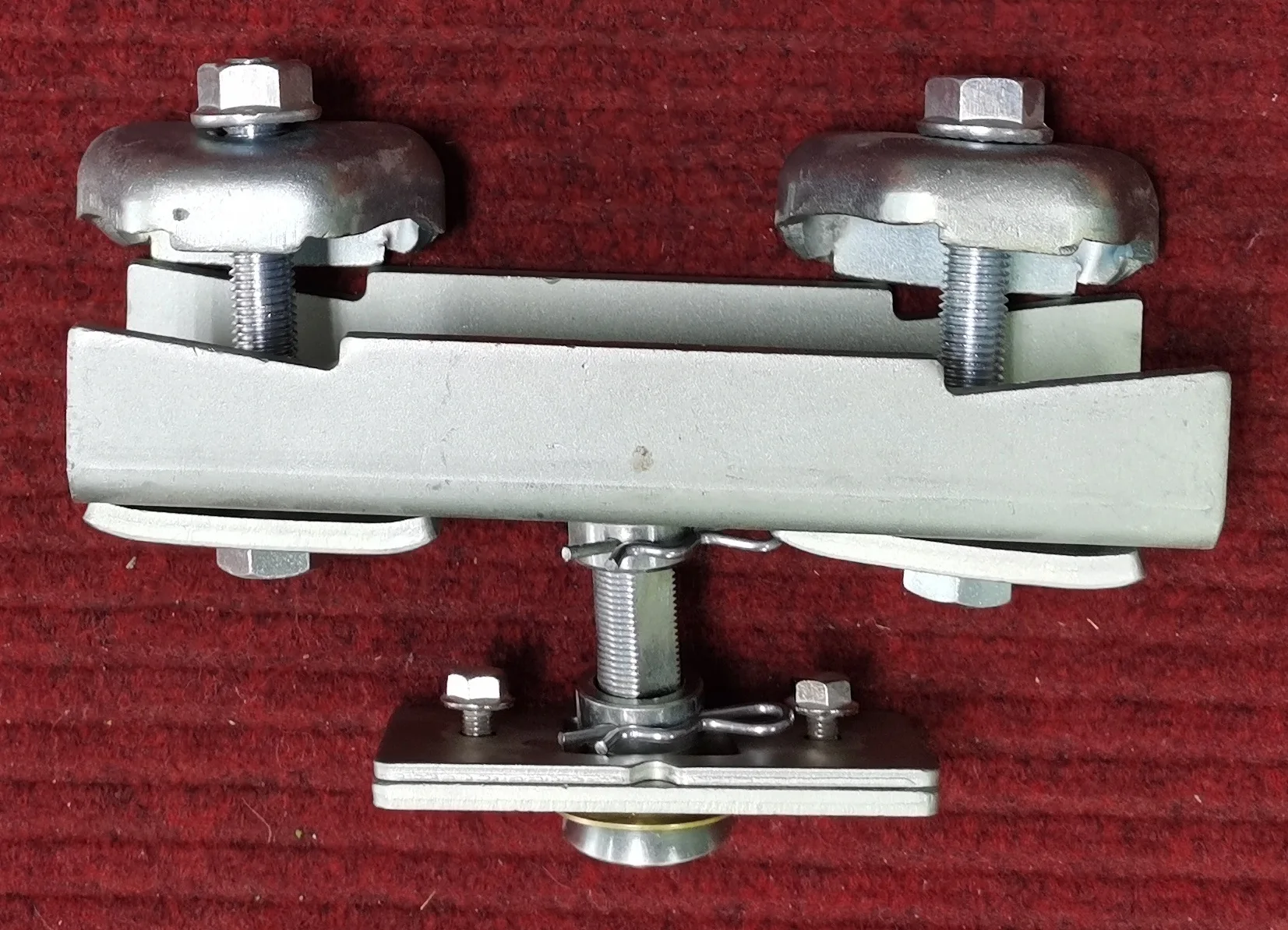

90 degree crane bridge suspension
0 degree crane bridge suspension

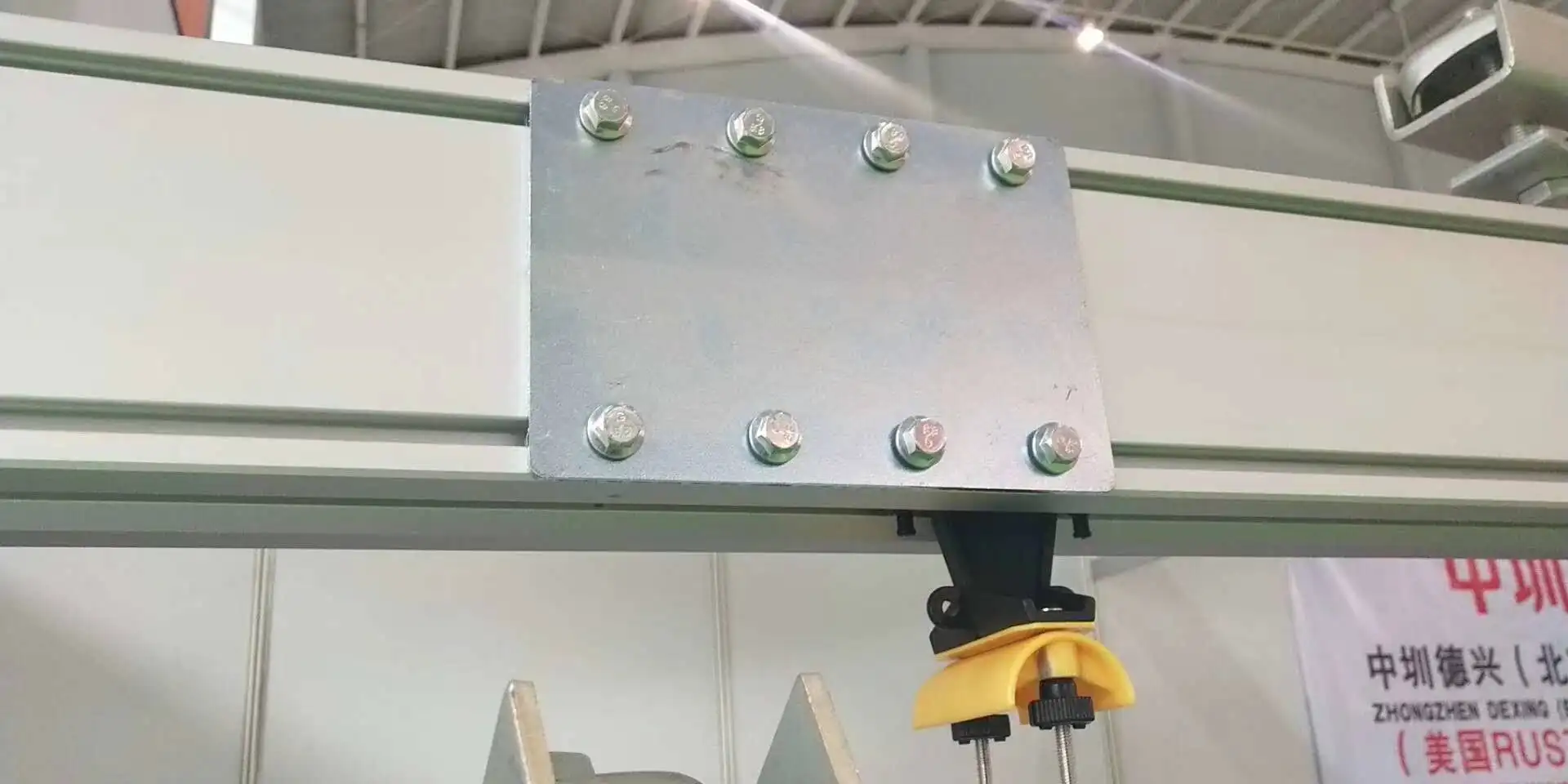

Connecting plate

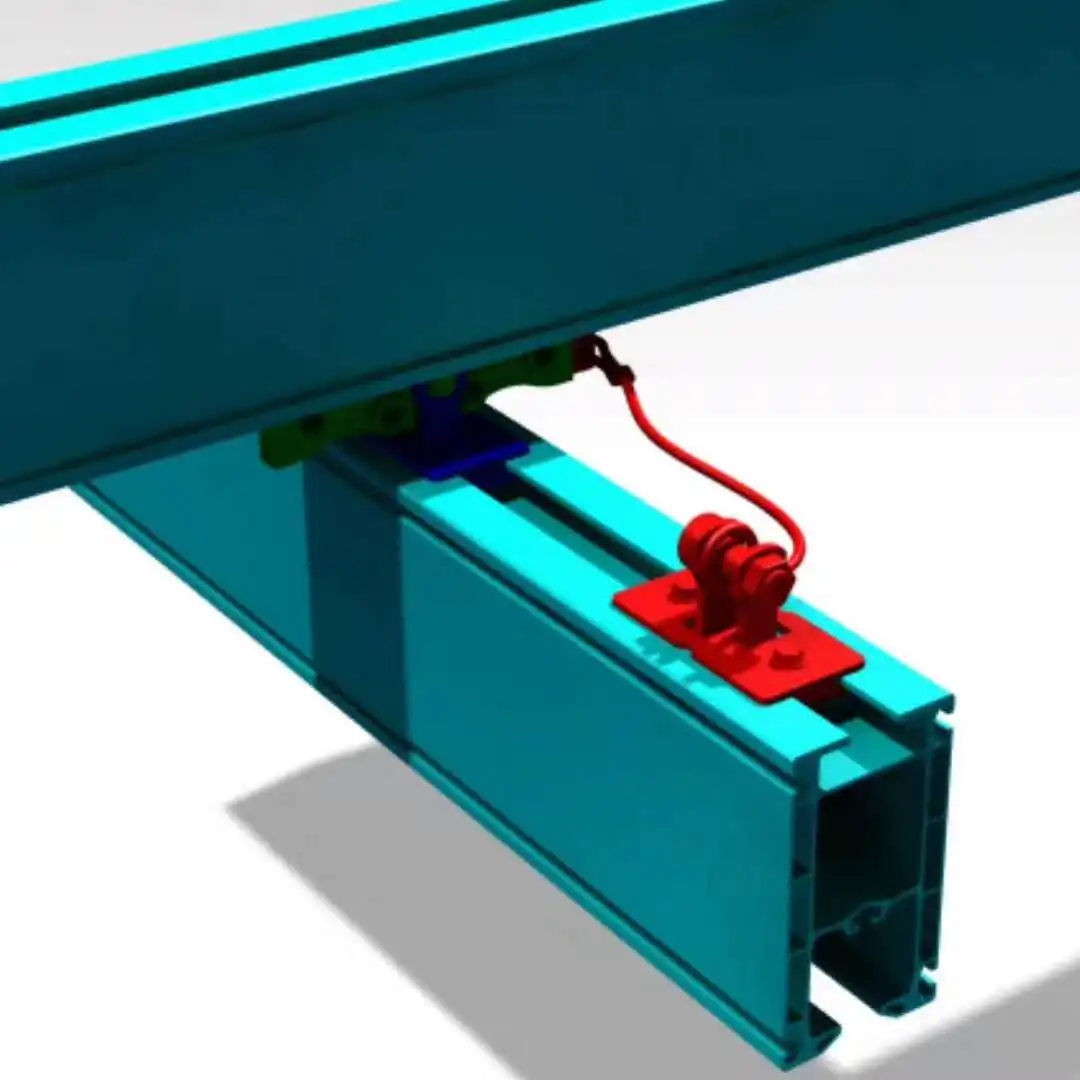

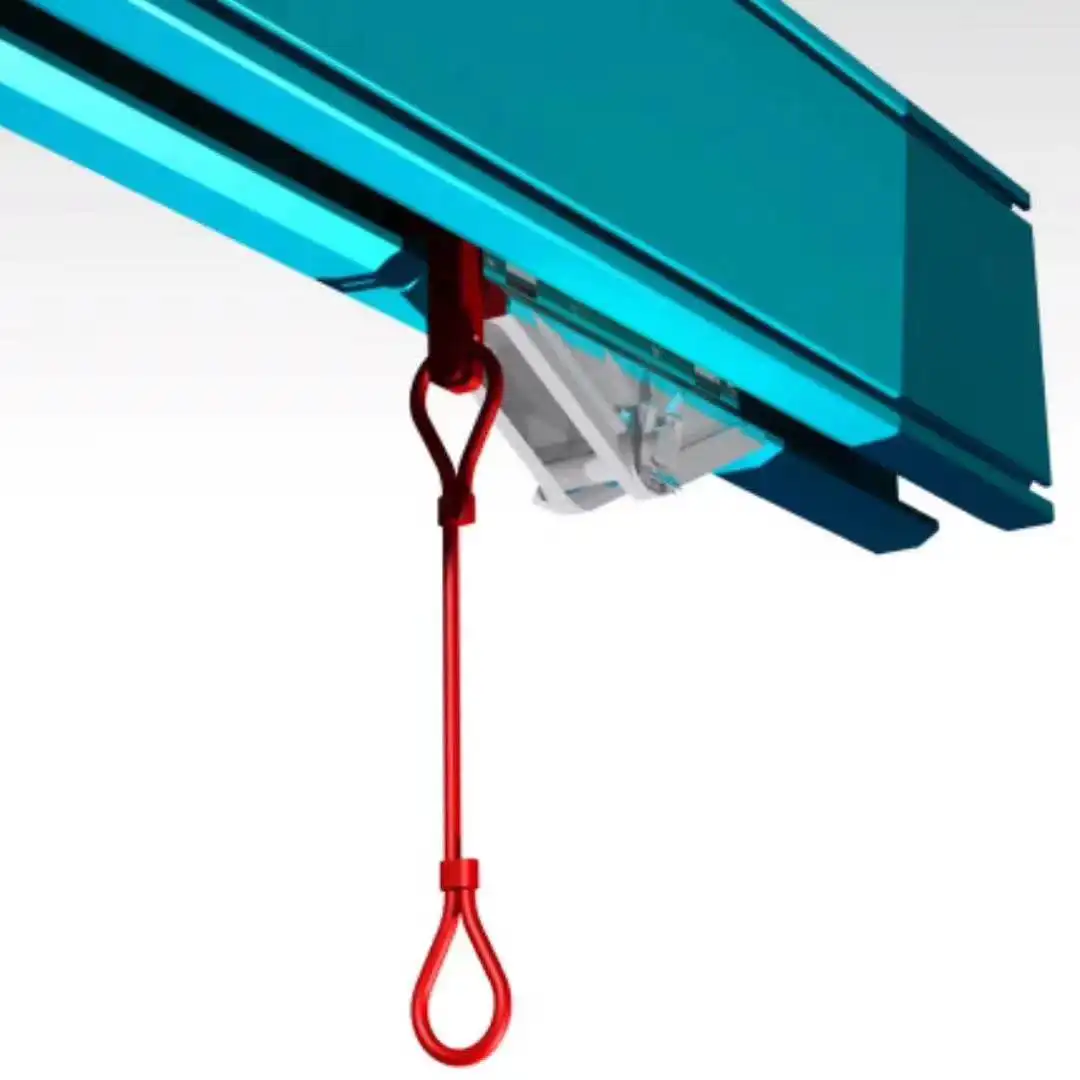

Second protection between runway and beam
Second protection between runway and bridge

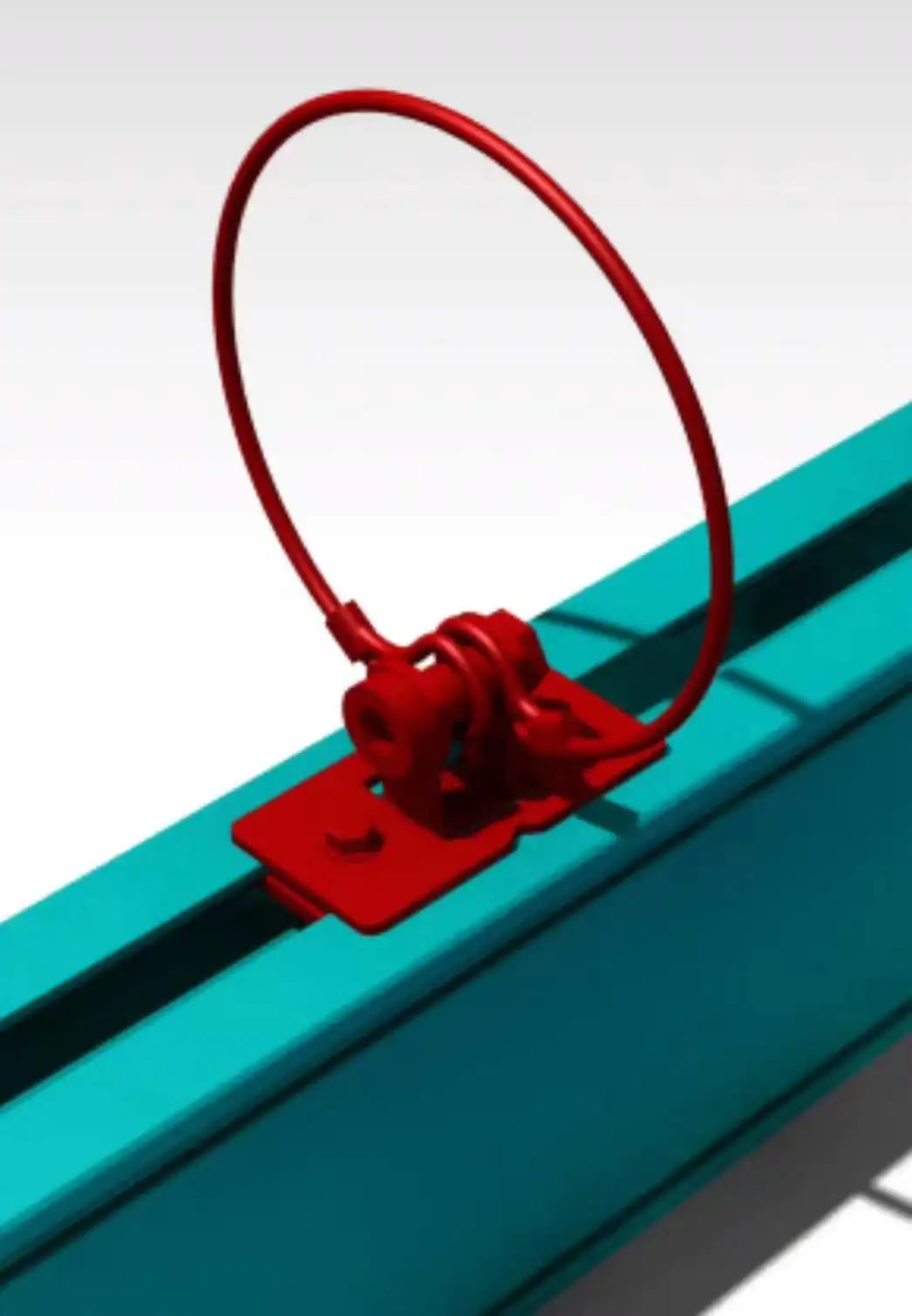

Second protection for hoist

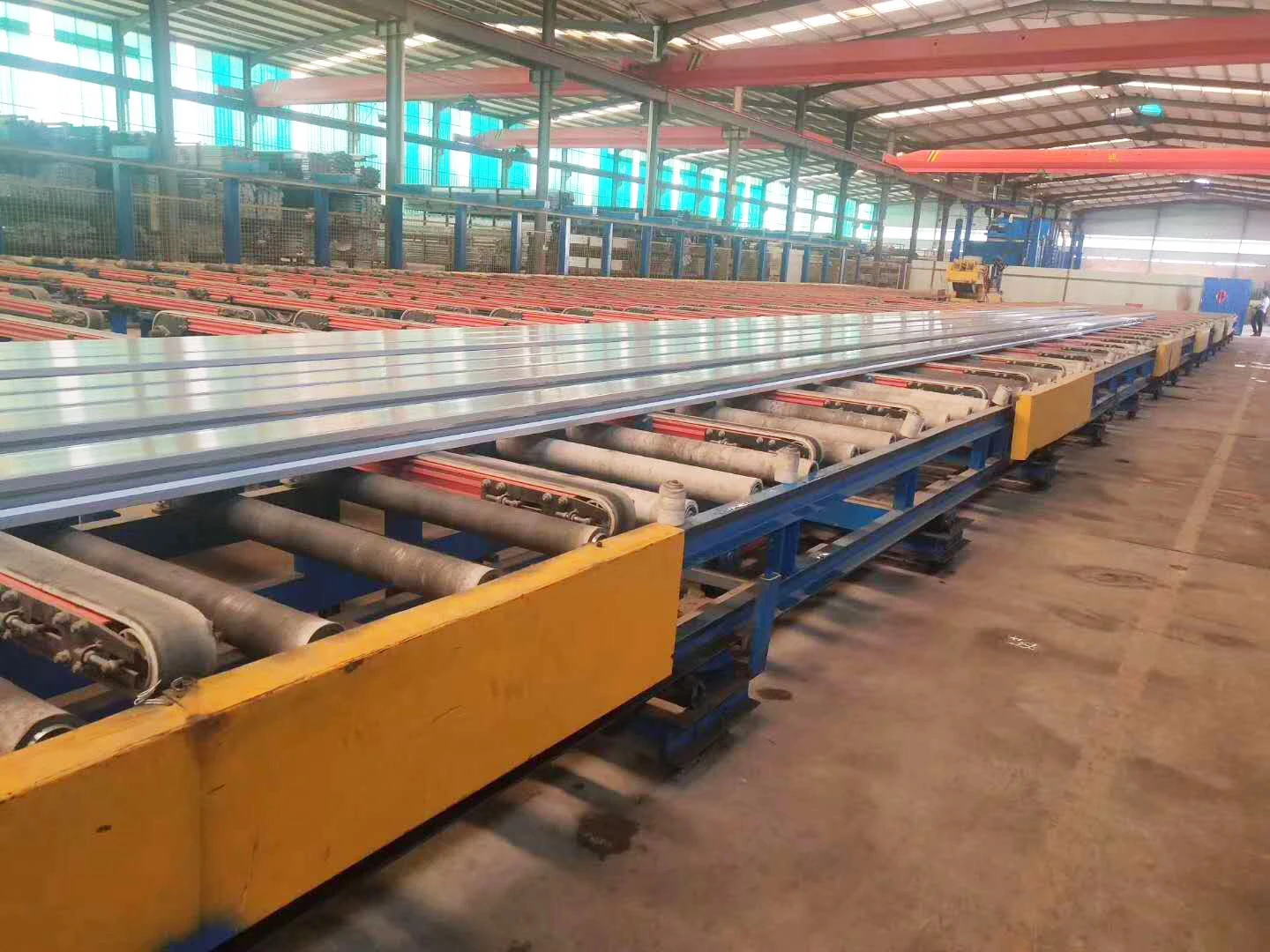

Workshop
Introduction of aluminum light crane
FAQ
1 What parameters needed for a fast quotation?
Runway length,bridge width and lifting capacity you expect.
2 What is the package way of aluminum track?

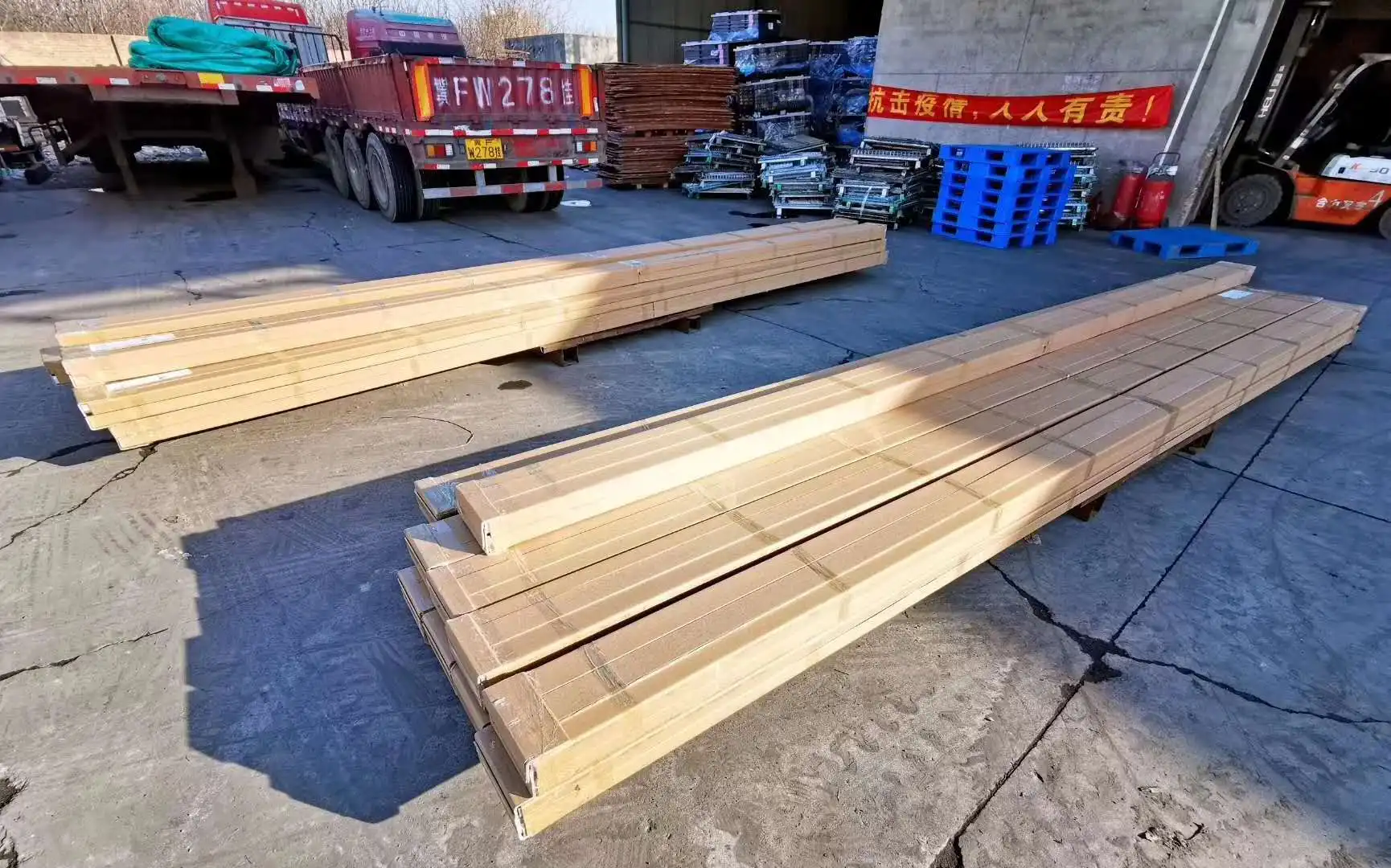

Aluminum track is packed in carton.Can also be packed in wooden case for sea freight.
3 What is the lead time for 100 meters?
About 15 days.
