Product Overview
Description
Product Description

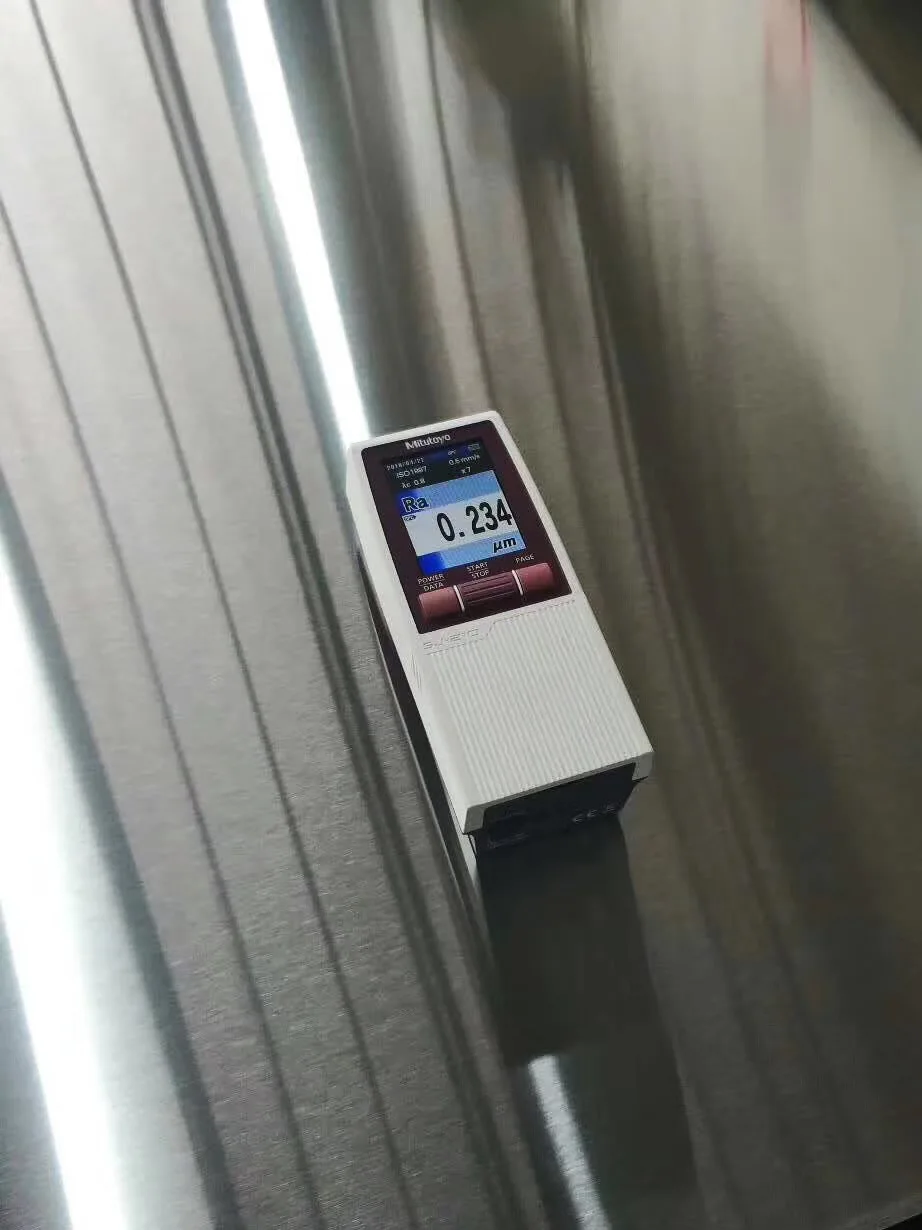

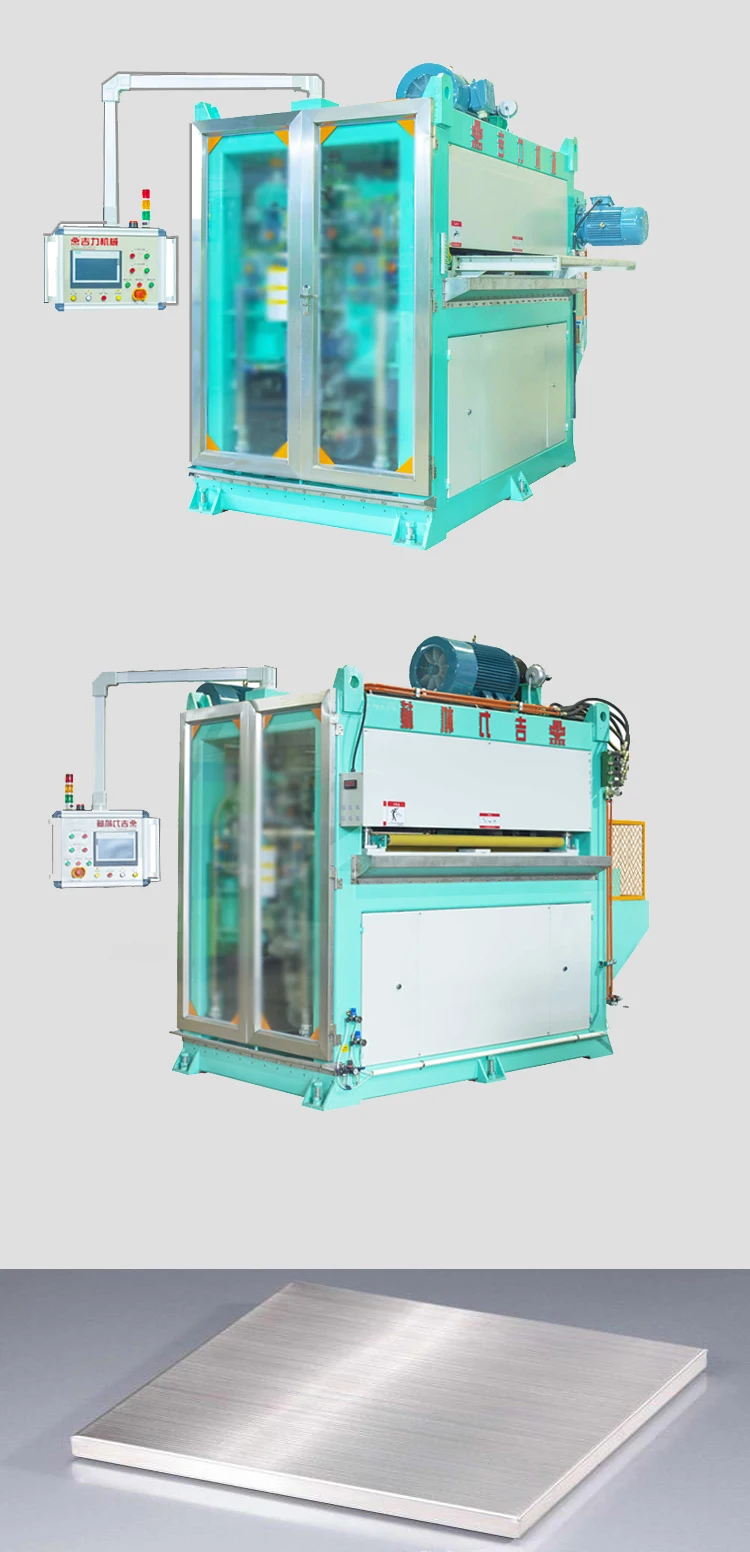

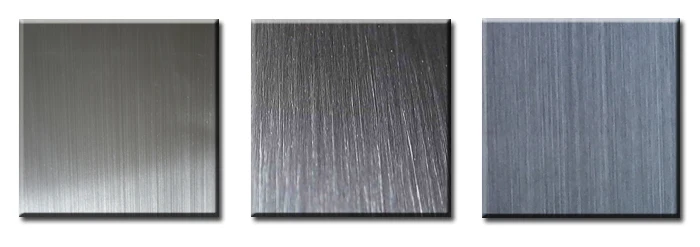

JMHL series provides a Hair-Line(HL) polishing service for the metal coil or sheet, which has a stable frame structure and the pressure adjustable contact rollers. Through the low speed and adjustable downward pressure of the contact roller, the circular abrasive belt who is covered outside the contact roller draws Hair-Line(HL) mark on the surface. The finishing Hair-Line(HL) is parallel, very long line, low roughness and high glosses, the declination of one Hair-Line(HL) mark is less than 2mm within 2m surface’s length.
|
| |||
Model | JMHL3 | JMHL5 | 3H3P |
Number of contact roller | 3 | 5 | 3 Hair-Line module + 3 Easy-Polishing module |
Processing type | Dry or wet polishing available for sheets and coils | ||
Useful width | 700 - 800 - 1050 - 1300 - 1600 - 2100mm | ||
Min. length | 600mm | ||
Thickness range | 0.3-3.0mm (standard), maximum 12.0mm (optional) | ||
Feeding speed | 8-30m/min (adjustable) | ||
Feeding motor | 7.5kw | ||
Main motor | 1.1kw | 7.5kw for Hair-Line module 7.5kw for Easy-Polishing module | |
Contact roller diameter | Φ135mm | Φ135mm for Hair-Line module Φ300 for Easy-Polishing module | |
Abrasive belt linear speed | 2-3m/min | ||
Abrasive belt perimeter | 2800mm | ||
Exhaust dust capacity (dry polishing) | 3000m3/h | 5000m3/h | 8000m3/h |
Filter flow (wet polishing) | 200L/min | 350L/min | 500L/min |
Machine pass line | 960mm (standard) | ||
Single module weight | 4000kg | 5400kg | 6200kg |
Company Information
Foshan Ji Li Jia Machinery Co., Ltd. is a hightech company specialized in the R&D, production, and marketing kinds of surface treatment machine and related products. We start in this field in1995, and already install machines more than 20 countries.
Our company currently has 70 employee, including 10 expects, technician, and 2 programmer engineers. We have a high quality raw materials and manufacturing accuracy control, in order to represent the highest standard of the surface treatment machine.
|

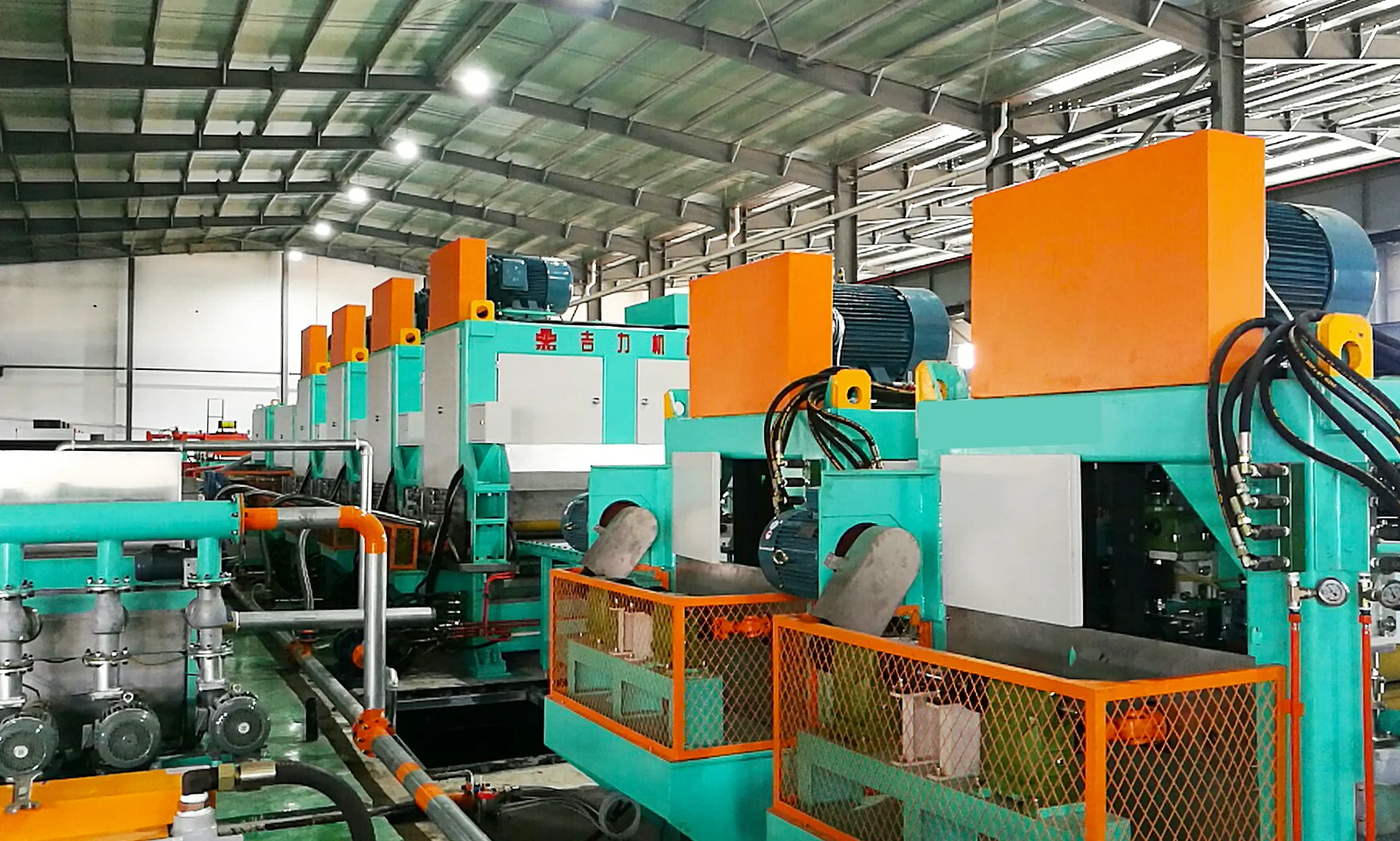

Successful Case
We have more than 20 years experience on surface processing machinery, our team provide a powerful installation, training, turn-key service.
|
