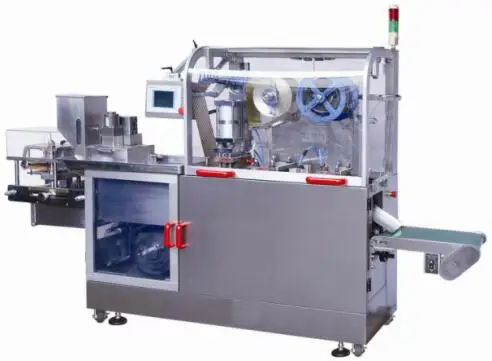

DPP-150C Aluminium Plastic/ duralumin Packing Machine is the latest and high automation product designed for middle and small sized pharmacy factory, healthcare factory and preparation-room of hospital, especially for those who need small batches product but various kinds. It can automatically finish the process of feeding, forming, heat-sealing, pressing, batch number printing, and punching. It is the ideal equipment with convenience operation, full purpose function. The product is made under CE and GMP standard. The machine can be adopted with PLC, frequency converter and touch screen operation instead of standard PC board controller as picture shows.
Usage

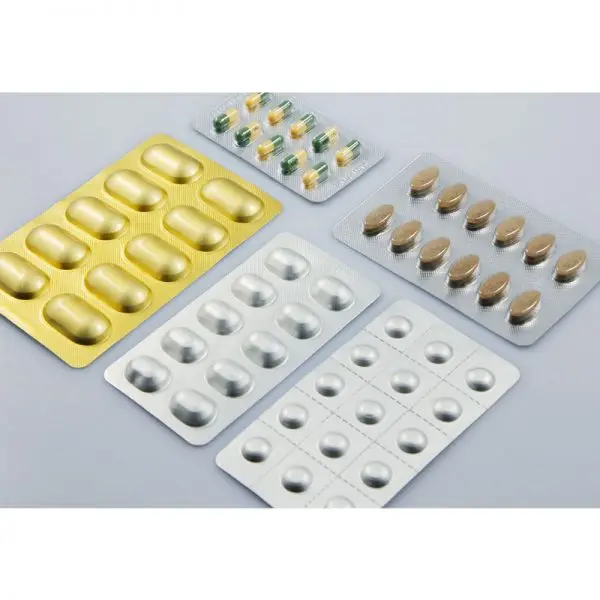

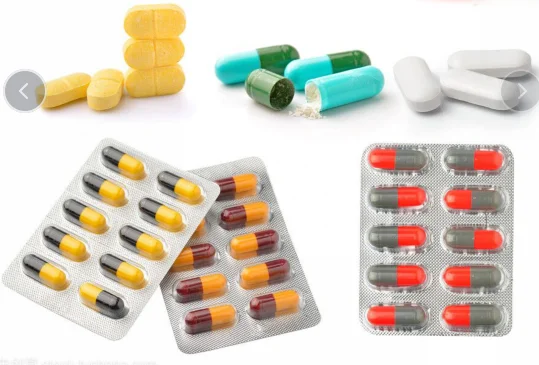

It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), syringe as well as irregular shape Al-Plastic or Paper-Plastic packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
Features:
1.Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
2.Spare parts as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and it is easy to change moulds.
3.With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.
4.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.
40-140(can be lengthened to 160mm according to user's requirements)
Max.Forming area and depth
135X110X26(standard depth 14mm)
Air Pressure(Mpa)
0.4-0.6
Air Supply
≥0.2m³/min
Total Power
380V/220V 50Hz 3.6KW
Main Motor Power(KW)
0.75
PVC Hard Pieces(mm)
0.15-0.5x150
PTP Aluminum Foil(mm)
0.02-0.035x150
Dialysis Paper
50-100gX140
Mould cooling
Tap water or circulating water
Weight
750kg
Overall Dimension
2300X560X1410mm

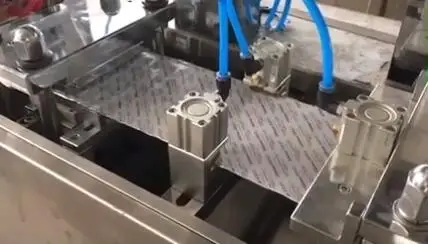

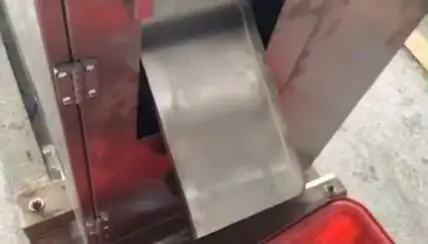

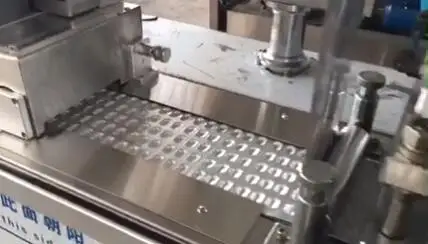

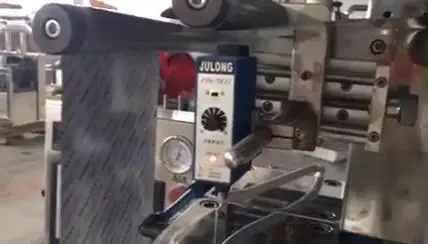

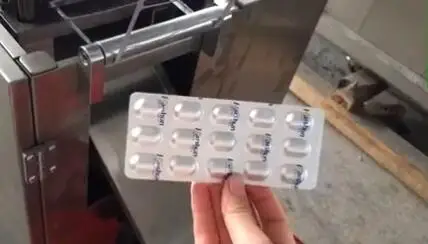

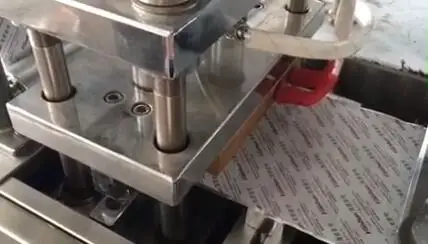

Detailed Images
